Sportcraft Beaumont 32944 HD User Manual

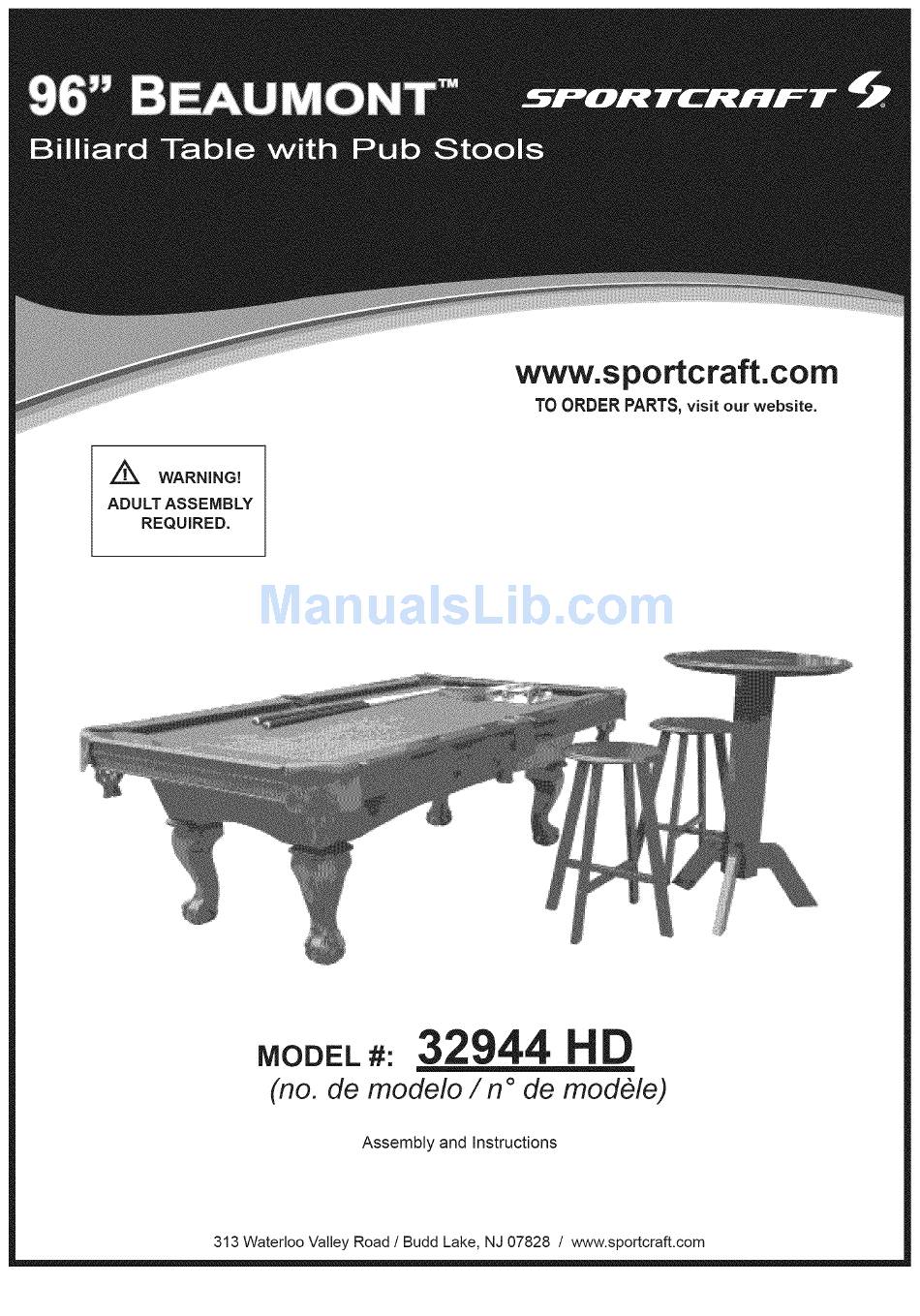

96" beaumont billiardd table with pub stools
Hide thumbs Also See for Beaumont 32944 HD:

Advertisement

Quick Links

www.sportcraft.com
TO ORDER PARTS,
visit our website.
WARNING!
ADULT ASSEMBLY
REQUIRED.
MODEL#: 32
(no. de modelo / n ° de modelo)
Assembly and Instructions
313 Waterloo
Valley Road / Budd Lake, NJ 07828
/ www.sportcraft.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Beaumont 32944 HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sportcraft Beaumont 32944 HD

  • Page 1 TO ORDER PARTS, visit our website. WARNING! ADULT ASSEMBLY REQUIRED. MODEL#: 32 (no. de modelo / n ° de modelo) Assembly and Instructions 313 Waterloo Valley Road / Budd Lake, NJ 07828 / www.sportcraft.com...
  • Page 2: Contact Information

    / 1-800-526-0244 P arts: (Piezas de recambiol Pieces de rechange): / CustomerService@_portcraft.com Technical Support: 1-800-526-0244 (Soporte t6cnico / Assistance technique) 0610 - D3 (Siga a la pggina siguiente.) @2010 Sportcraft, Ltd. 32944 HD (Continued on the next page.) (Page suivante.) www.Sportcraft.com...
  • Page 3 AGRAFEZ VOTRE REQU lCl- La preuve d'achat est exig6e pour commander des pieces sous garantie..(Siga a la pagina siguiente.) @2010 Sportcraft, Ltd. P. 2 32944 HD (Continued on the next page.) (Page suivante.) www.Sportcraft.com...
  • Page 4 NJ 07498 www.sportcraft.com 0510 TG-CA www.sportcraft.com 0510 TG Printed in China 1-530-526-0244 Imprim_ en Chine Impreso en China www.sportcraft.com 0510 TG (Siga pggina siguiente.) a la @2010 Sportcraft, Ltd. P. 3 32944 HD (Continued on the next page.) (Page suivante.) www.Sportcraft.com...
  • Page 5: Outils Necessaires

    DE LA TABLE ET DES PIED APRON - SIDE 32944HD01 32944HD02 (X 4) (X 2) APRON-END 32944HD03 (X 2) (X 4) (Siga a la p_gina siguiente.) @2010 Sportcraft, Ltd. 32944 HD (Continued on the next page.) P. 4 (Page suivante.) www.Sportcraft.com...
  • Page 6 ADDITIONAL PIECES / PIEZAS ADICIONALES / PI#CES COMPLC:MENTAIRES SUPPORT PUB TABLE - BOARD POLE 32944HD14 32944HD15 (X 1) (X 1) (Siga a la p_gina siguiente.) @2010 Sportcraft, Ltd. P. 5 32944 HD (Continued on the next page.) (Page suivante.) www.Sportcraft.com...
  • Page 7 RAIL 32944HD22 32944HD23 (X 2) (X 3) LEG SUPPORT LEG B - BOARD STOOL 32944HD24 32944HD25 (X 4) (X 4) (Siga a la p_gina siguiente.) @2010 Sportcraft, Ltd. P, 6 32944 HD (Continued on the next page.) (Page suivante.) www.Sportcraft.com...
  • Page 8: Maintenance

    SHIM - 1 MM SHIM - 2 MM 32944HD42 32944HD43 (X 3) 32944HD44 (X 3) (X 3) SCREW 32944HD45 (X 10) (Siga a la p_gina siguiente.) @2010 Sportcraft, Ltd. P. 7 32944 HD (Continued on the next page.) (Page suivante.) www.Sportcraft.com...
  • Page 9 32944HD65 32944HD66 32944HD67 (X 24) (X 59) (X 24) SPRING WASHER METAL BRACKET © 32944HD68 32944HD69 (x 55) (X 4) (Siga a Ia p_gina siguiente.) @2010 Sportcraft, Ltd. P. 8 32944 HD (Continued on the next page.) (Page suivante.) www.Sportcraft.com...
  • Page 10 Assurez-vous de I'inspecter to check it before beginning assembly. antes de la asamblea que comienza. attentivement avant proceder I'assemblage. (Siga a la pggina siguiente.) @2010 Sportcraft, Ltd. P, 9 32944 HD (Continued on the next page.) (Page suivante.) www.Sportcraft.com...
  • Page 11 (#3) to the Main Cabinet (#9) using eight Brackets (#59), fourteen Bolts (#63) and fourteen Washers (#66). See Fig. 2 and 2A. ® = (8) = (2) = (14) © @2010 Sportcraft, Ltd. 32944 HD (Continued on the next page.) www.Sportcraft.com...
  • Page 12 Washer (#61) into the center hole as shown in Fig. 3. Repeat the same for the other legs. = (4) @ <:> :t4/ =(4) =(4) = (4) --t_) --t_/ @ I_ --t4/ @2010 Sportcraft, Ltd. 32944 HD (Continued on the next page.) www.Sportcraft.com...
  • Page 13 Attach the Leg assembly to table assembly using six Bolts (#67), six Washers (#64), and six Spring Washers (#65). Repeat the same step for the other three Legs. @2010 Sportcraft, Ltd. P. 12 32944 HD (Continued on the next page.) www.Sportcraft.com...
  • Page 14 (#42, 43, and 44) under the legs to adjust. See Fig. 5. CABINET DO NOT HOLD THE LEGS DO NOT LEAN THE TABLE ON ITS LEGS HOLD TABLE @2010 Sportcraft, Ltd. P. 13 32944 HD (Continued on the next page.) www.Sportcraft.com...
  • Page 15 Leg. Repeat the same steps for the other Legs. Carefully turn over the Leg assembly. Attach the Support Board (#14) to the Leg assembly using three Bolts (#51), three Washers (#66), and three Spring Washers (#68). @2010 Sportcraft, Ltd. 32944 HD (Continued on the next page.) www.Sportcraft.com...
  • Page 16 Table top assembly. • Attach the Table top assembly to the Leg assembly from under side using four Bolts (#52), four Washers (#66), and four Spring Washers (#68). @2010 Sportcraft, Ltd. 32944 HD (Continued on the next page.) www.Sportcraft.com...
  • Page 17 Leg Frame assembly using four Bolts (#51), four Washers (#50), and four Spring Washers (#68). See Fig. 8A. • Repeat the above steps for the other Leg Frames Stools. @2010 Sportcraft, Ltd. 32944 HD (Continued on the next page.) www.Sportcraft.com...
  • Page 18 Leg assembly from underneath using four Bolts (#54), four Washers (#66), and four Spring Washers (#68). Repeat the above steps for the other Stool. @2010 Sportcraft, Ltd. P. 17 32944 HD (Continued on the next page.) www.Sportcraft.com...
  • Page 19 A = lado largo de mesa B = lado corto de mesa A = long c6te de table B = c6te court de table (Siga a la pggina siguiente.) @2010 Sportcraft, Ltd. 32944 HD (Continued on the next page.) (Page suivante.) www.Sportcraft.com...
  • Page 20 3. Moving or touching any ball by means other than legal play. Shooting an intentional jump shot over another ball by scooping @2010 Sportcraft, Ltd. P. 19 32944 HD (Continued on the next page.) www.Sportcraft.com...
  • Page 21 Out", or, if the breaker pockets one or more balls, he continues to shoot until he misses, fouls, or wins the game. Once a player misses or fouls, the @2010 Sportcraft, Ltd. P. 20 32944 HD (Continued on the next page.) www.Sportcraft.com...
  • Page 22 (except the 9 Ball). Any player that commits a foul three consecutive times on three successive shots without making a legal shot in between loses the game. @2010 Sportcraft, Ltd. P. 21 32944 HD (Continued on the next page.) www.Sportcraft.com...
  • Page 23 5POR TL-_Ir'RAF Budd Lake, NJ 07828 www.sport.craft.com Printed in China / lmpreso en China / lmprime en Chine...
