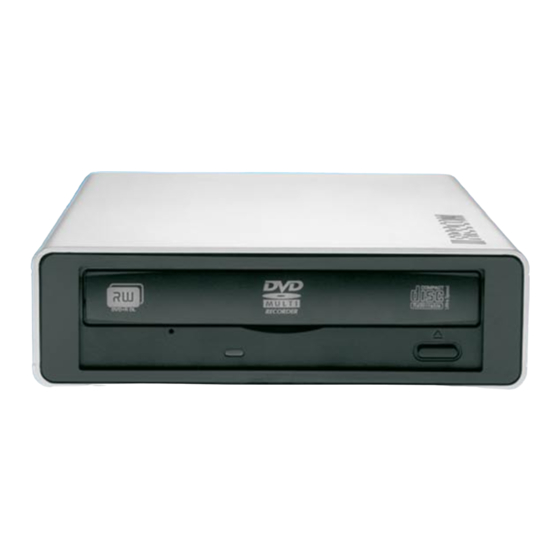

Freecom DVD RW recorder User Manual

External double layer dvd rw drive
Hide thumbs Also See for DVD RW recorder:
Table of Contents

Advertisement

Quick Links

User�s manual
DVD RW recorder
EXTERNAL
DOUBLE LAYER
DVD RW DRIVE
WIN
Rev. 616

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVD RW recorder and is the answer not in the manual?

Questions and answers

Related Manuals for Freecom DVD RW recorder

Summary of Contents for Freecom DVD RW recorder

  • Page 1 User�s manual DVD RW recorder EXTERNAL DOUBLE LAYER DVD RW DRIVE Rev. 616...
  • Page 2 -whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use of or inability to use this Freecom product, even if Freecom has been advised of the pos- sibility of such damages.

  • Page 3: Table Of Contents

    General information ......................Page Chapter 1: Start Up ............................ Page Chapter : Installing the application software ................Page Chapter : Using the Drive ........................Page 11 Chapter 4: Trouble shooting - General problems ................Page 13 © 2006 Freecom Technologies...

  • Page 4: General Information

    * For maximum performance of the Freecom DVD RW Recorder, both computer system and software must support USB 2.0. Connecting the Freecom DVD RW Recorder to a USB 1.1 interface will limit the CD recording speed to 4x. DVD recording is not reliable through USB 1.1.
  • Page 5 • The DVD RW Recorder is USB 2.0 compliant. While USB 2.0 supports CD recording speeds higher than 4x, if this drive is connected to a USB 1.1 port the maximum CD recording speed is 4x.

  • Page 6: Start Up

    4. Switch on the Freecom DVD RW Recorder. Since USB .0 is backwards compatible with USB 1.1, the Freecom DVD RW Recorder can be connected to all USB ports. When connected to a USB 1.1 port, however, the performance (data transfer rate) of the Freecom DVD RW Recorder...
  • Page 7 The Freecom DVD RW Recorder is always powered, even if the USB cable is disconnected from your computer. Therefore, please turn o the Freecom DVD RW Recorder if it is not used. The power switch is on the back side of the Freecom DVD RW Recorder.
  • Page 8 Freecom DVD RW Recorder into the USB port of your computer. Your Freecom DVD RW Recorder is fully backwards compatible with USB 1.1. The instal- lation for USB 1.1 is the same as described below for USB 2.0.

  • Page 9: Installing The Application Software

    To install the application software, insert the "Application" CD, klick "Software Installation" and select your application software. Follow the instructions on screen. Note: If you wish to use other software, please find out from the supplier whether his products support the Freecom DVD RW Recorder.
  • Page 10 You should realize that writing CD/DVDs is principally a sensitive data transmission procedure which can be disrupted by even the smallest mechanical disturbance. • Never clean the Freecom DVD RW Recorder with a commercially available CD or a CD-ROM cleaning set. This can damage the drive. •...

  • Page 11: Using The Drive

    Using the Drive Chapter : Using the Drive How to Use the Discs Attention! When using CD-ROM, CD-R, CD-RW or DVD R/RW discs, don’t attach any stickers or labels to the discs. Using discs with them attached not only causes read and write errors, but data on the disc may be lost due to damage to the disc itself.
  • Page 12 Freecom DVD RW Recorder . Emergency Eject This drive has a function that allows the CD/DVD to be ejected manually if this becomes necessary in an emergency such as failure of the drive or a power outage. Follow the following procedures in such a case. Don’t use this feature except in an emergency.

  • Page 13: Trouble Shooting - General Problems

    Recording speed: • The DVD RW Recorder is USB 2.0 compliant. While USB 2.0 supports recording speeds higher than 4x, if this drive is connected to a USB 1.1 port the maximum recording speed is 4x.
  • Page 14 With respect to all services provided, Freecom is not responsible for any damage to or loss of any programs, data or other information stored on any media or any part of any product serviced. Freecom is not liable for the conse- quence of business loss in case of system failure.
  • Page 15 Safety Manual - DVD-ROM - CD-R(W) - DVD/CD-R(W) Combo - DVD+/-R(W)
  • Page 16 -whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use of or inability to use this Freecom product, even if Freecom has been advised of the possibility of such damages.
  • Page 17 Contents Contents Chapter GB-1 Introduction ........7 Disclaimer of Liability for Manual Contents ........8 Chapter GB-2 Safe Use of External Drive, Components and Accessories ....... 9 BATTERY PACK ..................13 POWER CORDS ..................16 AC ADAPTOR ..................17 SAFE USE OF YOUR EXTERNAL DRIVE ABOARD AN AIRCRAFT ..18 USAGE RESTRICTIONS ................
  • Page 18 Freecom Safety Manual Chapter GB-4 Warranty ........24 LIMITED WARRANTY ................25 Chapter GB-5 Important Information for your Freecom Drive ..........26 FCC information ..................26 EU Declaration of Conformity ............. 28 Safety instruction .................. 28...

  • Page 19: Chapter Gb-1 Introduction

    We hope that you are completely satisfied with your new Freecom external Drive and that it gives you long and productive service. We look forward to providing you with additional Freecom products to serve all of your computing needs in the future.

  • Page 20: Disclaimer Of Liability For Manual Contents

    Manuals) furnished to you will be considered as general guidance and will not create any warranty to you. IN NO EVENT SHALL FREECOM OR ANYONE INVOLVED IN THE DEVELOPMENT OR CREATION OF THIS INSTRUCTION MANUAL OR OTHER INFORMATION PROVIDED TO...

  • Page 21: Chapter Gb-2 Safe Use Of External Drive

    Never attempt to disassemble, tamper with or repair the external drive. This will cause fire, electric shock, death, serious physical injury, or permanent damage. Always contact an authorized Freecom service provider, for appropriate assistance. Warning! Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.
  • Page 22 Never attempt to disassemble, adjust or repair the external drive, as exposure to laser light or other safety hazards will result. Always contact an authorized Freecom service provider, if any repair or adjustment is required. Never open any covers except those that are expressly designed to be opened by the user, in order to prevent the risk of fire possibly resulting in death or serious physical injury, or the malfunction of the external drive.
  • Page 23 Safe Use of External Drive CAUTION ! Never store a external drive in a locked and unventilated vehicle, (where excessive internal temperatures may be encountered). Never place a external drive on top of (or adjacent to) a heating device, and never expose it to direct sunlight, to prevent external drive malfunction or damage to the battery pack or other components.
  • Page 24 Freecom Safety Manual Always handle CDs and DVDs with care, to prevent the possible loss of stored data: a. Always store a CD or DVD in its case when it is not in use, to protect its surface from scratches or contaminants. A CD Drive or DVD Drive may be unable to read the data correctly if the surface of the disk is scratched or contaminated.

  • Page 25: Battery Pack

    Always avoid using the external drive in dusty environments, since dust particles can affect the reliability of the external drive. Always contact an authorized Freecom service provider, if your external drive has become contaminated with dust or dirt particles. BATTERY PACK...
  • Page 26 Leakage of the caustic alkaline solution or other electrolytic substances will cause fire or injury, possibly resulting in death or serious physical injury. Always contact an authorized Freecom service provider immedi- ately, to obtain a suitable replacement.
  • Page 27 Safe Use of External Drive WARNING ! Never allow leaking caustic electrolyte from the battery pack to contact your eyes, body or clothing. • If caustic electrolyte from the battery pack should contact your eyes, immediately wash your eyes with large amounts of running water and obtain prompt medical attention, to help prevent permanent eye damage.

  • Page 28: Power Cords

    The use of a worn or damaged power cord or plug could result in electric shock or fire. Always contact an authorized Freecom service provider immediately, to obtain a suitable replacement. Never attempt to connect or disconnect a power plug with wet hands, to prevent a possible electric shock.

  • Page 29: Ac Adaptor

    Always use the Freecom AC adaptor that have been provided with your external drive, or use authorized Freecom alternate models, to avoid any risk of fire or other damage to the external drive. Bodily injury or property damage will occur as a result of the use of an unauthorized and incompatible AC adaptor, in violation of this warning.

  • Page 30: Safe Use Of Your External Drive Aboard An Aircraft

    Freecom Safety Manual CAUTION ! Never place an AC adaptor on a wooden surface (or any other surface that could be marred by exposure to heat) while it is in use, since its surface temperature increases during normal use. Always rest it on a suitable heat- insulating material.

  • Page 31: Usage Restrictions

    Safe Use of External Drive USAGE RESTRICTIONS Never incorporate this Freecom external drive into a system that will be used to control the following critical equipment: Equipment directly linked to the protection of human life, including: • Medical monitoring equipment, life support systems and equipment used in hospital operating rooms.

  • Page 32: External Drive

    Important Information on using cellular phones with your external Drive Freecom recommends that you keep a distance of at least 30 cm (approximately 12 inches) between cellular phones and the external Drive. Use of cell phones in close proximity to the drive may interfere with audio playback.

  • Page 33: Chapter Gb-3 Maintaining A Safe Work Environment

    (and they include a self-contained battery pack), so that they can be easily carried and used almost anywhere. Proper use of a Freecom external drive does not pose any health hazards. When used in accordance with the safety instructions in this manual they also offer an...
  • Page 34 Freecom Safety Manual When this Freecom external drive is being powered by an AC adaptor, the AC adaptor and its associated AC power cord may themselves emit low levels of ELF energy. The intensity levels of those ELF emissions however, even in close proximity to the AC adaptor and its associated AC power cord, is relatively low in comparison to those of other common household appliances.
  • Page 35 EMF energy in the RF range. Consequently, the minute levels of EMF energy in the RF range that are emitted by Freecom external drives comply with all existing regulations and standards, and pose no known health hazards to human beings.

  • Page 36: Gb Chapter Gb-4 Warranty

    Freecom RMA number received from the Freecom Website or given by a Freecom Service Center. Freecom reserves the right to refuse the free-of- charge guarantee services when the date of purchase of the product cannot be proven.

  • Page 37: Limited Warranty

    Be sure to exclude all parts not covered by this guarantee prior to returning the product to Freecom. Freecom is not liable for any loss or damage to these items. If during the repair of the product the contents of the hard drive are altered, deleted or in any way modified, Freecom is not liable whatsoever.

  • Page 38: Chapter Gb-5 Important Information For Your Freecom Drive

    Chapter GB-5: Important Information for your Freecom External Drive FCC information Product Name: Freecom External Drive Model number: FX-xx, FS-xx, Classic xx FCC notice „Declaration of Conformity Information“ This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.

  • Page 39: Fcc Conditions

    Only peripherals complying with the FCC limits may be attached to this equipment. Operation with non-compliant peripherals or periph erals not recommended by Freecom is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices, USB port, and microphone jack.

  • Page 40: Eu Declaration Of Conformity

    Freecom Safety Manual EU Declaration of Conformity Freecom declares, that the product: FX-xx, FS-xx, Classic xx conforms to the following Standards: Supplementary Information: “The product complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/ EEC and/or the R&TTE Directive 1999/05/EEC.” This product is carrying the CE-Mark in accordance with the related European Directives.
  • Page 41 Important Information for your Freecom External Drive Location of the required label CAUTION CAUTION CAUTION CAUTION CAUTION! This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT.” To use this model properly, read the instruction manual carefully and keep this manual for your future reference.
  • Page 42 Freecom Safety Manual Following information is only for EU-member states: The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
