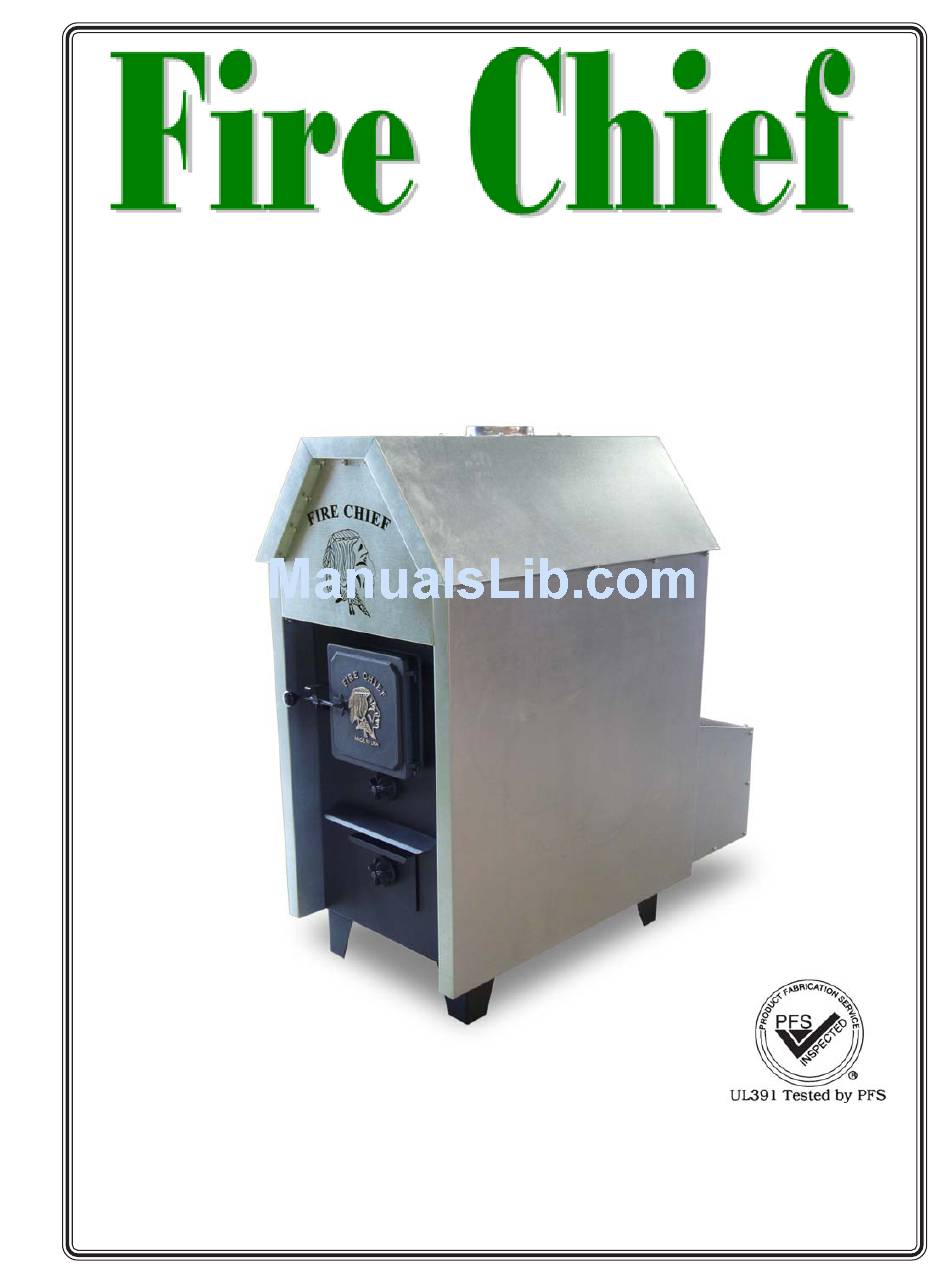

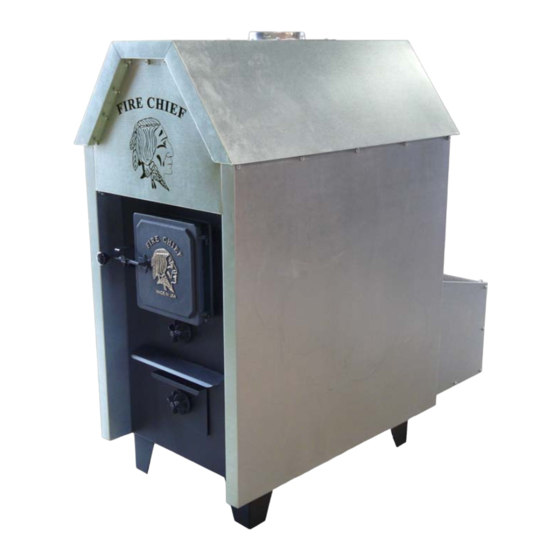

- Page 1 Outdoor Woodburning Furnace Model FCOS2200 Owner’s Manual Volume I rev. October 2008 Victorian Sales Manufactured by 1808 Larkin Williams Road Fenton, MO 63026...
- Page 2 USA. Please take a few moments to carefully read the owner’s manual. By taking the time to familiarize yourself with your new Fire Chief Outdoor Furnace, you will be able to look forward to years of trouble- free, dependable service.
-
Page 3: Table Of Contents
T T T T T able of Contents able of Contents able of Contents able of Contents able of Contents General Specifications, Furnace and Components ..........4 Installation and Operation ..................5 Clearances / Test Firing ..................5 Hot Air Duct and Cold Air Return ................6 First Firing, Basic Operation ................. -
Page 4: General Specifications, Furnace And Components
The central solid fuel outdoor furnace provides the most viable solution to the on going prob- lem of homeowner utility dependence. In consideration of this fact, the Fire Chief OS2200 has been engineered to accommodate the heating requirements of the average sized home, even during winter’s coldest months. -
Page 5: Installation And Operation
Abnormally cold weather could reduce the burn time. The Fire Chief FCOS2200 is unlike gas or electric furnaces - a solid wood furnace can not be turned “off and on” to control the furnace temperature - once the fire is established, it has to burn, until it burns itself out. -
Page 6: Hot Air Duct And Cold Air Return
The Fire Chief OS2200 MUST be installed with a cold air return system. The system must be a minimum of 12” to readily transfer the cold air back to the furnace. If desired , a cold air filter box may be constructed, minimum opening 226 square inches. - Page 7 If you use black plastic corrugated culvert pipe underground, it should not exceed 25’ and by using this type of pipe, you run the risk of reducing the furnace’s efficiency and air flow. DO NOT USE FLEX DUCT INSIDE PVC OR CULVERT PIPE. A basement window is an excellent location for running the hot air duct vent as well as the vent for the cold air return.
-
Page 8: Types Of Installation
Types of inst Types of inst Types of installa alla alla allation tion tion tion Types of inst Types of inst alla tion Central Duct Connections: Installation should be done by a qualified professional. Maximum run 40’ - a duct run in excess of 40’ will greatly restrict the air flow / heat output and is not recommended. When connecting the OS2200 to a central duct system, avoid 90 degree elbows - as with any furnace, the more turns and branches in the ducting the less air flow delivery. -
Page 9: Installation: Downdraft Furnace Or With No Duct Work
10” In a mobile home, with a down-draft furnace, Hot Air do not attach the hot air duct from the OS2200 Fire Chief Downdraft to the hot air plenum doing so will cause the Furnace OS2200 heat to rise through the central furnace instead of going through the duct work. -
Page 10: Fuel Recommendations
Ash Removal: A pair of heat resistant gloves are recommended Remove the ashes from your Fire Chief OS2200 at least once a day - or as often as necessary to ensure that the ashes do not accumulate to the height of the grates. If ash build-up occurs at grate level, it will cause premature failure of the grates, voiding the warranty on the grates. -
Page 11: Maintenance
Maintenance of the OS2200 Maintenance of the OS2200 Maintenance of the OS2200 Maintenance of the OS2200 Maintenance of the OS2200 At the beginning and end of each heating season, take time to thoroughly check your furnace and chimney system. Make sure there are no leaks where the metal panels are joined or at the caulk lines, should you find a leak, hi-temp silicone will correct the problem. -
Page 12: Parts Diagram
P P P P P ARTS DIAGRAM ARTS DIAGRAM ARTS DIAGRAM ARTS DIAGRAM ARTS DIAGRAM... -
Page 13: Wiring Diagram
WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM Automatic Blower Operation: Turns “ON” at 140° and shuts “OFF” at 130° Manual Blower Operation: Turning switch to “ON” will override the thermostat and allow you to operate the blower manually. -
Page 14: Troubleshooting Guide
TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING PROBABLE CAUSE SUGGESTED REMEDY PROBLEM • Wood has rotted or has been Inspect the wood for obvious signs 1. Bugs found in wood. laying around for an extended of insect infestation such as burrows period of time. or holes and avoid using if possible. - Page 15 TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING SUGGESTED REMEDY PROBABLE CAUSE PROBLEM Chimney should be a minimum of • Chimney not high enough 6. Smoke from the fire chamber 12’ from ground. is puffing back through spin draft • Too many elbows. knobs The run should not contain more than two (2) elbows.
- Page 16 TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING PROBLEM PROBABLE CAUSE SUGGESTED REMEDY 8. Excessive smoke discharge • Excessively long stove pipe run Relocate Flue termination. from fuel door during reloading. from furnace flue. • Too many elbows. SEE #6 • Insufficient draft. SEE #6 •...
- Page 17 TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING TROUBLESHOOTING PROBABLE CAUSE PROBLEM SUGGESTED REMEDY • Fueling furnace with wet or unsea- 12. Rapid accumulation of Completely avoid using if at all pos- soned wood. creosote in furnace and flue. sible. If circumstances necessitate the use of wet or unseasoned wood, fuel the furnace with smaller loads.
-
Page 18: Warranty Information
Extent of Coverage: This warranty covers any Fire Chief OS2200 Outdoor Furnace sold in the United States. This warranty applies only if the Fire Chief OS2200 Furnace is installed, maintained and operated safely, in accordance with the instructions in the owner’s manual and local codes. -
Page 19: Model And Serial Number Registration
Fire Chief Model Number:_________________________________________________ Purchase Date: ________________________________________________________________________ Serial Number: ________________________________________________________________________ Dealer where purchased: ________________________________________________________________________ Additional Service Information: __________________________________________________________________________________________________ _____________________________________________________________________________...
