Page 1: Wood Burning

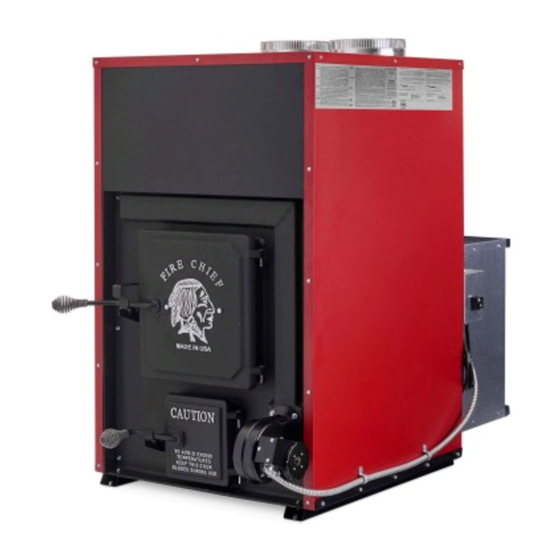

FIRE CHIEF FURNACE WOOD BURNING INDOOR FURNACE MODEL: FC1000 Manufactured by: Fire Chief Industries 10950 Linpage Place Saint Louis, MO 63132 1-800-875-4788 Certified to Revision IV UL391 (Sept. 2010) MADE IN USA August 2018 CSA B366.1 (2014) - Page 2 This Page Intentionally Blank...
- Page 3 • There should be no alteration of the Fire Chief Furnace in any way, as this will void the UL391 safety listing and affect the operation of the furnace. This will also void the warranty of the unit.
-
Page 4: Save These Instructions
Every effort has been made to ensure that your Fire Chief Furnace will arrive in perfect condition. Any visible damage should be noted on the freight bill at the time of delivery. If upon unpacking your Fire Chief Furnace you find that damage has occurred during transit, notify your dealer immediately. -
Page 5: Table Of Contents
TABLE OF CONTENTS General Information Location and Installation Assembly of Unit Blower and Housing Filter Box Chimney Types and Recommendations Duct Runs General Operation Types of Wood to Use First Fire Loading Wood Disposal of Ashes Draft Blower Creosote Formation reosote Prevention himney Fire Warning Power Failure... -
Page 6: General Information
The plenum size of your Fire Chief Furnace must not be reduced to less than 100 square inches, and must provide a minimum of 18 inches between the top of your Fire Chief Furnace and the main trunk connection. Do not modify the outer shell of the furnace at any time. -
Page 7: Location And Installation
This is not a down draft furnace and not to be installed as one. If you do not have a basement and the plenum cannot be put in the ceiling, then we recommend our Fire Chief outdoor furnace model FC1900. -
Page 8: Assembly Of Unit
THE DEALER DOES NOT CARRY REPLACEMENT PARTS. NOTE: For your convenience your Fire Chief Furnace has been factory assembled and the electrical control assembly pre-wired. 1. Fasten the right and left side angle brackets to the circulation blower using (4) ¼ - 20 bolts and nuts. Line up the blower with the pre- drilled holes on the backside of the furnace, firmly attach with the screws provided. -
Page 9: Filter Box
3. Assemble the following parts using 6 #8 sheet metal screws. Both "B" and "C" panels should fit inside the bottom "A" panel flanges. Attach "B" and "C" (side panels) to "A" (bottom panel). After the bottom and sides are assembled, attach "A" (top panel) using 6 #8 sheet metal screws provided. -
Page 10: Chimney Types And Recommendations
Regardless of your choice of chimney type, for models FC1000, a minimum 6-inch diameter chimney is needed. In order to create the most effective draft, the chimney size should not exceed 12 inches, with a maximum .08 water column inches of draft. - Page 11 When using a brick chimney, you must line the entire chimney with stainless steel liner. The liner must be 6” for the FC1000. The diameter of the chimney stack should be consistent throughout the length of the chimney.
-
Page 12: Duct Runs
WARNING- RISK OF FIRE: • Do not operate with flue draft exceeding .08 water column inches (19.9 Pa). • Do not operate with fuel loading or ash removal doors open. • Do not store fuel or other combustible materials within marked installation clearances. •... -
Page 13: General Operation
Types of Wood to Use: We advise using only dry, seasoned hardwoods in your Fire Chief Furnace rather than high resin woods such as pine. Firewood should be cut at least one full season prior to the time of its intended use, for optimum heat output. Firewood should be stacked to provide a free flow of air between the logs, thus allowing more rapid seasoning of the wood. - Page 14 CAUTION: • INSPECT FLUE PIPES, JOINTS AND SEALS REGULARLY TO ENSURE THAT SMOKE AND FLUE GASES ARE NOT DRAWING INTO, AND ARE NOT BEING CIRCULATED BY THE AIR-CIRCULATION SYSTEM. • CLEANING OF THE HEAT EXCHANGER, FLUE PIPE, CHIMNEY AND DRAFT INDUCER (IF USED), IS ESPECIALLY IMPORTANT AT THE END OF THE HEATING SEASON TO MINIMIZE CORROSION DURING THE SUMMER MONTHS CAUSED BY THE ACCUMULATED ASH.
-
Page 15: First Fire
Finally, adjust the wall thermostat. Ash pan must remain out of furnace during operation. NOTE: Your new Fire Chief Furnace is capable of producing a very high BTU output. Do not fuel your furnace to capacity upon initial firing. It’s recommended that you become thoroughly familiar with your Fire Chief Furnace before operating at full capacity. -
Page 16: Draft Blower
Remove the ashes from your Fire Chief Furnace at least once a day, or as often as necessary to ensure the ashes do not accumulate to the height of the grates. If ash build-up occurs at grate level, it will cause premature failure of the grate system, voiding the warranty on the grates. - Page 17 NOTE: OVER-FIRING OR DELIBERATE ABUSE CAN EASILY BE DETERMINED UPON INSPECTION AND WILL VOID THE WARRANTY. Always keep your wood covered year round. Dry wood will produce a higher BTU output and a longer burn time. Refer to the nameplate on furnace for additional information. WARNING: RISK OF FIRE •...
-
Page 18: Furnace Diagram With Parts List
Furnace Diagram PARTS LIST ITEM PART DESCRIPTION FC1000 PART NUMBER ASH DOOR HANDLE ASSEMBLY WAF-ADHD FUEL DOOR HANDLE ASSEMBLY WAF-FDHD FURNACE SHELL SIDE PANEL ASSEMBLY FCE-10SP BLOWER ASSEMBLY FC3SPMOTOR BLOWER MOTOR FCDD037P BLOWER HOUSING FCBH FILTER BOX BOTTOM WAF-FBB FILTER BOX SIDE WAF-10FBS FILTER BOX TOP &... -
Page 19: Blower Motor Assembly Diagram
Blower Motor Assembly Diagram PARTS LIST ITEM PART DESCRIPTION PART NUMBER BLOWER HOUSING ASSEMBLY FCBH MOTOR CAPACITOR FC3610J370 BLOWER MOTOR SERVICE KIT FC3SPMK... -
Page 20: Wiring Diagram
WIRING DIAGRAM Wiring Diagram FAN LIMIT CONTROL (FCFLC) ORANGE YELLOW WALL THERMOSTAT (FCTHERM) BLACK FCTRAN-E FCRELAY-E RELAY 120V AC/24V AC TRANSFORMER 120V AC POWER SUPPLY WHITE BLACK WHITE BLACK GREEN BLOWER DRAFT BLOWER MOTOR MOTOR (FCDB) (FC3SPMOTOR) -
Page 21: Troubleshooting
Troubleshooting Problem: Circulation blower runs constantly. NOTE: Make sure the white button on fan limit control is pulled out and in the “auto” position. Remedies: Possible Causes: • “Off”setting on fan limit control is • Remove cover on fan limit control and check for the proper setting. low. - Page 22 Problem: Draft blower will not run. NOTE: Verify that the wall thermostat is in the “HEAT” position, and make sure batteries are installed. Remedies: Possible Causes: • Defective wall thermostat. • This can be checked by turning the thermostat to a temperature setting that is higher than the temperature in your home.
- Page 23 Problem: Draft blower runs constantly. Remedies: Possible Causes: • Defective wall thermostat. • This can be checked by turning the thermostat to a lower setting than the temperature in your home. If the draft blower continues to run, the thermostat may be defective. Replace if necessary. •...
- Page 24 Problem: Down draft on chimney caused by one or more of the following. Remedies: Possible Causes: • Flue has a cold spot which • This problem may occur in factory built flues because the insulation inhibits exhaust discharge from has settled or a seam has ruptured. In masonry flues, mortar loss rising properly.
- Page 25 Problem: Home does not achieve comfortable temperature. Remedies: Possible Causes: • Improper ductwork connection to • Refer to information in the manual relating to the proper installation existing furnace. procedures or contact your local heating and cooling contractor. • Improperly sized ducting. •...
- Page 26 This Page Intentionally Blank...
-
Page 27: Warranty Information
• The name / address of the store from which you purchased the furnace Fire Chief Industries warranties the firebox and cast iron grates to be free of defects in material and workmanship for the liftetime of the original purchaser. Intentional misuse or abuse causing burn through of the cast iron components voids all warranties. Over firing the furnace will cause the front face to crack and is not covered by the warranty. -
Page 28: Product Information
Purchase and Service Information Please complete this information following the purchase of your product. This information is required when requesting Customer Service and/or when processing Warranty Claims. Please reference this page when requesting Customer Service. Customer Information: Purchased From: Name: Dealer/Store: Street Dealer/Store Phone #:...
