Related Manuals for Gigaware 40-306
Summary of Contents for Gigaware 40-306

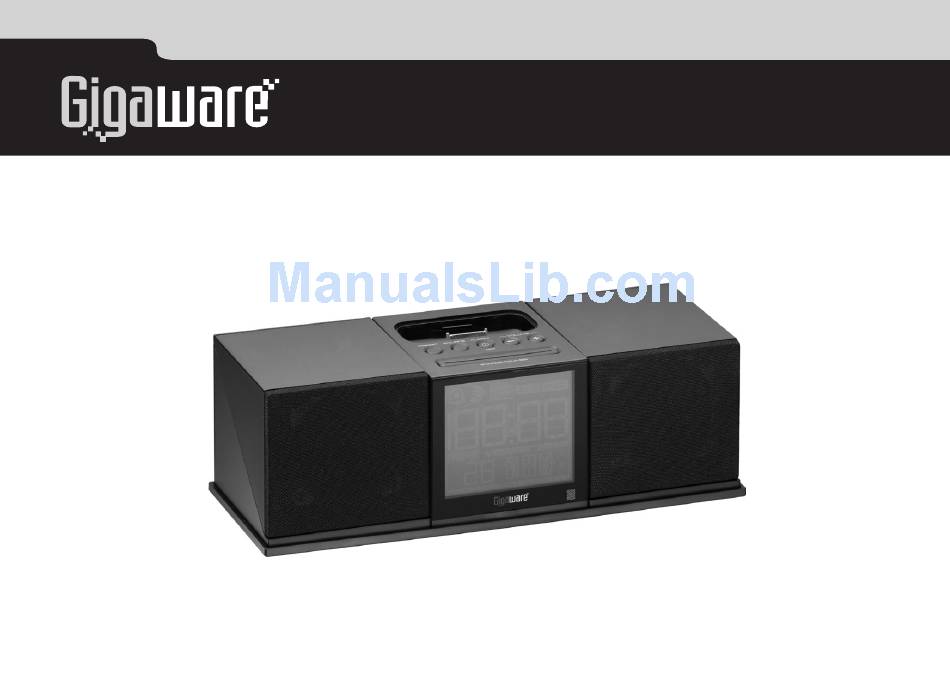

- Page 1 40-306 User’s Guide Alarm Clock Radio with Dock for iPod or iPhone ® ™ Please read this User’s Guide before operating your new clock radio.
-
Page 2: Table Of Contents
Contents Features ..........................4 Package contents ......................4 Display ..........................5 Top View ..........................6 Back View ........................7 Remote control .......................8 Operation ..........................9 Setting the Clock ......................10 Setting the Alarm ......................11 Turning Off the Alarm ....................12 Using Snooze ......................12 Using your iPod / iPhone ....................12 Dock and Charge ....................12 Navigating iPod / iPhone ..................13 Playing Tracks ......................13... - Page 3 Using the FM Radio .....................14 Storing Preset Stations ..................14 Recalling Preset Stations ..................14 Using an Auxiliary Source ...................15 Adjust Volume ......................16 Display Brightness .......................16 Sleep Mode ........................16 Installing Remote Control Batteries ................17 Additional Information ......................19 Troubleshooting ......................19 Specifications .......................20 FCC Information ......................20 Limited Warranty ......................21...
-
Page 4: Features
Features • Stereo clock radio system for iPod / iPhone • Charge and play your iPod / iPhone at same time • Compatible with most iPods and iPhones • Alarm Clock can wake you up by buzzer, iPod, or FM radio •... -
Page 5: Display
Display Radio Mode Wake to Buzzer Wake to radio Aux Mode Alarm On iPod Mode Wake to iPod Clock time, Alarm time, FM Frequency Volume Sleep Mode On Day of the Month; Month Day of the week... -
Page 6: Top View
Top View Power / ALARM OFF iPod Dock • Turn clock radio on or off Snap in the cradle for your iPod or iPhone • Press when alarm sounds to turn alarm off until the next day SOURCE Select iPod, Radio, VOLUME –... -
Page 7: Back View
Back View TUNING + / – TIME • Increase and decrease Press and hold to radio frequency. enter clock setting mode • Change time in time and alarm setting modes. ALARM • Select preset location when • Set alarm time storing preset stations and alarm mode •... -
Page 8: Remote Control
Remote control Power Mute Turn clock radio on and off Turn sound on and off MENU FUNC Enter iPod menu Select iPod, Radio and AUX Mode SELECT Confirm selection Navigate left and right Shuffle through menus, skip forward or backward in iPod mode Select random playback in iPod mode Repeat... -
Page 9: Operation
Operation Connect Speakers 1. Unwind speaker wires. 2. Plug one speaker into SPEAKER R and the other into L. Connect AC Adapter 1. Plug the AC Adapter’s barrel plug into the DC IN jack on the back of the clock. 2. -
Page 10: Setting The Clock
Setting the Clock 1. Press and hold TIME on the back of the clock. The time flashes. 2. Press TUNING + or – on the back of the clock radio to select 12-hour or 24-hour format. When 12-hour is selected, the AM or PM indicator flashes. When 24-hour is selected, the hour setting flashes. -
Page 11: Setting The Alarm
Setting the Alarm 1. Press ALARM on the back of the radio. The last alarm setting flashes. 2. Press ALARM to select one of the following alarm modes: 7 days alarm Alarm Alarm mode source 5 days alarm 3. Press SOURCE to select the alarm source: Wake to the last iPod track Wake to the buzzer Wake to the last used radio station... -
Page 12: Turning Off The Alarm
Turning Off the Alarm When the alarm sounds, press ALARM OFF to turn alarm off. The alarm will sound again the next day at the same time. Using Snooze When the alarm sounds, press SNOOZE to silence the alarm for 10 minutes. You can continue to use the snooze for up to two hours Using your iPod / iPhone Dock and Charge... -
Page 13: Navigating Ipod / Iphone
2. Snap the cradle into the docking station. 3. Plug your iPod / iPhone into the cradle. Navigating iPod / iPhone 1. Press MENU on the remote control to access iPod / iPhone menu. 2. Press to navigate up and down menus. ... -
Page 14: Using The Fm Radio
Using the FM Radio 1. Press on the clock radio or remote. 2. Press SOURCE on the clock radio or FUNC on the remote to select Radio Mode. The icon displays. 3. Press TUNING + or – on the back of the clock radio or on the remote control to find a station. -
Page 15: Using An Auxiliary Source
Using an Auxiliary Source Connect an audio device using a Ç” (3.5 mm) phono cable (not included). 1. Plug one end of the cable into the audio or headphone output of your audio device. 2. Connect the other end of the cable into the LINE IN jack on the back of the clock radio. -
Page 16: Adjust Volume
Adjust Volume • Press VOLUME – / + on the clock radio or on the remote to adjust volume. • Press on the remote to turn mute sound. Display Brightness Press SNOOZE / DIMMER on the clock radio to select one of the three available display brightness levels. -
Page 17: Installing Remote Control Batteries
Installing Remote Control Batteries If you are using the remote control for the first time, open the battery compartment door and pull out the clear plastic tab to enable battery contact. To replace the battery: 1. Slide the battery compartment door in the direction of the OPEN arrow, then lift the cover. - Page 18 Handling and Disposal • Do not use batteries of different types, capacities, or chemistry. • Do not dispose of lithium batteries in the trash. • Never allow loose cells to short circuit against battery tabs or other conductive items. Keep loose cells and battery packs out of reach of children. •...
-
Page 19: Additional Information
Additional Information Troubleshooting Problem Solution Sound not clear or no sound Check the phono cable or iPod connection Sound not clear on the FM Radio Extend the FM Antenna from the back of the clock radio. Move the antenna to a different location. No display Check that AC power is plugged in properly. -
Page 20: Specifications
Specifications Power Supply.................... AC/DC adaptor 5 VDC @ 2 A Output Power ........................2Wx2 RMS Impedance........................... 4 ohm Frequency Response ....................200 Hz – 15 kHz S/N Ratio.......................... >65 dB @1 W Cord Length........................6 ft (180 cm) Connectors ......................30-Pin iPod connector ..........................Ç”... -
Page 21: Limited Warranty
• Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Ignition L.P . may cause interference and void the user’s authority to operate the equipment. - Page 22 parable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of Ignition L.P . New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period.
- Page 23 “Made for iPod” and “Works with iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
- Page 24 Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. Printed 03A10 © 2010. Ignition L.P . All rights reserved. in China 40-306 Gigaware is a trademark used by Ignition L.P .
