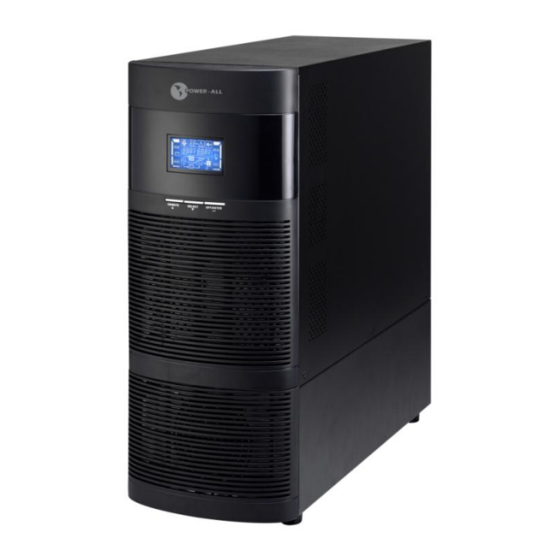

Power-all FRUK19-3000HV-01V User Manual

Fruk19-3000hv-01v online ups
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
Online UPS
FRUK19-3000HV-01V
Uninterruptible Power Supply System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRUK19-3000HV-01V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Power-all FRUK19-3000HV-01V

Summary of Contents for Power-all FRUK19-3000HV-01V

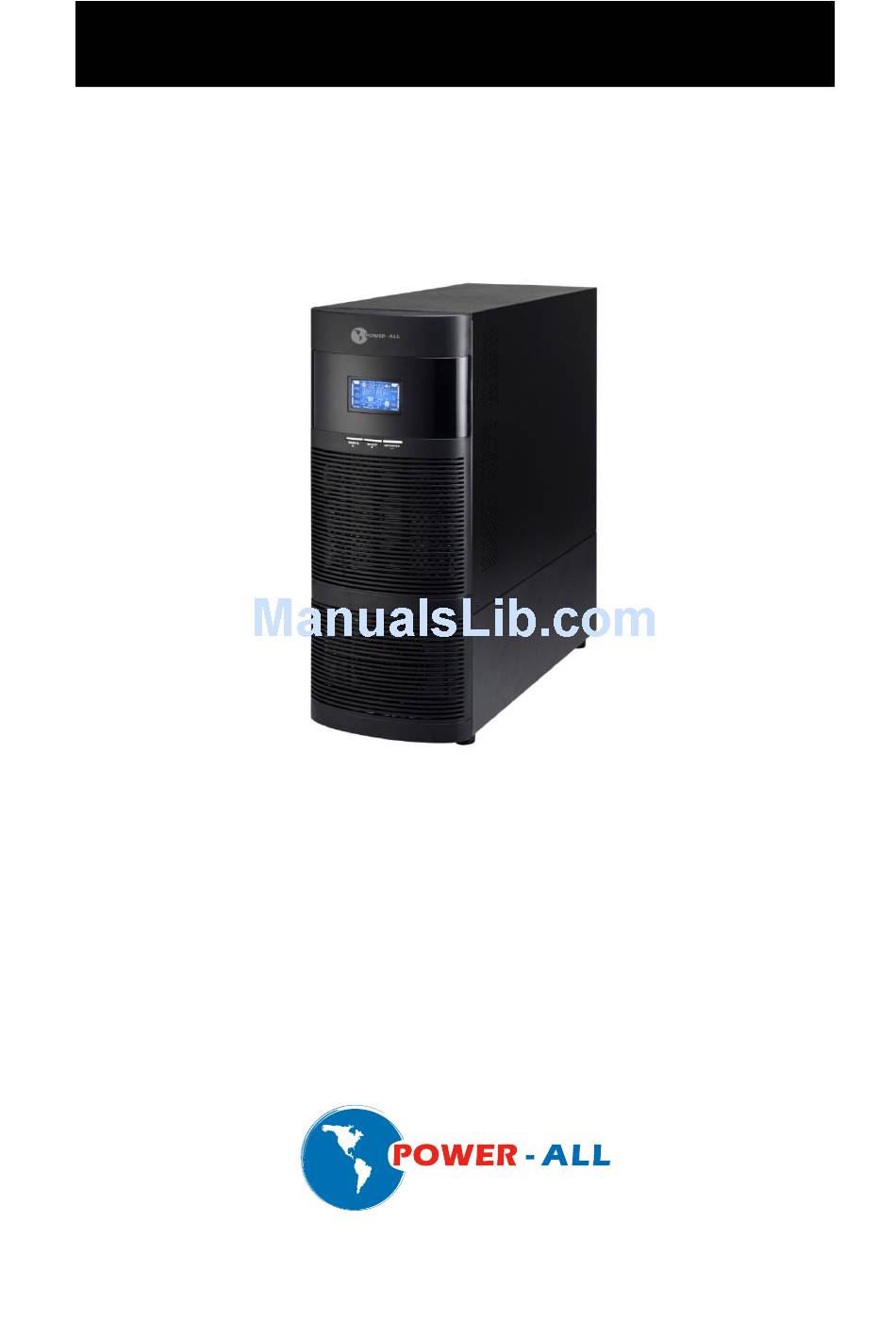

  • Page 1 User Manual Online UPS FRUK19-3000HV-01V Uninterruptible Power Supply System...

  • Page 2: Table Of Contents

    Table of Contents 1. I ..................2 MPORTANT AFETY ARNING 1-1. Transportation ....................2 1-2. Preparation ......................2 1-3. Installation ......................2 1-4. Operation ......................2 1-5. Maintenance, service and faults ................3 2. I ................... 4 NSTALLATION AND SETUP 2-1.

  • Page 3: Important Safety Warning

    1. Important Safety Warning Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.

  • Page 4: Maintenance, Service And Faults

    1-5. Maintenance, service and faults The UPS system operates with hazardous voltages. Repairs may be carried out only  by qualified maintenance personnel. Caution - risk of electric shock. Even after the unit is disconnected from the mains  (building wiring outlet), components inside the UPS system are still connected to the battery and electrically live and dangerous.

  • Page 5: Installation And Setup

    2. Installation and setup NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. 2-1. Rear Panel View Diagram 1: Rear Panel Overlook Diagram 2: Output Terminal 1.

  • Page 6: Setup The Ups

    2-2. Setup the UPS Step 1: UPS input connection Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords. Step 2: UPS output connection Simply plug devices to output sockets. During power failure, UPS will provide power to connected devices.
  • Page 7 Step 6: External battery connection Follow the below chart to make external battery connection. To external battery Step 7: External battery capacity configuration in software To calculate accurate backup time of external batteries, it’s necessary to configure battery numbers in software. The standard calculated capacity for one battery is 9Ah. If connecting to 100Ah batteries, then it’s equal to 11 in parallel (100Ah / 9Ah ≈...

  • Page 8: Operations

    3. Operations 3-1. Button operation Button Function  Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to turn on the UPS.  Mute the alarm: After the UPS is turned on in battery mode, press and hold this button for at least 5 seconds to disable or enable the alarm system.
  • Page 9 Display Function Backup time information Indicates the remaining backup time in pie chart. Indicates the remaining backup time in numbers. H: hours, M: minute, S: second Fault information Indicates that the warning and fault occurs. Indicates the warning and fault codes, and the codes are listed in details in 3-7 section.

  • Page 10: Audible Alarm

    3-3. Audible Alarm Battery Mode Sounding every 4 seconds Low Battery Sounding every second Overload Sounding twice every second Fault Continuously sounding Bypass Mode Sounding every 10 seconds 3-4. LCD display wordings index Abbreviation Display content Meaning Enable Disable Escape High loss Low loss Battery...
  • Page 11 01: Output voltage setting  Interface Setting You may choose the following output voltage: 100: presents output voltage is 100Vac 104: presents output voltage is 104Vac 110: presents output voltage is 110Vac 115: presents output voltage is 115Vac(default) 120: presents output voltage is 120Vac 02: Frequency Converter enable/disable ...
  • Page 12 06: ECO voltage range setting  Interface Setting Press the Down key or Up key to set the acceptable high voltage point and acceptable low voltage point: HLS: High loss voltage in ECO mode. The setting range is from +7V to +24V of the nominal voltage.

  • Page 13: Operating Mode Description

    For 60Hz output frequency models: 61-65Hz: setting the high frequency point from 61Hz to 65Hz(default:63Hz) 55-59Hz: setting the low frequency point from 55Hz to 59Hz(default:57Hz) 11: Battery AH setting  Interface Setting Press the Down key or Up key to set the Battery AH of UPS. 0-999: if you change the battery AH of ups, please set the correct battery spec.

  • Page 14: Faults Reference Code

    Operating mode Description LCD display Bypass mode When input voltage is within acceptable range but UPS is overload, UPS will enter bypass mode or bypass mode can be set by front panel. Alarm is sounding every 10 second. Standby mode UPS is powered off and no output supply power, but still can charge batteries.

  • Page 15: Troubleshooting

    4. Troubleshooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy No indication and alarm even The AC input power is not Check if input power cord though the mains is normal. connected well.
  • Page 16 Symptom Possible cause Remedy Fault code is shown as 01, 02, 03, A UPS internal fault has Contact your dealer 11, 12, 13 and 41 on LCD display occurred. There are two and alarm is continuously possible results: sounding. 1. The load is still supplied, but directly from AC power via bypass.

  • Page 17: Storage And Maintenance

    5. Storage and Maintenance Operation The UPS system contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer. Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material.

  • Page 18: Specifications

    6. Specifications MODEL FRUK19-3000HV-01V CAPACITY* 3000VA/2400W INPUT 160VAC/140VAC/120VAC/110VAC ± 5% Low Line Transfer ( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0) Voltage Low Line Comeback 168 VAC ±...
