- Page 1 AltiNav Wenger NA 15 Corporate Drive Orangeburg, NY 10962 USA Tel: 1-800-431-2996, 1-845-365-3500 Email: custsvc@wengerna.com Web: www.WengerNA.com...
-
Page 2: Table Of Contents
Table of Contents Crafted for Life ..........2 Low Battery Detection . -
Page 3: Crafted For Life
Movements – Specialized Swiss mechanism. Case Body – All PVD coated stainless steel for quality and durability. Over a century ago, Wenger built a factory in this tiny Swiss village and transformed it into production headquarters for the Genuine Swiss Army Straps –... -

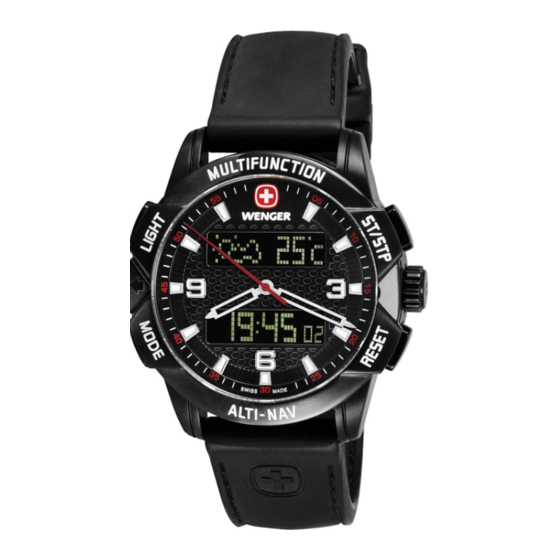

Page 4: General Features And Components
General Features and Components Start/Stop Button • To start or stop the chronograph timer. • To select between functions within the same mode. • To toggle Yes/No. Digital read-out • To increase values within functions. Hour hand Reset Button • To activate the “lap” or “reset” mode in the chronograph. • To toggle Yes/No. Light button Start/Stop button • To decrease values within functions. Mode Button Crown Inner bezel • To select Current Time, Alarm, Chronograph, Altimeter, Barometer or Compass Modes. • To enter the Setting Display in Time, Alarm, Altimeter, Barometer and Compass Modes. Mode button Reset button • To select functions within the different modes. -
Page 5: Setting The Analog Watch
Setting the Analog Watch Digital Read-out Modes 1. To set the analog time, gently pull out the crown to Position 2. 2. Rotate crown so the watch hands move clockwise to the correct time. 3. Push crown back to Position 1. Second Hand Alignment To synchronize the digital with analog seconds, push in the crown to return it to Current Time Mode... -
Page 6: Setting The Digitial Time And Calendar
Setting the Digital Time and Calendar Digital Time Setting Sequence Diagram 1. To set the digital time, press and hold the mode button for 2 seconds in the Press Mode button Current time mode. The selected item will flash in the digital read-out. to toggle thru the functions 2. Press the Mode button to change the function within the Time Setting Sequence diagram shown at right. -
Page 7: Activating The Weather Forecast Feature
Weather Forecast Feature Setting the Alarm The AltiNav watch analyses the changes in air pressure to predict upcoming There are 5 Daily or Schedule alarms. Schedule alarms can be set to sound on a weather. The watch provides 4 different symbols to indicate the weather forecast. - Page 8 Alarm Setting Sequence Diagram Activating the Alarm Alarm # Alarm Type 1. When in Alarm Mode, press the ST/STP button to select different alarms. 2. To turn ON/OFF an alarm, select the target alarm and press the Reset button to turn it ON or OFF. Alarm ON or Alarm OFF [L/R] [L/R] 3. To set an alarm, select the target alarm and hold down the Mode button to enter the setting display sequence described on pg.
-
Page 9: Using The Chronograph (Stopwatch) Feature
Using the Chronograph (Stopwatch) Feature The chronograph feature is a stopwatch which measures elapsed hours, minutes, Using the Split-Timing Function and seconds. It is also capable of measuring split-timed events (timing a continu- 1. To start the stopwatch, press the ST/STP button in Chronograph Mode. ous event and sub-events simultaneously; e.g., timing an individual lap and an entire race). -
Page 10: Using The Altimeter Feature
Using the Altimeter Feature Recalling the Lap Records The top digital read-out row displays an Elevation Chart for the previous 36 hours. In order to conserve power, your altitude is updated as follows: 1. Press the Reset button when the chronograph is stopped. • First 5 minutes: it updates every second 2. Press the ST/STP button to move to the last lap record. This watch • Next 24 hours: updates every 10 seconds... - Page 11 Calibrating the Altimeter To calibrate the altimeter 1. Press and hold the Mode button. Press ST/STP or Reset 2. The last altitude digital read-out will be displayed. Press the ST/STP button buttons to change the or the Reset button to increase or decrease the altitude based on your current digital read-out value. position (research on Google).
-
Page 12: Using The Barometer Feature
Using the Barometer Feature 36-Hr Air Pressure Chart -36 hour -1 hour The Air Pressure Chart for the previous 36 hours is shown in the top digital read-out row. In order to conserve power, the current air pressure is updated as follows: • First 5 minutes: it updates every second • Next 24 hours: updates every 10 seconds... -
Page 13: Calibrating The Barometer
Calibrating the Barometer 1. Press and hold the Mode button to access the Barometer digital read-out. To calibrate the barometer, 2. The current air pressure will be displayed. Press the ST/STP button or Press ST/STP or Reset the Reset button to increase or decrease the barometer reading based on your buttons to change the current location. -
Page 14: Precautions And Tips For Using Compass
Precautions and Tips for Using Compass 1. Keep the watch away from any magnets or appliances that contain magnets or generate magnetic fields such as mobile phones, speakers, motors, etc. Compass direction 2. This watch points to the magnetic north, which is slightly different from true north. Check the “What is Magnetic Declination” section on p.30 Bearing direction for more details. Compass Mode 3. - Page 15 a n g u la r Compass Bearing Compass Bearing d iffe re n c e Calculating Compass Directions object D object D Directions Directions Directions Directions Compass directions are shown in the adjacent North South 349˚ - 11˚ 169˚ - 191˚ table. For example, in the figure shown below, the object B object B compass direction of object B from point A is due point point A...
- Page 16 Compass Mode - Different Digital Read-outs Normal Display In Compass Mode, the digital read-out for the compass direction in the top row while the bearing direction is displayed in the bottom row. note: Analog movement will be stopped temporarily during compass measurement. Idle Display If no key is pressed for 1 minute, the watch will go to the IDLE Mode automati- Normal Display...
- Page 17 What is Magnetic Declination? True North Magnetic North • The Magnetic North Pole is slightly different from the True North Pole. This watch points to the Magnetic North Pole. Everything measured on a Magnetic Declination Magnetic Declination map is related to the True North Pole. • The angular difference between the Magnetic North Pole and the True North Pole is called Magnetic Declination. The amount (degrees and minutes) and direction (easterly and westerly) depends on where you are in the world.
- Page 18 Magnetic Declination Compensation magnetic declination true north true north magnetic 23°W 0° 0° north true bearing • This Watch allows you to compensate the compass bearing at a place where 300° the magnetic declination is either Westerly declination or Easterly declination. object B object B • To compensate for an object’s bearing, either subtract westerly (W) magnetic declination or add easterly (E) magnetic declination with the magnetic bearing. magnetic magnetic bearing bearing...
- Page 19 Magnetic Declination at Major Cities Magnetic Declination at Major Cities (continued) Country City Declination Country City Declination Australia Canberra 12-E Denmark Copenhagen Austria Vienna Egypt Cairo Bangladesh Dhaka Finland Helsinki Belgium Brussels France Paris Brazil Brasilia 19-W Germany Berlin Canada Ottawa 14-W Greece...
- Page 20 Magnetic Declination at Major Cities (continued) Magnetic Declination at Major Cities (continued) Country City Declination Country City Declination Jordan Amman Russia Moscow Kenya Nairobi Singapore Singapore Korea Seoul South Africa Cape Town 23-W Malaysia Kuala Lumpur Spain Madrid Mexico Mexico City Sweden Stockholm Nepal...
-
Page 21: Calibrating The Compass
Calibrating the Compass Magnetic Declination at Major Cities (continued) This Watch must be calibrated if any of the following occurs: Country City Declination • The Watch is being used for the first time United States Phoenix, AZ 12-E • The battery is replaced United States Little Rock, AR • The bearing direction digits are flashing • The compass is used in a location that is apart from the place in which United States Sacramento, CA 16-E... - Page 22 Calibrating the Compass Cont. Magnetic Declination Mode 1. Press and hold the Mode button to enter the Compass Setting Mode. 1. Check the previous section “Magnetic Declination in Major Cities” on p.34-38 to choose the magnetic declination of the city which is close to 2. Press ST/STP button to start calibrating the compass. Lay the watch flat on your current position. The angle will be input into the Watch during the a table and rotate it clockwise at a slow to medium pace until the pattern calibration.
-
Page 23: Low Battery Detection
Low Battery Detection Power Saving Mode When Low Battery is Detected: This Watch has a Power Saving Function which can turn off the LCD display so that the battery can last longer. The timekeeping function of the watch will still • The battery-low icon “ ” will appear for two seconds when entering run in Power Saving Mode. -
Page 24: Caring For Your Watch
Even though your watch is water-resistant, it is not recommended that you wear Wenger is proud to stand by our quality Swiss craftsmanship with a 3-Year it in a hot shower, sauna or hot tub. We suggest sending your Wenger watch to Limited Warranty. This Wenger watch is warranted to the original consumer/... - Page 25 For battery replacement, please include a check or money order do so can damage the movement of your watch. payable to Wenger NA in the amount of $20(US) to cover the cost of return If you have questions or concerns, please call 800-267-3577 or 800-447-7422 shipping, battery change, and pressure testing the watch for water-resistance.
- Page 26 Wenger Watch Registration For your convenience you can register online at www.wengerna.com/warranty or complete the form below and mail it to the address on the back. Please register your watch within 60 days from date of purchase. Name/Nombre: _____________________________________________________ Address/Dirección: __________________________________________________ City/Cuidad: _______________________________________________________ State/Estado: ______________________ Zip Code/Código Postal: ___________ Email: ____________________________________________________________ Date Acquired/Fecha de Adquisición: ___________________________________...
