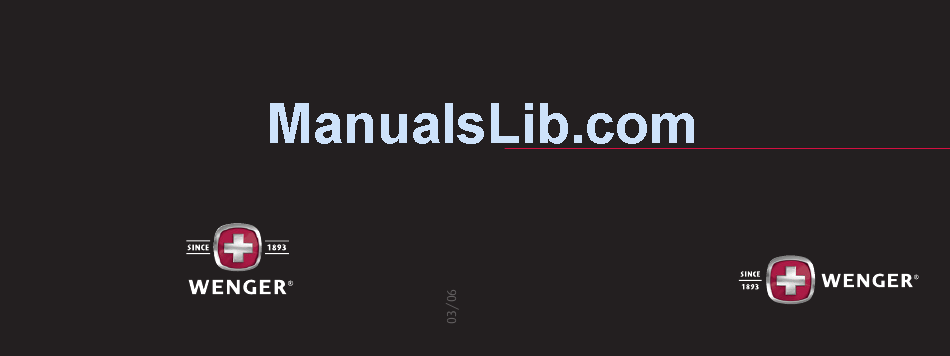

Page 1: Instruction Manual
Wenger N.A. 15 Corporate Drive · Orangeburg, NY · 10962 · USA Tel: 800-431-2996, 845-365-3500 Fax: 845-425-4700 (General correspondence) 845-365-3743 (Orders only) Instruction Manual Web:www.WengerNA.com ™ ™ Maker of the Genuine Swiss Army Knife Maker of the Genuine Swiss Army Knife... -
Page 2: Table Of Contents
Table of Contents Crafted for Life ..........2 Watch Components . -
Page 3: Crafted For Life
Delémont, Switzerland 1893 Movements – Swiss quartz movements or 25-Jewel Swiss Automatic movement. Over a century ago, Wenger built a factory in this tiny Swiss village and trans- Case Body – All stainless steel or titanium for quality and durability. -
Page 4: General Features And Components
Optional Features General Features and Components • Rotating bezel measures elapsed time Bracelet or strap • Tachymeter measures speed over a known distance Hour, minute and second • Date display window (may offer magnified display window or dual numeral hands “Big Date”... - Page 5 Position 1 Position 2 Position 3 1. Pull out the crown to Position 2 (one “click” out). Rotate crown counterclock- wise until the date shows one day earlier than the date you want to set. 2. Pull out the crown to Position 3 (two “clicks” out). Rotate crown so the watch hands move clockwise until the current date shows.
- Page 6 Position 1 Position 2 Position 3 3. For a watch with day and date display, pull out the crown of the watch to Position 2, turn it clockwise to change the day and counterclockwise to change the date. 4. Return the crown to the fully depressed Position 1, assuring the crown has been further screwed down on all 200m watches.
-
Page 7: Dual Sub-Dial Watches
Day and Date Dual Sub-Dial Watch Setting the Time and Date of Dual Sub-dial Watches Set the Time Bracelet or strap 1. Pull out crown to position 2. 2. Rotate crown clockwise to set the time. 3. Return crown to position 1. Crown, crown positions Set the Date Day sub-dial... - Page 8 2nd Time Zone Dual Sub-Dial Watch Setting the Time and Date of 2nd Time Zone Dual Sub-Dial Watches Bracelet or strap Setting the Primary Date and Time (Large minute and hour hands) See pages 6-7 for complete instructions. Hour hand Minute hand Setting the 2nd Time Zone 1.
-
Page 9: Flip-Open Compass Watch
Operating Instructions For Flip-Open Compass Watch Note: For watches featuring a swing-out compass watch, see page 16. Your Wenger Swiss G3 Navigator Compass watch has two crown components (illustration below) and four crown positions (right): Component 1 – Inner security-screw crown used to lock down or open the case to reveal the compass. - Page 10 Then set the watch hands to the correct time. Turn the watch hands past 12 once if you’re setting the watch for a P.M. time. 4. Push the outer crown back in to Position 1. Setting the Time Only Pull out the outer crown to Position 4 (two “clicks” out) and set the time by turning the crown clockwise or counter-clockwise.
-
Page 11: Swing-Out Compass Watch
Operating the Compass Operating Instructions for Swing-Out Compass Watch 1. Swing-out side of case to reveal compass. Setting the Date 2. Lay the compass on a flat surface for best results. 1. Pull out the crown to Position 2 (one “click” out). Rotate crown counterclock- wise until the date shows one day earlier than the date you want to set. -
Page 12: Dual Time Zone Feature
4. Pull out alarm button (located at either 2 o’clock the instructions on pages 6 and 7. or 11 o’clock) to set alarm. You will hear a brief 2. To set the second time zone, pull out the crown to Position 2 (one “click”... -
Page 13: Additional Features
Deployant closures are used to assure a secure fit of your watch and easy in a hot shower, sauna or hot tub. We suggest sending your Wenger watch to opening and closing. Deployant closures on straps allow for a one-time fitting our Customer Service Center for battery replacement (please see procedure instead of refitting each time the watch is worn. - Page 14 15 Corporate Drive, Orangeburg, NY 10962. Please include a check or money purchaser against breakage or malfunction under normal use due to defects in order payable to Wenger NA in the amount of $10(US) to cover the cost of material or workmanship. This 3-Year Limited Warranty also includes all return shipping and handling (California residents exempt).
- Page 15 Notes: __________________________________________________________ Wenger Watch Registration For your convenience you can register online at www.WengerNA.com/warranty or complete the form below and mail it to the address on the back. ________________________________________________________________ Name/Nombre: ___________________________________________________ ________________________________________________________________ Address/Dirección: _________________________________________________ ________________________________________________________________ City/Cuidad: ______________________________________________________ ________________________________________________________________ State/Estado: ______________________ Zip Code/Código Postal: ___________...
- Page 16 Notes: __________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________...
