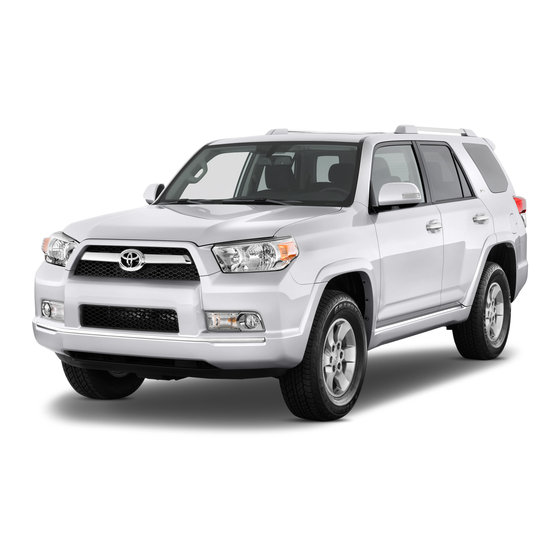

Toyota 4Runner 2010 Quick Reference Manual

Toyota 4Runner 2010 Quick Reference Manual

Hide thumbs Also See for 4Runner 2010:

Advertisement

CUSTOMER EXPERIENCE CENTER
1-800-331-4331
Printed in U.S.A. 9/09
08-TCS-03067
4RUNNER
2 0 1 0
00505-QRG10-4RUN

QUICK REFERENCE

GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4Runner 2010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Toyota 4Runner 2010

  • Page 1: Quick Reference

    4RUNNER CUSTOMER EXPERIENCE CENTER 2 0 1 0 1-800-331-4331 QUICK REFERENCE GUIDE Printed in U.S.A. 9/09 00505-QRG10-4RUN 08-TCS-03067...
  • Page 2 Spare tire & tools of the vehicle’s capabilities and limitations. Tool location Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your Tool bag new 4Runner.
  • Page 3: Table Of Contents

    Seat belts Seat belts-Shoulder belt anchor Spare tire & tools Tire Pressure Monitoring (warning) System Visit your Toyota dealer for information on customizing this feature. Programmable by customer. Refer to the Owner’s Manual for instructions and more information. ® HomeLink...
  • Page 4 OVERVIEW Instrument panel Steering wheel controls Manual Air Without Smart Key system With Smart Key system Center console box Power rearview mirror controls Instrument panel light control Intuitive parking assist switch and indicator Tilt and telescopic steering lock release “RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch 120V AC Power outlet ON/OFF switch Windshield wiper de-icer switch Headlight, turn signal and front fog light...
  • Page 5 Conditioning 2WD models Automatic Air Conditioning Part-time 4WD models Full-time 4WD models USB adapter AUX adapter Four-wheel drive selector Hood release Steering wheel audio controls Voice command button Telephone switches Ignition switch (standard key)/“ENGINE START STOP” button (Smart Key) Party mode switch Cruise control Seat heater switch 120V AC Power outlet...
  • Page 6: Instrument Cluster

    OVERVIEW Instrument cluster Non-Optitron type meters Optitron type meters Tachometer Speedometer Display change button Engine coolant temperature Fuel gauge Eco driving indicator zone display Odometer, trip meter and average fuel consumption display Shift position and shift range indicators Voltmeter Indicator symbols Brake system warning Driver/Front passenger seat belt reminder (alarm will sound if speed is over 12 mph)
  • Page 7 Front fog light indicator Power steering system warning Roll Sensing of Curtain shield Airbag OFF indicator Multi-terrain select Engine immobilizer/Theft deterrent system indicator Smart Key system warning Unengaged Park warning light Crawl Control indicator Low speed four-wheel drive indicator Center differential lock indicator Vehicle Stability Control OFF indicator Four-wheel drive indicator Slip indicator...
  • Page 8: Fuel Tank Door And Cap

    OVERVIEW Fuel tank door and cap Turn Pull NOTE: Tighten until one click is heard. If the cap is not properly sealed, Check Engine “ ” indicator may illuminate. Keyless entry Locking Without Smart Key system With Smart Key system Push Unlocking Without Smart Key system...
  • Page 9: Smart Key System 1

    Smart Key system (if equipped) Start function Green indicator ON Depress Push brake pedal Carrying NOTE: Gear shift lever must be in Park and brake pedal depressed. Power (without starting engine) Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will change the operation mode in succession from: ACCESSORY Accessories such as the radio will operate.
  • Page 10: Hood Release

    OVERVIEW Hood release Pull up latch and raise hood Pull Engine maintenance Windshield and back window washer fluid tank Power steering fluid reservoir Engine oil level dipstick Engine coolant reservoir Engine oil filler cap NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
  • Page 11: Automatic Transmission

    FEATURES/OPERATIONS Auto lock functions Automatic door locks can be programmed to operate in four different modes, or turned OFF. -Doors lock when shifting from Park. -Doors lock when the vehicle speed is approximately 12 mph or higher. -Doors unlock when shifting into Park. -Doors unlock when the driver’s door is opened within 10 seconds after turning the “ENGINE START STOP”...
  • Page 12 Turn to “H4” with speed below 50 mph. Shift to “N” position, then push and turn to “L4.” Shift to “N” position, then push and turn to “L4L.” Lock release lever Angle Length Hold wheel, push lever down, set angle and length, and return lever. NOTE: Do not attempt to adjust while the vehicle is in motion.
  • Page 13: Seat Adjustments-Front

    Seat adjustments-Front Manual seat Power seat Seat position (forward/backward) Height crank (driver side only) Seatback angle Lumbar support (driver side only) Driver seat: seat position, cushion angle and height Passenger seat: seat position (forward/backward) Seatback angle Lumbar support (driver side only) Seat adjustments-Second row seats Vehicles with third row seats Vehicles without third row seats...
  • Page 14: Seats-Folding Down Second Row Seats

    FEATURES/OPERATIONS Seats-Folding down second row seats Without third row seats (2) Lower (1) Push (3) Stow (5) Push down (6) Fold down (4) Pull up With third row seats (2) Lower (1) Push (3) Stow (4) Pull up (5) Fold down...
  • Page 15: Seats-Head Restraints

    Seats-Stowing third row seats (if equipped) From inside (2) Pull up (4) Pull up (1) Stow (5) Fold down (3) Pull up From outside (1) Stow (3) Pull up (2) Pull up (4) Fold down Seats-Returning third row seats (if equipped) (3) Raise (2) Pull (1) Raise...
  • Page 16: Clock

    FEATURES/OPERATIONS Clock H- Hour set M- Minute set Windows Driver side Window lock switch Down Automatic operation Push the switch completely down or pull it completely up and release to fully open or close. To stop window midway, lightly push the switch in the opposite direction. Window lock switch Deactivates all passenger windows.
  • Page 17: Light Control-Instrument Panel

    Window-Back window Operating from inside Operating from outside With Smart Key system Close Open Close Open Without Smart Key system Window lock switch Open Close Turn and hold Light control-Instrument panel Brightness control VSC OFF button VSC OFF The VSC OFF button is used to switch between modes related to the TRAC, VSC and Auto LSD (2WD) functions.
  • Page 18 FEATURES/OPERATIONS Lights & turn signals Headlights Type A Type B Headlights Headlights Parking lights DRL ON Parking lights DRL OFF Auto DRL OFF Low beam High beam flasher High beam -Automatic light cut off system Will automatically turn lights off after a delay of 30 seconds, or the lock switch on remote may be pushed after locking.
  • Page 19: Cruise Control

    Windshield wipers & washers Front Single wipe Adjust frequency* Interval wipe Slow Fast Pull to wash and wipe * Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency. Rear Wash and wipe Wipe Interval wipe Wash and wipe NOTE: Rear wiper and washer operate only when back window is fully closed.
  • Page 20: Seat Heaters

    FEATURES/OPERATIONS Seat heaters (if equipped) Front passenger’s seat Driver’s seat Air Conditioning/Heating Automatic Air Conditioning Temperature selector (driver side) Fan speed Air Conditioning ON/OFF Fresh or recirculated cabin air Temperature selector (front passenger side) “DUAL” button Indicator ON: Separate temperature settings for driver and passenger.
  • Page 21: Garage Door Opener (Homelink ® ) 3

    Manual Air Conditioning Fan speed Fresh or recirculated cabin air Airflow vent In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only. Rear window and outside rear view mirror defoggers Select for maximum cooling.
  • Page 22 FEATURES/OPERATIONS Audio Type 1 Preset buttons - functions in other modes indicated above number Eject CD Push to adjust Push to turn tone & balance ON/OFF View genre/ Seek station/ Push to skip CD track select up/down folder Station/CD View radio/CD AM/Satellite Mode track scan...
  • Page 23 Steering wheel controls (if equipped) Volume control “ ” Use to search within the selected audio medium (radio, CD, iPod, etc.). “MODE” Push to turn audio ON and select an audio mode. Push and hold to turn audio system OFF. Party mode switch Party mode increases audio amplification in back door speakers, optimizing audio performance outside vehicle when rear hatch is open.
  • Page 24: Power Outlets-120V Ac

    Refer to “Using the hands-free phone system (for cellular phone),” Section 3-4 in the Owner’s Manual for more details, or go to Toyota.com and enter “Bluetooth” in the keyword search. Power outlets-120V AC (if equipped)
  • Page 25: Bluetooth ® Audio

    Bluetooth audio (if equipped) ® Audio unit Microphone Steering wheel audio switches Volume Selects a track and album Turns the power on, selects an audio source ® The Bluetooth audio system enables you to enjoy music played on a portable digital audio player from the vehicle speaker via wireless communication.
  • Page 26: Seat Belts-Shoulder Belt Anchor

    Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer. Refer to the Owner’s Manual for more details.
