(For IntelliBrite Pool, Spa and
Landscape Lighting Fixtures)
Installation and User's Guide
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
*619751*
SAVE THESE INSTRUCTIONS
P/N 619751 - Rev B

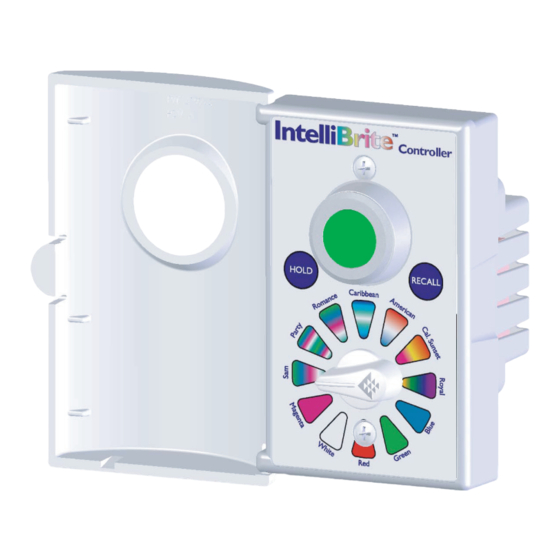

IntelliBrite Controller Installation and User's Guide
IntelliBrite Controller Installation and User's Guide
Advertisement
Related Manuals for Pentair Pool Products IntelliBrite
Summary of Contents for Pentair Pool Products IntelliBrite

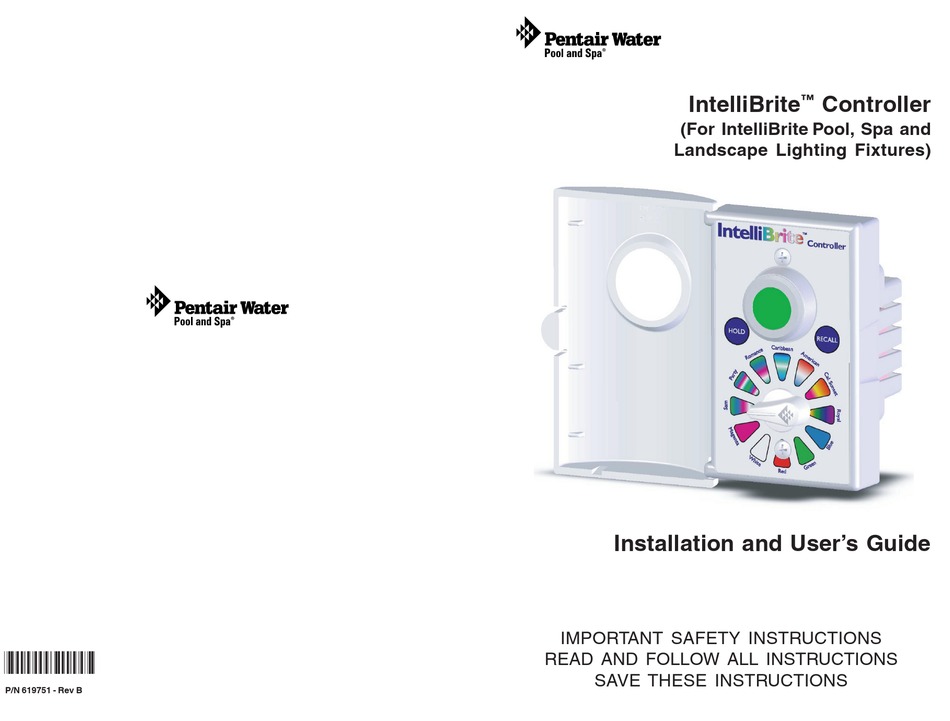

- Page 1 (For IntelliBrite Pool, Spa and Landscape Lighting Fixtures) Installation and User’s Guide IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS *619751* SAVE THESE INSTRUCTIONS P/N 619751 - Rev B IntelliBrite Controller Installation and User’s Guide IntelliBrite Controller Installation and User’s Guide...
- Page 2 Pentair Water Pool and Spa, Inc. Those names and brands may be the trademarks or registered trademarks of those parties or others.
- Page 3 Grounding (earth bonding) is required. The IntelliBrite Controller should be installed by a qualified professional and grounded.
- Page 4 For Canadian installations, the supply circuit must be Arrange protected by a ground fault circuit interrupter. wires neatly • Do not install the IntelliBrite Controller within 5 feet (3 meters for behind Canadian installations) of any body of water. USE COPPER Controller CONDUCTORS ONLY.
-
Page 5: Table Of Contents
Sanford, North Carolina (8 A.M. to 5 P.M. ET) Moorpark, California (8 A.M. to 5 P.M. PT) Phone: (800) 831-7133 - Fax: (800) 284-4151 Related manuals - Download the IntelliBrite LED Pool Light Installation and User’s Guide (P/N 619675) at: http://www.http://www.pentairpool.com/pdfs/IntelliBritePoolOM.pdf IntelliBrite Controller Installation and User’s Guide... -
Page 6: Intellibrite Controller Overview
CONTROLLER) lights. Multiple IntelliBrite LED lights can be connected via a junction box to GROUND an IntelliBrite Controller so that all lights can be switched on and off together. IntelliBrite LED lights are fully compatible with Pentair IntelliTouch ® GROUND CONNECTION ®... -
Page 7: Selecting A Light Show Or Fixed Color
Selecting a Light Show or Fixed Color Maximum wattage when using multiple lights with controller Note: When the IntelliBrite LED light(s) are powered on, a white light will momentarily illuminate, followed by the selected color, unless the HOLD or When using multiple IntelliBrite LED lights, the total allowable light wattage is RECALL feature was previously enabled. -
Page 8: Powering On The Intellibrite Light(S)
Powering on the IntelliBrite light(s) Installing an Outlet box for the IntelliBrite Controller When the IntelliBrite LED light is powered on, a momentarily white light The IntelliBrite Controller mounts onto a standard outlet box (22.5 cubic will illuminate, followed by the dial selected color.
