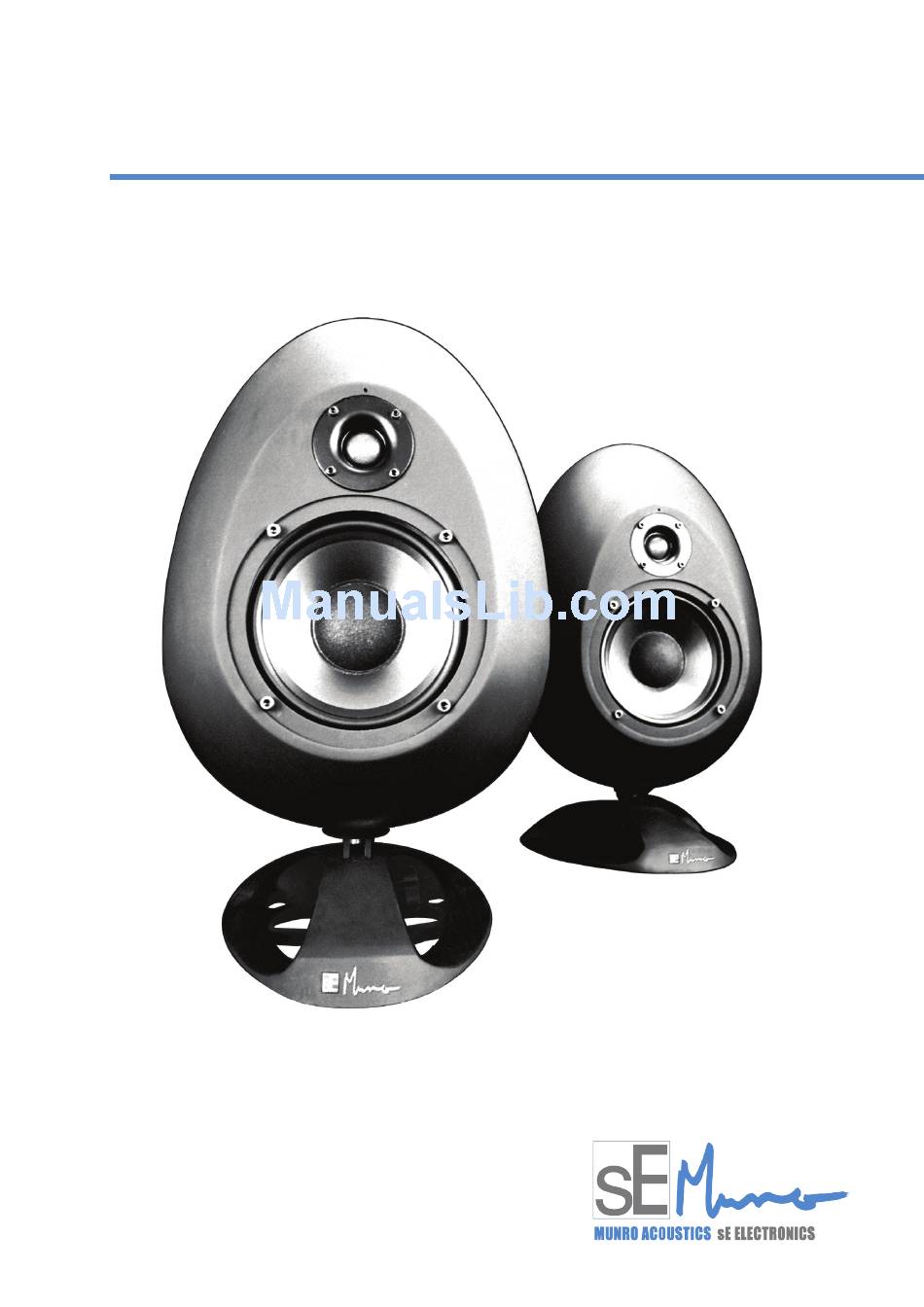

- Page 1 The Medium EGG 150 System Operation Manual...
-
Page 3: Table Of Contents
The Medium EGG 150 System Contents The Medium EGG 150 System Dual Input Amplifier (Control Panel) Front Pg 1 Dual Input Amplifier (Control Panel) Back Pg 2 Setting up your System Setup and Operation Pg 3 Positioning Pg 3 Equalisation Pg 4 Midrange Balance Pg 4... - Page 4 The Medium EGG 150 System Thank you for purchasing this sE Munro Egg 150 System, which was hand built in one of the most advanced microphone manufacturing facilities in China. Conceived, designed and engineered in the UK and USA by Andy Munro, Siwei Zou and James Ishmaev-Young and verified by extensive listening tests.
-
Page 5: The Medium Egg 150 System
Egg system are very high quality, impedance matched multicore and under no circumstance should these be changed or extended without advice from sE Munro. See diagram for pin connections. The focal point aiming LEDs on the speakers can be switched off once the system is aligned and no further adjustment is likely. -
Page 6: Setting Up Your System
Too much foam panelling on the walls and no bass absorption will create an uneven spectrum and some effort should be made to avoid this. A free guide to acoustics will be available from sE Munro. Positioning The ideal listening position for stereo is at between 1.0... -
Page 7: Equalisation
Setting up your System Equalisation The Egg 150 is naturally neutral in its frequency response. This is mainly a result of the acoustically optimal enclosure and the choice of small drivers with almost perfectly controlled directivity. However, not all rooms are neutral and also the positioning of the speakers will affect the response. -
Page 8: Running In
Setting up your System Running In High quality drivers are used in the Egg systems. When new, they will reach their optimum working performance after approximately 24 hours of operation and after that should still be allowed to warm up before serious mixing is carried out. System Adjustment Range In Room Equalisation (offset for clarity) Mid Frequency (Presence) Switch Settings... -
Page 9: Technical Information
Technical Information Technical Specification • System Stereo Two way active control unit with four 50WRMS power amplifiers with dual linear power supplies • High Headroom capacitors and voltage rails • Bass reflex speakers with 50Hz QB4 front port alignment • Speaker effective internal volume 14 Litres • 2 way asymmetrical electronic crossover with nominal 2kHz alignment • 25mm HF unit sensitivity 95dB SPL for 1W at 1m • 165mm LF sensitivity 89dB for 1W at 1m • 118dB Peak SPL at 1KHz both channels driven • Thermal tweeter protection with automatic cut out and reset • Input sensitivity Main +4/-10 dBu, Aux -10dBu • Continuously variable dual monitor level controls with switchable inputs Left Channel Gain HF Amp Main Level Main I/P LF Amp Level Equalisation Aux I/P Headphone Amp... -
Page 10: Important Safety Information
! sE Munro cannot be held responsible for any damage caused by improper use or modifications of the system or power supply. The Egg 150 System... - Page 12 The EGG 150 System...
