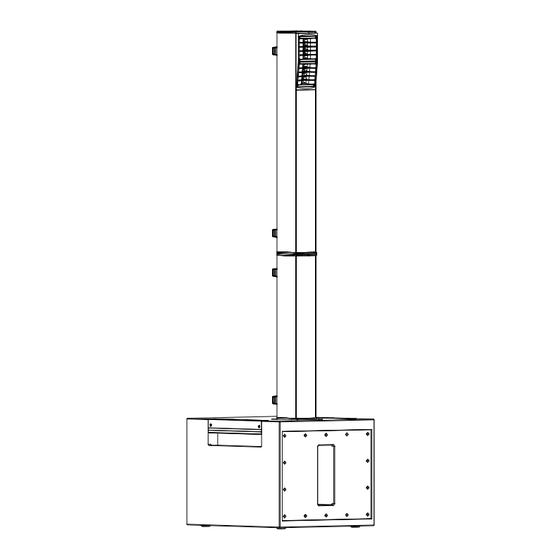

- Page 1 USER´S MANUAL WWW.SE-AUDIOTECHNIK.COM ALL IN ONE ARRAY SYSTEM M-A8 SUBWOOFER EXTENSION Hotline: +86 400 109 1122 Web: www.se-audiotechnik.com E-mail: sales@se-audiotechnik.com M-A8SE Designed in Germany 2014/ 6...
- Page 2 You can find more information about s)))e audiotechnik at our Internet site WWW.SE-AUDIOTECHNIK.COM Introduction The s)))e audiotechnik M-A8 Column PA System has been designed for professional use. The PA system o ers high quality components, DSP-controlled amplifiers and a sound that is balanced across the entire frequency range.
-
Page 3: Preventive Measures
SAFETY PREVENTIVE MEASURES: 1. Please read these instructions carefully. to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or 2. Keep all information and instructions in a safe place. adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands. 27. -
Page 4: General Instructions
Source devices can be connected using both balanced and unbalanced cables (XLR / 6.3 mm jack / RCA). If the M-A8SE subwoofer is used as an extension for the M-A8 column system, optimal control is achieved by the M-A8 column system in accordance with the following steps: Move the... -
Page 5: Connections, Controls, And Indicators
NEUTRIK POWERCON MAINS SOCKET An appropriate mains cord is included in the package. The M-A8 PA system is intended for 2 operating voltage ranges (100 V - 120 V AC and 200 V - 240 V AC). The conversion is done automatically. -
Page 6: Frequency Allocation
Ampli er power 800 W (RMS) The DSP based ampli cation of the M-A8 speaker system ensures a clear, dynamic and balanced sound across the entire frequency range. The array con guration and the use of tweeters with Waveguide ensure an... - Page 7 If the M-A8SE subwoofer is used as an extension for the M-A8 column system, set the DSP MODE switch to the right position SLAVE (M-A8SE) and connect the line output SLAVE SUB OUT (M-A8) of the M-A8 column system with the line input SLAVE SUB IN (M-A8SE) of the M-A8SE subwoofer.
- Page 8 DSP MODE switch to the right position SLAVE (M-A8SE) and connect the line output SLAVE SUB OUT (M-A8) of the M-A8 column system with the line input SLAVE SUB IN (M-A8SE) of the M-A8SE subwoofer. If the switch is in SLAVE position (M-A8SE), the SUB LEVEL, SUB FREQ and SUB PHASE controls , as well as the left line input LINE INPUT LEFT are disabled.
-
Page 9: Wiring Example
WIRING E XAMPLE : WIRING EXAMPLE: SYSTEMS LECC DSP : M-A8 + M-A8SE WHAT DOES S)))E AUDIOTECHNIK LECC DSP STAND FOR? DSP stands for Digital Signal Processing (Digital Signal Processing), LECC for limiter, EQ, Compressor and Crossover. The digital signal processing ensures maximum audio performance with maximum clarity and protects the PA system from overload. -
Page 10: Specifications
SPECIFICATIONS SPECIFICATIONS (M-A8) (M-A8) Model Name: M-A8 Mid/Hi System Product Type: ALL-IN-ONE ACTIVE COLUMN SYSTEM Midrange Size: 16 x 3.5" Type: active Midrange Magnet: neodymium Colour: black Tweeter Size: 2 x 1" with Waveguide (1 x 7° tilted) Max. SPL (peak):... - Page 11 SPECIFICATIONS SPECIFICATIONS (M-A (M-A Amplifier Module Model Name: Amplifier: class D Product Type: subwoofer expansion Amplifier Power System (RMS) 1600 W Type: active Amplifier Power System (peak): 6400 W Woofer Size: 2 x 12" Amplifier Power Subwoofer (RMS): 800 W Woofer Magnet: neodymium Amplifier:...
-
Page 12: Optional Accessories
MANUFACTURER´S DECLARATIONS: OPTIONAL ACCESSORIES: M-A8 FC applies AUDIOTECHNIK Flight case seller additional claims reseller materials normal sales delivery Should limited entitled only original original will replace unlikely failure elect replacement least equivalent will responsible result failure follow included apply accumulator... - Page 13 MANUFACTURER´S DECLARATIONS: MANUFACTURER´S DECLARATIONS: developed qualitu materials fails sole anf exclusive recycled symbol electrical and electronic shall replacement liability limited expressly limited operational lifetime. separatelt from normal lesser replacement Please local collection recycling malfunction normal will help all live. liable failure including any lost special, incidental, or consequential...
