QuickSpecs

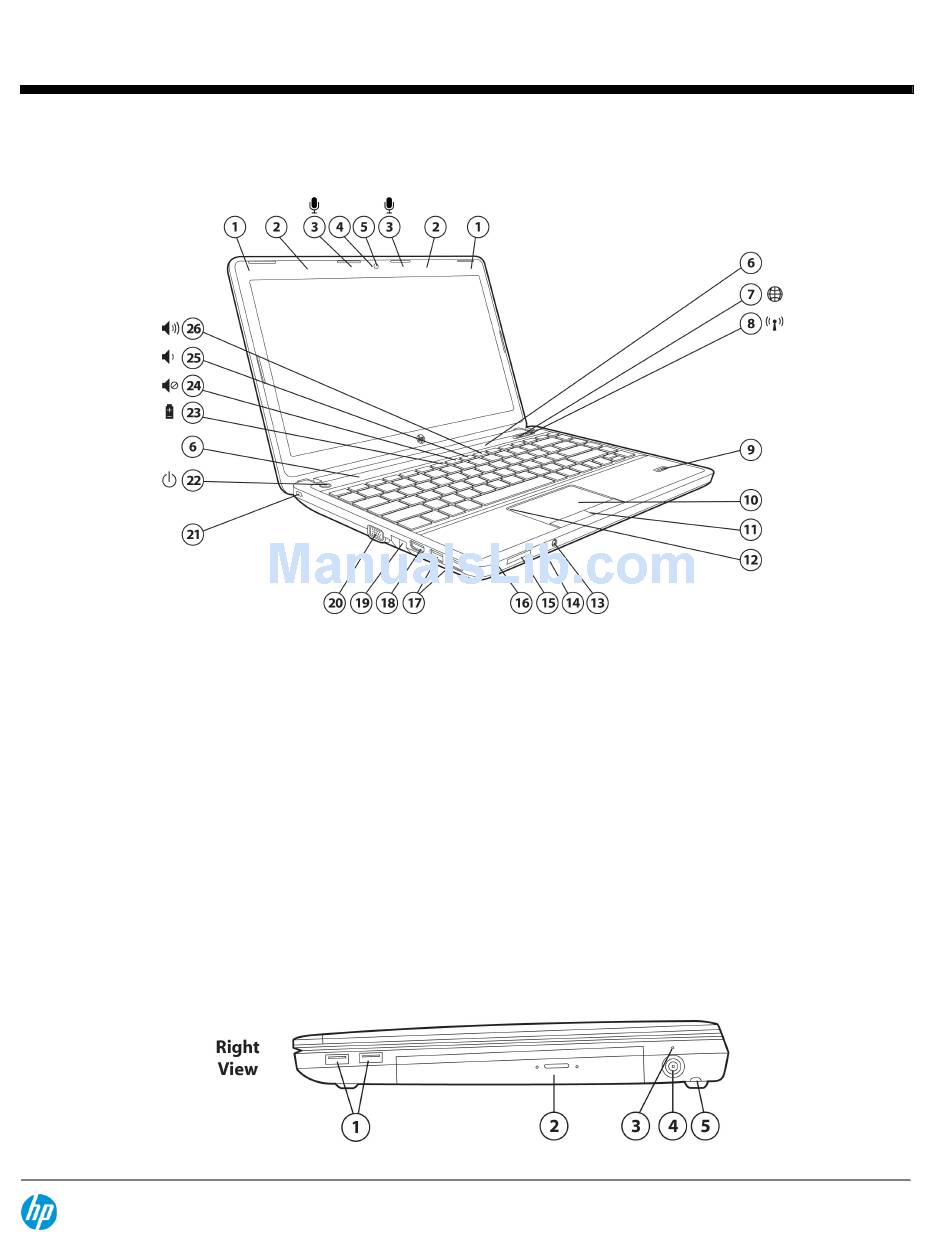

Overview
1.
WWAN antennas
2.
WLAN antennas
3.
Dual-microphone array*
4.
Webcam LED indicator (with optional webcam)
5.
Optional 720p HD webcam
6.
Stereo speakers
7.
HP WebBrowser button with LED indicator
8.
Wireless on/off button with LED indicator
9.
Optional HP Fingerprint Sensor
10. Touchpad
11. Touchpad pick buttons
12. Touchpad on/off button with LED indicator
13. Stereo microphone in
* Models without optional webcam have single integrated microphone.
DA - 14365 Worldwide — Version 10 — September 20, 2013
HP ProBook 4340s/1s Notebook PC
14. Stereo headphone/line out
15. Media Card Reader
16. Hard drive activity LED indicator
17. (2) USB 3.0 ports
18. HDMI 1.4a port
19 RJ-45/Ethernet port
20. VGA/external monitor connector
21. Security cable slot
22. Power button with LED indicator
23. HP Power Assistant function key
24. Volume mute function key
25. Volume down function key
26. Volume up function key
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP ProBook 4340s/1s

Summary of Contents for HP ProBook 4340s/1s

  • Page 1 QuickSpecs HP ProBook 4340s/1s Notebook PC Overview WWAN antennas 14. Stereo headphone/line out WLAN antennas 15. Media Card Reader Dual-microphone array* 16. Hard drive activity LED indicator Webcam LED indicator (with optional webcam) 17. (2) USB 3.0 ports Optional 720p HD webcam 18.
  • Page 2 Full-sized spill-resistant keyboard Larger Touchpad with gestures support, on/off button with LED indicator Enhanced security features including HP Protect Tools, HP Client Security, HP Face Recognition, optional HP Fingerprint Sensor Optional HD webcam with dual-microphone array HDMI port for connecting to high-resolution displays; USB 3.0 ports ArcSoft TotalMedia Suite (Win7 only) for playing, creating, and editing video and audio files Cyberlink Media Suite (Win8 only) for playing, creating, and editing video and audio files.
  • Page 3 HP ProBook 4340s/1s Notebook PC Overview HP Power Assistant (Win7 only) to conserve power, increase battery run-time, monitor power needs, report workforce power consumption Low Halogen***, ENERGY STAR qualified and EPEAT Gold registered in the U.S. EPEAT status varies by country- please see epeat.net.

  • Page 4: Operating System

    QuickSpecs HP ProBook 4340s/1s Notebook PC Features OPERATING SYSTEM Preinstalled Windows 8 Pro 64* Windows 7 Professional (available through downgrade rights from Windows 8 Pro)** Windows 8 64 Windows 7 Professional 64** Windows 7 Home Premium 64*** Windows 7 Home Basic 64***...
  • Page 5 QuickSpecs HP ProBook 4340s/1s Notebook PC Features Generation Intel® Core™ i5-2450M (2.5 GHz, 3 MB L3 cache, 2 cores)* Up to 3.10 GHz with Intel Turbo Boost Technology Generation Intel® Core™ i3-2370M (2.4 GHz, 3 MB L3 cache, 2 cores)* Generation Intel®...

  • Page 6: Optical Drives

    Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. With Windows Starter 32- bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.
  • Page 7 QuickSpecs HP ProBook 4340s/1s Notebook PC Features NETWORKING/COMMUNICATIONS Wireless Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as a standard, factory configurable feature only.
  • Page 8 Up to 16 GB (for Windows 7) and 36 GB (for Windows 8) of system disk is reserved for the system recovery software. * HP Peak Power Manager replaces HP Power Assistant for both Win7 and Win8. HP Peak Power Manager will be available on the web for download for existing product owners.
  • Page 9 NOTE: The Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. For more information on HP security solutions refer to: http://www.hp.com/go/security. POWER Power Supply...

  • Page 10: Weights And Dimensions

    ENVIRONMENTAL ENERGY STAR IT ECO Declaration EPEAT Gold where HP registers commercial notebook products. See http://www.epeat.net for registration status in your country. NOTE: This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks.

  • Page 11: Service And Support

    1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool.

  • Page 12: System Unit

    QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications SYSTEM UNIT Stand-Alone Power Nominal Operating 19 V Requirements (AC Power) Voltage Average Operating Power Integrated graphics: TBD W Discrete graphics: TBD W Max Operating Power < 65 W < 90 W...
  • Page 13 HP ProBook 4340s/1s Notebook PC Technical Specifications * Configurations of the HP ProBook 4340s/1s that are ENERGY STAR qualified are identified as HP ProBook 4340s/1s ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net for registration status by country.
  • Page 14 QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications 320 GB 7200 rpm SATA Drive Weight 0.25 lbs (115 g) Hard Drive Capacity 320 GB Height 0.276 in (7 mm) Width 2.5 in (63.5 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 15 QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications 320 GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Hard Drive Capacity 320 GB Height 0.276 in (7 mm) Width 2.5 in (63.5 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 16 QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications DVD+/-RW SuperMulti DL Access Times Random <140ms CD (typical) Drive < 160 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM 8X DVD 24X CD-R 24X CD-RW 8X DVD+R 8X DVD+RW 8X DVD-R...
  • Page 17 QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications Transfer Mode UDMA Mode 5 Interface Gen 1 SATA Supported Media (read) CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW.
  • Page 18 QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications Integrated Realtek Ethernet Features 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) RTL8151FH-CG 1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023 clauses 40)

  • Page 19: Configuration Utilities

    QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications Maximum Output Power GSM/GPRS/EDGE: 32dBm (+/-1) WCDMA: 24dBm (+0.7/-2.3) CDMA: 24dBm (+0.7/-2) Maximum Power 2750mA (peak); 1100mA (average) Consumption Power Consumption, Idle 20 mA Not Connected Power Management USB selective suspend Integrated notebook wireless button...
  • Page 20 IEEE 802.11n combo Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 7, Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 2.4 GHz and 5 GHz Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps...

  • Page 21: Configuration Utility

    QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications Modulation Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM Security Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.
  • Page 22 QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications Broadcom IHV extensions for Windows Vista available to support Cisco Compatible Extensions. Microsoft Windows 7 Microsoft Windows 7 Wireless Network Connection Manager Broadcom IHV extensions for Windows 7 available to support Cisco Compatible Extensions.
  • Page 23 QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications Certifications All necessary regulatory approvals for supported countries, including: FCC (47 CFR) Part 15C, Section 15.247 & 15.249 ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark...
  • Page 24 QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications Security Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST. Sub-channels Multinational support with frequency bands and channels compliant to local regulations. Media Access Protocol...
  • Page 25 QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications Hardware Implementation IDT 92HD87 High Definition CODEC Function Key Volume Volume up, volume down, and mute Controls Full Duplex Microphone In Stereo Headphone/Line Out Stereo Integrated Microphone Yes, dual digital microphone array when equipped with optional webcam...
  • Page 26 QuickSpecs HP ProBook 4340s/1s Notebook PC Technical Specifications Non-operating (storage) -4° to 149° F (-20° to 65° C) temperature Altitude 0 to 10,000 ft (0 to 3,048 m) Humidity 20% to 80% Storage Humidity 10% to 90% EMI and Safety CE Mark - full compliance with LVD and EMC directives;...

  • Page 27: Warranty

    This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks: US ENERGY STAR IT ECO declaration EPEAT Gold with a Microsoft OS where HP registers commercial notebook products. See http://www.epeat.net for registration status in your country.

  • Page 28: Additional Information

    This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC. information This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 29 The PLASTIC/PET is made from 65% recycled content The OTHER/OTHER is made from 65% recycled content HP follows these guidelines to decrease the environmental impact of product packaging: Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.
  • Page 30 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

  • Page 31: Options And Accessories (Sold Separately And Availability May Vary By Country)

    HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
  • Page 32 QuickSpecs HP ProBook 4340s/1s Notebook PC Options and Accessories (sold separately and availability may vary by country) DA - 14365 Worldwide — Version 10 — September 20, 2013 Page 32...
