USE & CARE INFORMATION
CAUTION-
CLEAN AND SANITIZE YOUR DISPENSER BEFORE USING. SEE NOTE 1 of DAILY CLEANING.
INTRODUCTION

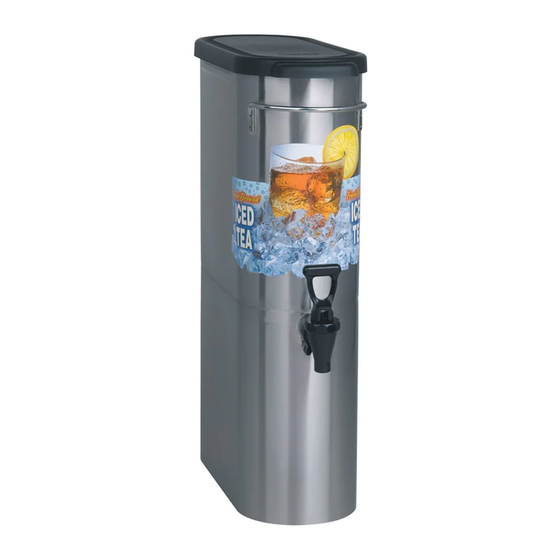

This dispenser is designed to hold and serve up to a 3.5 gallon batch of iced tea or iced coffee. When proper precau-
tions are followed, tea/coffee may be brewed directly into the dispenser and then transported to a remote serving location.
The dispenser must be placed on a sturdy counter or shelf.
NOTE: The TDO-N dispenser weighs approximately 50 pounds when full. You must be careful when lifting this dispenser.
WHEN THE DISPENSER IS HOLDING LIQUID, LIFT THE DISPENSER USING THE HANDLES ONLY. DO NOT LIFT THE
DISPENSER FROM THE BOTTOM.

REPLACEMENT PARTS

1. 40854.0000
Gasket, Rear Hand Hold
2. 00674.0000
Faucet Cleaning Brush
3. 40851.0000
Lid, Oval Reservoir
4. 03093.0002
Faucet Wing Nut
5. 01221.0000
C-Ring, Faucet Shank
6. 03260.0003
Faucet Assy (Includes items 7 thru 11)
7. 29163.0006
Faucet Handle, Black
8. 00601.0000
Faucet Spring
9. 00600.0000
Faucet Seat Cup
34106.0003C 06/09 © 2008 Bunn-O-Matic Corporation
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
TDO-N-3.5
10. 29164.0000
Faucet Stem
11. 29165.0001
Faucet Bonnet, Black
12. 29166.0001
Faucet Repair Kit (Includes items 7 thru 10)
13. 41183.0000
Faucet Repair Kit (Includes items 4 thru 6)
19. 40363.1000
Pinch Faucet (Includes items 4 & 5)
FAX: (217) 529-6644
