Kappa CMR-100 Operation Manual

Operation Manual
Model: Universal dimmer switch
Item No.: CMR-100

OVERVIEW:

Featuring an unique universal plug and play adaptor that allows remote controlling existing house hold dimmable LED,
dimmable energy saving lamp, incandescent lamp, 230V~ halogen lamp and 12V halogen lamp with inductive transformer
or electronic transformer.
Hassle free wiring and easy built-in 8 steps rotary dialer setup for adjusting the lowest brightness level accordingly to
different brands of lamp(s) used.
Compatible to available different type lamps of:
Incandescent and halogen lamps (230V~) 20W-200W

Electronic transformers (12V~) up to 20W-200W

Inductive transformers (12V~): 40W-200W Max.

Dimmable energy saving lamp: 3W-24W

Dimmable LEDs 3W-24W

Not compatible to fluorescent lamp
Specification

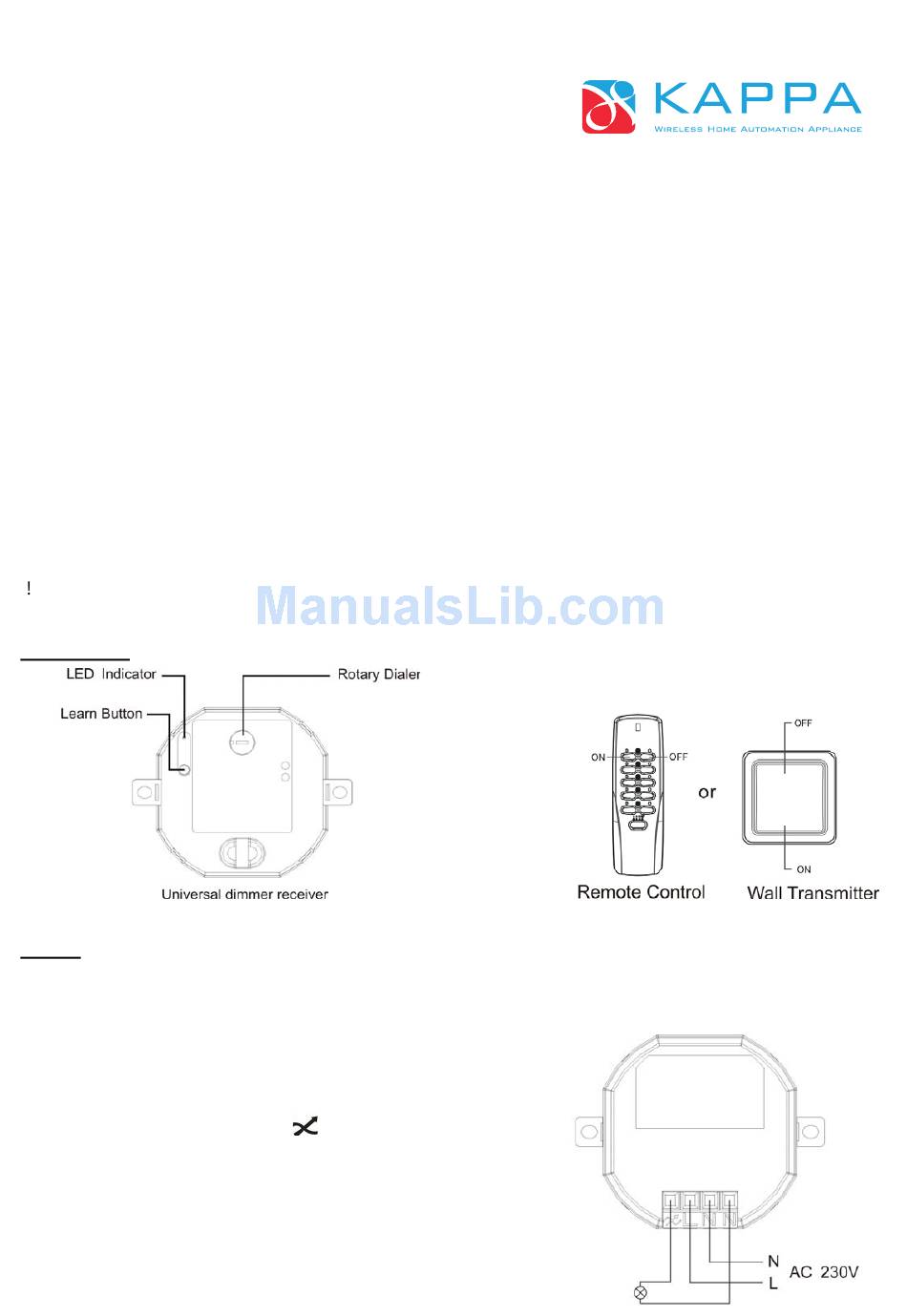

Wiring

Before commencing work, ALWAYS isolate the mains power supply and switch off the circuit breaker.
If universal dimmer receiver is to be fitted into a wall box, dismantle screw tab holder.
Connect AC wire and load to receiver block terminal.
A) Live AC 230V wire into terminal "L-in"
B) Neutral AC 230V wire into terminal "N-in"
C) Load Live wire into terminal "
D) Load Neutral wire into terminal "
E) Connect back mains power supply.
F) LED indicator will light ON and ready for pairing.
-out"
N-out"
