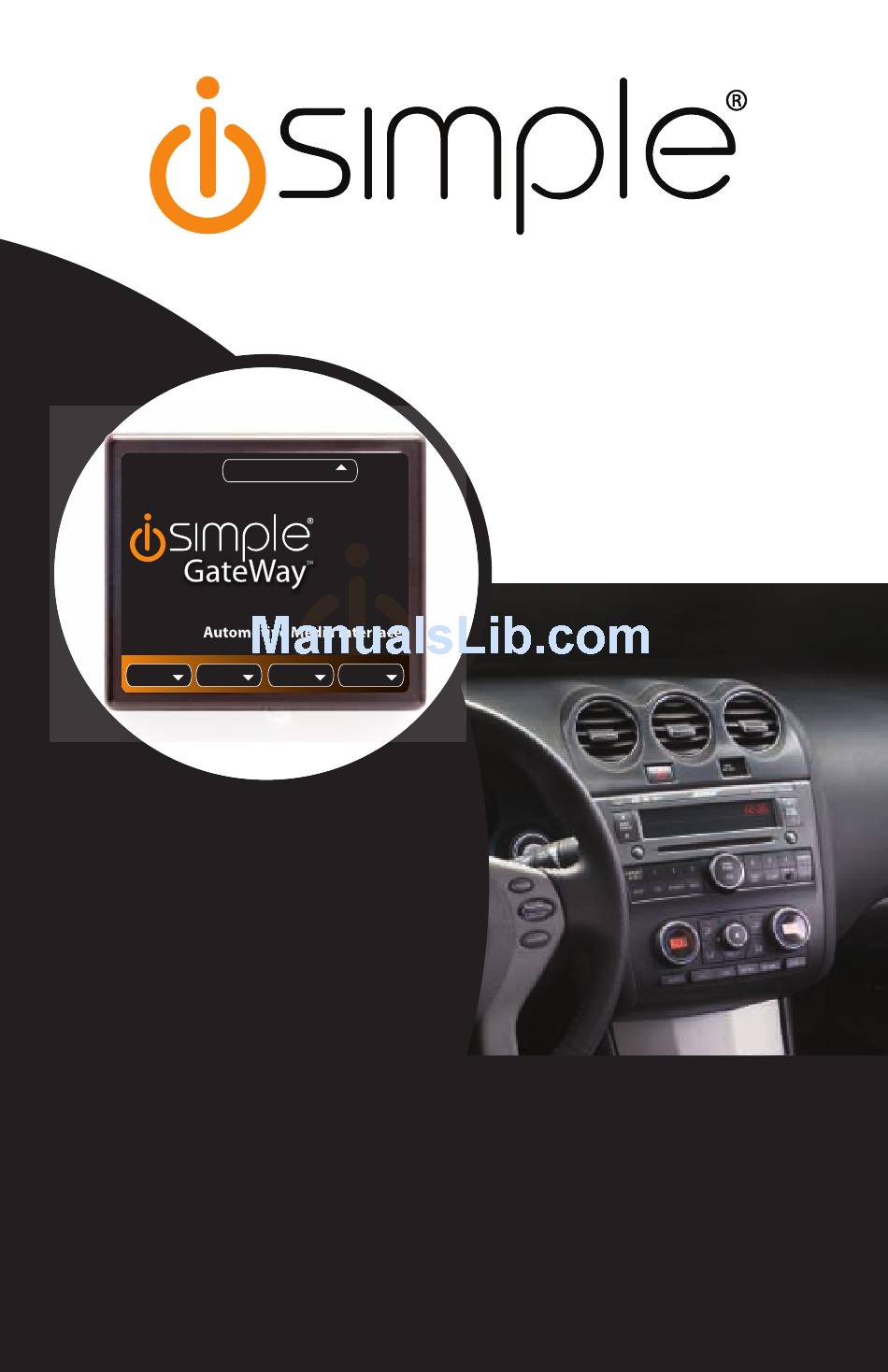

AAMP of America iSimple Owner's Manual

Nissan/infiniti media gateway
Hide thumbs Also See for iSimple:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
Expand Your Factory Radio
Harness Connection
Port 1
Port 2
NISSAN/INFINITI
370z • Cube
Pathfinder • Armada
Sentra • Maxima
Altima • Rouge
Versa • G35
M35/45 • QX56
Owner's Manual
Media Gateway
PXAMG
PGHNI2
iSimple®
A Division of AAMP of America™
13190 56th Court Clearwater, FL 33760
Ph. 866-788-4237
support@isimplesolutions.com
©2009 AAMP of Florida, Inc.
www.isimplesolutions.com
Dip Switches
USB
(See Manual)
add
iPod
®
Rev. 10-05-09
Inst019

Advertisement

Table of Contents
loading

Related Manuals for AAMP of America iSimple

Summary of Contents for AAMP of America iSimple

  • Page 1 Altima • Rouge Versa • G35 M35/45 • QX56 Owner’s Manual Media Gateway PXAMG PGHNI2 iSimple® A Division of AAMP of America™ 13190 56th Court Clearwater, FL 33760 Ph. 866-788-4237 support@isimplesolutions.com ©2009 AAMP of Florida, Inc. www.isimplesolutions.com Rev. 10-05-09 Inst019...

  • Page 2: Table Of Contents

    Table of Contents Pages 1. Introduction 2. Precautions 3. Compatibility Notes 4. Dipswitch Settings 5. Installation Nissan Vehicles 6. 370z/Cube Operation 7. Pathfinder/Armada Operation 8-11 8. Sentra/Maxima Operation 11-15 9. 2009-2010 Maxima Operation 15-18 10. Altima/Rouge Operation 18-21 11. Versa Operation 21-25 Infiniti Vehicles 12.
  • Page 3 Media Gateway & Optional Add-ons *The Media Gateway Factory Radio will only support 2 Not Included inputs. Media Gateway Harness iPod Part #: PGHNI2 Not Included Media Gateway Part #: PXAMG Harness Connection  Harness Connection Dip Switches Port 1 Port 2 (See Manual) ...

  • Page 4: Introduction

    1. Introduction ® Thank you for purchasing the iSimple Media Gateway. The Media Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your iPod performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media Gateway.

  • Page 5: Dipswitch Settings

    4. Dipswitch Settings 2007-2008 Armada 2007-2008 G35/G37 Fig. A 2007-2008 Maxima Non-Navigation 2007-2008 Pathfinder 2007-2008 Sentra 2007 QX56 For the 2007-2008 Altima, 2007-2008 Rouge and the 2007-2008 Versa dipswitch number 3 needs to be on (Fig. B). 2009 370z Fig. B 2007-2008 Altima 2009 Cube...

  • Page 6: Installation

    5. Installation 1. When making electrical connections it is always recommended that the vehicle’s battery be disconnected from the electrical system before performing the installation. 2. Carefully remove the trim panels covering the bolts that secure the radio into the dash cavity. Remove these bolts, and carefully pull the radio from the dash of the vehicle.

  • Page 7: Ipod Operation

    10. Note: The first time you access the Media Gateway, your radio may display “DEV INIT” while the device is initializing. If this is displayed, please wait one minute then cycle the ignition off and on. Then access SAT mode again to begin normal gateway operation.

  • Page 8: Hd Radio Operation

    Browse by Artist Press the “TUNE ▼” button to enter the Browse menu. ”PL:LIST” will appear on your display. Press the “SEEK ▲” button until “AR:ARTIST” is displayed. Press the “TUNE ▼” button to select Browse by Artist. The list of Artists on your iPod will be displayed one at a time in alphabetical order. “AR” will be displayed in front of the artist’s name to indicate that you are searching for an artist.

  • Page 9: Sirius Satellite Radio Operation

    Store Presets Tune to a station you want to store. Press the “SCAN” button. Press “SEEK ▲” to select the preset location (1-18) where you wish to store the preset. When the preset location is displayed (for example PRE1) press the “TUNE▲” button to store it. The screen will display “PR SAVED”...

  • Page 10: Pathfinder/Armada Operation

    Selecting AUX Input Entering Mode Select Menu Press the “AM/FM” button and then the “AUX” button. Immediately press the “SEEK ▲” button to scroll through the available sources. Once “AUX” is displayed, press the “TUNE ▼” button to select it. Selecting Factory Installed Satellite Radio (If equipped) Entering Mode Select Menu...
  • Page 11 Exit Browse menu Press the “SCAN” button or wait 10 seconds and the Browse menu will automatically exit. Browse by Artist Press the “<<SEEK” button to enter the Browse menu. ”PL:LIST” will appear on your display. Turn the rotary TUNE KNOB until “AR:ARTIST” is displayed. Press the “<<SEEK”...
  • Page 12 Changing Bands Press the “AM/FM/SAT” button a few times until “SAT” is displayed on the screen. Immediately turn the rotary TUNE KNOB to scroll through the available sources. Once the band you would like to select is displayed (“HD-AM” or “HD-FM”), press the “<<SEEK”...

  • Page 13: Sentra/Maxima Operation

    Recall Presets Press the preset button that corresponds with the channel you want to recall. Changing Display Press the “DISP” button to display artist and track information. Selecting AUX Input Entering Mode Select Menu Press the “AM/FM/SAT” button a few times until “SAT” is displayed on the screen. Immediately turn the rotary TUNE KNOB to scroll through the available sources.
  • Page 14 Previous Track Press the “<<SEEK” button to return to the previous track. Random Mode Press the “SCAN” button while listening to the iPod to toggle through the random modes. Entering Browse Menu / Select Press the “TUNE>>” button TWICE to enter the Browse menu or to make a selection while in the Browse menu Menu Navigation Press “SEEK>>”...
  • Page 15 HD Radio Operation Important Configuration Process To ensure proper functionality of your HD tuner, you must first set the “TUNE” and “SEEK” buttons to the proper configuration. (Note: You do not have to repeat this process if you have already done so for iPod control!) To do this you must first enter the Mode Select Menu.
  • Page 16 Exit menus Press the “SCAN” button to exit the Preset Menu and continue playing the current station. “EXIT” will be displayed when the button is pressed. You can also wait the allotted 10 seconds and the menu will exit automatically. Changing Display: Press the “DISP”...

  • Page 17: 09-2010 Maxima Operation

    Selecting AUX Input Entering Mode Select Menu Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately press the “SEEK>>” button to scroll through the available sources. Once “AUX” is displayed, press the “<<TUNE” button to select it. Selecting Factory Installed Satellite Radio (If equipped) Entering Mode Select Menu...
  • Page 18 Browse by Artist Press the “<<SEEK” button to enter the Browse menu. ”PL:LIST” will appear on your display. Turn the rotary TUNE KNOB until “AR:ARTIST” is displayed. Press the “<<SEEK” button to select Browse by Artist. The list of Artists on your iPod will be displayed one at a time in alphabetical order. “AR” will be displayed in front of the artist’s name to indicate that you are searching for an artist.
  • Page 19 Store Presets Tune to a station you want to store. Press the “SCAN” button. Turn the rotary TUNE KNOB to select the preset location (1-18) where you wish to store the preset. When the preset position is displayed (for example PRE1) press “SEEK>>” to store it. The screen will display “PR SAVED”...

  • Page 20: Altima/Rouge Operation

    Selecting AUX Input Entering Mode Select Menu Press the “AM/FM” button and then the “AUX” button. Immediately turn the rotary TUNE KNOB to scroll through the available sources. Once “AUX” is displayed, press the “<<SEEK” button to select the displayed mode. Selecting Factory Installed Satellite Radio (If equipped) Entering Mode Select Menu...
  • Page 21 Changing Display Press the “DISP” button to toggle through the display modes (Track, Artist, etc). Browse by Artist Press the “TUNE ▼” button to enter the Browse menu. ”PL:LIST” will appear on your display. Press the “SEEK ▲” button until “AR:ARTIST” is displayed. Press the “TUNE ▼”...
  • Page 22 Changing Bands Press the “AM/FM/SAT” button a few times until “SAT” is displayed on the screen. Immediately press the “SEEK ▲” button scroll through the available sources. Once the band you would like to select is displayed (“HD-AM” or “HD-FM”), press the “SEEK ▼” button to select it.

  • Page 23: Infiniti Vehicles

    Store Presets Tune to the station you wish to store as a preset. Press and hold the preset button on which you want to store the channel. Please Note: If you are using the Media Gateway to add Sirius but still have factory XM installed, it is important to keep the presets in seperate banks.
  • Page 24 Next Track Press the “SEEK ▲” button TWICE to advance to the next track. Previous Track Press the “SEEK ▼” button TWICE to return to the previous track. Random Mode Press the “SCAN” button while listening to the iPod to toggle through the random modes.
  • Page 25 HD Radio Operation Important Configuration Process To ensure proper functionality of your HD tuner, you must first set the “TUNE” button to the proper configuration. (Note: You do not have to repeat this process if you have already done so for iPod control!) To do this you must first enter the Mode Select Menu.
  • Page 26 Changing Display: Press the “DISP” button to display artist and track information if the current HD Radio station is transmitting that information. Steering Wheel Controls Press and hold “▲” to tune up or “▼” to tune down. Sirius Satellite Radio Operation Entering Mode Select Menu Press the “RADIO”...

  • Page 27: G35/G37 Operation

    Selecting Factory Installed Satellite Radio (If equipped) Entering Mode Select Menu Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately press the “SEEK ▲” button to scroll through the available sources. Once “SAT” is displayed, press the “TUNE ▼” button to select it. 12.
  • Page 28 Browse by Artist Press the “▼ TRACK” button to enter the Browse menu. ”PL:LIST” will appear on your display. Turn the TUNE KNOB until “AR:ARTIST” is displayed. Press the “▼ TRACK” button to select Browse by Artist. The list of Artists on your iPod will be displayed one at a time in alphabetical order. “AR” will be displayed in front of the artist’s name to indicate that you are searching for an artist.
  • Page 29 Store Presets Press the “SCAN” button. Once in the Preset Menu turn the TUNE KNOB to select the preset location (1-18) where you wish to store the preset. When the preset position is displayed (for example PRE1) press “SEEK/CAT ▲” to store the preset into memory. The screen will display “PR SAVED”...

  • Page 30: M35/45 Operation

    Selecting AUX Input Entering Mode Select Menu Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately turn the rotary knob to scroll through the available sources. Once “AUX” is displayed, press the “▼ TRACK” button to select it. Selecting Factory Installed Satellite Radio (If equipped) Entering Mode Select Menu...
  • Page 31 Browse by Artist Press the “<< SEEK” button to enter the Browse menu. ”PL:LIST” will appear on your display. Turn the TUNE KNOB until “AR:ARTIST” is displayed. Press the “<< SEEK” button to select Browse by Artist. The list of Artists on your iPod will be displayed one at a time in alphabetical order. “AR” will be displayed in front of the artist’s name to indicate that you are searching for an artist.
  • Page 32 Store Presets Press and hold the “TRACK >>” button. Once in the Preset Menu turn the TUNE KNOB to select the preset location (1-18) where you wish to store the preset. When the preset position is displayed (for example PRE1) press “TRACK >>” to store the preset into memory.

  • Page 33: Qx56 Operation

    Changing Display Press the “DISP” button to display artist and track information. Selecting AUX Input Entering Mode Select Menu Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately turn the rotary knob to scroll through the available sources. Once “AUX” is displayed, press the “<<SEEK”...
  • Page 34 Exit Browse menu Press the “SCAN” button or wait 10 seconds and the Browse menu will automatically exit. Browse by Artist Press the “<<SEEK” button to enter the Browse menu. ”PL:LIST” will appear on your display. Turn the TUNE KNOB until “AR:ARTIST” is displayed. Press the “<<SEEK”...
  • Page 35 Changing Bands Press the “AM/FM/SAT” button a few times until “SAT” is displayed on the screen. Immediately turn the TUNE KNOB to scroll through the available sources. Once the band you would like to select is displayed (“HD-AM” or “HD-FM”), press the “<<SEEK” button to select it.
  • Page 36 Recall Presets Press the preset button that corresponds with the channel you want to recall. Changing Display Press the “DISP” button to display artist and track information. Selecting AUX Input Entering Mode Select Menu Press the “AM/FM/SAT” button a few times until “SAT” is displayed on the screen. Immediately turn the TUNE KNOB to scroll through the available sources.

  • Page 37: Troubleshooting

    15. Troubleshooting Symptom Cause Remedy This only occurs the first time the Radio shows “DEV Media Gateway INIT” device is initializing. Media Gateway is powered on. Wait a few minutes, cycle ignition off and on then enter SAT mode. The track forward The seek and tune Please see the Important Configuration Process in the iPod...
  • Page 38 Troubleshooting (cont) Symptom Cause Remedy When I listen to Factory antenna Use Media Gateway to access the factory AM or cable is connected HD radio source. This will provide FM radio there to the HD radio all AM and FM reception for your is only static, no tuner.

  • Page 39: Warranty Info

    ® will repair or replace the product at their discretion, if it is defective in material dealer, with PROOF ® or workmanship providing it is returned to an Authorized iSimple OF PURCHASE from an authorized iSimple ® dealer. Warning: This equipment may be reset by unintentional electrostatic discharge during operation.
  • Page 40 Notes ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________...
  • Page 41 Notes ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________...
  • Page 42 www.isimplesolutions.com For Best Performance Have It Professionally Installed.
