M3 Grinder User's Manual

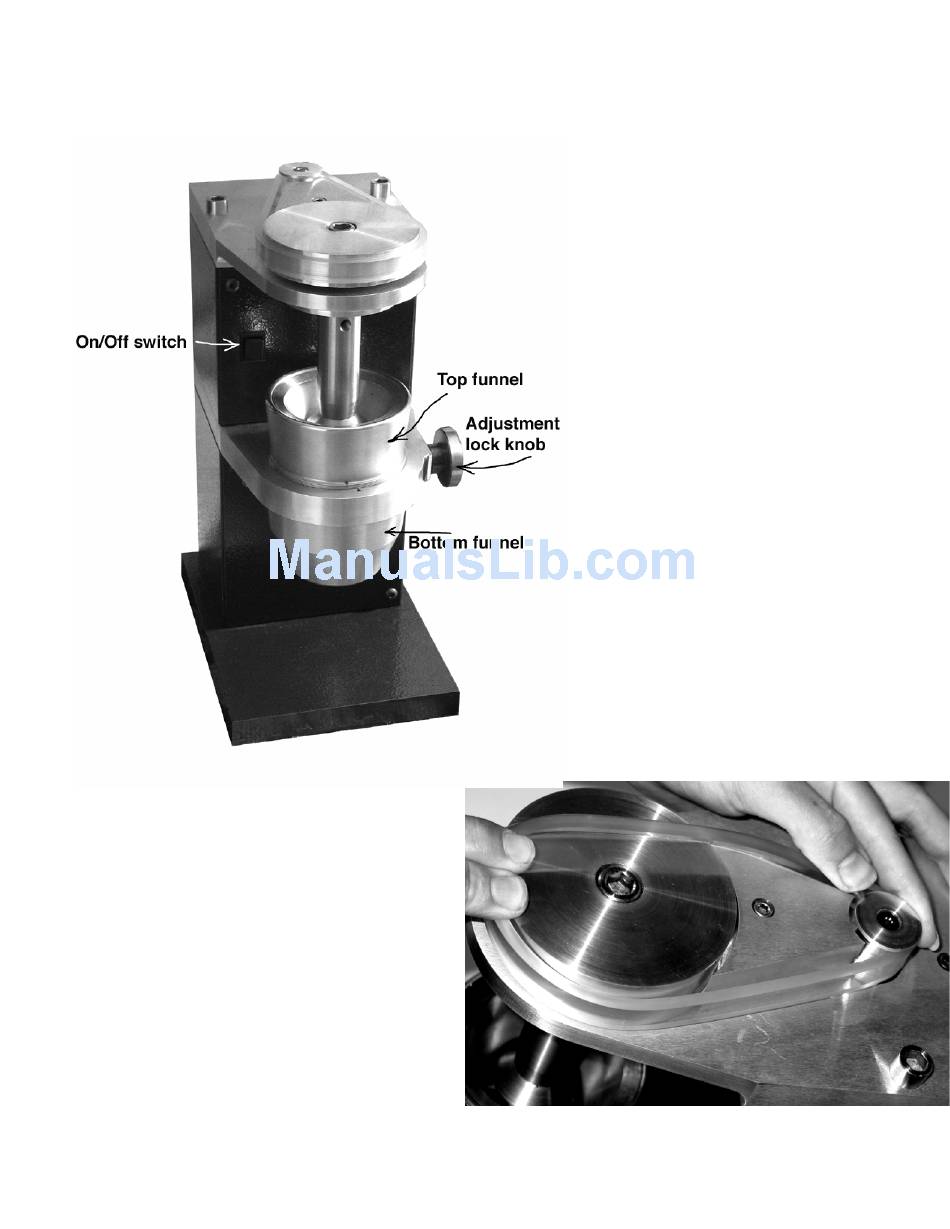

Drive belt. The Grinder ships with the

belt installed. If you should

need to reinstall it, place the

drive belt into the groove of

the small pulley on top of the

grinder and stretch it around

the large pulley. This will take

some effort as the belt has

plenty of tension. It will

simplify the process of getting

the belt around the large

pulley if you begin by getting

the belt around one side of the

large pulley and then start to

rotate the large pulley in a

manner so as to drag this

around the front. This will drag the belt around the pulley.

rev.7

Unpacking & Installation

Included with the grinder is a

power cord and a bag of hex.

Also a dowel pin for holding the

shaft when changing burrs.

Table of Contents

Need help?

Do you have a question about the M3 and is the answer not in the manual?

Page 1 M3 Grinder User's Manual rev.7 Unpacking & Installation Included with the grinder is a power cord and a bag of hex. Also a dowel pin for holding the shaft when changing burrs. Drive belt. The Grinder ships with the belt installed. If you should...
Page 2 Fuse. There is a fuse installed as shipped, and a spare included. Both are accessible in a small plastic drawer in the connector where the power cord is inserted. Further spares should be 5x20mm 2 amp slow-blow fuses. These are widely available at local stores including Radio Shack.
Page 3 Be very careful! When you lower the bottom funnel, lower it almost all the way to the baseplate, before bringing it forward. If you do not, it is possible to bend the "moving wiper" which sticks down as far as the bottom opening in the bottom funnel.
