Radio Shack 15-316 User Manual

Radio Shack 15-316 User Manual

4-in/1-out remote-controlled component/s-video a/v selector switch

Advertisement

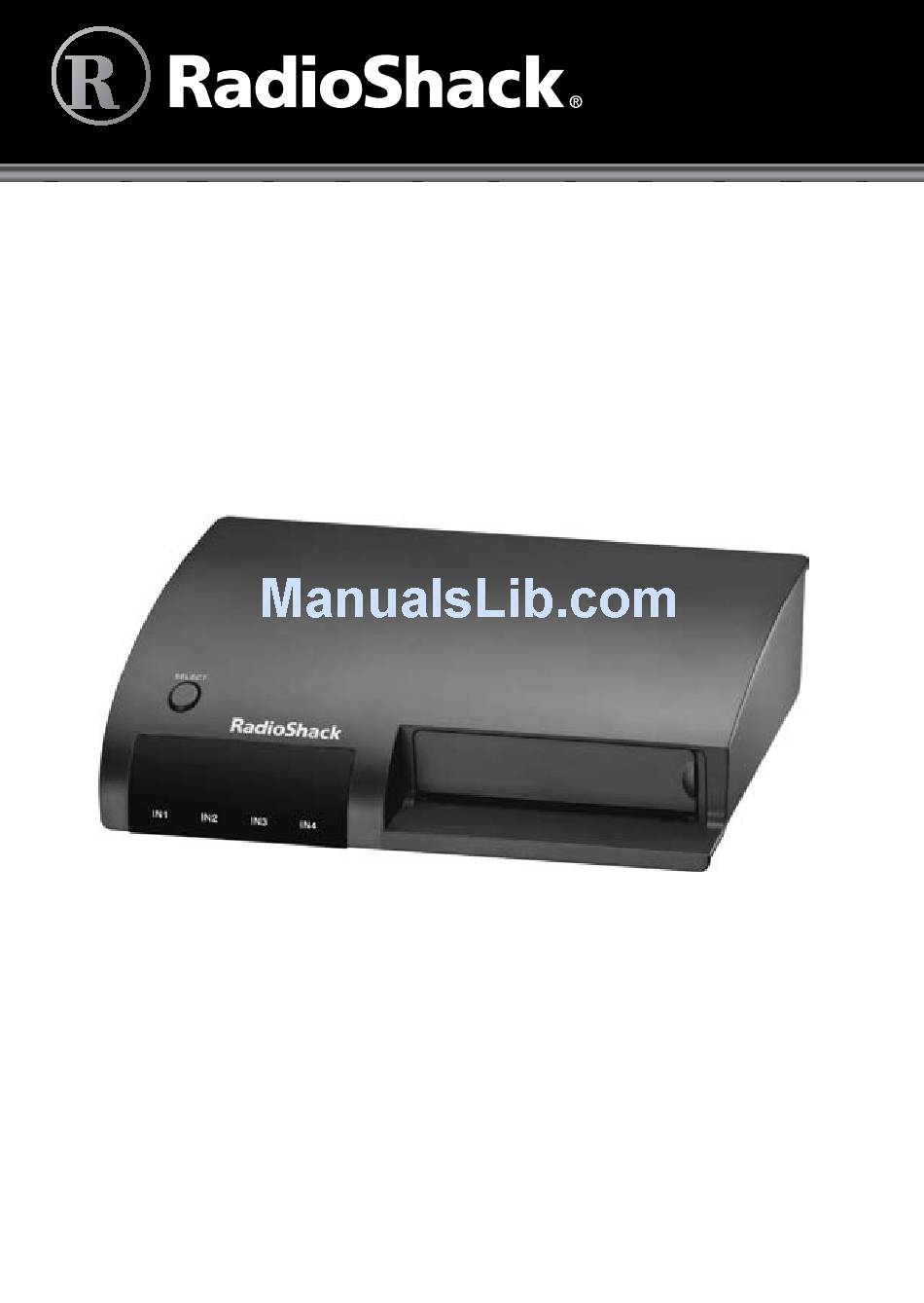

15-316
User's Guide
4-In/1-Out
Remote-Controlled
Component/S-Video A/V
Selector Switch
Thank you for purchasing your 4-in/1-out Remote-Controlled
Component/S-Video A/V Selector Switch from RadioShack.
Please read this user's guide before installing, setting up, and
using your new Selector Switch.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15-316 and is the answer not in the manual?

Questions and answers

Summary of Contents for Radio Shack 15-316

  • Page 1 15-316 User’s Guide 4-In/1-Out Remote-Controlled • Component/S-Video A/V Selector Switch Thank you for purchasing your 4-in/1-out Remote-Controlled Component/S-Video A/V Selector Switch from RadioShack. Please read this user’s guide before installing, setting up, and using your new Selector Switch.
  • Page 2: Package Contents

    • Selector Switch • AC Adapter • Remote Control • User’s Guide • Quick Start Features • Supports up to 1080i resolution. • Switches between four component, S-Video, or composite video sources. Connect the Selector Switch Place the selector switch on a flat surface. Use composite, component, or S-Video cables (available at your local RadioShack store and online at RadioShack.com) to make all connections. Audio 1. Connect each device’s audio outputs to a set of INPUT (1-4) R/L jacks on the switchbox. 2. Connect the TV or monitor’s audio inputs to the OUTPUT (1) R/L jacks. Video 1. Connect each device’s Y/Pb/Pr component video outputs to a set of INPUT (1-4) Y/Pb/Pr component video jacks on the switchbox.
  • Page 3 Connect each device’s S-video outputs to a set of INPUT (1-4) S-video jacks on the switch box. 2. Connect the TV or monitor’s Y/Pb/Pr component video inputs to OUTPUT Y/Pb/Pr component video jacks. – OR – Connect the TV or monitor’s composite video inputs to OUTPUT composite video jacks. – OR – Connect the TV or monitor’s S-video inputs to OUTPUT S-video jacks. Power Connect the supplied AC adapter’s barrel plug to the selector switch’s DC 12V jack, then connect the adapter’s AC plug to a standard AC outlet. Caution: • You must use a Class 2 power source that supplies 12V DC and delivers 300 mA. Its center tip must be set to negative and its plug must fit the switchbox’s DC 12V jack. The supplied adapter meets these specifications.
  • Page 4: Front View

    Front view SELECT Select device Back view Input1 Audio – OR – Video – OR – Input3 Input2 Audio Video Audio Video Note: Always connect the AC adapter to the switch befor disconnect the adapter from AC power before you disconnect...
  • Page 5 Input4 – OR – Video – OR – Audio Output Audio Video INPUT (1-4) Select device re you connect it to AC power. When you finish, t it from the switch.
  • Page 6 Use the Selector Switch Using the remote control to operate the selector switch 1. Press 1-4 on the remote to view the device connected to INPUT 1-4. 2. Operate the device as usual. Manually operating the selector switch 1. Press SELECT on the front panel to view the device connected to INPUT 1-4, in sequence. 2. Operate the device as usual. Replacing the Battery in the Remote Control Your remote comes with a battery installed. Remove the plastic tab before using the remote. Replace the battery if the remote control stops operating properly.
  • Page 7: Specifications

    RCA Connector ............Gold-plated Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modifications not expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance,...
  • Page 8 RadioShack sales receipt as proof of purchase date to any RadioShack store in the U.S. RadioShack will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the perform- ance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some States do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. You may contact RadioShack at: RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/08 www.RadioShack.com Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. ©2009. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are Printed 10A09 trademarks used by RadioShack Corporation. in China 15-316...
