USSC APS1100B Owner's Manual

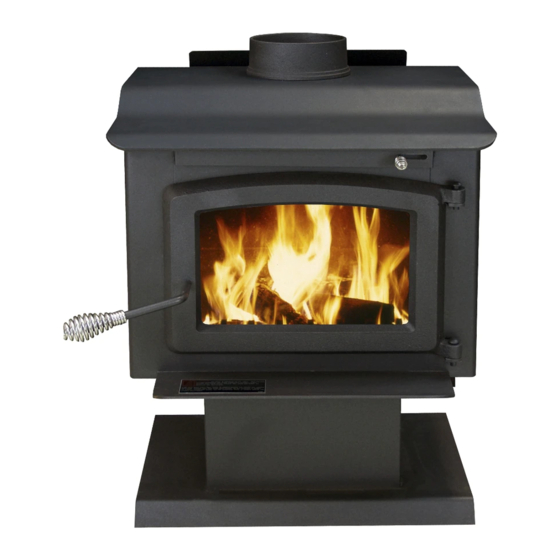

Pedestal plate heater
Hide thumbs

Advertisement

Table of Contents

PEDESTAL PLATE HEATER
S
U
S
US ENVIRONMENTAL PROTECTION
AGENCY PHASE II CERTIFIED
WOODSTOVE
Please read this entire manual
before you install and use your
new room heater. Failure to fol-
low these instructions may result
in property damage, bodily injury,
or even death.
Improper installation could void
your warranty.
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU
TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
Manufactured By:
Qingdao Hichanse Group Co., LTD
168 Wenhua Road, Jimo
Quingdao, China
OWNER'S MANUAL
C
APS1100B
SAFETY NOTICE:
If this heater is not properly installed, a house fire may
result. For your safety, follow the installation instruc-
tions. Contract local building or fire officials about
restrictions and installation requirements in your area.
SAVE THIS MANUAL FOR FUTURE REFERENCE
MODEL
DO NOT USE THIS HEATER
IN A MOBILE HOME OR TRAILER
1
S
C
U
S
TESTED TO
Distributed By:
UNITED STATES STOVE COMPANY
227 Industrial Park Road
P.O. Box 151
South Pittsburg, TN 37380
UL 1482
Pt. No.: 851684

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APS1100B and is the answer not in the manual?

Questions and answers

robert chicoine
January 18, 2025

what is the insulation on the inside top of stove

0
robert chicoine
January 18, 2025

what is the insulyion on the inside top of stove

0

Subscribe to Our Youtube Channel

Related Manuals for USSC APS1100B

Summary of Contents for USSC APS1100B

  • Page 1 OWNER'S MANUAL PEDESTAL PLATE HEATER MODEL APS1100B US ENVIRONMENTAL PROTECTION TESTED TO AGENCY PHASE II CERTIFIED UL 1482 WOODSTOVE SAFETY NOTICE: Please read this entire manual If this heater is not properly installed, a house fire may before you install and use your result.
  • Page 2 CONGRATULATIONS! You've purchased a heater from North America's oldest manufacturer of wood burning products. By heating with wood you're helping to CONSERVE ENERGY! Wood is our only Renewable Energy Resource. Please do your part to preserve our wood supply. Plant at least one tree each year.

  • Page 3: Safety Rules

    SAFETY RULES SAFETY NOTICE: If this heater is not properly installed a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. Read these rules and the instructions carefully. Check with local codes.

  • Page 4: Minimum Clearance To Combustibles

    LOCATING THE ROOM HEATER AS A LOCATION IS SELECTED, KEEP THE FOLLOWING IN MIND: 1. Keep the chimney connection as short as possible. 3. Check figures below. You should have at least the The heater must have its own chimney flue. Do not clearances shown from the heater and the connector connect any other appliance to the same flue.
  • Page 5 APS1100 Assembly This heater comes equipped with a cast-iron flue collar to mount as shown below: Flue Collar 5/16-18 x 1-1/2" Bolts (3 req.) Weld Tab (3 req.) Gasket Peel off tape from the back of the gasket and attach the gasket to the rope groove in the flue collar.

  • Page 6: Chimney Connection

    CHIMNEY CONNECTION Two basic types of chimneys are approved for use with solid fuel. Factory-built and ma- sonry. Factory-built chimney must comply with UL standard in the US. Do not expect your stove to create draft. Draft is not a function of the appliance. Draft is purely a function of the chimney.
  • Page 7 Combustible Wall Chimney Connector Pass-Throughs PART A MINIMUM CHIMNEY CLEARANCE TO BRICK FIGURE 9 AND COMBUSTIBLES IS 2 IN. MINIMUM CLEARANCES 12 IN. OF BRICK ALL AROUND CHIMNEY CONNECTOR TO HEATER MINIMUM 12 IN. FIRE CLAY LINER TO COMBUSTIBLES (5/8" MIN. WALL THICKNESS) MASONRY CHIMNEY CONSTRUCTED TO NFPA 211 MIN.
  • Page 8 Combustible Wall Chimney Connector Pass-Throughs Method A. 12" Clearance to Combustible Wall Member Use a minimum 3-1/2" thick brick masonry wall framed into the combustible wall. A fireclay liner (ASTM C315 or equiva- lent) having a 5/8" minimum wall thickness must be used and it must be at least 12" away from any material that could catch fire.

  • Page 9: Masonry Chimney

    VENTING INTO A FIREPLACE VENTING INTO A MASONRY CHIMNEY Many people may wish to convert an existing fire- place to heater use. Usually, safe connection of When considering a masonry chimney, round tiles stovepipe to a masonry chimney requires more effort are preferable to square or rectangular, as round tiles than connection to a prefabricated chimney.

  • Page 10: Fireplace Installation

    "FIREPLACE" INSTALLATION (CONT'D) FIREPLACE INSTALLATION Do not use the Type B installation (not illustrated in this manual), that is, venting up through the Connection of the stovepipe directly into the ex- fireplace opening, regardless of whether the fire- isting masonry chimney over the fireplace open- place opening is closed.
  • Page 11 RULES FOR CONNECTOR PIPE INSTALLATION Crimped end of the pipe must be installed toward the heater. The pipe should slide inside the flue collar. The pipe should be firmly attached to the flue collar with 3 screws and sealed with furnace cement.

  • Page 12: Service Hints

    OPERATING INSTRUCTIONS WARNING! NEVER STORE FLAMMABLE LIQUIDS, Wood Fuel ESPECIALLY GASOLINE. IN THE VICINITY OF THE HEATER. Use Hardwood that has been split and air-dried to obtain maximum burning efficiency. CAUTION! OVERFIRING THE APPLIANCE MAY Lighting Instructions CAUSE A HOUSE FIRE. IF A UNIT OR CHIMNEY CONNECTOR GLOWS, YOU Open door and place paper and kindling in the firebox.

  • Page 13: Repair Parts

    REPAIR PARTS KEY NO. DESCRIPTION PART NO. QTY. Hex Head Bolt 83432 3/8 ID Washer 83045A Flue Collar 40292 Flue Collar Gasket 88042 Weld Tab 83431 Firebox Weldment Af0040A Top Plate Trim AF0027 Brass Handle Af0019 Hearth Trim AF0028 Keps Nus 83274 Door Latch Spacer AF0034...
  • Page 14 BRICK PLACEMENT - (TOP INSIDE VIEW OF FIREBOX) WIRING DIAGRAM FOR BLOWER ASSEMBLY CAUTION! THE BLOWER ASSEMBLY WARNING! MUST BE DISCON- DO NOT ROUTE THE NECTED FROM THE SUPPLY CORD SOURCE OF ELECTRICAL NEAR OR ACROSS SUPPLY BEFORE AT- HOT SURFACES! TEMPTING ANY MAINTE- NANCE.
  • Page 15 Coals have been known to stay hot for several days when embedded in ashes. Glass Replacement Instructions for APS1100B Use only the glass specified for this unit. Be sure heater has cooled before begining.

  • Page 16: How To Order Repair Parts

    WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION AS SHOWN IN THIS LIST: 1. The PART NUMBER 2. The PART DESCRIPTION 3. The MODEL NUMBER: APS1100B 4. The SERIAL NUMBER: ____________________ UNITED STATES STOVE COMPANY 227 Industrial Park Road P.O.
