C970-635621.eps CC970-635621.eps BC970-635621.eps TC970-635621.eps DC970-
555021.eps
318046794-1.eps 318046794-2.eps
North & Latin America
5855 TERRY FOX WAY
MISSISSAUGA, ONTARIO, CANADA L5V
3E4
Product No.
C970-635621
307053B6M9111 307053B6M9141 307053B6M9161
Series
30" f/s elec
Color
white
Market
Canada
318046794
Owner's Guide
318200449
Service Data Sheet 318202611
Timer Guide
318200167
Publication No.
5995541397
09/05/28
(EN/SERVICE/ECL)
377
SEARS CANADA
C970-635641
C970-635691
30" f/s elec
30" f/s elec
bisque
black
Canada
Canada
318046794
318046794
318200449
318200449
318202611
318202611
318200167
318200167

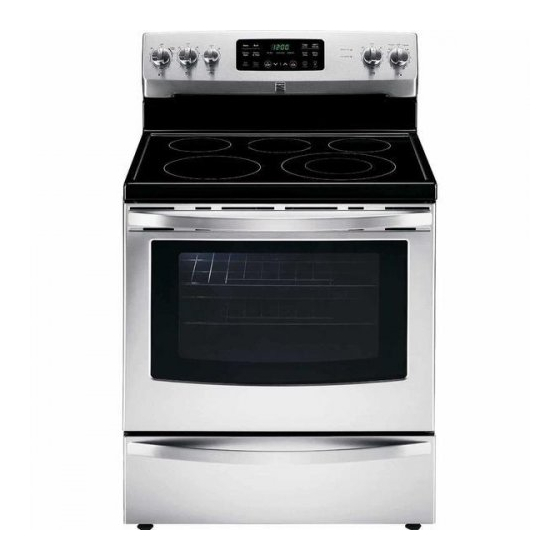

30-INCH FREE-
STANDING ELECTRIC
RANGE
Model No.
C970-6356
©
Copyright
All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sears C970-6356
Summary of Contents for Sears C970-6356
- Page 1 SEARS CANADA Product No. C970-635621 C970-635641 C970-635691 307053B6M9111 307053B6M9141 307053B6M9161 Series 30" f/s elec 30" f/s elec 30" f/s elec Color white bisque black Market Canada Canada Canada Wiring Diagram 318046794 318046794 318046794 Owner's Guide 318200449 318200449 318200449 Service Data Sheet 318202611...
- Page 2 Publication No: 5995541397 C970-6356 BACKGUARD 8 . 8 . 8 . CC970-635621 05/09...
- Page 3 C970-6356 Publication No: 5995541397 BACKGUARD Model Index: A C970-6356 (C970-635621) B C970-6356 (C970-635641) C C970-6356 (C970-635691) POS. NO PART NO. DESCRIPTION 318314100 A B C Panel, cover, upper 318288211 Shield, inner, white 318288212 Shield, inner, bisque 318288213 Shield, inner, black...
- Page 4 Publication No: 5995541397 C970-6356 BODY Part of 58B 166A 166A BC970-635621 05/09...
- Page 5 C970-6356 Publication No: 5995541397 BODY Model Index: A C970-6356 (C970-635621) B C970-6356 (C970-635641) C C970-6356 (C970-635691) POS. NO PART NO. DESCRIPTION 318259220 A B C Back, main 318317300 A B C Shield, wire, lock motor 318299816 A - - Panel, body side, white, (2)
- Page 6 Publication No: 5995541397 C970-6356 BODY Part of 58B 166A 166A BC970-635621 05/09...
- Page 7 C970-6356 Publication No: 5995541397 BODY Model Index: A C970-6356 (C970-635621) B C970-6356 (C970-635641) C C970-6356 (C970-635691) POS. NO PART NO. DESCRIPTION 318317100 A B C Adapter Assembly, vent tube, w/converter 318172904 A B C Support, wire 318338500 A B C...
- Page 8 Publication No: 5995541397 C970-6356 TOP/DRAWER TC970-635621 05/09...
- Page 9 C970-6356 Publication No: 5995541397 TOP/DRAWER Model Index: A C970-6356 (C970-635621) B C970-6356 (C970-635641) C C970-6356 (C970-635691) POS. NO PART NO. DESCRIPTION 318107106 A B C Drawer 318303035 A - - Panel, drawer, white, front 318303036 - B - Panel, drawer, bisque, front...
- Page 10 Publication No: 5995541397 C970-6356 DOOR DC970-555021 05/09...
- Page 11 C970-6356 Publication No: 5995541397 DOOR Model Index: A C970-6356 (C970-635621) B C970-6356 (C970-635641) C C970-6356 (C970-635691) POS. NO PART NO. DESCRIPTION 318301401 A - - Trim, oven door, white 318301402 - B - Trim, oven door, bisque 318301403 - - C...
- Page 12 Publication No: 5995541397 C970-6356 WIRING DIAGRAM 05/09...
- Page 13 C970-6356 Publication No: 5995541397 WIRING DIAGRAM 05/09 # Functional Parts * Non-Illustrated Parts...
