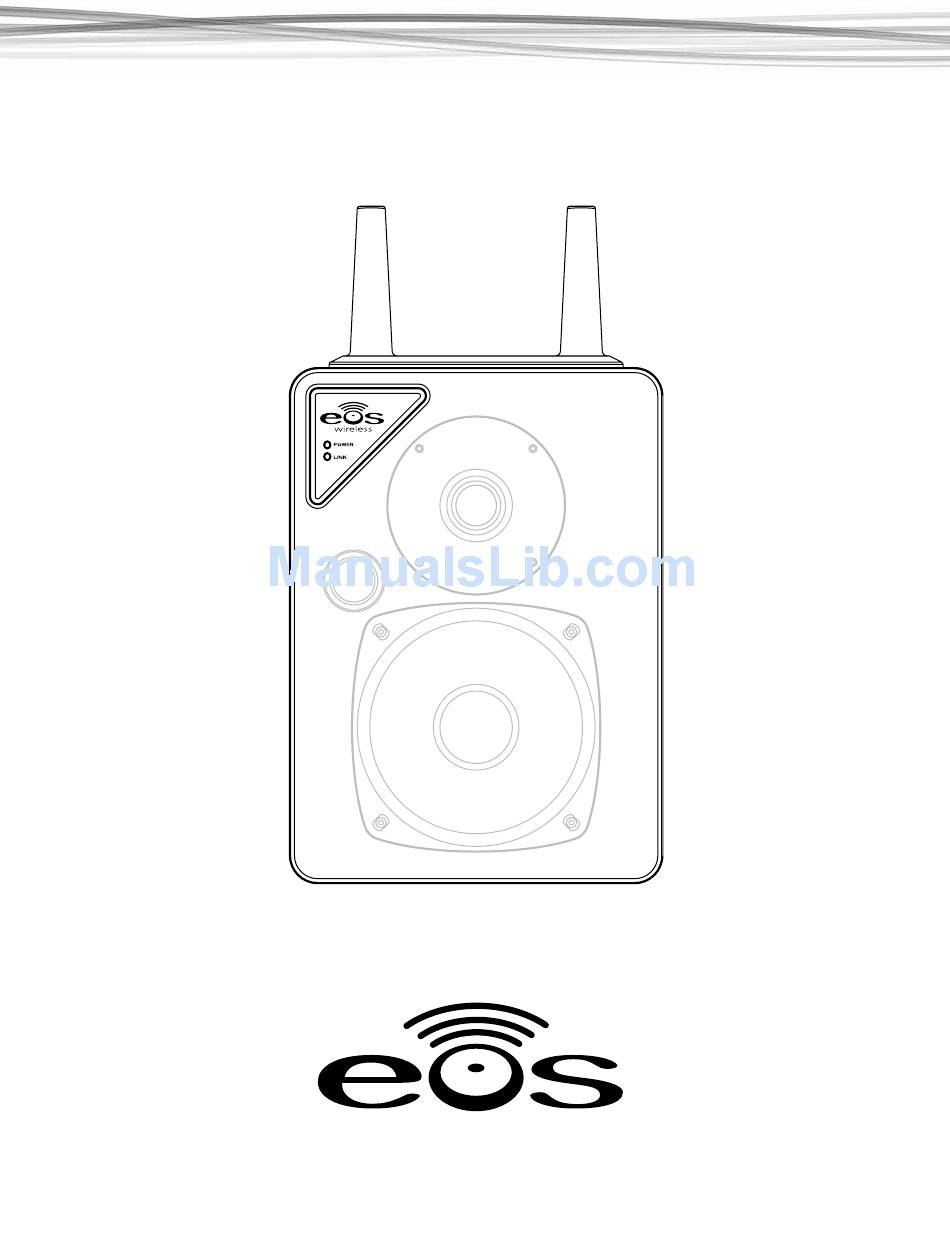

Page 1: User Manual
EOSP-622 Dual Zone Wireless Speaker User Manual commercial wireless audio... - Page 2 Please read the entire contents of this manual. It is filled with reference information that will allow you to get the most from your new Eos system. If you have any questions, please check our web site at pro.eoswireless.com/support or call us at 877-465-3927.
-
Page 3: Table Of Contents
Table Of Contents Contents Contents Important Safety Instructions Important Safety Instructions FCC Information FCC Information Limited Warranty Limited Warranty Product Support Product Support Wireless System Setup Wireless System Setup Linking Procedure Linking Procedure Adding Additional Wireless Speakers/Receivers Adding Additional Wireless Speakers/Receivers Controls &... -
Page 4: A Consumer Guide To Product Safety
A Consumer Guide to Product Safety Important Safety Instructions Please take the time to follow the instructions in this manual carefully. It will help you set up and operate your system properly and enjoy all of the advanced features. Please save this manual for future reference. WARNING: To reduce the risk of fire or electrical shock, do not expose the product to rain or moisture. -
Page 5: Fcc Information
A Consumer Guide to Product Safety FCC Information Information about products that generate electrical noise if applicable, this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 6: Limited Warranty
(pro.eoswireless.com/register), or by calling 877-465-3927 between Monday through Friday, 8:30AM to 5PM Pacific Time. For Warranty service outside the United States, contact the reseller that you purchased the Eos product from. Should service be necessary under this warranty for any reason due to manufacturing defect during this 1-year period from date of original purchase, IntelliTouch will either repair the unit or replace it with a reconditioned unit at no charge. -
Page 7: Wireless System Setup
Set Up Wireless System Setup The Eos Pro Series Wireless Speakers can receive wireless audio from either the EOSP-500 Dual Zone Music Player with the EOSP-510 wireless transmitter card installed or from the EOSP-610 transceiver in the transmit mode. Transmitters are referred as TX in this manual and receivers as Linking Wireless Transmitters &... -
Page 8: Controls & Functions
Connections Controls & Functions Channel Switch Volume Control Zone Select Link Button Allows selection of Adjusts the local volume Allows the selection of Used to link the Right, Left of Mono setting of the wireless Zone 1 or Zone 2 wireless speaker with Audio output speaker... -
Page 9: Wireless Speaker Operation
Connections Wireless Speaker Operation Channel Switch The Wireless Speaker can be set to receive either Right or Left Channel audio or Mono audio from a stereo signal. Volume Control Master volume is set at the transmitter/source end. Local volume for each speaker can be adjusted either from the speaker or from the IR wireless remote control. -
Page 10: Mounting Options
Mounting Mounting Options Wall Outlet Mounting A unique design feature of the wireless speaker is that it can be plugged into a wall outlet for mounting. For added support a security wall bracket mount is included in the package. To use this bracket, see the diagram below. -
Page 11: Mounting Options
Mounting Mounting Options Wall Mounting The wireless speaker can be wall mounted using the optional swiveling wall mount speaker kit (EOSP-5). In wall mounting applications an ordinary extension cord can be used to provide power to the speaker. To mount using the swiveling wall mounting kit, see the diagram below. Complete intallation information can be found in the EOSP-5 instruction guide included with the wall mounting kit (EOSP-5). -
Page 12: Troubleshooting
Troubleshooting Getting the most out of your wireless audio Eos wireless is pure magic but if you experience problems here’s a few suggestions and tips to help you get the best performance possible. If wireless speaker/receiver falls out of range of the transmitter’s signal, the connection can begin to break up. -
Page 13: Wireless Audio Troubleshooting Guide
Troubleshooting Wireless Audio Troubleshooting Guide Solution Issue No link Make sure that the power LED is illuminated, if not check power connections on the transmit and receive ends. Bring the wireless speaker or receiver close to the transmitter and retry the linking procedure. When linking with Transmitter/Receiver unit, make sure the MODE switch is set to the TX mode. - Page 14 commercial wireless audio 877-465-3927 www.eoswireless.com/pro...
