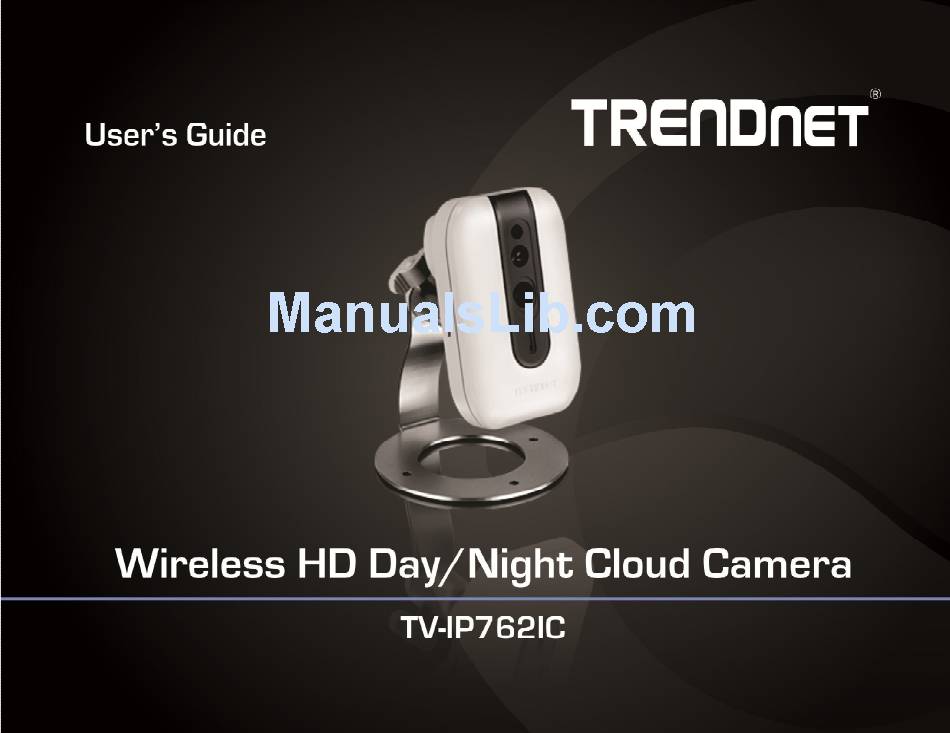

  • Page 1 TV-IP762IC TRENDnet User’s Guide © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 2: Table Of Contents

    Setup Wizard Utility ................56 Step 4: Camera Name Settings................ 32 TRENDnetVIEW Pro Software ..............60 Step 5: Time Settings ..................32 Troubleshooting ..................61 Step 6: Setup Complete .................. 35 System........................35 © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 3: Product Overview

    Product Overview Features The Wireless HD Day/Night Cloud Camera, model TV-IP762IC, takes the work out of viewing HD video over the internet. After a brief installation, simply open a web browser and login from any internet connection to view and manage this camera. The free TRENDnet CloudView App brings live video to Apple®...

  • Page 4: Product Hardware Features

    Reset Button – Use an item such as a paperclip to push and hold this button for  6 seconds and release to reset your camera to its factory defaults. Network Port – Connect Network cables from the camera to your route or  switch. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 5: Wall Mount Installation

    Use the pencil to mark the three holes of the plate on the wall.  Drill the holes  Attached the camera to the plate  Use the supplied screws to secure the camera stand to the wall.  © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 6: Using The Autorun Wizard

    Autorun.exe to start installation wizard. For Mac users: Please click InstallWizard to start installation wizard. 3. TRENDnet Cloud Service Term of use. Read the documents and click Agree to continue. Click Disagree to exit the autorun. 1. Select your desired language for Installation. There are five languages available –...

  • Page 7: Option A: Wired Connection By Network Cable

    Connect camera to your wireless network using Wi-Fi Protected Setup (WPS) button (Verify your router has a WPS button. If not, select the next option). Connect camera to your wireless network manually without using Wi-Fi Protected Setup (WPS) © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 8 Model Name and MAC Address of the camera. If you do not see any of your camera(s) in the wizard, click Retry to scan the camera again. Click Next to continue. 4. The wizard will search for cameras within the network. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 9 TRENDnet User’s Guide 6. Changing Password. You must change the default password of the camera. The 7. The initial setup is complete. Click the link to access the TRENDnet Cloud default username and password is admin. Click the Change Password checkbox Server or click camera icon to create a desktop shortcut for future access.

  • Page 10: Option B: Wireless Connection Using Wps Button

    TV-IP762IC TRENDnet User’s Guide 8. The Mobile App option allows the user to download the TRENDnet Option B: Wireless Connection Using WPS Button CloudView mobile app for either Apple iOS or Android™ devices. To use this 1. Click Connect camera to your wireless using Wi-Fi Protected Setup (WPS) feature, please use the QR Code Scanner from your mobile device.
  • Page 11 Click the Change Password checkbox to enter a new password. The password should be between 8 and 16 characters. Click Next to continue. 4. Wait until the wizard found your camera. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 12 TV-IP762IC TRENDnet User’s Guide 7. The initial setup is complete. Click the link to access the TRENDnet Cloud 8. The Mobile App option allows the user to download the TRENDnet CloudView mobile app for either Apple iOS or Android™ devices. To use...

  • Page 13: Option C: Wireless Connection By Manual Setup

    Model Name and MAC Address of the camera. If you do not see any of your end to the power outlet. The Power/Link LED will be blinking. Click Next to camera(s) in the wizard, click Retry to scan the camera again. Click Next to continue. continue. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 14 Available Wireless Network and also to provide a Wireless Network Password. If you do not see your wireless network details, click the Rescan link to scan the network again. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 15 TV-IP762IC TRENDnet User’s Guide 9. The initial setup is complete. Click the link to access the TRENDnet Cloud 10. The Mobile App option allows the user to download the TRENDnet CloudView Server or click camera icon to create a desktop shortcut for future access.

  • Page 16: Starting The Trendnet Cloud Service

    Using the Cloud Service to connect the camera from any location or computer. Follow these steps to setup the process: Ensure the TV-IP762IC has successfully connected to the network and Internet.  Look underneath the camera for the cloud service URL. (Example: ...
  • Page 17 TV-IP762IC TRENDnet User’s Guide 4. TRENDnet Cloud Terms of Use. Read the document and click the Accept 5. Changing the username and password. The change password option only checkbox and click Next to continue. appears when your password has not changed from the default setting admin.
  • Page 18 6. The next screen verifies your settings are successful. Click Login. 7. Login with the new username and password and click Login. 8. After you login, the following Cloud Service page will appear. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 19: Trendnet Cloud Mode

    Advanced Configuration mode. difference between these three modes. Cloud Mode 1: Mode 1 indicates the camera is connecting directly to the internet or local network. This mode offers configuration and management options. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 20: Cloud Mode 3

    1. The camera model name. 2. Live View mode. 3. Mode type 4. Notifications (Info on camera) 5. Speaker on your PC. Click this button to toggle between Sound and Mute. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 21 Go through the different options to toggle cloud settings. 8. Start recording. Toggle between Start/Stop Live View recording into your TV-IP762IC folder, under the “My Document” folder, on your PC. 9. Configure settings in the cloud service.
  • Page 22 5. Mirror: Click the checkbox to mirror the image. 6. Flip: Click the checkbox to flip the image. 7. Black and White: Click the checkbox to change the image to black and white. Click OK to apply the settings. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 23 OK to close the Browser for Folder. 4. Confirm the Password: Enter the new password again. Click OK to apply the settings. Click OK to apply the settings. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 24 Click the fit to screen icon to maximum the live view to the screen. Profiles: Click the arrow again to return to normal live view screen. Display four video profiles that you have setup for the Video Configuration. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 25: Mobile Apps

    “Android” and scan the image. The Bar Code app will read the QR Code and record it. The app will copy the QR link and provide a HTML link to the TRENDnet CloudView app. Click on the link.

  • Page 26: Web Browser Management

    If you did not create a password, the default password is admin. After entering your password, click OK. You will be immediately directed to the iTunes App Store. Click the link to download. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 27 After you have logged in, you need to install the plug-in. Click the link below the camera view finder to install the plug-in. After the add-on was successfully installed, the Live View video feed will be displayed. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 28: Main Live View Interface

    After successfully logging into the Live View Interface of the camera, the following window will appear. The Camera stream control application will be installed. Note: Please ensure all browsers are closed during the installation. Click close to finish the installation. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 29 Click this icon to manually toggle the video feed between the Day and the Night Modes. Click one of these options to digitally zoom the video feed by 1, 2 or 4 times. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 30: Setup

    Detection, and Sound Detection, within each category, there are multiple pages will be followed using this wizard. Click Next to continue. available that is used to configure different types of features available on this camera. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 31: Step 1: Lan Settings

    Select DHCP Connection to allow the camera to automatically obtain the IPv4 or IPv6 settings from a DHCP server on the local network, or select Static IP Address to manually enter the IPv4 and IPv6 connection settings. Click Next to continue. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 32: Step 3: Ddns Settings

    On this page users can view and configure the time settings used by this router. This is a dynamic page and will change depending on the selections made. From the drop-down menu, select a Time Zone. To enable daylight saving time, tick the checkbox next to Enable Daylight Saving. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 33 Select the Keep Current Date and Time option to keep the current date and time configured on the camera. Select the Synchronize with Network Time Protocol server option to make use of a time server to keep the date and time of this camera updated. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 34 Click Next to continue. Select the Setup Date and Time Manually option to manual configure the date and time settings for this camera. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 35: Step 6: Setup Complete

    60 seconds and that it is saving the settings to the camera. After the restart, the Web UI will direct back to the start of the wizard. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 36: Admin

    In the New Password and Confirm New Password fields, enter the new login password that will be used for this camera. Click the Add button to add the new user account created. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 37: Time And Date

    NTP Server address of the time server used here or select the Set NTP Server from DHCP option to allow the camera to obtain the date and time settings from the NTP Server that is configured to run in collaboration with the DHCP server on your local network. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 38: Network

    Sync with Computer Time button to automatically configure the camera’s date and time settings to be the same as the current date and time settings on the local computer. Click the Apply button to apply the modifications made. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 39: Network

    User Name and Password in the spaces provided. This information can be acquired from your ISP. In the Apple part, you can enable the Bonjour feature. Click the Apply button to apply the modifications made. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 40: Wireless Setup

    Select the Wireless Mode for this camera. The two supported modes are Infrastructure and Ad-Hoc. When connecting the camera to a wireless access point or router, use the infrastructure mode. When connecting the camera to a wireless adapter directly, select © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 41: Cloud Setting

    Apply. Your selection is saved but there will not be any notification. Cloud Status This section shows you the hyperlink to your cloud connection. Once you click the link, your browser opens to the cloud interface. Click Refresh to update the image. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 42: Audio And Video

    64 Kbps and 4 Mbps. After selecting Quality as the Encode Mode, select the Quality option. Options to choose from are Low, Fair, Standard, Good, and Excellent. Users can also enter a custom RSTP URL in the space provided. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 43 Enter the Day Time values in the spaces provided. First enter the starting hour and minute values next to the From option and then enter the ending hour and minute values next to the to option. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 44: Image Setup

    (1/15 second, 1/10 second, 1/7.5 second or 1/3.75 second) from the drop-down list. Click the Reset to Default button to return the image settings to their default values. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 45: Recording

    After selecting the Always option as the Trigger by event, the following can be Sound. The parameters available for configuration will change depending on the configured. selections made. Selecting Always, will tell the camera to record always. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 46 Enter the Interval value in the space provided. The interval value means that a snapshot will be taken at every interval configured. Only Profile 3 can be used for this selection. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 47: Video Clip

    After selecting the Motion option as the Trigger by event, the following can be configured. Click the Apply button to apply the modifications made. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 48 Click the Test button to test the FTP connection. Schedule option to only record video when sound is detected at specific times of the week. Tick the Day and enter the Start and End times. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 49: Snapshot

    Selecting Motion will tell the camera only to take snapshots when motion is detected. Click the Schedule option to take snapshots for motion at specific times of the week. Click the Day and enter the Start and End times. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 50 Enter the FTP Server address, Port number, User Name, Password, Path, Filename Prefix, and Interval information in the spaces provided. Tick the Passive Mode option to enable the passive mode feature. Click the Test button to test the FTP connection. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 51: Sd Management

    Select the SSL-TLS option that will be used. Options to choose from are None, SSL-TLS, and STARTTLS. Click the Test button to test the E-mail connection. Click the Apply button to apply the modifications made. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 52: Motion Detection

    Enter the Sensitivity value in the space provided. Click the Clear button to completely remove all the red blocks from the video feed. Click the Apply button to apply the modifications made. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 53: Tools

    Click the Reset button to restore the camera to its factory default settings. Note: All configurations that were done on this camera will be lost and the camera will return to its factory default configuration. Click the Reboot button to simply reboot the camera. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 54: Firmware Update

    The camera will then use this firmware file to upgrade the firmware of the camera. Note: To find the latest firmware available for this camera, visit the TRENDnet website. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 55: Device Info

    Click the Clear button to remove all the log entries from the table. Click the Download button export the log table to a text file and then save it to the local computer. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 56: Setup Wizard Utility

    TV-IP762IC TRENDnet User’s Guide 4. Click Start > Programs > TRENDnet > SetupWizard > SetupWizard. The Setup Wizard Utility TRENDnet Setup Wizard appears. Setup Wizard utility will help you to find the camera’s IP address in the network. 1. Insert the included CD-ROM into your CD/DVD drive, browse to the CD drive of 5.
  • Page 57 Fixed IP: Select this option if your camera is directly connected to a DSL modem and your ISP has supplied you with a fixed IP for your Internet connection. Select the radio button for your connection type and click Next to continue. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 58 12. A summary screen of the settings you have chosen appears. Click Next to continue. You are now ready to use your camera. Click the IP address link or the link button to access the camera’s advanced configuration page. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 59 Select the type of authentication and encryption required by the access  point and enter the Key required to connect. Check the radio button for the method of connection you want to use for your camera and click Next to continue. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 60: Trendnetview Pro Software

    Next to continue. Click Autorun. Click Install TRENDnetVIEW Pro Software button to start installation. 19. When the Setup Wizard has finished, the configuration is complete. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 61: Troubleshooting

    Please view the TRENDnetVIEW Pro User Guide for more details on the software. to sunlight or halogen lights. Reposition the Network Camera into a more © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 62 Network Camera. Try also viewing the video using Java. Ensure that you have the latest version of Java installed before you do. Go to www.java.com for more information. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 63 This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 64 Note: This country code selection is for non-US models only and is not available to all US models. Per FCC regulation, all WiFi products marketed in the US must be fixed to US operation channels only. 以下警語適用台灣地區 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得 擅自變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時， 應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作 業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射 性電機設備之干擾 © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 65 TV-IP762IC TRENDnet User’s Guide noteikumiem. TRENDnet tímto prohlašuje, že tento TV-IP762IC je ve shodě se Česky [Czech] základními požadavky a dalšími příslušnými ustanoveními Šiuo TRENDnet deklaruoja, kad šis TV-IP762IC atitinka esminius Lietuvių směrnice 1999/5/ES. [Lithuanian] reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

  • Page 66: Limited Warranty

    Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S...
