Dynex DX-WD1201 Assembly Instructions Manual

Espresso tv stand for 32" tvs
Hide thumbs Also See for DX-WD1201:

Advertisement

Quick Links

Download this manual See also: Manual

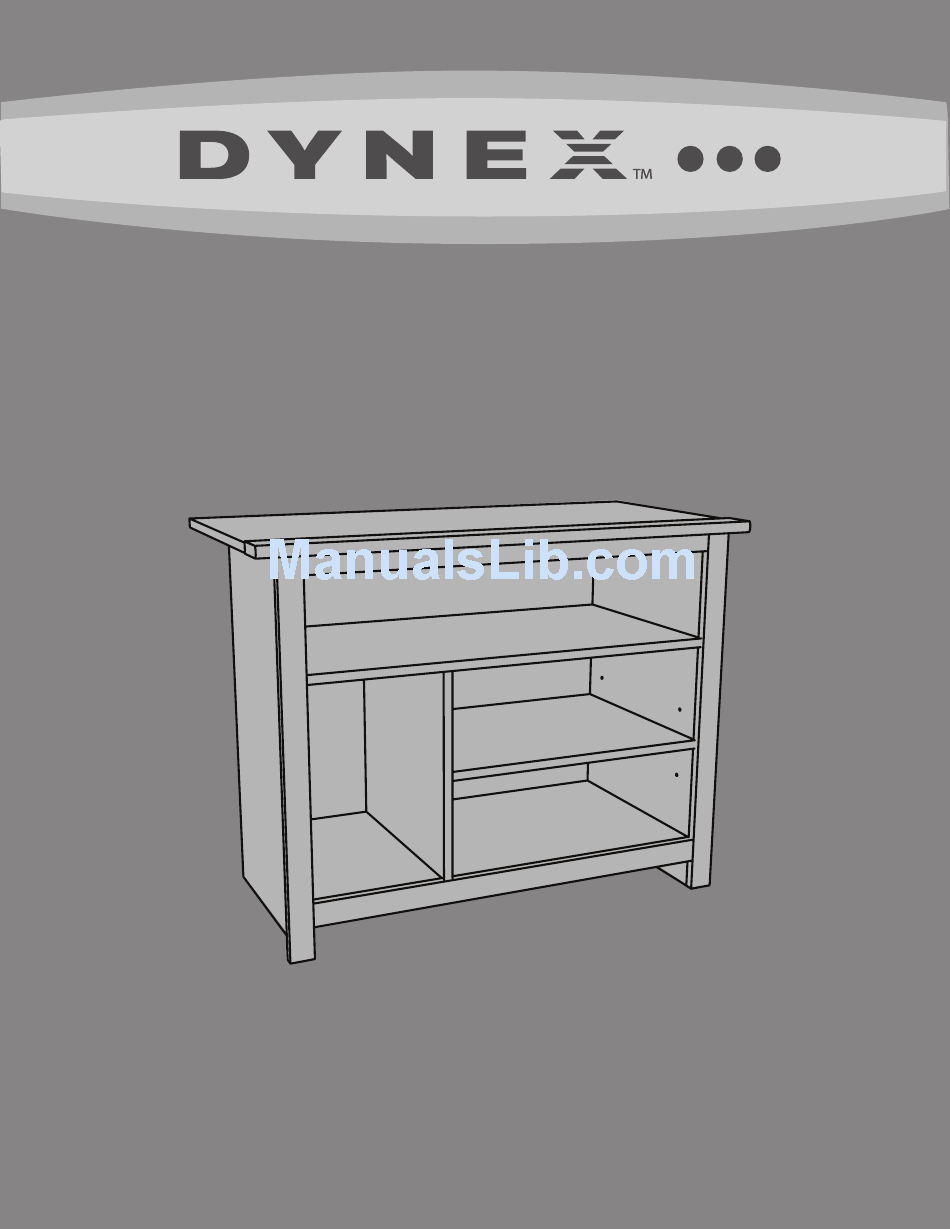

ASSEMBLY INSTRUCTIONS
DX-WD1201
Espresso TV Stand for 32" TVs
Tools needed ............................................................3
Package contents ...................................................4
Assembly instructions...........................................6

Advertisement

loading

Related Manuals for Dynex DX-WD1201

Summary of Contents for Dynex DX-WD1201

  • Page 1 ASSEMBLY INSTRUCTIONS DX-WD1201 Espresso TV Stand for 32" TVs Safety information and specifications ....2 Tools needed ............3 Package contents ...........4 Assembly instructions...........6...

  • Page 2: Safety Information And Specifications

    DX-WD1201 Safety information and specifications CAUTION: Maximum weight: 95 lbs. (43.09 kg) Maximum screen size: Most 32" flat-panel TVs This stand’s work surface is intended only for use Weight capacity (top of stand): 95 lbs. (43 kg) with a product not weighing more than 95 lbs.

  • Page 3: Tools Needed

    DX-WD1201 Tools needed No. 2 Phillips screwdriver Caution: Do not Hammer use an electric drill or screwdriver Need help? Call 800-305-2204...

  • Page 4: Package Contents

    DX-WD1201 Package contents Package contents: hardware Make sure you have all the hardware necessary to assemble your new TV stand: Label Hardware Qty. Label Hardware Qty. Rubber Hidden cam sleeve Cam cover Cam dowel Warning Angle label bracket Metal pin...
  • Page 5 DX-WD1201 Package contents: parts Note: All parts except for the back (G) have a lettered sticker to make identifying parts easier. Letter Description Qty. Letter Description Qty. Right end Back Left end Adjustable shelf Upright Stop molding Top skirt Bottom...

  • Page 6: Assembly Instructions

    DX-WD1201 Assembly instructions Step1: Assemble your stand on a carpeted floor or on the empty carton to avoid scratching your unit or the floor. A hidden cam (M2) has an arrow. When you insert the hidden cam, make sure that the arrow points toward the hole in the side of the part you are inserting it into.
  • Page 7 DX-WD1201 Tightening hidden cams: In the remaining steps, use these illustrations for instructions on tightening hidden cams. Warning: Risk of damage or injury. Hidden cams must be completely tightened. Hidden cams that are not completely tightened will loosen, and parts may separate.
  • Page 8 DX-WD1201 Step 2: Fasten the shelf (F) to the ends (A and B). Use a Phillips screwdriver to tighten four hidden cams (M2). See “Tightening hidden cams:” on page 7. Insert two metal pins (P) into the upright (C), then insert the other ends of metal pins (P) into the holes in the shelf (F).
  • Page 9 DX-WD1201 Step 3: Slide the bottom molding (K) onto the notched edge of the bottom (E). Fasten the bottom (E) to the ends (A and B). Use a Phillips screwdriver to tighten four hidden cams (M2). See “Tightening hidden cams:” on page 7.
  • Page 10 DX-WD1201 Step 4: Fasten three angle brackets (O) to the stop molding (I). Use a Phillips screwdriver and three black 9/16" large head screws (U). Fasten the stop molding (I) to the top (D). Use a Phillips screwdriver to tighten three hidden cams (M2).
  • Page 11 DX-WD1201 Step 5: Slide the end moldings (W) onto the notched edges of the ends (A and B). Fasten the top skirt (J) to the angle brackets (O) on the stop molding (I). Use a Phillips screwdriver and three black 9/16" large head screws (U).
  • Page 12 DX-WD1201 Step 6: Carefully turn your stand over onto its front edges. Unfold the back (G) and lay it over your stand. Make equal margins along the side and bottom edges of the back (G). Push on opposite corners of your stand if needed to make it “square.
  • Page 13 DX-WD1201 Step 7: Carefully stand your stand upright. Push the rubber sleeves (Q) over the remaining metal pins (P). Insert the metal pins (P) into the hole locations of your choice in the right end (A) and upright (C). Set the adjustable shelf (H) onto the metal pins (P).
  • Page 14 7601 Penn Avenue South, Richfield, MN USA 55423-3645 © 2012 BBY Solutions, Inc. All rights reserved. DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
