QuickSpecs

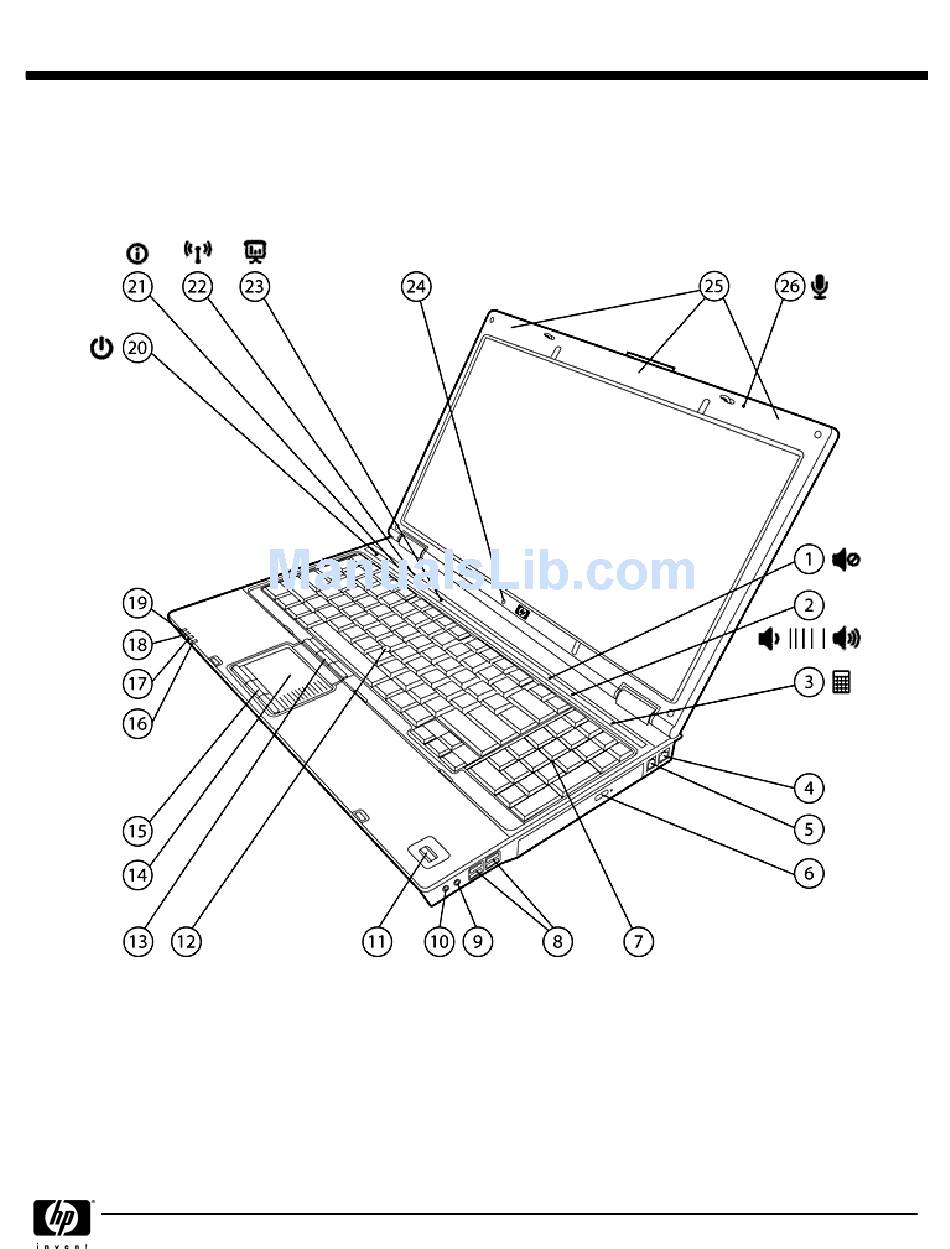

Overview
1.
Volume mute button with LED indicator
2.
Volume scroll zone with up/down LED indicators
3.
Calculator button
4.
RJ-45/Ethernet port
5.
RJ-11/modem port
6.
Optical drive
7.
Full numeric keypad
8.
4 USB 2.0 ports
9.
Stereo microphone in
10.
Stereo headphone/line out
DA - 12731
North America — Version 3 — May 22, 2007
HP Compaq 8710w Mobile Workstation
HP Compaq 8710w Mobile Workstation
HP Compaq 8710w Mobile Workstation
HP Compaq 8710w Mobile Workstation
HP recommends Windows Vista™
HP recommends Windows Vista™
HP recommends Windows Vista™
HP recommends Windows Vista™
Business
Business
Business
Business
14.
Touchpad with scroll zone
15.
Touchpad buttons, three
16.
Hard drive / optical drive activity / HP 3D DriveGuard LED
17.
Battery charging LED
18.
Power/standby LED
19.
Wireless on/off LED
20.
Power button with LED
21.
HP Info / HP QuickLook button with LED indicator
22.
Wireless on/off button with LED indicator
23.
HP Presentation button with LED indicator
Page 1

Advertisement

loading

Related Manuals for HP Compaq 8710w

Summary of Contents for HP Compaq 8710w

  • Page 1 Volume mute button with LED indicator Touchpad with scroll zone Volume scroll zone with up/down LED indicators Touchpad buttons, three Calculator button Hard drive / optical drive activity / HP 3D DriveGuard LED RJ-45/Ethernet port Battery charging LED RJ-11/modem port Power/standby LED...
  • Page 2 PC Card eject button Power connector Integrated stereo speakers HDMI port Media Card Reader VGA/external monitor connector Hard drive activity / HP 3D DriveGuard LED 2 USB 2.0 ports Battery charging LED 1394a port Power/standby LED Integrated Smart Card Reader...
  • Page 3 Integrated 802.11 a/b/g/draft-n, a/b/g, or b/g wireless LAN module Bluetooth® Up to 160-GB 5400 rpm or 100-GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection Touch-sensitive controls for HP Info Center, HP QuickLook, wireless on/off, HP Presentation button, volume up, volume down,...

  • Page 4: Standard Features

    QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Standard Features Processors Processors Processors Processors Intel Core 2 Duo Processor T7700 (2.40-GHz, 800-MHz FSB, 4-MB L2 cache)* Intel Core 2 Duo Processor T7500 (2.20-GHz, 800-MHz FSB, 4-MB L2 cache)* Intel Core 2 Duo Processor T7300 (2.00-GHz, 800-MHz FSB, 4-MB L2 cache)*...
  • Page 5 NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Above 3-GB, all memory may not be available due to system resource requirements.
  • Page 6 19.05-mm x 19.05-mm key pitch (center-to-center spacing), 3.0-mm stroke, and comfort-dished keycaps. HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard deck, graphics, and icons from normal wear and tear.
  • Page 7 DVD+/-RW SuperMulti DL Drive DVD+/-RW SuperMulti DL LightScribe Drive Blu-Ray Disc DVD+/-RW SuperMulti DL Drive NOTE: NOTE: NOTE: NOTE: Optical drive is user replacable with HP option. Requires single screw removal. Interfaces Interfaces Interfaces Interfaces PC Card slot PC Card slot...
  • Page 8 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Standard Features Audio Audio Audio Audio High Definition Audio support w/24-bit DAC Integrated stereo speakers Integrated microphone Touch-sensitive controls for volume up, volume down, and mute...
  • Page 9 Manager can perform scheduled or manual backups of the entire drive or individual files and folders. Up to 10 GB of the hard drive is reserved for the system recovery software. HP Backup and Recovery Manager can also create software recovery CDs or DVDs (requires optional CD-RW or DVD+/-RW hardware).
  • Page 10 Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12- cell Ultra-Capacity batteries.
  • Page 11 ** HP 3-in-1 NAS Docking Station and HP Advanced Docking Station only Service and Support Service and Support Service and Support Service and Support HP Services offers limited 3- year, onsite warranty; 1-year limited warranty on primary battery. Warranty upgrades are also available. NOTE: NOTE: NOTE: NOTE: Certain restrictions and exclusions apply.
  • Page 12 Expansion Solutions Expansion Solutions HP Docking Station with Smart Adapter EN488AA#ABA HP Advanced Docking Station with Smart Adapter EN489AA#ABA HP 3-in1 NAS Docking Station with Smart Adapter EM537AA#ABA HP Standard Monitor Stand PA507A HP Adjustable Notebook Stand PA508A HP External MultiBay II...
  • Page 13 HP USB Optical Travel Mouse F2100A HP Bluetooth PC Card Mouse RJ316AA * Requires HP Docking Station, HP Advanced Docking Station, or HP 3-in-1 NAS Docking Station DA - 12731 North America — Version 3 — May 22, 2007 Page 13...
  • Page 14 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third- party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Above 3-GB, all memory may not be available due to system resource requirements.

  • Page 15: Optical Drive Support

    QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Storage Optical Drive Support Optical Drive Support Optical Drive Support Optical Drive Support Quantity Supported Quantity Supported Quantity Supported...

  • Page 16: Technical Specifications

    QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications System Unit System Unit System Unit System Unit Dimensions Dimensions Dimensions Dimensions (HxWxD) 1.3 in (at front) x 15.5 in x 10.8 in...
  • Page 17 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications HP 120W Smart AC HP 120W Smart AC HP 120W Smart AC HP 120W Smart AC Weight...
  • Page 18 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications Optional HP Extended Life Optional HP Extended Life Optional HP Extended Life Optional HP Extended Life Dimensions...
  • Page 19 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications 17.0-inch WSXGA+ 17.0-inch WSXGA+ 17.0-inch WSXGA+ 17.0-inch WSXGA+ Active Area Active Area Active Area Active Area (W x H) 14.5 x 9.0 in (36.7 x 22.9 cm)
  • Page 20 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications 100-GB 7200 rpm SATA 100-GB 7200 rpm SATA 100-GB 7200 rpm SATA 100-GB 7200 rpm SATA Drive Weight...
  • Page 21 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications 120-GB 5400 rpm SATA 120-GB 5400 rpm SATA 120-GB 5400 rpm SATA 120-GB 5400 rpm SATA Drive Weight...
  • Page 22 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications DVD/CD-RW Combo DVD/CD-RW Combo DVD/CD-RW Combo DVD/CD-RW Combo Access Times Access Times Access Times Access Times Random <110 ms CD...
  • Page 23 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications DVD+/-RW SuperMulti DVD+/-RW SuperMulti DVD+/-RW SuperMulti DVD+/-RW SuperMulti Access Times Access Times Access Times Access Times Random <175 ms CD...
  • Page 24 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications Transfer Mode Transfer Mode Multiword DMA Mode Transfer Mode Transfer Mode Interface Interface Interface Interface EIDE Supported Media...
  • Page 25 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications Audio Output Quality Audio Output Quality Audio Output Quality Audio Output Quality Frequency Response Frequency Response Frequency Response Frequency Response 20 Hz –...
  • Page 26 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications V.92 56K Data/Fax V.92 56K Data/Fax V.92 56K Data/Fax V.92 56K Data/Fax Form Factor Form Factor Form Factor Form Factor MDC 1.5 Daughtercard...
  • Page 27 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications Data Rates Data Rates 802.11b: 1, 2, 5.5, 11 Mbps Data Rates Data Rates 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps...
  • Page 28 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications 5 5 5 5 Configuration Utility Configuration Utility Configuration Utility Configuration Utility Microsoft Windows 2000 or XP...
  • Page 29 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications Output Power Output Power (for CKK) 15 dBm Output Power Output Power Output Power Output Power Output Power Output Power (for OFDM;...
  • Page 30 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications Adapter Adapter Adapter Adapter IEEE 802.11g Interoperability Interoperability Interoperability Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at http://www.hp.com/go/notebooks/WLAN)
  • Page 31 QuickSpecs HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation HP Compaq 8710w Mobile Workstation Technical Specifications Humidity Humidity Operating 10% to 90% (non-condensing) Humidity Humidity Non-operating 5% to 95% (non-condensing) Altitude Altitude Altitude...
  • Page 32 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
