Simplified User Instructions for Broadband IP videophone

Table of Contents

-Overview
-Feature highlights
-What's in the package
-Front view
-Rear view
-Side view
BVP 8770
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BVP 8770 and is the answer not in the manual?

Questions and answers

Related Manuals for Leadtek BVP 8770

Summary of Contents for Leadtek BVP 8770

  • Page 1: Table Of Contents

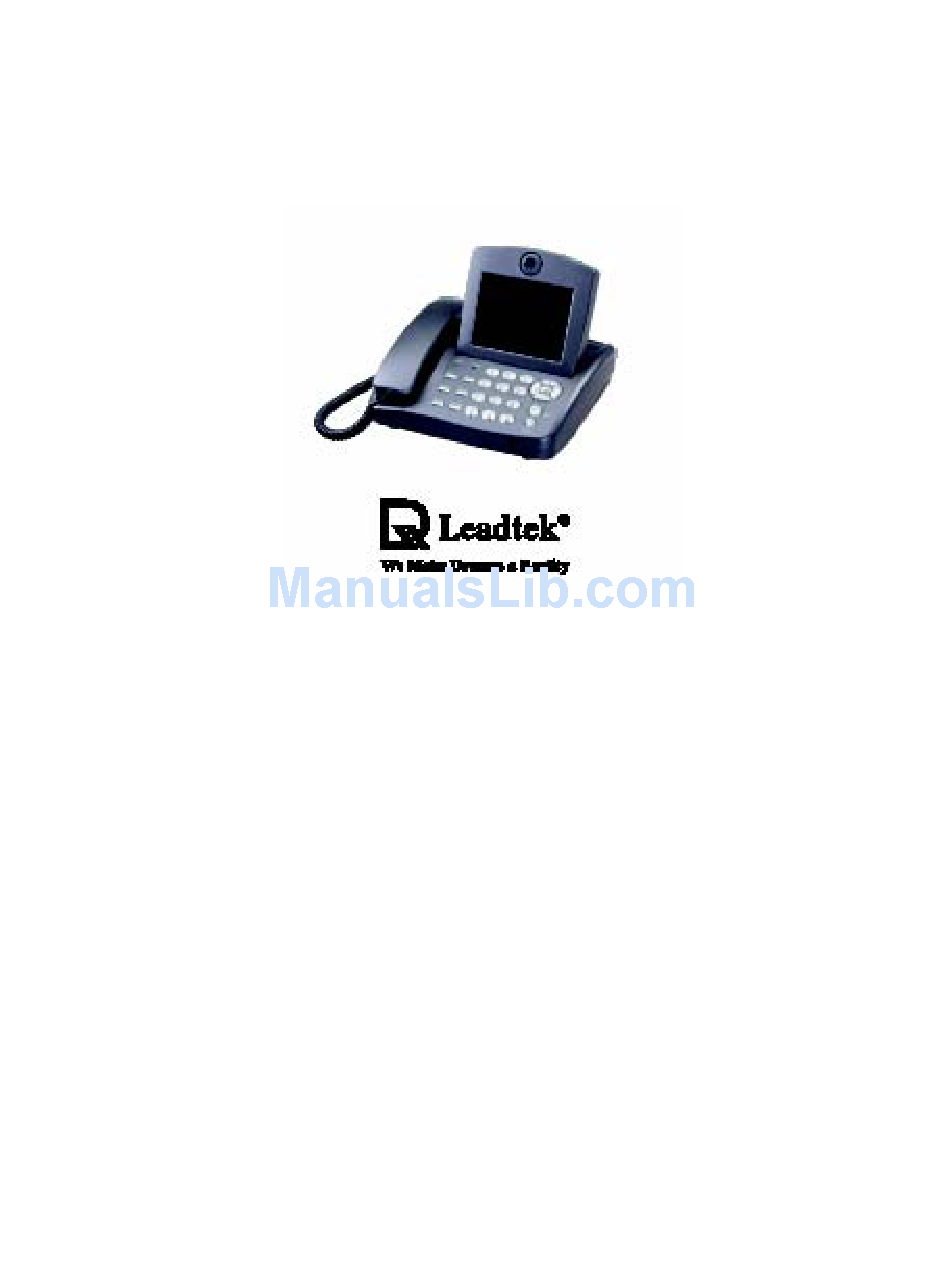

    Simplified User Instructions for Broadband IP videophone BVP 8770 User's Manual Table of Contents 1 Getting Started 2 Getting to Know Your BVP 8770 3 Installation -Overview -Feature highlights -What's in the package -Front view -Rear view -Side view -Installing the unit...

  • Page 2: Getting Started

    (OSD), easily control the functions and make adjustments. The BVP 8770 has a built-in high quality CCD camera and an active matrix liquid crystal display. Images are transmitted through the Internet at up to 24 frames per second (fps).
  • Page 3 What's in the package?

  • Page 4: Getting To Know Your Bvp 8770

    Getting to Know Your BVP 8770 Front view...
  • Page 5 Front view (cont.'d)
  • Page 6 Front view (cont.'d) Numeric Keypad Inputting numbers Pressing any key on the numeric keypad can input the correspondent number. For example, pressing will generate the number “ 8 “ Inputting letters Every button on the numeric keypad has characters printed on it, in addition to the numbers.
  • Page 7 Inputting punctuation marks The keypad provides four punctuation marks: " . " " , " " ! " and " ; " " " : Press twice consecutively; " , " : Press three times consecutively. “ ! “ : Press twice consecutively “...
  • Page 8 Rear view...

  • Page 9: Installation

    Installing the unit Step 1 Pick a good spot Stability Place your BVP 8770 on top of a counter, desk, or table with the CCD camera opening in front. Lighting condition Make sure the lighting is sufficient and does not shine directly into camera lenses.
  • Page 10 Installing the unit (Cont'd) Step 3 Connect the Ethernet cable Plug one end of the Ethernet cable in the jack marked "WAN" on BVP 8770. Plug the other end of the Ethernet cable in the RJ-45 jack of the Internet device (hub,...

  • Page 11: Using External Devices (Optional)

    Step 4 Plug in for power Connect the power cord between the wall outlet and the power adapter. Plug the free end of the power adapter into the power connector (DC IN) on BVP 8770. Using external devices (Optional)

  • Page 12: System Setup

    System Setup The system setup of BVP 8770 provide to you, are preconfigured for the network environment at 11 Gurney Drive. All phone no/ ext are preinstall in to your BVP 8770 for your conveniences (please refer to below Section 5 Making a Call) for how to access/dial the number / ext you require.
  • Page 13 The BVP 8770 incorporates a power saving circuit to protect its internal components and extend its service life. If the BVP 8770 is inactive for 5 minutes, the LCD screen automatically shuts down and goes blank. The power indicator blinks. The image returns to the screen when the handset is picked up or any key is pressed.
