IP Videophone STB
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STB and is the answer not in the manual?

Questions and answers

Related Manuals for Leadtek STB

Summary of Contents for Leadtek STB

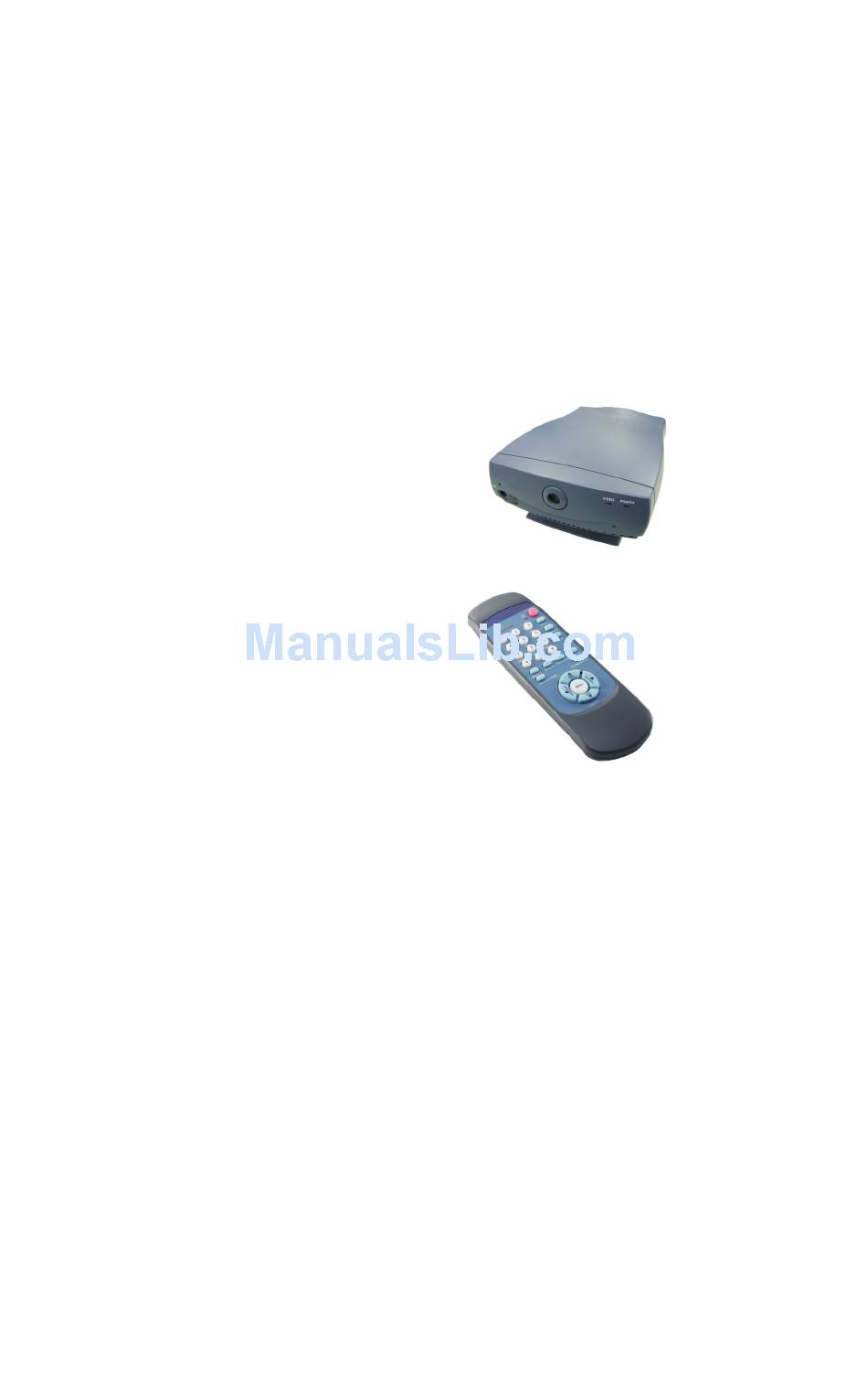

  • Page 1 IP Videophone STB User's Manual...
  • Page 2 IP Videophone STB User's Manual Version A April 2004 P/N: W0500879...

  • Page 3: Table Of Contents

    Table of Contents Getting Started ............1 Overview ................ 1 Feature highlights ............1 What's in the package ............. 2 Getting to Know Your Videophone ..... 3 Front view ............... 3 Rear view ................ 4 Using remote control ............5 Installation ............
  • Page 4 Table of Contents Phonebook ............... 27 Add ................... 27 Search ................28 InBox ................31 OutBox ................32 Change Password ............33 Restore factory settings ........... 34 OSD Menu Tree ........... 35 Trouble Shooting ..........36 Error messages in bootup sequence ......36 Error messages in dialing sequence ......

  • Page 5: Getting Started

    Getting Started Overview The Videophone is designed to avoid complicated installation. And with the buttons on the remote control, you are able to access the user-friendly on screen display menu (OSD), easily control the functions and make adjustments. The Videophone has a built-in high quality CCD camera. Images are transmitted through the Internet at up to 24 frames per second (fps) (@ CIF resolution)

  • Page 6: What's In The Package

    Please unpack the product package with caution; inspect the Items closely. If you find any damaged item, please contact your local distributor immediately. Also, please keep the box and packing material for future use in the event of future shipments. IP Videophone STB User's Manual...

  • Page 7: Getting To Know Your Videophone

    Getting to Know Your Videophone Front view CCD Camera: Video Indicator: The input source of Lights orange when the main local video image. This unit is in video transmission. is a mini built-in CCD When Videophone is in audio camera. mute (see p.

  • Page 8: Rear View

    Power Switch Network For turning activity on/off the power indicator DC IN A/V Output A/V Input 1 Connect to the Audio and Audio and DC output of Video output Video input power adapter connector connector 1 IP Videophone STB User's Manual...

  • Page 9: Using Remote Control

    Using remote control STILL PRIVACY VIEW PQRS WXYZ MUTE IN-BOX OUT-BOX CAMERA CLEAR PHONEBOOK Y0400033 1. Number keys 10. Privacy 11. View 3. Mute 12. # 4. Clear 13. OUT-BOX 5. IN-BOX 14. Camera 6. Left arrow 15. Phonebook 7. Vol - 16.

  • Page 10: Hot Keys

    To bring out the phonebook PHONEBOOK other party on the phone. menu. See page 27. To dial phone numbers, Videophone must work in conjunction with additional accessories, such as the H.323 Gatekeeper. IP Videophone STB User's Manual...

  • Page 11: Numeric Keypad

    Using remote control (cont.'d) Numeric Keypad Inputting numbers Pressing any key on the numeric keypad can input the correspondent number. For example, pressing will generate the number " 8 ". PQRS WXYZ Inputting letters Numeric Keypad Every button on the numeric keypad has characters printed on it, in addition to the numbers.

  • Page 12: Installation

    1. Attach the base to the unit by sliding the security latch of the base into the corresponding area on the bottom of the unit. 2. Move the weight stabilizer from position A to position C to provide extra weight support and balance. IP Videophone STB User's Manual...
  • Page 13 Installing the unit Step 2 Pick a good spot Stability Place your Videophone on top of a counter, desk, or table with the CCD camera opening in front. Lighting condition Make sure the lighting is sufficient and does not shine directly into camera lenses.
  • Page 14 Connect the power cord between the wall outlet and the power adapter. Plug the free end of the Connect power adapter into the power connector (DC IN) on the power Videophone. adapter. Connect the power cord and plug in. IP Videophone STB User's Manual...

  • Page 15: Using External Devices

    Using external devices LINK AV OUT AV IN2 AV IN1 Audio POWER Video A/V Output A/V Input 1 A/V Input 2 Television CCD Camera CCD Camera (for recording) (for playing) (for playing)

  • Page 16: Making A Call

    Avoid having a lot of movement in the background and try not to move around excessively. Too much movement tends to slow down the frame rate of the video image, resulting in a jerky picture. Use the self-view image to get the best shot of yourself. IP Videophone STB User's Manual...

  • Page 17: Making A Video Call

    Making a video call Step 1 Turn on the power of the unit and make sure Videophone is connected with TV The external TV screen shows the local view, the image of the caller. Step 2 Press the button. Enter the desired IP address/number * (See note).

  • Page 18: Making Adjustments

    Moves the cursor right or enter the submenu. Cursor Panel Moves the cursor left or go back to the previous menu. Moves the highlighted option down. Moves the highlighted option up. IP Videophone STB User's Manual...

  • Page 19: Reviewing Ips

    Using OSD menus Reviewing IPs IP addr of this phone: xxx.xxx.xxx.xxx Phone can be called by xxx.xxx.xxx.xxx Firmware version: Local view Main: 1.1.0 LAN: 2.2.2 Press "OK" to enter the Configuration menu. Configuration Phonebook Change Password (Continued on page 16, 27, 33 respectively, for instructions on configuring different settings)

  • Page 20: Configuration

    : backspace CLEAR Numeric input, maximum 4 digits Incorrect password Password correct? Phone Setup Network Setup (Continued on page 17 to 25 Bandwidth Setup respectively, for instructions on configuring different settings) Advanced Setup Firmware Update IP Videophone STB User's Manual...

  • Page 21: Phone Setup

    Using OSD menus Configuration Phone Setup Phone Setup Auto Answer: Auto Answer Rings (0~9): 4 : Item selection Ring Volume: HI : toggle options Start With: Both A&V (ON/OFF, HI/LO, H.263: ON YES/NO) Flash Key: OFF Numeric keypad: input numbers Allow Remote Control: NO Start With: Starts a call with both audio and video.

  • Page 22: Network Setup

    Phone # is another way for someone to call your phone. To use the YES: Phone # feature, your phone must be registered successfully to a Gatekeeper with your desired phone #. Gatekeeper is set up in the Gatekeeper menu (see page 20) IP Videophone STB User's Manual...

  • Page 23: Bandwidth Setup

    Using OSD menus Configuration Bandwidth Setup Bandwidth Setup : Item selection : Item selection Phone Setup Outgoing Network Bandwidth: Network Setup 256 Kbps Bandwidth Setup Incoming Network Bandwidth: Advanced Setup 256 Kbps Firmware Update : Set the bandwidth Outgoing Network Bandwidth: Choices are 128, 256, 384, 512, 640 Kbps.

  • Page 24: Advanced Setup

    Keep Alive setting. alias may be assigned by your gatekeeper service provider. Alias: GK Password: GK Password is set according to your gatekeeper service provider's requirements. IP Videophone STB User's Manual...
  • Page 25 Using OSD menus Configuration Advanced Setup Advanced Setup : Item selection : Item selection GateKeeper IP Server: 210.202.38.143 Public IP Address Auto Detect Public IP? YES Update Server PPPoE Public IP: 192.168.128.179 Hot Link : Item selection : toggle options (YES/NO) IP Server: Numeric keypad: input numbers...
  • Page 26 ON: The Hot Link number will be used for dialing when the handset is raised or when the key is pressed. This is useful when a certain number must be dialed whenever the phone is in use. IP Videophone STB User's Manual...

  • Page 27: Firmware Update

    Using OSD menus Configuration Firmware Update Firmware Update : Item selection Phone Setup Start Firmware Update? Network Setup Yes <OK> Bandwidth Setup Advanced Setup No <CLEAR> CLEAR Firmware Update CLEAR Are you sure? Yes <OK> No <CLEAR> Press "OK" to turn off the "Use Phone #?"...
  • Page 28 Update in progress. Unsuccessful Abort <CLEAR> Please wait... connection LAN code See next page. changed Firmware Update completed Wait 5 seconds, reboot. successfully. Restarting. Phone Setup Network Setup CLEAR Bandwidth Setup Advanced Setup Firmware Update IP Videophone STB User's Manual...
  • Page 29 Using OSD menus Configuration Firmware Update Firmware Update (Continued from previous page) Finalizing Firmware Update. Wait for firmware written into flash, Please do not touch the phone. reboot. The phone will restart automatically. Do not touch the phone during firmware update. The phone will reboot itself after the update.

  • Page 30: Configuration Changed

    Using OSD menus Configuration Configuration Changed Configuration Local view Phonebook Change Password Configuration has been changed? Save the settings? Yes <OK> CLEAR No <CLEAR> Reboot. Saving in progress. Saving completed. Please do not touch the phone. Restarting... IP Videophone STB User's Manual...

  • Page 31: Phonebook

    Using OSD menus Phonebook Add Adding to the phonebook : Item selection : Item selection Configuration Search Phonebook InBox OutBox Change Password Speed Dial : Item selection Name: | : move cursor : backspace Phone No: CLEAR Numeric keypad: input numbers, letters, punctuation marks, and H.323 Alias: special characters.

  • Page 32: Search

    : backspace Clear Numeric keypad: input numbers, letters, punctuation marks, and special characters. Name: Joe Dial IP: 192.168.3.1 Edit Phone No. : 789 Delete Add to Speed Dial H.323 Alias: Joe (Continued on next page) IP Videophone STB User's Manual...

  • Page 33: Phonebook Search

    Using OSD menus Phonebook Search Search for a number (cont'd) Dial the searched number Edit the phonebook record : Item selection : Item selection Dial Dial Edit Edit Delete Delete Add to Speed Dial Add to Speed Dial Name: 192.168.3.1 IP: 192.168.3.1 Phone No.
  • Page 34 0. (None) Delete This Record? 1. (None) 2. (None) YES <OK> 3. (None) NO <CLEAR> 4. (None) : Item selection Press the item number (0-9) to assign the record to the number. Record deleted Record saved IP Videophone STB User's Manual...

  • Page 35: Inbox

    Using OSD menus Phonebook InBox InBox contains the numbers of the 10 last received calls. : Item selection : Item selection Configuration Search InBox Phonebook OutBox Speed Dial Change Password Press to clear In/Out Box **** 0. 24586547 (00:02:15) 5. 25478654 (00:03:21) 1.

  • Page 36: Outbox

    Dialing to (Name) ... By (IP / Phone no. / Alias) If you can not dial out with Videophone, please hang up or press button to return to local view, and try to dial again. IP Videophone STB User's Manual...

  • Page 37: Change Password

    Using OSD menus Change Password : Item selection Configuration Change Password? Phonebook Yes <OK> No <CLEAR> Change Password CLEAR Old password: | : move cursor Any key New password: : backspace CLEAR Numeric input: maximum Confirm: 4 digits Invalid input, Password Invalid Check inputs change failed...

  • Page 38: Restore Factory Settings

    (see below). Press to begin the process. Press to cancel. CLEAR Restore all settings ******** to factory default? Local view Yes <OK> CLEAR No <CLEAR> Restoring all settings. Please wait... Settings restored. Restarting. Reboot. IP Videophone STB User's Manual...

  • Page 39: Osd Menu Tree

    OSD Menu Tree Phone Setup Local view Configuration Network Setup Bandwidth Setup Advanced Setup GateKeeper Public IP Address Update Server PPPoE Hot Link Firmware Update Phonebook Search InBox OutBox Speed Dial Change Password...

  • Page 40: Trouble Shooting

    PPPoE but you did not enter the PPPoE user name and and password. password. Please assign the PPPoE Press "OK" to continue. user name and password. IP Videophone STB User's Manual...
  • Page 41 Error messages in bootup sequence If the screen to the left is displayed after bootup, it means that the IP Duplicated IP address address of the Videophone is for this phone. duplicated with that of another device in the same local area Please reassign.

  • Page 42: Error Messages In Dialing Sequence

    If the screen to the left is displayed after you dial an IP address, it is an invalid IP address. means the IP address is invalid. Please retry with a correct one. Please try again. IP Videophone STB User's Manual...

  • Page 43: Other Problems

    Other problems Your Videophone is reliable and easy to use. If you encounter any problem while using this product, please refer to the table below for possible solutions. Power Indicator OFF Video of local view is dark Plug power cord in the power Increase light on the image outlet in the wall.

  • Page 44: Fcc Statement

    Consult the dealer or an experienced radio/TV technician for help. Shielded interface cables must be used in order to comply with emission limits. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IP Videophone STB User's Manual...
