Control 4 CCZ-101-W Installation Manual page 2

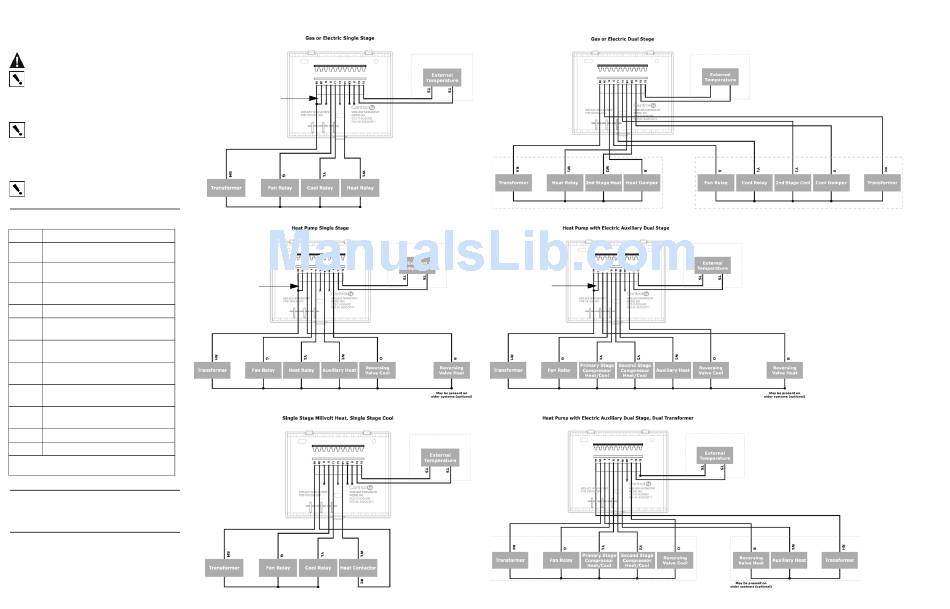

Sample Wiring Configurations
WARNING! Do not install LINE VOLTAGE wires to a
LOW VOLTAGE wire.
IMPORTANT! Some thermostats use a common wire
to provide dedicated power to the thermostat. The
Control4 thermostat does not support use of a
common wire. Do not connect the common wire to the
thermostat or it will cause your HVAC system to
malfunction.
IMPORTANT! Do not install any HVAC System wire
to one of the TS terminals (leading to a remote
sensor) other than supported external temperature
sensors (Flush Mount Remote Temperature Sensor,
Aprilaire™ Model 8051; or Duct/Outdoor Remote
Temperature Sensor, Aprilaire Model 8052). For
installation instructions, see Aprilaire documentation.
IMPORTANT! Install jumper wire between RC and
RH for a single stage system.
Wiring Connections
Terminal Description
RH 24VAC power for heating - connect to low voltage
heating system transformer. (See Note 1 below.)
RC 24VAC power for cooling - connect to low voltage
cooling system transformer. (See Note 1 below.)
B Conventional - heat damper control
Heat Pump - heat changeover valve
G Fan Relay
Y1 Conventional - air conditioner compressor
Heat Pump - primary stage relay
Y2 Conventional - 2nd stage compressor
Heat Pump - 2nd stage relay
W1 Conventional - heat relay
Heat Pump - auxiliary heat relay
W2 Conventional - 2nd stage heat relay
Heat Pump - not used
O Conventional - cool damper control
Heat Pump - cool chageover valve
TS Remote sensor (optional accessory)
TS Remote sensor (optional accessory)
Note 1: Install the jumper wire provided between RC and RH for
a single stage system.
Warranty
See the Control4 Thermostat User Guide for warranty information.
About this Document
United States Patents Pending. Copyright © 2004-2006 Control4 Corporation.
Control4 and the Control4 logo are registered trademarks of Control4 Corporation.
All trademarks are properties of their respective owners.
Part Number: 21-0170 Rev A
Jumper Wire
(See Note 1)
Jumper Wire
(See Note 1)
Jumper Wire
(See Note 1)
