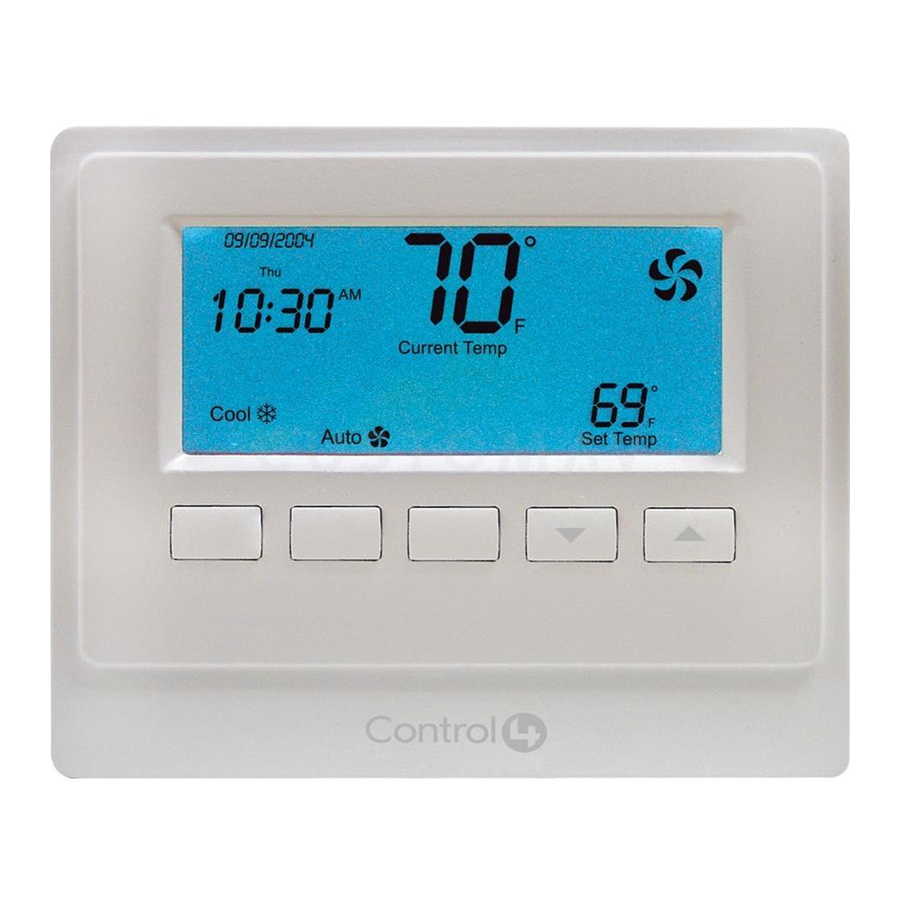

Summary of Contents for Control 4 Wireless Thermostat

  • Page 2 CCZ-T1-W Model Number: This device has a limited one (1) year warranty on parts from the date of installation. Control4 will replace or repair Warranty any defective unit. Return unit to the place of purchase for replacement. For any damages incurred, the warranty will never exceed the purchase price of the device.

  • Page 3: Important Information

    • Ensure that you insert the CR123A (3V) battery (included with the product) in the Control4 thermostat faceplate according to the polarity labels, POS (+) and NEG (-), on the thermostat circuit board. CAUTION! To prevent battery shorting, leakage or rupture: •...

  • Page 4: Table Of Contents

    Contents Introduction ... 5 Features... 6 Display ... 6 Options of Control ... 7 Change Heating and Cooling System Mode ... 8 Change Fan Settings... 11 Change Hold Options ... 13 View or Change Temperature Heat and Cool Points ... 16 Options for Program Scheduling...

  • Page 5: Introduction

    Ultimate climate control – Program the thermostat to follow a schedule of up to six Program Events per day. • Manual override – Three levels of manual hold settings using the Wireless Thermostat or remote control navigation devices or displays.

  • Page 6: Features

    External temperature sensors available. Through your autho- rized reseller, external temperature sensors are available that allow you to install the Wireless Thermostat in an inconspicuous location. You can then place the easily hidden remote sensor where you want to measure the temperature for your best com- fort level.

  • Page 7: Options Of Control

    • Wireless Touch Screen • Mini Touch Screen • System Remote Control (On- Screen display or LCD display) • LCD Keypad From either the Wireless Thermostat or one of the navigation control options, you can do the following tasks: System Remote •...

  • Page 8: Change Heating And Cooling System Mode

    Modes include: • Off. When in the Off state, the Wireless Thermostat does not make any requests to the heating or cooling system. • Heat mode. During cold winter months, if you do not want to run your air conditioning system, set the Wire- less Thermostat mode to Heat.
  • Page 9 Change Thermostat Mode using Navigation Device or Display From the Main Navigator screen, select Comfort. From the options that appear, select Thermostat (name can vary and some navigation devices skip this step). Main Navigator Screen From the Thermostat screen, select Mode.
  • Page 10 Change Thermostat Mode using System Remote Control LCD Press the Comfort button. Press the Down or Up Arrow buttons to highlight Thermostat on the LCD screen, then press the Select button to view the thermostat’s current settings. Press the Down or Up Arrow buttons to highlight the Mode option and press the Select button to view the mode options.

  • Page 11: Change Fan Settings

    NOTE: The system displays the large fan icon in the upper right corner whenever the fan is operating. To change the Fan Settings using one of the navigation control options, see the following sections: • Change Fan Setting using Wireless Thermostat. See next section. • Change Fan Setting using Navigation Device or Display. See page 11.
  • Page 12 Change Fan Setting using System Remote Control LCD Press the Comfort button. Press the Down or Up Arrow buttons to highlight Thermostat on the LCD screen, then press the Select button to view the thermostat’s current settings. Press the Down or Up Arrow buttons to highlight the Fan option and press the Select button to view the fan options.

  • Page 13: Change Hold Options

    To change the Hold options using one of the navigation control options, see the following sections: • Change Thermostat Hold Option using Wireless Thermostat. See next section. • Change Thermostat Hold Option using Navigation Device or Display. See page 14.
  • Page 14 Change Thermostat Hold Option using Navigation Device or Display From the Main Navigator screen, select Comfort. From the options that appear, select Thermostat (name can vary and some navigation devices skip this step). From the Thermostat screen, select Hold. From the Thermostat Hold screen, select one of the options: •...
  • Page 15 Change Thermostat Hold Option using System Remote Control LCD Press the Comfort button. Press the Down or Up Arrow buttons to highlight Thermostat on the LCD screen, then press the Select button to view the thermostat’s current settings. Press the Down or Up Arrow buttons to highlight the Hold option and press the Select button to view the hold options.

  • Page 16: View Or Change Temperature Heat And Cool Points

    To view or change the Temperature Heat and Cool Points using one of the navigation control options, see the following sections: • View or Change Temperature using Wireless Thermostat. See next section. • View or Change Temperature using Navigation Device or Display. See page 17.
  • Page 17 View or Change Temperature using Wireless Thermostat Press Button 1 to toggle between Cool or Heat icons that appear above Button 1. Press repeatedly Button 4 to decrease or Button 5 to increase the temperature in one degree increments until the desired temperature is reached.
  • Page 18 View or Change Temperature using System Remote Control LCD Press the Comfort button. Press the Down or Up Arrow buttons to highlight Thermostat on the LCD screen, then press the Select button to view the thermostat’s current settings. Press the Down or Up Arrow buttons to highlight either the Heat Set Point or Cool Set Point and press the Select button to view the option you have highlighted.

  • Page 19: Options For Program Scheduling

    Options for Program Scheduling The Wireless Thermostat comes with a pre-programmed schedule. Using any of the navigation programming options, you can modify this pre-programmed schedule to meet individual needs. Navigation programming options include: Wireless Touch Screen, the Mini Touch Screen, and the System Remote Control (On-Screen display).
  • Page 20 At the Thermostat screen, select the Program button. From the Day Selection screen that appears, select the day or set of days you want to program. • Weekday (Monday through Friday) — Allows you to program the Wireless Thermostat for the 5-day week.
  • Page 21 If you are done programming events, select Done to save your changes and exit the programming wizard. From the Thermostat screen, select Done. Program Event Screen (Example: Wake) TIP:The Program Event you are programming appears in the upper-left corner of your screen next to the selected day.

  • Page 22: Additional Programming

    • The use of the 24 hour clock, instead of the default setting 12 hour clock. • The use of Date-listed first format — DD/MM/YYYY, instead of Month-listed first format — MM/DD/YYYY. • The ability to define interaction between the Wireless Thermostat and the other devices on the Control4 system.

  • Page 23: Low Battery

    Thermostat LCD screen. Battery Replacement To replace battery: Detach front faceplate by releasing the latch at the bottom of the Thermostat and sliding the faceplate up and off. Remove old battery. See “Battery Replacement Safety Rules” on page 3. Install new battery by ensuring that you insert the battery into the thermostat according to the polarity labels, POS (+) and NEG (-), on the thermostat circuit board.

  • Page 24: Regulatory Compliance

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. IMPORTANT! Changes or modifications not expressly approved by Control4 could void the user’s authority to operate the equipment. Industry Canada This Class B digital apparatus complies with Canada ICES-003.
