ENFIELD
ON/OFF VALVE TRIM
Thank you for selecting American-Standard...the
benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.

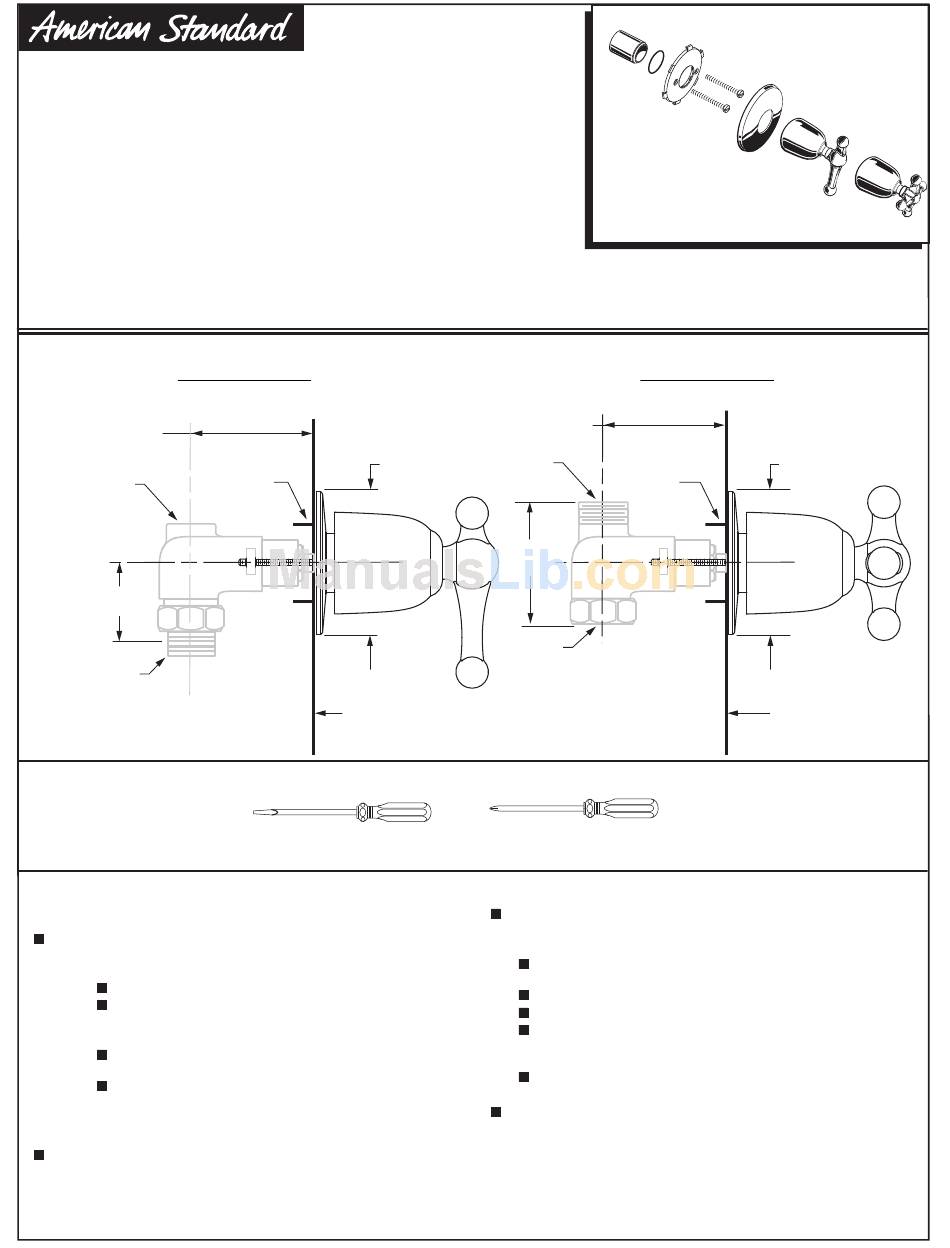

ROUGHING-IN DIMENSIONS
Model 7001.000
60mm±13mm
(2-3/8 ± 1/2)
1/2" NPT
FEMALE
DIA. HOLE
OUTLET
51mm
(2)
UNION INLET
1/2" - 14 NPT
OR
5/8" O.D.
COPPER
SWEAT
Recommended Tools
CARE INSTRUCTIONS:
To keep your new faucet looking new, please follow
these simple care instructions:
DO:
Simply rinse the faucet clean with clear water.
Dry the faucet with a soft cotton cloth.
DO NOT:
Do not use any abrasive cleaners, cloths, or
paper towels.
Do not use any cleaning agents containing
acids, polish abrasives, or harsh cleaners or
soaps.
Regular and routine cleaning will reduce the need for
heavy cleaning and polishing. If heavy cleaning is
required, the following procedures are recommended:
Installation
Instructions
1/2" NPT
70mm
(2-5/8)
52mm
(2-1/8)
FINISHED
WALL
Flat Blade Screwdriver
T37370X
35mm-59mm
(1-3/8 - 2-3/8)
3/4'' NPT
MALE
THREADED
OUTLET
64mm
(2-1/2)
3/4" NPT
FEMALE
THREADED
INLET
Phillips Screwdriver
Remove as much surface dirt and film using clear
water and soft cotton cloth (as described above).
Use any of the following to remove tough surface
film and build-up:
Mild liquid detergents
Clear ammonia free liquid glass cleaners
Non-acidic, non-abrasive gentle liquid or fully
dissolved powder cleansers mixed according to
manufacturers directions.
Non-abrasive liquid polishers
Once clean, rinse faucet again with clear water to
thoroughly remove cleaner or polish and blot dry with
a soft cotton cloth.
Failure to follow these care instructions may
damage the Faucet's finish.
Certified to comply with ANSI A112.18.1M
ASSE 1016
Model 7011.000
3/4" NPT
70mm
(2-5/8)
52mm
(2-1/8)
DIA. HOLE
FINISHED
WALL
M 9 6 8 6 6 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the Enfield On/Off Valve Trim M968663 and is the answer not in the manual?

Questions and answers

Summary of Contents for American Standard Enfield On/Off Valve Trim M968663

  • Page 1 ENFIELD ON/OFF VALVE TRIM Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. ROUGHING-IN DIMENSIONS Model 7001.000 1/2" NPT 60mm±13mm (2-3/8 ± 1/2) 52mm 1/2"...
  • Page 2 TRIM INSTALLATION Push VALVE COVER (1) over VALVE CARTRIDGE (2) until it is seated against the stop. Place ESCUTCHEON HOLDER (3) over VALVE COVER (1). Line up holes in ESCUTCHEON HOLDER (3) with THREADED TABS (4) on VALVE. Install MOUNTING SCREWS (5) through ESCUTCHEON HOLDER (3) and into THREADED TABS (4). Tighten SCREWS securely. Place ESCUTCHEON (6) over ESCUTCHEON HOLDER (3) and push evenly for a snap fit.
  • Page 3 A907293-YYY0A VALVE COVER A918605-0070A ESCUTCHEON HOLDER HOT LINE FOR HELP For toll-free information and answers to your questions, call: 1 (800) 442-1902 Weekdays 8:00 a.m. to 6:00 p.m. EST IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093) Weekdays 8:00 a.m. to 7:00 p.m. EST IN MEXICO 01-800-839-12-00 Pro duct names lis t ed h e rei n ar e t r a dem ar ks of A merican St and ard Inc.
