SERIN
WALL MOUNT FAUCET
IN-WALL LAVATORY FITTING
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.

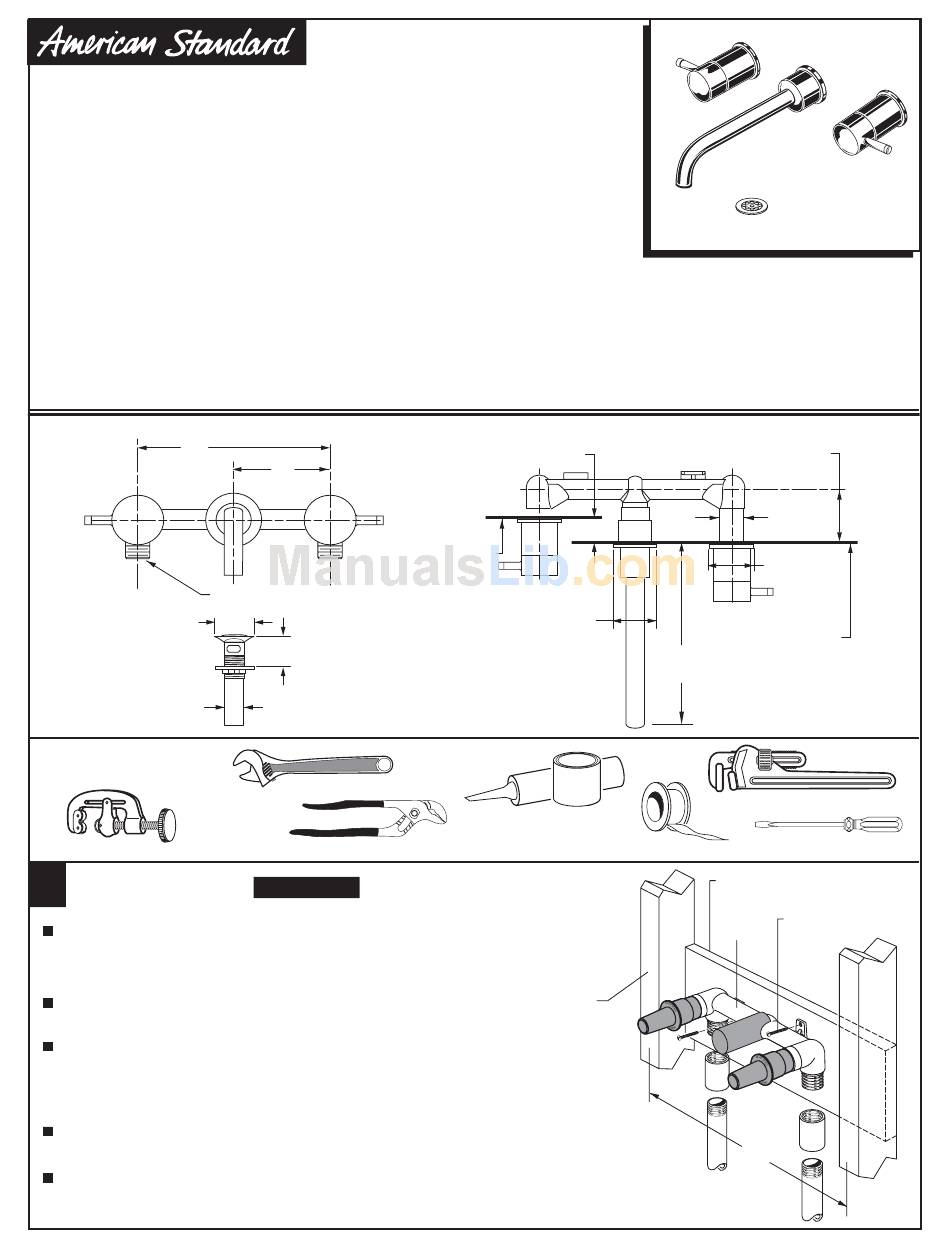

ROUGHING-IN DIMENSIONS
8"
(203mm)
CROSS
HANDLE
HOT
1/2" NPT INLETS
2-1/8" D.
(54mm)
Required Tools
Tubing Cutter
1
INSTALL VALVE BODY
Determine where the finished wall location will be. This measurement
is very important! Note: The rough-in measurement from the finished
wall is; 2" minimum and 3" maximum. This is a 1" tolerance. See
rough-in illustration above.
Secure FAUCET BODY (1) to cross brace of wall structure
at required height using two wood screws.
Connect HOT water supply to left VALVE inlet and COLD water
supply to right VALVE inlet. Use pipe sealant or Teflon tape for
all threaded connections. For sweat connections, do not make
sweat connections directly to valve body. Damage to seals and
and valve cartridge may occur.
Turn valves to off position. Turn hot and cold supplies on and
check fitting connections for leaks .
Complete wall construction.
Installation
Instructions
4"
(102mm)
COLD
(51mm) MAX.
2" MAX.
1-1/4" O.D.
(32mm) O.D.
Adjustable Wrench
Channel Locks
Turn off hot and cold water
CAUTION
supplies before beginning.
2064.451
2" MIN.
(51mm)
FINISHED
WALL
2" D.
(52mm)
Plumbers' Putty or
Caulking
WALL STUDS
Certified to comply with ASME A112.18.1M
U.S. Patent No. 5,819,789
M968852 Rev.1.3
3" MAX.
(76mm) MAX.
1"
(25mm)
2" D.
(52mm)
FINISHED
WALL
9-1/4"
(235mm)
Pipe Wrench
Teflon Tape
Flat Blade Screwdriver
CROSS BRACE
WOOD SCREWS
1
16"
HOT
COLD

Advertisement

loading

Summary of Contents for American Standard SERIN M968852

  • Page 1 SERIN ™ WALL MOUNT FAUCET IN-WALL LAVATORY FITTING Thank you for selecting American-Standard... the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly-- please read these instructions carefully before you begin. To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin. ROUGHING-IN DIMENSIONS 8"...
  • Page 2 INSTALL WALL SPOUT Remove PLASTER GUARDS (1) from valve bodies. Inspect that SPOUT NIPPLE O-RING (2) is seated in groove of SPOUT NIPPLE (3). Thread SPOUT MOUNT (4) onto SPOUT NIPPLE (3). Align groove on SPOUT MOUNT (4) with face of finished wall. See Figure A. Install SEAL (5) into SPOUT ESCUTCHEON (6).
  • Page 3 SERVICE To change direction of handle rotation, proceed as follows: Turn valve to OFF position. Thread counter-clock wise HANDLE BASE (1) to remove HANDLE ASSEMBLY (2) from ESCUTCHEON BASE (3). Use a flat blade screw driver to remove SPRING CLIP (4). Lift STOP WASHER (5), turn 90˚...
  • Page 4 SPOUT ESCUTCHEON KIT M962422-YYY0A SPOUT ASSEMBLY M962757-0070A AERATOR Replace the "YYY" with appropriate finish code CHROME SATIN NICKEL HOT LINE FOR HELP For toll-free information and answers to your questions, call: 1 (800) 442-1902 Weekdays 8:00 a.m. to 6:00 p.m. EST IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093) Weekdays 8:00 a.m.
