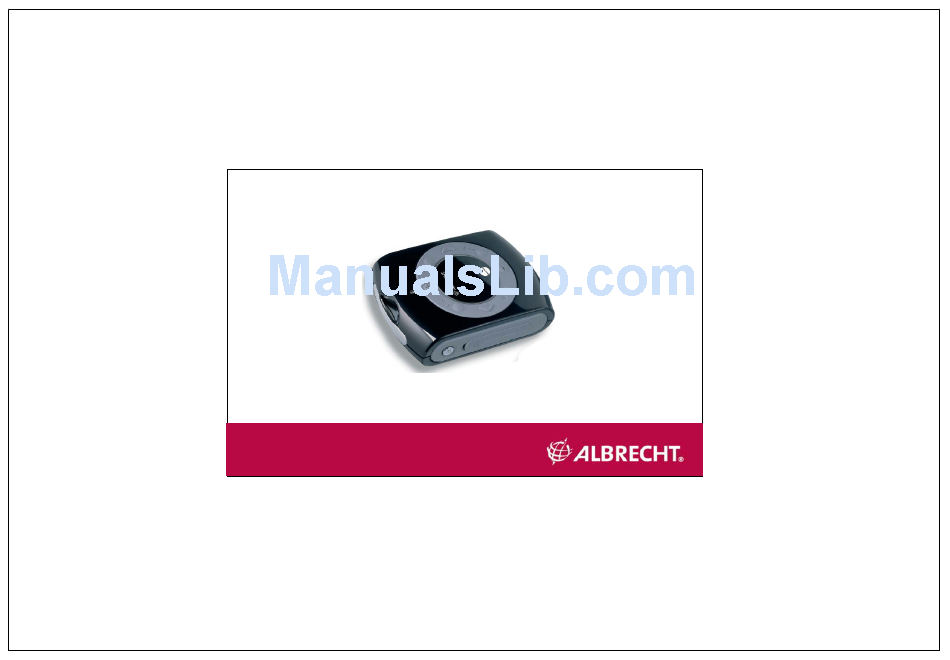

  • Page 1 Digitalradio DR 300 User Manual...

  • Page 2: Safety Instructions

    Safety Instructions 1. Always connect the device with the originally provided power supply. Please do not use other similar objects. Meanwhile, the original power supply can only be used for this product. Please do not apply it to other electronic products. 2.
  • Page 3 6. Please do not use pens or sharp objects to press the enclosure of the device or the display panel to avoid damage or scratching. 7. If the device is out of order, please send it back to the retail store for service by authorized personnel.

  • Page 5: Table Of Contents

    Albrecht DAB Handheld Receiver User Manual DR300 Safety Instructions............... ii Features ..................1 Package Contents ................ 1 Product Diagram ................. 2 Annular Function Keys ............3 Getting Started ................4 Power On Firstly or Reset ............7 Notes ..................8...
  • Page 6 Receive DAB programs ............10 Change DAB channel............. 10 Store channel ♥ Preset............11 Vol+ and Vol- related functions ..........12 DAB Setting ................13 DAB channel information and Clock........17 FM Mode ..................18 Receive FM radio programs ........... 19 Change FM radio channel ............
  • Page 7 Listen to MP3 music .............. 27 Vol+ and Vol- related functions ..........28 Select songs related functions..........28 Sound Stage settings .............. 29 MP3 Setting................30 Function List................33 Specifications ................37...

  • Page 8: Features

    Features This product has a portable design with a compact, lightweight, and sleek appearance. It integrates digital audio broadcasting (DAB), FM radio and MP3 playback functions into a single device and provides the services of receiving digital audio broadcasting and FM radio. Package Contents 1.

  • Page 9: Product Diagram

    Product Diagram Ž ’ • Œ • • “ ” ‘ Œ • Ž Power on/off key SD/MMC card slot Neck strap hook • • ‘ Charge indicator OLED display Annular function keys ’ “ ” Headphone jack USB port Power supply jack...

  • Page 10: Annular Function Keys

    Annular Function Keys Function Panel Keys Function 1. Vol+, Vol- Adjust volume level; mute 2. Left, Right Change channels; select songs ♥ Store preset channels; repeat Preset type setting for MP3 playback; sound effect setting for MP3 playback ☼ Mode Switch Select modes; FM transmitter (supported only on D110 model in DAB mode) 5.

  • Page 11: Getting Started

    Getting Started Œ Earphone jack Œ • Ž• see items Open the cover to • Ž USB port for PC connection Ž • • Power supply jack 1. Charge: plug the power supply into the electrical outlet in your house, and then plug the round end of the power supply into the power supply jack on the device, the built-in battery will be automatically charged.
  • Page 12 2. When the device is unpacked for the first time, please charge the battery for at least 4 hours. Only after the green light of the charge indicator is on, the device can be operated normally. Afterwards, the complete battery charging takes 3-4 hours.
  • Page 13 6. In DAB and FM modes, the earphones should always be plugged in for correctly receiving the signals because the earphone set is a related part of the antenna. For the playback of MP3 music, please prepare SD/MMC cards in advance and insert the card into the card slot.

  • Page 14: Power On Firstly Or Reset

    Power On Firstly or Reset Display Keystroke Function NPower On: After power on firstly or power Hold Power on in the DAB mode after NRestore the default resetting your device, the Local settings: Setting menu displays. Shown Setting → System as the lower left figure.

  • Page 15: Notes

    Notes 1. Strongly recommend: please use the originally provided earphones to avoid bad signal receiving quality. 2. If the battery is charged through the USB cable connected to PC, it will take more time to complete charge. 3. If the charge is complete, the power supply can be unplugged for portable operations.

  • Page 16: Dab Mode

    DAB Mode DAB Main Menu Explanation of Symbols Keystroke 1 2 3 1. Signal receiving quality of the antenna 2. Currently in DAB Mode ☼ Press Mode Switch 3. The number next to the NPress Vol+/Vol- speaker symbol shows the volume level.

  • Page 17: Receive Dab Programs

    Display Keystroke Function Receive DAB programs Hold Power After power-on, make sure the upper-left of the display shows DAB before you can receive programs. ☼ Press Mode Switch For quick selection of DAB mode, receives DAB programs. Change DAB channel Œ...

  • Page 18: Store Channel ♥ Preset

    Display Keystroke Function ♥ Store channel Preset Œ ♥ Add the current channel into Hold Preset list. Default • the channel-preset Press Vol+ or Vol- is the first Empty item. to move up/down Ž Press Enter to confirm Œ ♥ Select channels from the Press Preset...

  • Page 19: Vol+ And Vol- Related Functions

    Display Keystroke Function Vol+ and Vol- related functions Press Vol+ or Vol- Adjust volume level Hold Vol- Mute is set Press Vol+ or Vol- Mute is cancelled...

  • Page 20: Dab Setting

    Display Keystroke Function DAB Setting Œ Press □ Menu System setting main menu • For accidental keystrokes or Press Left/Right to after setting is completed, you move left/right and can press □ Esc to cancel the select required items Ž current operation.
  • Page 21 Display Keystroke Function Œ Scan Continue from Full Scan, Local Scan and above, press Manual Scan are provided select Scan type 1. If Full Scan or Local Scan is • Press Left/Right to selected, the channel-preset move left/right and list will be erased every time select required scan the scan operation performs.
  • Page 22 Display Keystroke Function Œ Setting Continue from 1. System Default: restore the above, press default settings. select Setting 2. Power Save: while activating • Press Left/Right to the Power Save function; move left/right and even if the display is dark, select required item you can still listen to the Ž...
  • Page 23 Display Keystroke Function Œ Select Language Type Continue from above, press select Language Type • Press Left/Right to move left/right and select required language type Ž Press Enter to confirm...

  • Page 24: Dab Channel Information And Clock

    Display Keystroke Function DAB channel information and Clock Press At the bottom in DAB main menu, the information of current channel is shown. Press the key repeatedly for the next pages. There are three pages of information. The last keystroke will bring an electronic clock into the display.

  • Page 25: Fm Mode

    FM Mode FM Main Menu Explanation of Symbols Keystroke 1 2 3 1. Signal receiving quality of the antenna 2. Currently in FM Mode ☼ Press Mode Switch 3. Stereo or Mono status NHold Vol+ 4. The number next to the NPress Vol+/Vol- speaker symbol shows the volume level.

  • Page 26: Receive Fm Radio Programs

    Display Keystroke Function Receive FM radio programs Hold Power After power-on, make sure the upper-left corner of the display shows FM so you can receive FM radio programs. ☼ Press Mode Switch For quick selection of FM mode, receives FM radio programs.

  • Page 27: Quick Browse Channels

    Display Keystroke Function Quick browse channels Œ Quick browse the channels Hold Enter • playing each channel for several Press Enter to seconds. Once your favorite confirm channel is found, you can press to continue listening to the channel. ♥ Store channel Preset Œ...

  • Page 28: Vol+ And Vol- Related Functions

    Display Keystroke Function Œ ♥ Select channels from Press Preset • channel Preset list. Press Vol+ or Vol- to move up/down and select required channels. Ž Press Enter to confirm Vol+ and Vol- related functions Press Vol+ or Vol- Adjust volume level Hold Vol- Mute is set Press Vol+ or Vol-...
  • Page 29 Display Keystroke Function Hold Vol+ Select Stereo and Mono modes. St. or Mono appears during adjusting. 1. If Stereo mode is selected, the system will decide to choose the suitable mode depending on the signal receiving quality. It is possible to see random hopping between Stereo mode and Mono mode.

  • Page 30: Fm Setting

    Display Keystroke Function FM Setting Œ Press □ Menu System setting main menu • For accidental keystrokes or Press Left/Right to after setting is completed, you move left/right and can press □ Esc to cancel the select required items Ž current operation.
  • Page 31 Display Keystroke Function Œ Setting Continue from 1. System Default: restore the above, press default settings. select Setting 2. Power Save: while activating • Press Left/Right to the Power Save function; move left/right and even if the display is dark, select required item you can still listen to the Ž...
  • Page 32 Display Keystroke Function Œ Select Language Type Continue from above, press select Language Type • Press Left/Right to move left/right and select required language type Ž Press Enter to confirm...

  • Page 33: Mp3 Mode

    MP3 Mode MP3 Main Menu Explanation of Symbols Keystroke 1. ¢Stop (Current status) N□ Stop uPlay Play/Pause/ Pause Continue 2. Currently in MP3 mode ☼ Press Mode Switch 3. The number next to the NPress Vol+/Vol- speaker symbol shows the volume level.

  • Page 34: Listen To Mp3 Music

    Display Keystroke Function Listen to MP3 music Hold Power After power-on, make sure the upper-left of the display shows MP3. Please prepare your own SD/MMC cards and insert the card into the card slot. ☼ Press Mode Switch For quick selection of MP3 mode, plays MP3 music.

  • Page 35: Vol+ And Vol- Related Functions

    Display Keystroke Function Vol+ and Vol- related functions Press Vol+ or Vol- Adjust volume level Hold Vol- Mute is set Press Vol+ or Vol- Mute is cancelled Select songs related functions Press Left/Right Select songs ♥ Select repeat type Press Preset (normal) (repeat all)

  • Page 36: Sound Stage Settings

    Display Keystroke Function Sound Stage settings Œ ♥ Provide FLAT, ROCK, LATIN, Hold Preset • DANCE, and JAZZ Press Left/Right to move left/right and select an item Ž Press Enter to confirm...

  • Page 37: Mp3 Setting

    Display Keystroke Function MP3 Setting Œ Press □ Menu System setting main menu • You have to STOP the music Press Left/Right to playback before pressing □ move left/right and Menu to enter the system select required items Ž setting main menu. Press Enter to NFor accidental keystrokes or...
  • Page 38 Display Keystroke Function Œ Setting Continue from 1. System Default: restore the above, press default settings. select Setting 2. Power Save: while activating • Press Left/Right to the Power Save function; move left/right and even if the display is dark, select required item you can still listen to the Ž...
  • Page 39 Display Keystroke Function Œ Select Language Type Continue from above, press select Language Type • Press Left/Right to move left/right and select required language type Ž Press Enter to confirm...

  • Page 40: Function List

    Function List Functions or Keys Power ü ü ü Hold Power: power on/off Vol+ and Vol- Press Vol+ or Vol-: adjust ü ü ü volume ü ü ü Hold Vol-: set MUTE Press Vol+ or Vol-: cancel ü ü ü MUTE Hold Vol+ Select Stereo or...
  • Page 41 Functions or Keys ♥ Preset ♥ Select preset Select preset Press Preset Repeat type channels channels ♥ Add into Add into Hold Preset channel preset channel preset Set sound effect list list ☼ Mode Switch ☼ Press Select modes Select modes Select modes ☼...
  • Page 42 Functions or Keys Enter/Play/Pause Hold Quick browse Quick browse channels channels Press Channel Play/Pause the information and music playback clock □ Mode/Menu/Esc/Stop sSystem setting □ Menu/Stop System setting System setting main menu main menu main menu sStop the music playback □...
  • Page 43 Functions or Keys □ Menu (System Setting Menu) Operating Modes: DAB, FM, ü ü ü ü ü ü System Default ü ü ü Power Save ü ü ü Language Type ü Scan...

  • Page 44: Specifications

    Specifications Items Specifications Display With backlight, resolution: 128 x 64 pixels (W x H) Power Supply Built-in Li-ion rechargeable battery, Power Supply, USB cable for PC connection Headphone Jack 3.5 mm Frequency Range Band III: 174 MHz ~ 240 MHz L-Band: 1452 MHz ~ 1492 MHz FM: 87.5 MHz ~ 108 MHz Additional Features...
  • Page 45 Items Specifications Decoding Speed 384 kbps Transfer Rate 640 kbps Operating Temperature 0˚C~45˚C Dimensions 88 x 62 x 23 mm (L x W x H) Weight 116 g, including battery...
  • Page 46 © Alan Electronics GmbH 2006 www.alan-electronics.de www.albrecht-online.de...
