CS152F
2-Port KVM Switch

Advertisement

Table of Contents
loading

Summary of Contents for Hawking CS152F

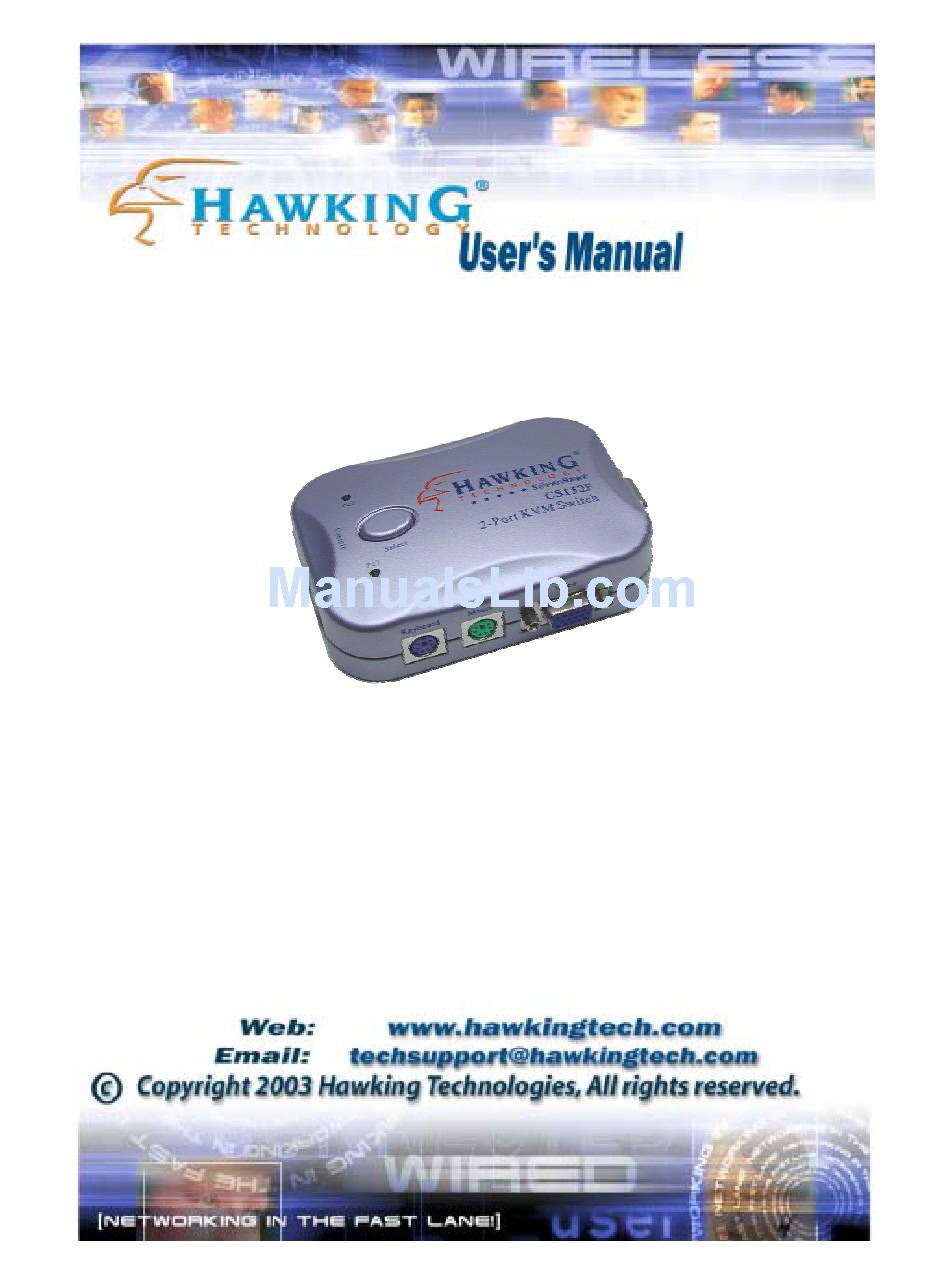

  • Page 1 CS152F 2-Port KVM Switch...
  • Page 2 VCCI Mark Warning LIMITED WARRANTY Hawking Technology guarantees that every CS152F KVM Switch is free from physical defects in material and workmanship under normal use for two (2) years from the date of purchase. If the product proves defective during this two-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number.
  • Page 3 Check to make sure that the unit was not damaged during shipping. If you encounter a problem, contact your dealer. Please read this manual thoroughly, and follow the installation and operation procedures carefully to prevent any damage to the CS152F unit, and/or any of the devices connected to it.  Copyright 2003 Hawking Technologies, Inc.
  • Page 4: Table Of Contents

    Overview…………………………………………………………………………………..3 Features……………………………………………………………………………………4 Hardware Requirements …………………………………………………………………..5 Console………………………………………………………………………………….5 PC……………………………………………………………………………………….5 Cables…………………………………………………………………………………...5 Introduction………………………………………………………………………………..6 Front View……………………………………………………………………………...6 Side View…………………………………………………………………………….6-7 Console View…………………………………………………………………………...7 Installation…………………………………………………………………………………8 Operation…………………………………………………………………………………..9 Port Selection………………………………………………………………………….9 Manual Navigation……………………………………………………………….…...9 HotKey Navigation……………………………………………………………..……... 9 Auto Scan Mode………………………………………………………………………10 Appendix…………………………………………………………………………………11 LED Status…………………………………………………………………………...11 Troubleshooting……………………………………………………………………11-12 Specifications………………………………………………………………………….13 - 2 -...
  • Page 5: Overview

    The CS152F 2-Port KVM Switch is a control unit that allows access to multiple computers from a single console (keyboard, monitor and mouse). Before the development of the CS152F, the only way to control multiple computer configurations from a single console was through a complex and costly network system. Now, with the CS152F, you can easily access multiple computers in a cost effective manner.
  • Page 6: Features

    Control Up to 2 PCs From a Single Console No Software Required - PC Selection via “Select” button on the Switch, HotKey combinations Quick View Scan Feature for Monitoring Selected PCs PS/2 and Serial Mouse Emulation Provided For System Bootup...
  • Page 7: Hardware Requirements

    * See the note under Cables in the next section. Cables Although it is possible to use generic extension cables to connect the PCs to the CS152F, for optimum signal integrity and to simplify the layout, we strongly recommend that you use the high quality KVM Cables included with your 2-Port KVM Switch.

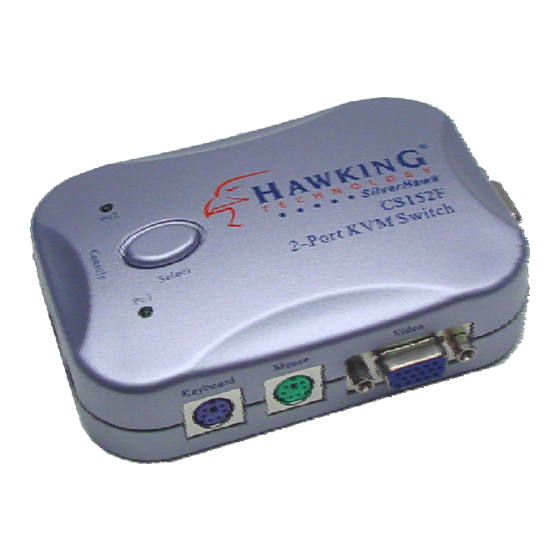

  • Page 8: Introduction

    1. Port LEDs: Pressing the “Select” button switches access back and forth between the PCs. The selected LED lights indicate which port is the active one. 2. Sounds: The switch will beep when switching ports. SWITCH SIDE VIEW Video Keyboard...
  • Page 9: Console View

    SWITCH SIDE VIEW Mouse Keyboard Video VIDEO CONSOLE Console Video (To monitor) CONSOLE – MOUSE / KEYBOARD / POWER Console Keyboard Console Mouse DC 9V 500mA Max (not necessary) - 7 -...
  • Page 10: Installation

    2-port KVM Switch. 3. The CS152F does not require external power. If you choose to use external power, plug the power adapter into an AC power source, then plug the cable into the CS152F Power Jack. Note: Use of a DC power adapter is optional, and requires a separate purchase.
  • Page 11: Operation

    You can access any PC on the chain using two methods: Manual or HotKey. Manual Simply press the “Select” button located on top of the CS152F to switch back and forth between computers. The selected LED lights indicate the port that is currently in use.
  • Page 12: Auto Scan Mode

    Auto Scan Mode The CS152F Auto Scan feature automatically switches between the two PCs at regular 4 second intervals so that you can monitor their activity without having to take the trouble of switching yourself. To invoke the Auto Scan Mode, key in the following...
  • Page 13: Appendix

    Unit not receiving Behavior enough power under self-powered operation. Keyboard Not Keyboard needs to Responding* be reset CS152F needs to be reset CS152F is in Auto Scan Mode or Last/Next Mode Mouse Not Mouse needs to be Responding** reset CS152F needs to be...
  • Page 14 To avoid this problem, only connect the mouse port or the keyboard port to the CS152F unit. If you connect the mouse port, you will need to use the notebook’s keyboard when you switch to make the notebook the active computer.
  • Page 15: Specifications

    Specifications Function Computer Connections Port Selection LEDs Keyboard 1 x 6-pin mini-DIN female (PS/2 style) – Console Connectors Mouse Video VGA Max Resolution Auto Scan Interval Operating System Power Consumption Operating Temperature Storage Temperature Humidity Housing Weight Dimensions (L x W x H) Specifications Push Button, Hot Keys 2-Port Status...
