QuickSpecs

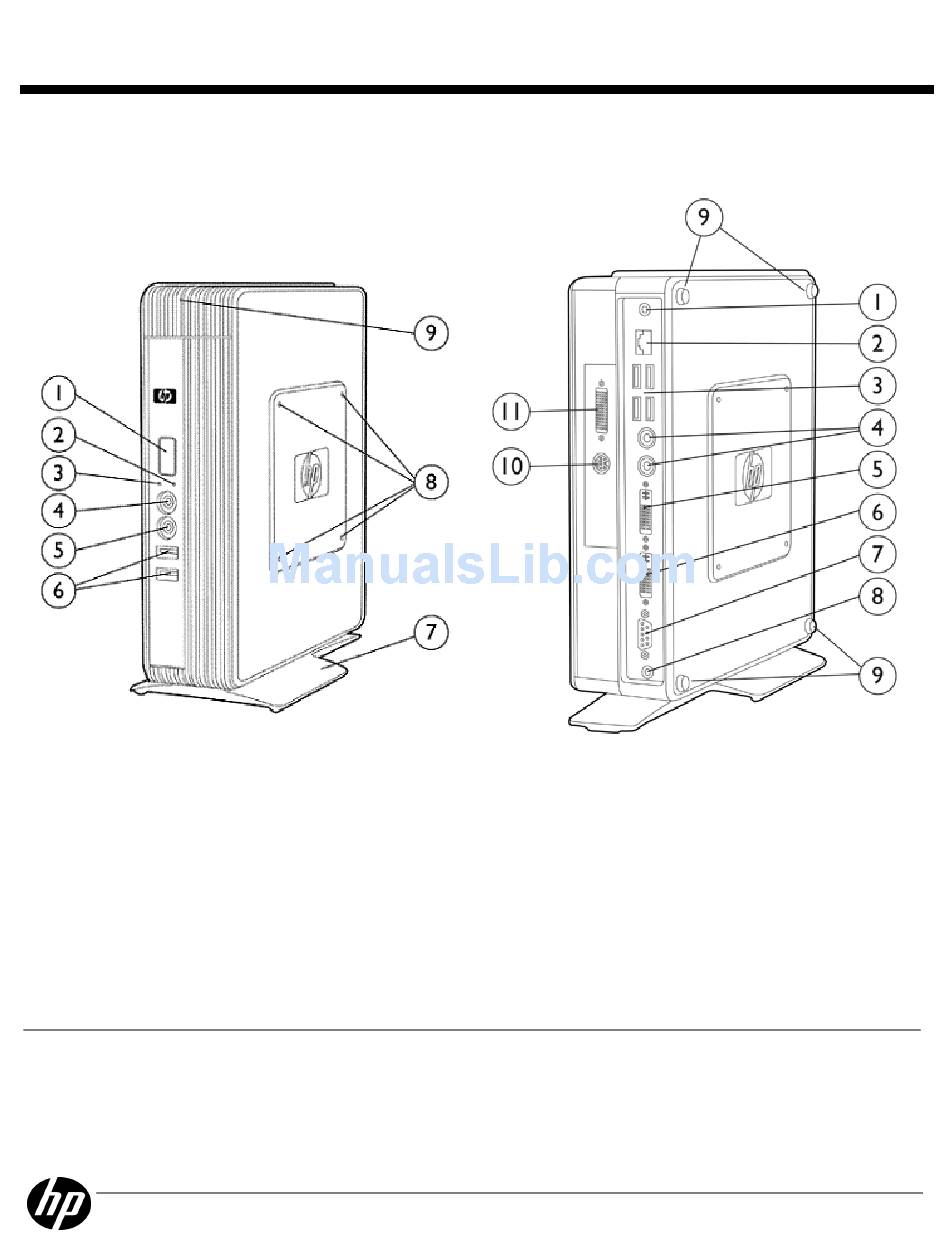

Overview
1.
Power button
2.
Power on indicator
3.
Flash activity indicator
4.
Audio connector (headphone/speaker out)
5.
Audio connector (mic in)
6.
USB connectors (two)
7.
Removable stand for vertical orientation
8.
Mounting points for HP Quick Release
9.
Secure USB compartment
With quad-head support (NG816AA)
With quad-head support (NG816AA)
With quad-head support (NG816AA)
With quad-head support (NG816AA)
DA - 13165
Canada — Version 14 — April 28, 2011
1.
Audio out
2.
Ethernet RJ-45 connector
3.
USB connectors (four)
4.
PS/2 connectors (two)
5.
DVI-I monitor connector
6.
DVI-D monitor connector
7.
Serial connector
8.
+19V DC power input
9.
Feet for horizontal orientation (four)
10.
S-Video out (not supported)
11.
DMS-59 connector for two DVI-I outputs
(splitter cable included)
HP gt7725 Thin Client
HP gt7725 Thin Client
HP gt7725 Thin Client
HP gt7725 Thin Client
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the gt7725 and is the answer not in the manual?

Questions and answers

Related Manuals for HP gt7725

Summary of Contents for HP gt7725

  • Page 1 DVI-I monitor connector USB connectors (two) DVI-D monitor connector Removable stand for vertical orientation Serial connector Mounting points for HP Quick Release +19V DC power input Secure USB compartment Feet for horizontal orientation (four) S-Video out (not supported) DMS-59 connector for two DVI-I outputs...
  • Page 2 DVI-I monitor output USB connectors (two) DVI-D monitor output Removable stand for vertical orientation Serial connector Mounting points for HP Quick Release +12V DC power input Secure USB compartment Feet for horizontal orientation (four) DA - 13165 Canada — Version 14 — April 28, 2011...
  • Page 3 (displays sold separately; number supported varies by model) Multi-display rotation allows for a mixture of portrait or landscape orientations across displays Client Aggregation software feature allows you to connect up to four gt7725 devices, supporting up to 16 monitors, controlled by a single keyboard and mouse.

  • Page 4: Warranty

    The t5545 expands manageability support to include server class tools that can be used to discover, asset, shadow, configure and update a mixed environment of thin clients and PCs, i.e. HP Client Automation & Alteris (Altiris DS license not included) Local HP ThinState allows administrators to capture a configuration profile or complete image from any t5745 and save it to a USB key or an HP ezUpdate repository.

  • Page 5: Standard Features - Models

    Browser Browser Browser Local web browser Client Management Client Management Client Management Client Management HP Device Manager, Altiris Deployment Solution (full license DS 6.9 SP1), Software Software Software Software HP ThinState included with each thin client Terminal Personalities Terminal Personalities...
  • Page 6 Option and support available directly from third party. When selecting a monitor, it is important to cross-reference the supported video resolutions of the HP thin client to the supported resolutions of the monitor. Most HP monitors have one or more supported resolutions that match HP thin client products.
  • Page 7 QuickSpecs HP gt7725 Thin Client HP gt7725 Thin Client HP gt7725 Thin Client HP gt7725 Thin Client Technical Specifications Processor Processor Processor Processor AMD Turion Dual Core CPU (2.3GHz) NOTE: NOTE: NOTE: NOTE: This system requires a 64-bit operating system and 64-bit software products to take advantage of the 64-bit processing capabilities of AMD technology.

  • Page 8: Technical Specifications

    NOTE: NOTE: NOTE: NOTE: Languages are selectable from the HP ThinPro Control Panel or EasyConfig wizard Citrix and Microsoft Citrix and Microsoft Citrix and Microsoft Citrix and Microsoft Citrix ICA 11.111, RDesktop 1.6 (RDP 6 Client) support...
  • Page 9 HP Device Manager - Simplifes visibility and management for small land large thin client deployments networked across multiple subnets and NATed environments HP Client Automation - Provides visibility and control of mixed environments of HP thin clients and HP PCs...
  • Page 10 FCC Class B; CE Mark; EN55022 B; EN55024; BMSI, KCC, CCC, C-Tick, and VCCI Warranty Warranty Warranty Warranty Three-year limited hardware warranty. NOTE: NOTE: NOTE: NOTE: Certain restrictions apply. Consult the HP Customer Support Centre for details. Emulations Emulations Emulations Emulations Emulation Emulation Emulation Emulation Terminal ID...
  • Page 11 RoHS Directive on a worldwide basis. From July 1, 2006, RoHS substances are being virtually eliminated by reducing substances to levels below legal limits for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
  • Page 12 © 2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products and services are set forth in the express limited warranty statements accompanying such products and services.
