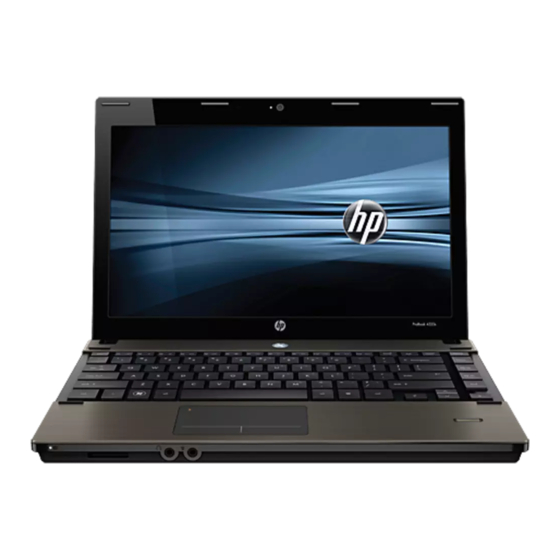

HP ProBook 4320s Quickspecs

HP ProBook 4320s Quickspecs

Hide thumbs Also See for ProBook 4320s:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual
QuickSpecs
Overview
1.
WWAN antennas
2.
WLAN antennas
3.
Integrated microphone
4.
Webcam LED (works with optional webcam)
5.
Optional 2 MP webcam
6.
Power button with LED indicator
7.
Stereo speakers
8.
Wireless switch with LED indicator
9.
Optical drive (select models)
10. Optional RJ-11/modem port
11. (2) USB 2.0 ports
1.
Kensington Lock slot
2.
Power connector
DA - 13568 North America — Version 19 — September 29, 2011
HP ProBook 4320s Notebook PC
HP ProBook 4420s Notebook PC
12. Optional HP Fingerprint Sensor
13. ClickPad with left and right ClickPad buttons
14. Stereo microphone in
15. Stereo headphone/line out
16. Media Card Reader
17. Hard drive activity LED indicator
18. HP QuickLook 3 button with LED indicator
19. HP QuickWeb button with LED indicator
20. Volume mute button
21. Volume down button
22. Volume up button
6.
HDMI port
7.
Combo eSATA/USB port
Page 1

Advertisement

loading

Related Manuals for HP ProBook 4320s

Summary of Contents for HP ProBook 4320s

  • Page 1 16. Media Card Reader Power button with LED indicator 17. Hard drive activity LED indicator Stereo speakers 18. HP QuickLook 3 button with LED indicator Wireless switch with LED indicator 19. HP QuickWeb button with LED indicator Optical drive (select models) 20.
  • Page 2 Face Recognition for HP ProtectTools for easy logins using the optional integrated 2 MP webcam Up to 500 GB 7200 rpm or 640 GB 5400 rpm hard drive with HP 3D DriveGuard protection HP Power Assistant to conserve power, increase battery run-time, monitor power needs, report workforce power consumption HP QuickLook 3 (quick access to e-mail, calendar, contacts and tasks), HP QuickWeb, and HP DayStarter HP Connection Manager 3.1...
  • Page 3 Choice of an Intel® Core™ i7, Core i5, Core i3, or Celeron processor Enhanced security features including HP ProtectTools, HP Face Recognition, Computrace LoJack Pro ready, HP SpareKey, HP Disk Sanitizer, optional HP Fingerprint Sensor, and optional HP Privacy Filter...
  • Page 4 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Standard Features (availability may vary by country) Processors Intel Core i5-520M Processor (2.4 GHz, 3 MB L3 cache)* Up to 2.93 GHz with Intel Turbo Boost Technology Intel Core i5-480M Processor (2.66 GHz, 3 MB L3 cache)* Up to 3.18 GHz with Intel Turbo Boost Technology...
  • Page 5 * Memory speed is processor dependent. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 6 Mobile Broadband (WWAN) requires a Windows operating system and is available in select countries as a factory configurable feature for the HP ProBook 4320s only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.
  • Page 7 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Standard Features (availability may vary by country) Expansion card slots ExpressCard/34 slot Supports ExpressCard/34 (34 mm x 75 mm x 5 mm) card sizes Media Card Reader Supports SD (Secure Digital), MultiMedia Card, Memory Stick, Memory Stick Pro, Memory Stick Duo*, Picture card * Memory Stick Duo Adapters are required and sold separately.
  • Page 8 HP Recovery Manager Models shipped with Windows 7 include HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to 15 GB of the hard drive is reserved for the system recovery software.
  • Page 9 For more information on HP security solutions refer to: http://www.hp.com/go/security. HP ProtectTools Security HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP ProtectTools Security Manager is an extensible client security console that delivers enhanced security Manager capabilities through add-on software modules.
  • Page 10 6-foot (1.8-meter) power cord included; total length including external AC adapter is 12 feet (3.66 meter) HP Fast Charge* * HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to the HP 9-cell battery. Battery...
  • Page 11 1-year limited warranty on primary battery. Warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.
  • Page 12 HP 2 GB (DDR3 1333 MHz) SODIMM AT912AA HP 4 GB (DDR3 1333 MHz) SODIMM AT913AA Storage HP 250 GB USB Pocket Media Hard Drive FE477AA HP External USB CD/DVD R/RW Drive FS943AA Communication HP WLAN 802/11 a/b/g/draft-n Mini-card Kit...
  • Page 13 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Options (availability may vary by country) Carrying Cases HP Deluxe Nylon Backpack RR317AA HP Value Nylon Case RR314AA HP Universal Nylon Case RR315AA HP Executive Leather Case RR316AA HP Deluxe Roller Case...
  • Page 14 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.
  • Page 15 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Storage Removable Media Drive Support Quantity Supported Drive Bay Blu-ray ROM DVD+/-RW Fixed optical drive bay SuperMulti DL LightScribe Drive* DVD+/-RW SuperMulti DL Fixed optical drive bay LightScribe Drive * Support for the Blu-ray DVD drive on configurations with integrated graphics requires Windows7 or Windows Vista;...

  • Page 16: Technical Specifications

    HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications System Unit Dimensions (HxWxD) HP ProBook 4320s: 1.07 in (at front) x 12.75 in x 8.98 in 27.0 mm (at front) x 324 mm x 228.0 mm HP ProBook 4420s: 1.07 in (at front) x 13.23 in x 9.15 in...
  • Page 17 (ICCP) SABS UKRSERTCOMPUTER * Configurations of the HP ProBook 4320s and HP Probook 4420s that are ENERGY STAR qualified are identified as HP ProBook 4320s ENERGY STAR and HP Probook 4420s ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net...
  • Page 18 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications NOTE: Unless otherwise noted, temperature limits listed in the following component specifications relate to the internal temperatures of these components and not to the environment in which the PC is operating.
  • Page 19 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications 500 GB 7200 rpm SATA Drive Weight 0.25 lbs (115g) Hard Drive Capacity 500 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 20 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications 250 GB 7200 rpm SATA Drive Weight 0.25 lbs (115g) Hard Drive Capacity 250 GB Height 0.37 in (9.5 mm) or on some models 0.28 in (7 mm) Width 2.75 in (70 mm)
  • Page 21 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications Blu-ray ROM DVD+/-RW Access Times Random <190 ms CD-ROM (typical) SuperMulti DL LightScribe < 190ms DVD-ROM (typical) Drive <230 ms BD-ROM (typical) Max Data Transfer Rate 24X CD-ROM...
  • Page 22 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications HP Fingerprint Sensor Mobile Voltage Operation 3.0V-3.6V Single Supply (optional) Operating Temperature 32° - 158°F (0° - 70°C) Current Consumption @ Less than 70 mA peak imaging and scrolling Less than 25 mA hardware finger detection 3.3V...
  • Page 23 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications Integrated Realtek Ethernet Features 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) RTL8151DH-GR 1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE 802.3...
  • Page 24 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications V.23 V.22bis V.22 V.21 Bell 212A Bell 103J Fax Mode Capabilities TIA/EIA-578-B (Class 1) T.30, T.4 (Group 3) V.17 V.29 V.27ter V.21 Channel 2 Command Set V.250 (Partial)
  • Page 25 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications Antenna Type Dual high efficiency 5 band antennae with spatial diversity, mounted in the display enclosure Form Factor PCI-Express MiniCard, USB 2.0 interface Weight 11.5 g Dimensions (Length x 2.01 x 1.18 x 0.18 in (51 x 30 x 5 mm)
  • Page 26 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications Power Consumption Transmit: 1.5 W (max) Receive: 1.0 W (max) Associated to Access Point, Idle: 300 mW nominal Wireless Button Off: 75 mW nominal Power Management ACPI compliant power management 802.11 compliant power saving mode...
  • Page 27 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2 Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows Vista and XP only.
  • Page 28 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications IEEE 802.11g 802.11b/g/n WiFi and IEEE 802.11n Bluetooth 3.0 HS Combo Adapter Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliantwith Microsoft Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 2.4 GHz...
  • Page 29 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications Altitude Operating 0 to 10,000 ft (3,048 m) Non-operating 0 to 50,000 ft (15,240 m) Configuration Utility Microsoft Windows XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Microsoft Windows Vista &...
  • Page 30 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications Power Management Microsoft Windows ACPI, and USB Bus Support Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff Certifications All necessary regulatory approvals for supported countries, including: FCC (47 CFR) Part 15C, Section 15.247 &...
  • Page 31 HP ProBook 4320s Notebook PC QuickSpecs HP ProBook 4420s Notebook PC Technical Specifications Transmit Power -6 dBm to 4 dBm (Bluetooth Class II) Receiver Sensitivity Better than -80 dBM at 0.1 % raw bit error rate Power Consumption Peak (Tx) 264 mW Peak (Rx) 231 mW Sleep <1 mW...
  • Page 32 1 BTU/hr * Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour. HP ProBook 4320s Notebook PC and HP ProBook 4420s Notebook PC Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296) DA - 13568 North America —...
  • Page 33 This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. information This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 34 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment: (http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/ gen_specifications.html):...
  • Page 35 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
