QuickSpecs

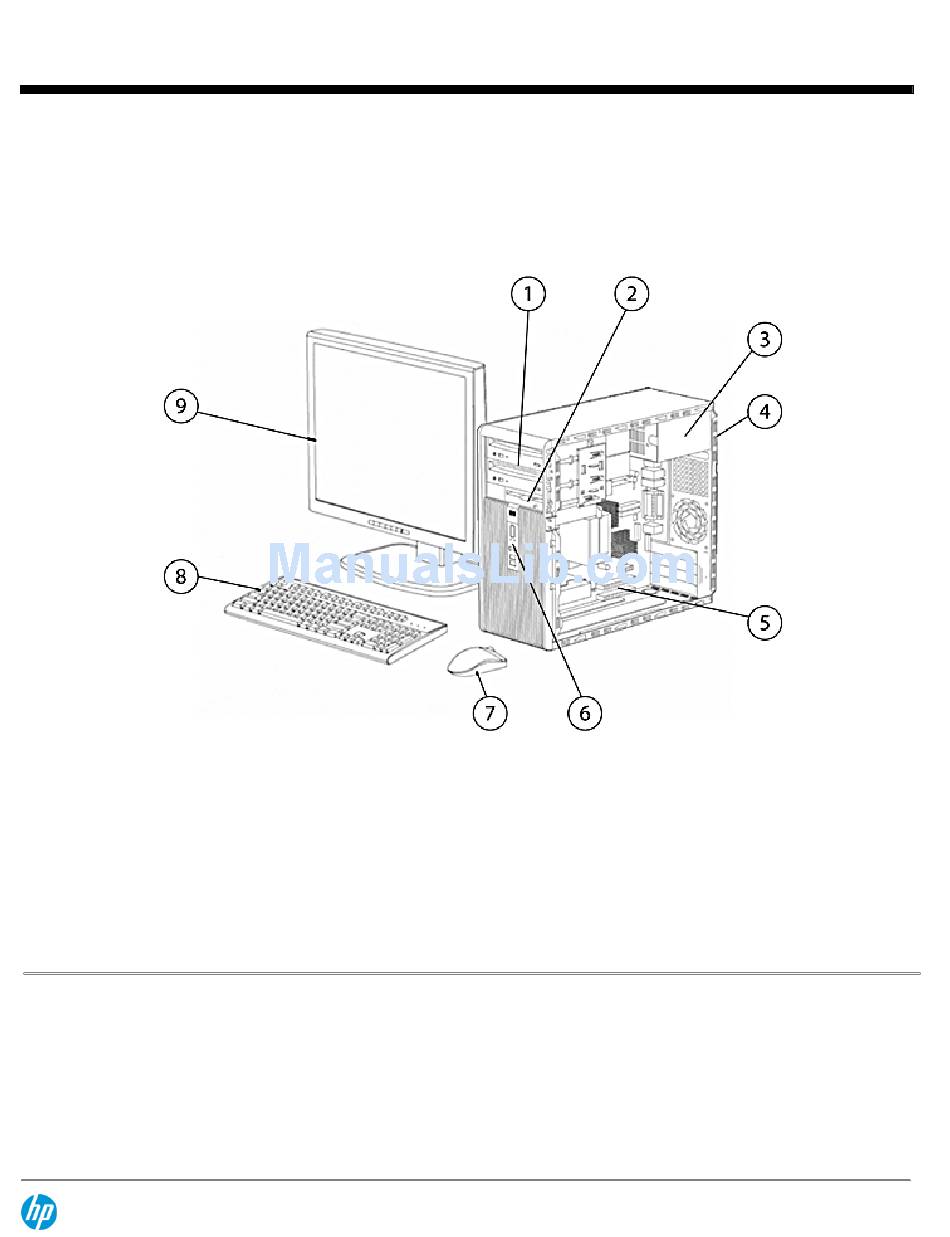

Overview
1. (2) 5.25" external bays and (2) 3.5" internal bays
2. (1) 3.5" external bay for optional HP 16-in-1 Media Card
Reader, diskette drive, or other 3.5" device
3. 300-watt power supply
Optional: 85% efficient energy saving power supply
4. Rear I/O: (6) USB 2.0, (1) standard serial port, (1) optional serial
port, (1) optional parallel port, (2) PS/2, (1) RJ-45, (1) VGA, (1)
DVI-D, (1) audio in, (1) audio out
Microtower
DA - 12900 Canada — Version 23 — August 21, 2009
HP Compaq dc5850 Business PC
HP recommends
Windows Vista
5. (1) full-height PCI slot, (2) full-height PCIe x1 slots, (1) full-
height PCIe x16 slot
6. Front I/O: (2) USB 2.0, headphone and microphone, Dual Colour
Diagnostic LEDs
7. 2-Button Scroll Mouse (PS/2), Optical Scroll Mouse (PS/2 or
USB), or USB Laser Mouse
8. HP Standard Keyboard (PS/2 or USB) or HP USB Smartcard
Keyboard
9. Monitor (sold separately)
®
Business
Page 1
