Onkyo TX-NR828 Quick Manual

2013 NEW PRODUCT RELEASE

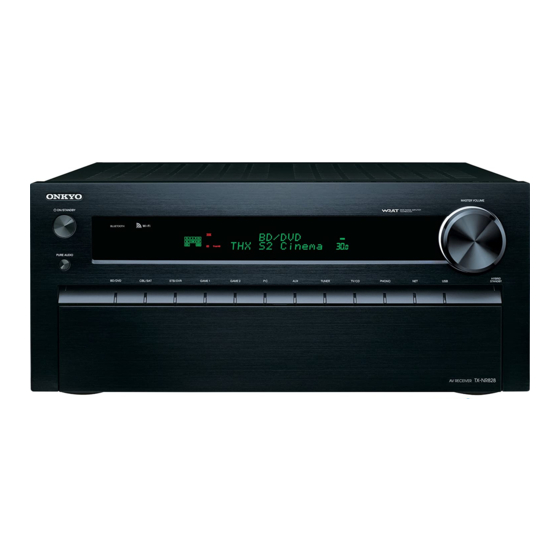

TX-NR828
Live Life to the Fullest with an Onkyo Home Cinema
The TX-NR828 gives you—the avid music and movie fan—power to make your home entertainment dreams a reality. From the aluminum
faceplate through to the banana plug-compatible speaker posts, it's easy to pick this as a heavyweight contender. Three-Stage Inverted
Darlington Circuitry on all seven channels effortlessly handles big dynamic gains without distorting—as THX
attests—with musicality to render audio in extraordinary detail. On the hardware side, 7.2 multichannel pre-outs, powered Zone 2 outputs,
and bi-amping capability grant the flexibility to customize. Eight 4K-ready HDMI
DTS-HD Master Audio decoding. Audio processing comes courtesy of Audyssey MultEQ
™
Marvell's outstanding Qdeo technology upscales standard video to 4K. Need music right now? With a tap on your smartphone screen, you
™
can serve lossless audio to your home cinema—whether its stored on handset, NAS, PC, or online streaming service—using built-in Wi-Fi, or
pair up and stream with onboard Bluetooth technology. Owning an Onkyo A/V receiver is not just about having big sound on movie night—it's
about maximizing the enjoyment of your daily life.
ADVANCED FEATURES
• THX ® Select2 Plus ™ Certified
• 4K Passthrough from Compatible Source Devices via HDMI
• Built-in Wi-Fi-Certified Wireless LAN Capability
• Bluetooth Version 2.1 + EDR Capability (Compatible Profile:
A2DP v1.2,AVRCP v1.3)
• Three-Stage Inverted Darlington Circuitry with Discrete
Output Stage on All Channels
• HDMIVideo Upscaling to 4K with Qdeo ™ Technology by Marvell
• MHL ™ (Mobile High-Definition Link) for 1080p Smart Phone
Media on HDTV
• Internet Radio and Music Streaming Service Connectivity
(TuneIn Radio, Last.fm, Spotify,AUPEO!, and Simfy)
• Playback of Audio Files Over Wireless Home Network (MP3,
WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple
Lossless, DSD, LPCM , and Dolby TrueHD)
*2 ®
• Audyssey DSX and Dolby Pro Logic IIz Upmixing for Front
® ® ®
High or Front Wide Channels
• Audyssey MultEQ for Room Acoustic Correction
®
• Picture-in-Picture Video Preview with InstaPrevue
• Supports Onkyo Remote Apps for iPod touch/iPhone
Android Devices for Housewide System Control
*4
• Phase-Matching Bass Boost
• Powered Zone 2 and Zone 2/3 Line-Outs for Distributed
Audio Playback in Multiple Rooms
• Whole House Mode for App-Controllable Housewide Audio
• 7.2 Multichannel Pre-Outs
• Bi-Amping Capability
*1 Availability of services depends on region. Some services may require a firmware
update. *2 LPCM is available via DLNA only. *3 Compatible with iPod touch (3rd
generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later. *4
Requires Android OS 2.1 or later.
7.2-Channel Network A/V Receiver
AMPLIFIER FEATURES
• 180 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC);
215 W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
®
• WRAT (Wide Range Amplifier Technology)
• H.C.P.S. (High Current Power Supply) Massive High Power
Transformer
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
PROCESSING FEATURES
• HDMI Support for 3D, 4K,Audio Return Channel,
*1
DeepColor , x.v.Color , LipSync, Dolby TrueHD, DTS-HD
™ ™
Master Audio , DVD-Audio, Super Audio CD, Multichannel
™
PCM, and CEC
• TI Burr-Brown 192 kHz/24-Bit DAC for All Channels
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports,Action, and RPG
• Advanced Music Optimizer for Compressed Digital Music Files
Technology
™
• Theater-Dimensional Virtual Surround Function
and
*3
• Direct Mode and Pure Audio Mode
• Double Bass Function
• Non-Scaling Configuration
• A-Form Listening Mode Memory
CONNECTION FEATURES
• 8 HDMI Inputs (1 Front/7 Rear) and 2 Outputs
• 1 USB Port (Front)
• Mass Storage Class USB Memory Playback (Wide Selection of
File Formats Supported)
Select2 Plus
®
inputs including frontside MHL
® ™
, Audyssey DSX , and Dolby
® ®
• 2 Component Video Inputs and 1 Output
• 5 Composite Video Inputs and 1 Output
• 5 Digital Audio Inputs (2 Optical and 3 Coaxial)
• 7 Analog Audio Inputs (1 Front/6 Rear)
• Phono Input for Turntable Connection
• RS232 Port
• IR Input and 12 V Trigger Outs (Zone 2)
• Color-Coded, Banana Plug-Compatible Speaker Posts
• Headphone Jack
OTHER FEATURES
• Audyssey Dynamic EQ
• Audyssey Dynamic Volume
• Overlaid On-Screen Display (OSD) with Quick Set-Up and
Home Menu
• Independent Crossover Adjustment for Each Channel (40/50/
60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 800 ms in 10 ms Steps at 48 kHz)
• Tone Control (Bass/Treble) for Front L/R Channels
• Display Dimmer (Normal/Dim/Dimmer,Volume Knob LED: On/Off)
• RDS (PS/RT/PTY/TP) (European Model Only)
• 40 FM/AM Random Presets
• Certified with DLNA Version 1.5
• Firmware Updates via Network and USB
• Aluminum Front Panel and Volume Control Knob
• Compatible with RI Dock for iPod/iPhone and AirPlay (DS-A5)
• RIHD (Remote Interactive over HDMI) for System Control
• Bi-Directional RI (Remote Interactive) Remote Control
*Note: Volume knob LED is always off when display is dimmed
BLACK SILVER
Microphone for
Audyssey
certification
™
enable Dolby TrueHD and
®
Pro Logic IIz, while
® ®
for Loudness Correction
®
Listening-Level Adjustment
®
*
