Harris County ITC XTS 5000 User Manual

Selecting a Zone and Mode

A mode is a channel or talkgroup and
all features slaved to it. A zone is a
grouping of modes that can be selected
either through the 3-position toggle
switch, or via the keypad. Follow
these three easy steps to find a
desired zone and mode.
Step:
1. Press the left button key
(single dot)
2. Press the right arrow of the four
way position switch. Keep pressing
this key until the desired zone
appears.
3. Press the Home button to select.

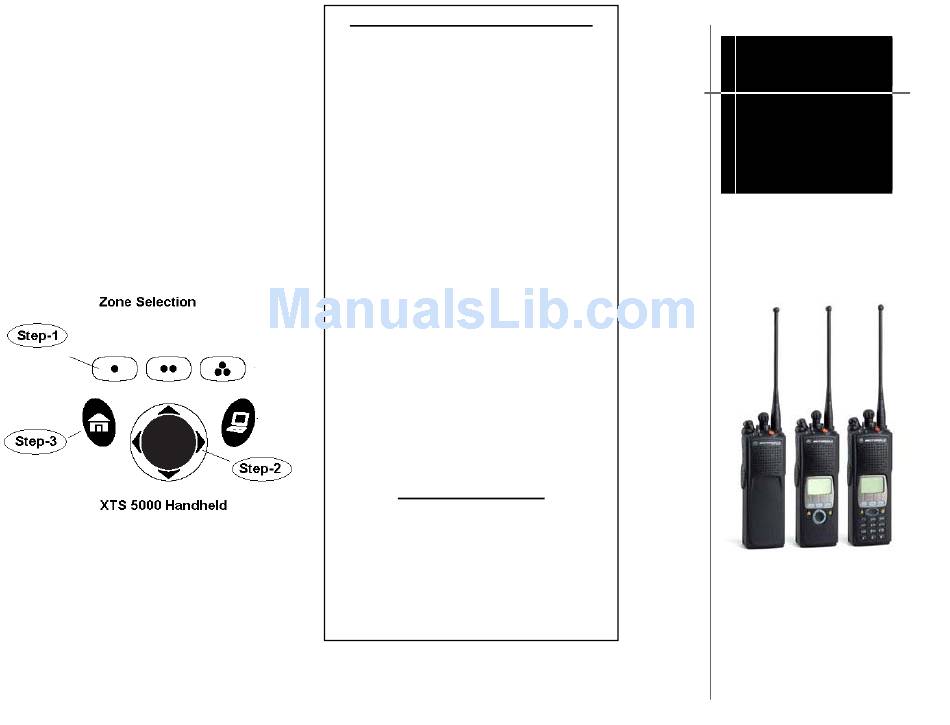

SEE FIG-1 BELOW:
SmartZone Backup Operations
A).Radio operation in Site Trunking
Site trunking occurs when a site is
not longer able to participate in wide
-area calls controlled by the zone
controller. Radios operating in site
trunking can only communicate with
other radios at that site.
The radio will of course always be
looking for a wide-area trunking site
to lock onto if it roams into range of
one.
1. When a site goes into site trunk-
ing, the radio will receive this
indication and will display
"SITE TRUNKING"
2. The display will alternate between
the current trunked mode and the
site trunking display for as long
as the radio remains in site trunk
ing.
3. Users should have a pre-determined
backup Tower site when the System
is in Site Trunking.
Tower prefixes
HO = Houston Tower
HU = Huffman Tower
TO = Tomball Tower
CL = Clodine Tower
AL = Alvin Tower
TM = Tamina Tower
Harris County ITC
XTS 5000
Portable
Radio
U S E R G U I D E
L a w E n f o r c e m e n t M o d e l
Harris County Regional Radio Center
2500 Texas ave
Houston,Texas
77003
Phone: 713-755-6037
Fax: 713-755-8941
