INSTALLATION
AND USER'S MANUAL
810 LX / 815 LX
LANCER
.
RESERVES THE RIGHT TO MAKE ANY CHANGES IN THE MANUALS IN ORDER TO IMPROVE THEM

Advertisement

loading
Need help?

Need help?

Do you have a question about the 810 LX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for lancer 810 LX

Summary of Contents for lancer 810 LX

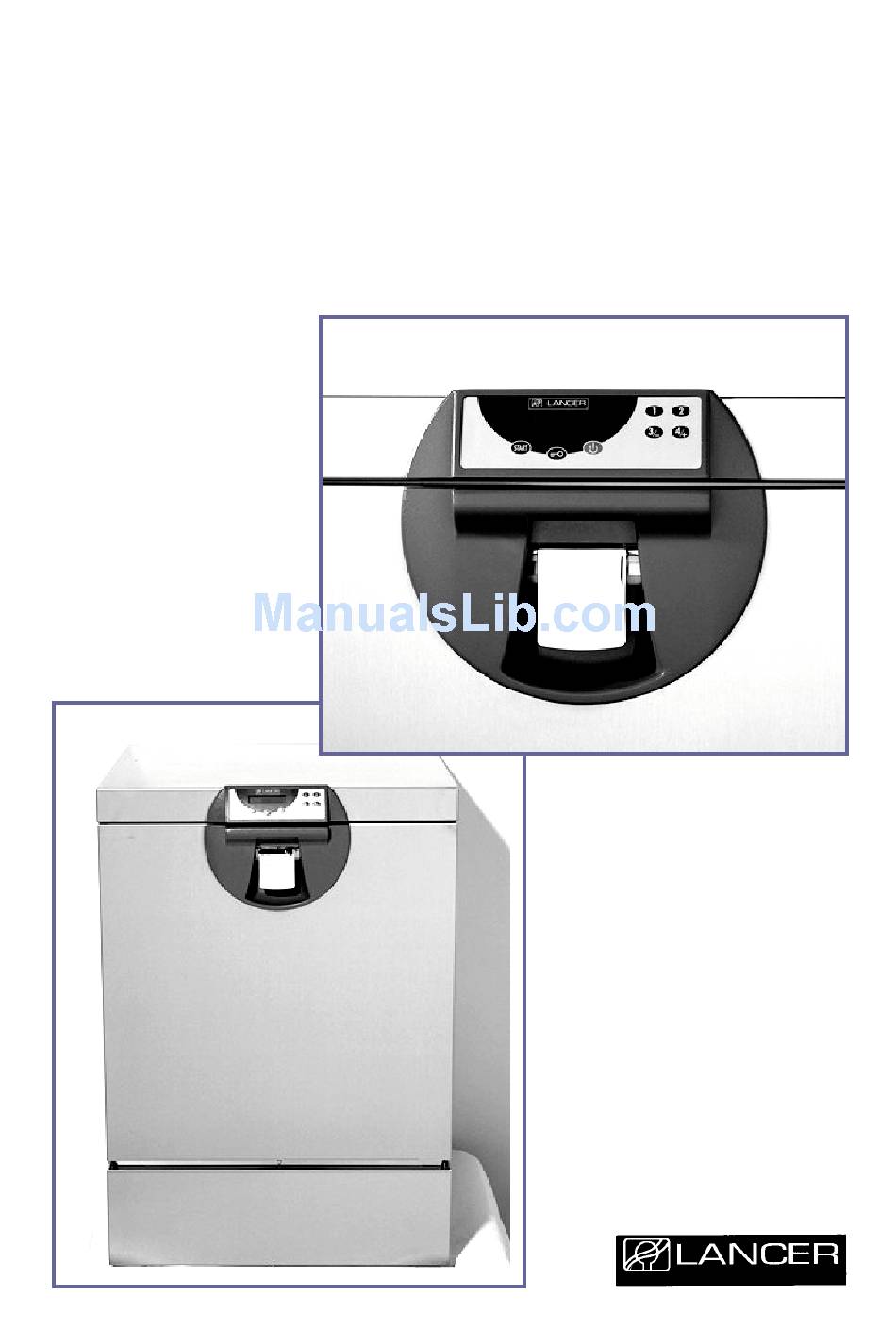

  • Page 1 INSTALLATION AND USER’S MANUAL 810 LX / 815 LX LANCER RESERVES THE RIGHT TO MAKE ANY CHANGES IN THE MANUALS IN ORDER TO IMPROVE THEM...
  • Page 3 INSTALLATION MANUAL 810 LX / 815 LX...
  • Page 5 HIS MACHINE MUST BE INSTALLED AND USED ACCORDING TO THE INSTRUCTIONS CONTAINED WITHIN THIS DOCUMENT NCORRECT INSTALLATION OR USAGE MAY CAUSE THE PROTECTION PROVIDED BY THIS EQUIPMENT TO BE IMPAIRED HE FIRST TIME START UP SHOULD BE PERFORMED BY A CERTIFIED LANCER SERVICE TECHNICIAN NI_810-815_LX_PILOTE_ANG_A.doc...

  • Page 6: Front View

    810-815 LX / INSTALLATION CHARACTERISTICS (STANDARD) Heat loss : 600 Kcal/h (2380 BTU/h). Noise level : 63 dBA in accordance with the European Council directive of June 14, 1989, concerning the harmonization of the legislation of European Union member states regarding machines, 89/392/CEE.
  • Page 7 810-815 LX / INSTALLATION CHARACTERISTICS (WITH PLINTH / 02010020) Heat loss : 600 Kcal/h (2380 BTU/h). Noise level : 63 dBA in accordance with the European Council directive of June 14, 1989, concerning the harmonization of the legislation of European Union member states regarding machines, 89/392/CEE.
  • Page 8 810-815 LX / INSTALLATION CHARACTERISTICS (400TRI WITHOUT NEUTRAL / 90010007) Heat loss : 600 Kcal/h (2380 BTU/h). Noise level : 63 dBA in accordance with the European Council directive of June 14, 1989, concerning the harmonization of the legislation of European Union member states regarding machines, 89/392/CEE.
  • Page 9 810-815 LX / INSTALLATION CHARACTERISTICS (400 WITHOUT NEUTRAL - WITH PLINTH / 90010007 + 02010020) Heat loss : 600 Kcal/h (2380 BTU/h). Noise level : 63 dBA in accordance with the European Council directive of June 14, 1989, concerning the harmonization of the legislation of European Union member states regarding machines, 89/392/CEE.

  • Page 10: Operating Environment

    810-815 LX / INSTALLATION OPERATING ENVIRONMENT The washer is designed for use in the following conditions : • AN INDOOR ENVIRONMENT. • ALTITUDE UP TO 2000 METERS (6,562 FEET). • TEMPERATURE BETWEEN 5°C AND 40°C (41°F AND 104°F). • MAXIMUM RELATIVE HUMIDITY OF 80% UP TO 31°C (88°F) DECREASING LINEARLY TO 50% RELATIVE HUMIDITY AT 40°C (104°F).

  • Page 11: Water Connections

    810-815 LX / INSTALLATION WATER CONNECTIONS (PRESSURIZED DEMINERALIZED WATER SUPPLY - STANDARD) COLD WATER : A valve with a male threaded nozzle, 20/27 diameter, (3/4" hose thread) is required. Flow rate : 20 l/min (5.3 GPM) with a minimum pressure of 200 kPa (2 bar or 29 PSI) and maximum 600 kPa (6 bar or 87 PSI).
  • Page 12 (3/4 inch) on its base and the tank is installed 150 mm (6 inches) above floor level on a support, preferably of type BRH as manufactured by LANCER. Hose clamps should be used to make the connection to the hose barb fitting.
  • Page 13 (3/4 inch) on its base and the tank is installed 650 mm (26 inches) above floor level on a support, preferably of type BRH as manufactured by LANCER. Hose clamps should be used to make the connection to the hose barb fitting.
  • Page 14 810-815 LX / INSTALLATION WATER CONNECTIONS (INTERMEDIATE PRESSURE DEMINERALIZED SUPPLY / 01060206) COLD WATER : A valve with a male threaded nozzle, 20/27 diameter, (3/4" hose thread) is required. Flow rate : 20 l/min (5.3 GPM) with a minimum pressure of 200 kPa (2 bar or 29 PSI) and maximum 600 kPa (6 bar or 87 PSI).
  • Page 15 810-815 LX / INSTALLATION DRAIN DISCHARGE COOLING WATER : (90010077) Utilizes the COLD WATER valve as specified above. Cold water source should be less than 25°C. CONDENSER : (90010078) Utilizes the COLD WATER valve as specified above. Cold water source should be less than 25°C.
  • Page 16 810-815 LX / INSTALLATION WATERS INTAKES MUST BE LOCATED IN THIS AREA (STANDARD) NI_810-815_LX_PILOTE_ANG_A.doc...
  • Page 17 810-815 LX / INSTALLATION WATERS INTAKES MUST BE LOCATED IN THIS AREA (PLINTH / 02010020) NI_810-815_LX_PILOTE_ANG_A.doc...
  • Page 18 810-815 LX / INSTALLATION Flush and drain all water supply lines to remove debris before making connections to flexible hoses. The hoses required to connect the washer to the various water inlets are supplied with the machine. The maximum length of flexible hoses should be less than 1500 mm (59 inches). Disconnectors are provided for connecting the flexible hoses to the water supply lines.

  • Page 19: Electrical Connection

    810-815 LX / INSTALLATION ELECTRICAL CONNECTION (STANDARD - 400TRI+N+T) EFORE CARRYING OUT ANY WORK ON THE WASHER MAKE SURE IT IS SWITCHED OFF AT THE ELECTRICAL DISCONNECT SWITCH LECTRICAL SUPPLY CHECK FOR CORRECT VOLTAGE SUPPLY AT THE ELECTRICAL PANEL BEFORE MAKING ANY ELECTRICAL CONNECTIONS LECTRICAL DISCONNECT SWITCH THE FOLLOWING EQUIPMENT MUST BE EASILY AND QUICKLY ACCESSIBLE NEAR THE WASHER...
  • Page 20 810-815 LX / INSTALLATION ELECTRICAL CONNECTION (230TRI+T / 90010101) EFORE CARRYING OUT ANY WORK ON THE WASHER MAKE SURE IT IS SWITCHED OFF AT THE ELECTRICAL DISCONNECT SWITCH LECTRICAL SUPPLY CHECK FOR CORRECT VOLTAGE SUPPLY AT THE ELECTRICAL PANEL BEFORE MAKING ANY ELECTRICAL CONNECTIONS LECTRICAL DISCONNECT SWITCH THE FOLLOWING EQUIPMENT MUST BE EASILY AND QUICKLY ACCESSIBLE NEAR THE WASHER...
  • Page 21 810-815 LX / INSTALLATION ELECTRICAL CONNECTION (200TRI+T 50-60HZ / 90010002-90010012) EFORE CARRYING OUT ANY WORK ON THE WASHER MAKE SURE IT IS SWITCHED OFF AT THE ELECTRICAL DISCONNECT SWITCH LECTRICAL SUPPLY CHECK FOR CORRECT VOLTAGE SUPPLY AT THE ELECTRICAL PANEL BEFORE MAKING ANY ELECTRICAL CONNECTIONS LECTRICAL DISCONNECT SWITCH THE FOLLOWING EQUIPMENT MUST BE EASILY AND QUICKLY ACCESSIBLE NEAR THE WASHER...
  • Page 22 810-815 LX / INSTALLATION ELECTRICAL CONNECTION (230MONO+T / 90010100) EFORE CARRYING OUT ANY WORK ON THE WASHER MAKE SURE IT IS SWITCHED OFF AT THE ELECTRICAL DISCONNECT SWITCH LECTRICAL SUPPLY CHECK FOR CORRECT VOLTAGE SUPPLY AT THE ELECTRICAL PANEL BEFORE MAKING ANY ELECTRICAL CONNECTIONS LECTRICAL DISCONNECT SWITCH THE FOLLOWING EQUIPMENT MUST BE EASILY AND QUICKLY ACCESSIBLE NEAR THE WASHER...
  • Page 23 810-815 LX / INSTALLATION ELECTRICAL CONNECTION (400TRI WITHOUT NEUTRAL / 90010007) EFORE CARRYING OUT ANY WORK ON THE WASHER MAKE SURE IT IS SWITCHED OFF AT THE ELECTRICAL DISCONNECT SWITCH LECTRICAL SUPPLY CHECK FOR CORRECT VOLTAGE SUPPLY AT THE ELECTRICAL PANEL BEFORE MAKING ANY ELECTRICAL CONNECTIONS LECTRICAL DISCONNECT SWITCH THE FOLLOWING EQUIPMENT MUST BE EASILY AND QUICKLY...
  • Page 24 The electrical disconnect switch can be installed to the left, to the right, or behind the washer. The circuit breaker must be labelled as the protection device for the LANCER WASHER. ELECTRICAL DISCONNECT SWITCH (PROVIDED BY OTHERS) CIRCUIT BREAKER (PROVIDED BY OTHERS) ELECTRICAL CABLE LENGTH 2 METERS (6 FEET) NI_810-815_LX_PILOTE_ANG_A.doc...
  • Page 25 810-815 LX / INSTALLATION DISCHARGE OF WASTE WATERS (STANDARD WITH NO CONDENSER) Provide a fixed standpipe and plumbing trap with a minimum inside diameter of 40 mm (1 ½ inches). Height above floor level : 500 mm (20 inches) minimum and 700 mm (27 ½ inches) maximum.
  • Page 26 810-815 LX / INSTALLATION DISCHARGE OF WASTE WATERS (STANDARD WITH CONDENSER / 90010078) Provide 2 fixed standpipes (as shown) and plumbing trap with minimum inside diameters of 40 mm (1 ½ inches) per standpipe. Height above floor level : 500 mm (20 inches) minimum and 700 mm (27 ½ inches) maximum.
  • Page 27 810-815 LX / INSTALLATION DISCHARGE OF WASTE WATERS (PLINTH WITH NO CONDENSOR / 02010020) Provide a fixed standpipe and plumbing trap with a minimum inside diameter of 40 mm (1 ½ inches). Height above floor level : 1000 mm (40 inches) minimum and 1200 mm (47 ½ inches) maximum.
  • Page 28 810-815 LX / INSTALLATION DISCHARGE OF WASTE WATERS (PLINTH WITH CONDENSER / 02010020 + 90010078) Provide 2 fixed standpipes (as shown) and plumbing trap with minimum inside diameters of 40 mm (1 ½ inches). Height above floor level : 1000 mm (40 inches) minimum and 1200 mm (47 ½ inches) maximum.
  • Page 29 810-815 LX / INSTALLATION °2 N ORDER TO AVOID THE ALARM N ON THE DISPLAY ’ USER S MANUAL CHECK THAT THE EMPTYING TUBE ARE INSTALLED PROPERLY ACCORDING TO THE DIAGRAMS BELOW NI_810-815_LX_PILOTE_ANG_A.doc...
  • Page 30 810-815 LX / INSTALLATION WALL FIXATION (PLINTH / 02010020) It is recommended to fix the washer against the wall. You can choose, according to the space available around the washer, the location of the fixing plate to the wall : on the side or on top of the cover (see drawing below).
  • Page 31 810-815 LX / INSTALLATION DISCHARGE OF STEAM (NO CONDENSER) TWO SOLUTIONS : • If you decide that it is not necessary to install a flexible hose, you must turn the steam draining pipe as show. • Otherwise, provide, by others, the connection of a flexible hose with an inside diameter of 50 mm (2 inches) between the top of the machine and an external discharge point under negative pressure.

  • Page 32: Non-Foaming Detergent

    810 LX / INSTALLATION THE WASHING PRODUCTS (STANDARD) NON-FOAMING DETERGENT Place a container of NON-FOAMING LIQUID DETERGENT next to the washer at a maximum height of 150 mm (6 inches) above floor level. Remove the cap from the detergent container and insert the detergent suction tube into the detergent container.
  • Page 33 810 LX / INSTALLATION THE WASHING PRODUCTS (WITH PLINTH / 02010020) NON-FOAMING DETERGENT Place a container of NON-FOAMING LIQUID DETERGENT inside the plinth cabinet below the wash chamber. Remove the cap from the detergent container and insert the detergent suction tube into the detergent container. Tighten the cap.
