TECHNICAL MANUAL

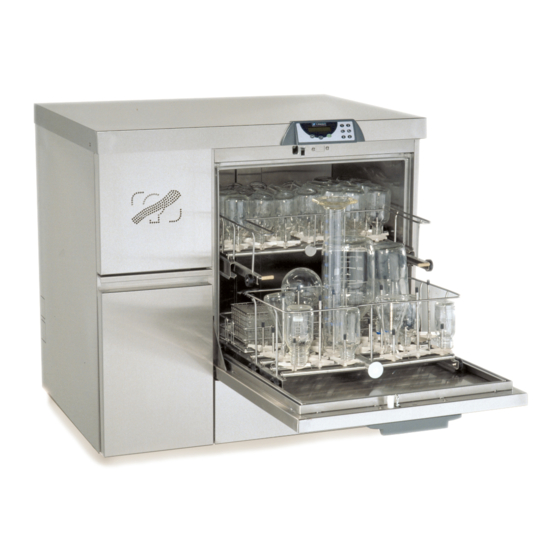

820 LX / 910 LX / 1300 LX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 820 LX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for lancer 820 LX

Summary of Contents for lancer 820 LX

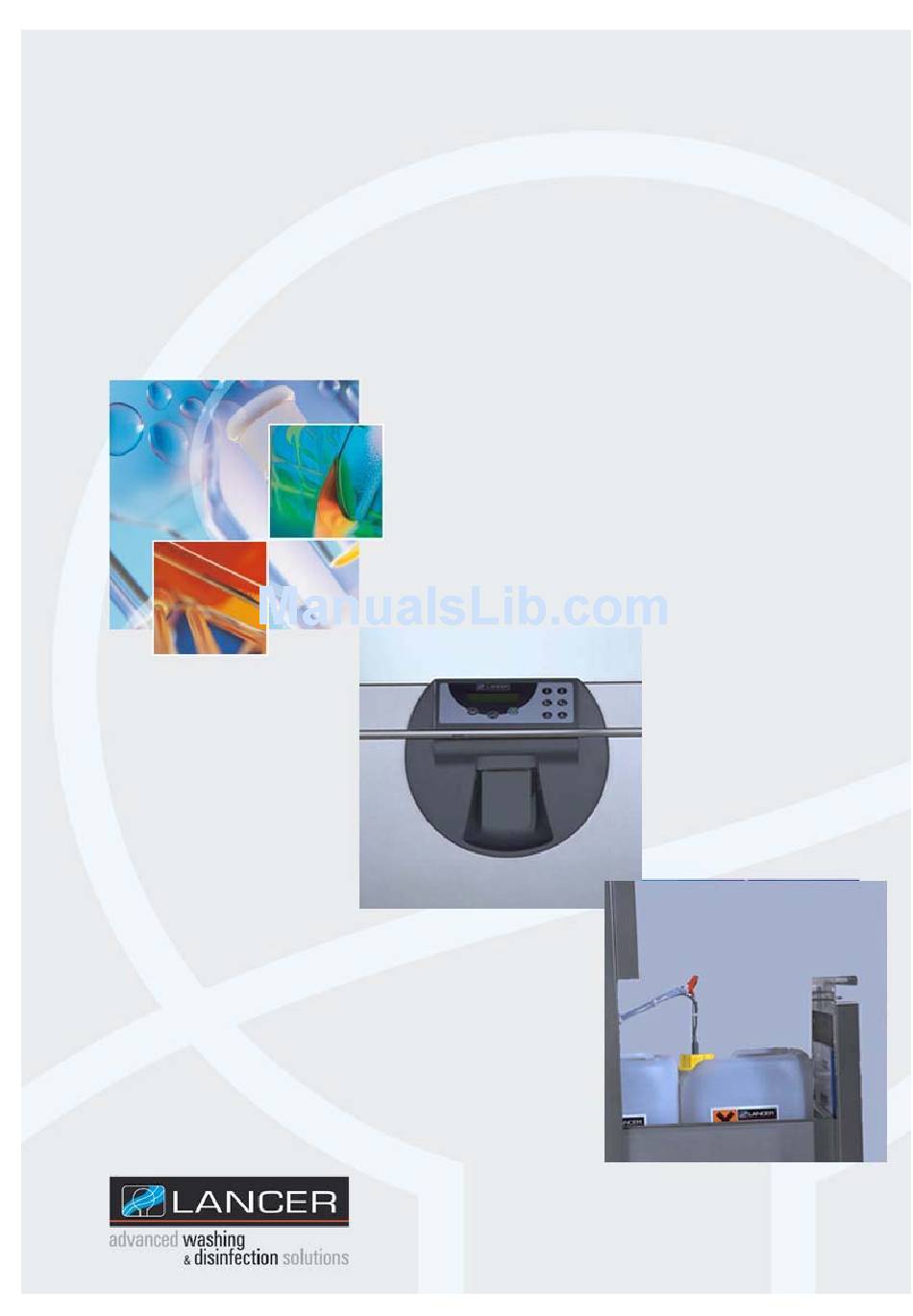

  • Page 1 TECHNICAL MANUAL 820 LX / 910 LX / 1300 LX...
  • Page 2 LANCER reserves the right to modify, constantly its documentation for its improvement. The values of adjustments indicated in the displays of this manual are given as an indication and do not have to be taken for reference.

  • Page 3: Precautions To Be Taken Before Use

    PRECAUTIONS TO BE TAKEN BEFORE USE • Users must be trained before using the washer-dryer. • The staff that use or repair this washer-dryer must have followed a complete training referring its use and maintenance. This training must include the selection and understanding of the washing cycle, the loading and unloading of the baskets and the handling of the washing products.

  • Page 5: Table Of Contents

    SUMMARY SUMMARY CHAPTER 1 INTRODUCTION........5 1. INTRODUCTION TO THE TECHNICAL MANUAL 2. INTRODUCTION TO THE ACCESS CODES 3. DESCRIPTION OF KEYPAD CHAPTER 2 ACCES TO TECHNICIAN MENU ....9 1. ACCES TO TECHNICIAN MENU 2. THE MACHINE TEST 3. CALIBRATION OF TEMPERATURE PROBES 4.
  • Page 6 SUMMARY 7. UPDATE MAINTENANCE HOURS 8. PRINT PROGRAM / COMMON SETTING PARAMETERS 9. PRINT CONFIGURATION PARAMETERS CHANGING CARD RETURN TO THE INITIAL STATE CHAPTER 4 FAULT ALARMS........ 43 1. WARNINGS 1.1 - LACK OF SALT * : 1.2 - LACK OF PRODUCTS 1.3 HOT CHAMBER 1.4 FULL BASIN 1.5 MAINTENANCE REMINDER...

  • Page 7: Chapter 1 Introduction

    CHAPTER 1 INTRODUCTION CHAPTER 1 INTRODUCTION You have in your possession a LANCER washer-dryer. Its good working and your entire satisfaction depend on the attention you pay when reading this guide. You will find here some advices about the use, the loading and the maintenance.

  • Page 8: Introduction To The Technical Manual

    CHAPTER 1 INTRODUCTION 1.INTRODUCTION TO THE TECHNICAL MANUAL This manual is intended to facilitate the operations of programming, testing, maintenance and repairing, of your washer-dryer. It is only addressed to people in possession of an access code of technician or supervisor.

  • Page 9: Introduction To The Access Codes

    CHAPTER 1 INTRODUCTION 2.INTRODUCTION TO THE ACCESS CODES The codes give access to the developed menu which enables you to define the adjustments of the washer-dryer. There is a hierarchy inside these codes which enables the reduction of the rights of access to the adjustment data, according to the different users (user’s level, technician level, supervisor level).

  • Page 10: Description Of Keypad

    CHAPTER 1 INTRODUCTION 3. DESCRIPTION OF KEYPAD 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - - - - 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 / / / / / / / / / / / / / / / / + + + + + + + + + + + + + + + + 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5...

  • Page 11: Chapter 2 Acces To Technician Menu

    CHAPTER 1 INTRODUCTION CHAPTER 2 ACCES TO TECHNICIAN MENU This chapter provides information to check that your washer operates properly. Using the LEVEL 2 / TECHNICIAN Access code, you can operate the output relays, verify input status, and perform calibration of temperature probes, reset maintenance hours counter as well as the recording of the various parameters of the washer before an electronic board swapping NT_820_910_1300_LX_ANG_V1 04_2007.doc...

  • Page 12: Acces To Technician Menu

    CHAPTER 2 ACCES TO TECHNICIAN MENU 1.ACCES TO TECHNICIAN MENU Switch on the machine by pressing The display indicates the number of the last cycle performed. P r o g r a m n ° 0 1 L A N C E R x x x x L X Press and hold button for 3 seconds to validate.

  • Page 13: The Machine Test

    CHAPTER 2 ACCES TO TECHNICIAN MENU 2.THE MACHINE TEST After accessing to technician menu, you must select TEST MACHINE with buttons to test the relay state and the inputs of the / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - electronic card Accept with...
  • Page 14 CHAPTER 2 ACCES TO TECHNICIAN MENU I n p u t s 7 6 5 4 3 2 1 S t a t e 0 0 0 0 1 1 0 The following display gives the total functioning time of the machine and the number of cycles performed.

  • Page 15: Calibration Of Temperature Probes

    CHAPTER 2 ACCES TO TECHNICIAN MENU 3.CALIBRATION OF TEMPERATURE PROBES After accessing to technician menu, you must select CALIBR. PROBE with buttons to calibrate the probes. / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - Accept with button.
  • Page 16 CHAPTER 2 ACCES TO TECHNICIAN MENU The slope of the probe is set. Disconnect the probe simulator from the electronic board then connect temperature probe on plug K49 of the electronic board. The following display enables calibration of the temperature probe of the chamber.

  • Page 17: Maintenance Hours Reset

    CHAPTER 2 ACCES TO TECHNICIAN MENU 4.MAINTENANCE HOURS RESET After having reached to the small technician, you must, to allow a new calculation of the hours before completing work of maintenance After accessing to technician menu, you must, to allow a new calculation of the hours before completing work of maintenance, select Reset Maint.

  • Page 18: Changing Card

    CHAPTER 2 ACCES TO TECHNICIAN MENU 5.CHANGING CARD After accessing to technician menu, it is possible, before changing electronic board of the washer, choose Changing card using buttons , (communication between electronic board, display and / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - keyboard must be still existing).
  • Page 19 CHAPTER 2 ACCES TO TECHNICIAN MENU C h a n g i n g c a r d R e a d i n g m e m o r y Accept with button. C h a n g i n g c a r d C o n f r m a t...

  • Page 20: Memory Writing

    CHAPTER 2 ACCES TO TECHNICIAN MENU 5.2 MEMORY WRITING “Memory writing ”.makes it possible to transfer on the memory from the washer all the parameters which were safeguarded in reading mode, thus avoiding having with all to reprogram. C h a n g i n g c a r d i n g m e m o r y...
  • Page 21 CHAPTER 2 ACCES TO TECHNICIAN MENU C h a n g i n g c a r d 9 9 % Once 100% is reached, all the datas are now written in the memory. E n d m e n u The display returns to technician menu.

  • Page 22: Return To The Initial Display

    CHAPTER 2 ACCES TO TECHNICIAN MENU 6. RETURN TO THE INITIAL DISPLAY Select END REGLAGE ? with buttons to leave the / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - technician menu.

  • Page 23: Chapter3 Acces To Supervisor Menu

    CHAPTER3 ACCES TO SUPERVISOR MENU CHAPTER3 ACCES TO SUPERVISOR MENU Using the SUPERVISOR Access code enables adaptation of the configuration and programming parameters of your washer-dryer to meet the requirements of the facility in which it will be used. The operation of your machine can be adversely affected by the settings in this section.

  • Page 24: Acces To Supervisor Menu

    CHAPTER3 ACCES TO SUPERVISOR MENU 1.ACCES TO SUPERVISOR MENU Switch on the machine by pressing The display indicates the number of the last cycle performed. P r o g r a m n ° 0 1 L A N C E R x x x x L X Press and hold button for 3 seconds to validate.

  • Page 25: Machine Configuration

    W I T H O U T R E G E Select the machine model : 820 LX, 820 SP1, 820 MD, 910 LX, 1300 LX, 1400 LX. Select the model with buttons. Accept with button.
  • Page 26 This washer is equipped with a door lock device (during the washing cycle) as a standard (except 820 LX), you must select YES with / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + buttons.
  • Page 27 CHAPTER3 ACCES TO SUPERVISOR MENU M O T O R L O C K E D Y E S Not applicable on laboratory range washers, select NO with / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - buttons.
  • Page 28 CHAPTER3 ACCES TO SUPERVISOR MENU Choose if the fast advance is allowed. Select Active/Non active with buttons. / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - Accept with button.
  • Page 29 CHAPTER3 ACCES TO SUPERVISOR MENU A d j u s t s a l 6 m n Select the PROGRAM NUMBER with buttons. / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - Accept with button.

  • Page 30: The Common Times

    CHAPTER3 ACCES TO SUPERVISOR MENU 3.THE COMMON TIMES In this section you can set the Common Times necessary for proper operation of the machine and define the set point times of the alarms N° 02 and 05. After accessing to supervisor menu, you must select COMMON TIMES with buttons to set the commons times.
  • Page 31 CHAPTER3 ACCES TO SUPERVISOR MENU When there is no demi. water available, water inlet for last rinses can be softened by the washer by programming this function (REGENERATION 2). During setting of the program (code 3124), it will be possible to select the filling valve, hot or cold which will feed the softener.
  • Page 32 CHAPTER3 ACCES TO SUPERVISOR MENU Choose period for emptying : 0 to 6 mn 59 s During the cycle, if the machine is not entirely emptied at the end of this period, the alarm " " will be displayed. EMPTYING FAULT Select the minutes with buttons.
  • Page 33 CHAPTER3 ACCES TO SUPERVISOR MENU R e c y . N e u t . A c i d e 0 0 m 3 0 s In order to adjust the pH of acid discharged liquids, recirculation period is increased with an detergent intake before draining (function called “Neutralization”).
  • Page 34 CHAPTER3 ACCES TO SUPERVISOR MENU Choose period for door lock control: 0 to 2 mn 59 s. This parameter allows a door lock control. At beginning of cycle, if door is not correctly closed, alarm “OPENED DOOR” is displayed. Select the minutes with buttons.
  • Page 35 CHAPTER3 ACCES TO SUPERVISOR MENU L u b r c a n t i n t a k e T e m p e r a t u r e = 3 5 ° If the washer is equipped with an additional dosing pump option, choose water temperature for additive 2 intake with buttons: 0 to / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + +...

  • Page 36: The Choice Of Machine Name

    CHAPTER3 ACCES TO SUPERVISOR MENU 4.THE CHOICE OF MACHINE NAME If you choose "CHOOSE DISPLAY = MACHINE NAME" in "machine configuration " menu of supervisor level (see page 23), the machine can be identified by a designation particular. A maximum of 16 characters is available.

  • Page 37: Update Cycles

    CHAPTER3 ACCES TO SUPERVISOR MENU 5.UPDATE CYCLES This function is to modify the counter of the number of cycles carried out. After accessing to supervisor menu, you must choose UPDATE CYCLE with buttons to modify the cycle number. / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - Accept with button.

  • Page 38: Update Hours

    CHAPTER3 ACCES TO SUPERVISOR MENU 6.UPDATE HOURS This function is to modify the counter of the machine usage time. After accessing to supervisor menu, you must choose UPDATE HOURS with buttons to modify the hour. / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - Accept with button.

  • Page 39: Update Maintenance Hours

    CHAPTER3 ACCES TO SUPERVISOR MENU 7.UPDATE MAINTENANCE HOURS This function is to modify the counter of hours before carrying out maintenance. After accessing to supervisor menu, you must choose Update MAINT. hrs with buttons to modify the hours. / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - Accept with button.
  • Page 40 CHAPTER3 ACCES TO SUPERVISOR MENU This display allows to reset to zero maintenance hours or enter a time after changing electronic board using buttons. / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + + / / / / / / / / / / / / / / / / 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 - - - - - - - - - - - - - - - - Accept with button.

  • Page 41: Print Program / Common Setting Parameters

    CHAPTER3 ACCES TO SUPERVISOR MENU 8.PRINT PROGRAM / COMMON SETTING PARAMETERS This function allows printing of wash program parameters and common settings (only for washer equipped with printer option). TO BE DONE AFTER ANY MODIFICATION OF PROGRAM! S U P E R V I S O R M E N U i n t p a r a m .

  • Page 42: Print Configuration Parameters

    CHAPTER3 ACCES TO SUPERVISOR MENU 9.PRINT CONFIGURATION PARAMETERS This function allows printing of the configuration parameters (only for washer equipped with printer option). DONE AFTER MODIFICATION CONFIGURATION! S U P E R V I S O R M E N U i n t p a r a m .

  • Page 43: Changing Card

    CHAPTER3 ACCES TO SUPERVISOR MENU 10. CHANGING CARD See page 16 S U P E R V I S O R M E N U C h a n g i n g c a r d 11.RETURN TO THE INITIAL STATE You must choose END REGLAGE ? with buttons to quit the / / / / / / / / / / / / / / / / 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 + + + + + + + + + + + + + + + +...

  • Page 45: Chapter 4 Fault Alarms

    CHAPTER 4 FAULT ALARMS CHAPTER 4 FAULT ALARMS This chapter explains all fault alarms that can occur on the washer-dryer. NT_820_910_1300_LX_ANG_V1 04_2007.doc...

  • Page 46: Warnings

    CHAPTER 4 FAULT ALARMS 1. WARNINGS 1.1 - LACK OF SALT * : * only for washers with regeneration (not applicable on 820 LX) W A R N I N G L A C K S A L T Lack of salt definition: The following message is displayed at the start of the cycle when you press the key.

  • Page 47: Full Basin

    CHAPTER 4 FAULT ALARMS 1.4 FULL BASIN W A R N I N G F U L L B A S I N INCIDENT: If the wash chamber contains water at the beginning of the cycle, either from the interruption of the previous cycle or due to an abnormal addition of water to the chamber.

  • Page 48: Fault Alarms

    CHAPTER 4 FAULT ALARMS 2.FAULT ALARMS These alarms stop the operation of the washer. To clear the alarm mode, the washer must be switched off by pressing button. 2.1 FAULT N°1 PROBE FAULT. F A U L T N ° 0 1 P R O B E D E F E C T Probe Fault Definition :...

  • Page 49: Fault N°3 Heating Excess

    CHAPTER 4 FAULT ALARMS 2.3 FAULT N°3 HEATING EXCESS. F A U L T n ° 0 3 H E A T I N G E X C E S S Heating Excess Definition : Is displayed if the basin temperature exceeds the programmed temperature by 20°C.

  • Page 50: Fault N°5 No Water

    CHAPTER 4 FAULT ALARMS 2.5 FAULT N°5 NO WATER. F A U L T n ° 0 5 W A T E R No Water Definition : The washer did not reach the required water level by the end of the normal filling time defined in the Common Times menu.

  • Page 51: Fault N°7 Level Fault

    CHAPTER 4 FAULT ALARMS 2.7 FAULT N°7 LEVEL FAULT. F A U L T N ° : 0 7 F I X L E V E L Fix to Level Definition : After achieving the proper water level during the Filling Time, the water level has dropped causing the pressurestat to open times to indicate fluctuation of the water level in the machine.
  • Page 52 CHAPTER 4 FAULT ALARMS NT_820_910_1300_LX_ANG_V1 04_2007.doc...
