Summary of Contents for Califone 2395IR

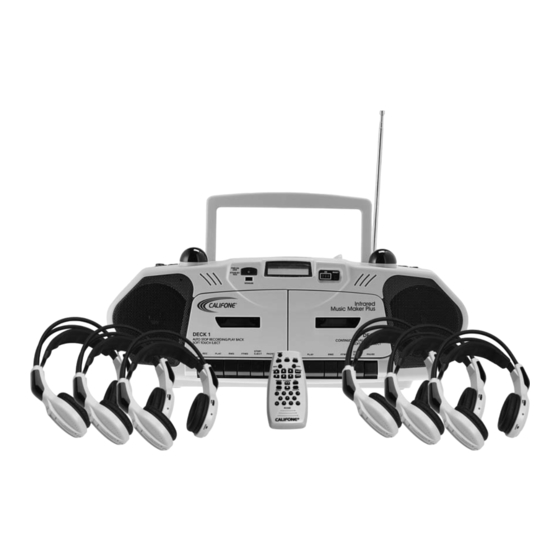

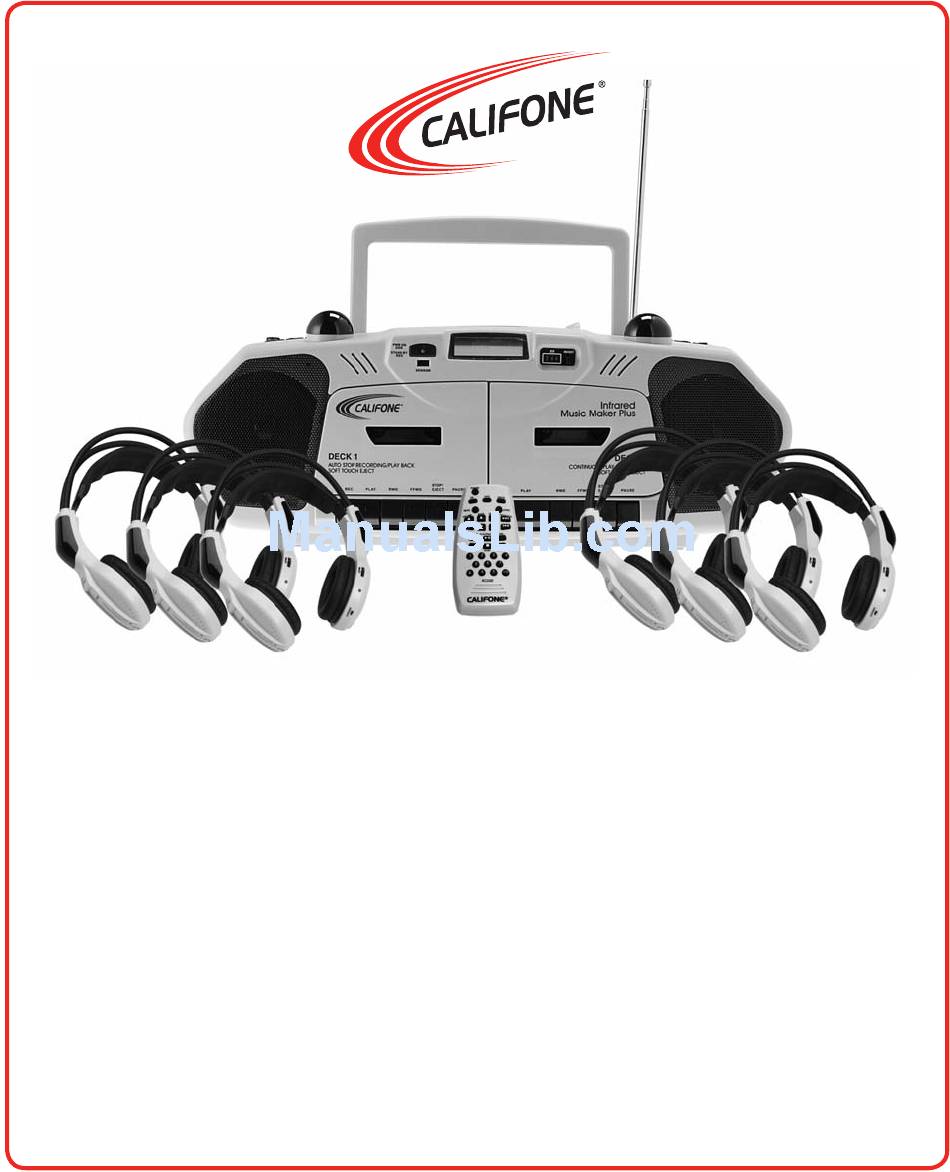

- Page 1 Infrared Music Maker Plus ™ Multimedia Player/Recorder 2395IR Infrared Music Maker™ Plus 2395IRPLC-6 Six-Person Learning Center (shown above) califone.com Owner’s Manual...
- Page 2 Thank you for purchasing this Wireless Music Maker™ Multimedia Player. I invite you to register your product online for its one year warranty coverage at our website: www.califone.com — while you’re there — make sure to learn more about our complete line of portable and installed PA systems, multimedia players and recorders, wired and wireless headphones and headsets, computer peripherals and other Califone products.
-
Page 3: Initial Setup
NOTE: Califone cassette recorders are designed for use only with 60-minute Type 1 Normal Bias recording tape. V i s i t u s o n l i n e a t c a l i f o n e . c o m... -
Page 4: Front View
Front View Rear View HEA DPHONE REMOTE EXT.SPK . B EAT CUT V i s i t u s o n l i n e a t c a l i f o n e . c o m... - Page 5 Top View Detail BALANCE BALANCE PHONES PHONES POWER TION FUNCTION AM/FM AM/FM RANDOM FIND PROGRAM RANDOM FIND PROGRAM MUTE MUTE TITLE TITLE Power On Random Power/Standby Switch Play Time LCD Display 3.5 mm Headphone Jack Tape 1/4” Headphone Jack AM/FM External Speaker Jacks Microphone Jack Volume Down...
-
Page 6: Getting Started
Getting Started When the ‘Power’ button (1) is depressed the LED (2) to the left of the LCD display (3) will be red for standby mode. Pushing the LED will cause the LED to be green indicating the unit is fully powered up. •... -
Page 7: Programming Stations
To access preset stations simply press the ‘PRESET’ button until the desired channel is found. AM/FM Radio Operation The 2395IR features an AM/FM PLL (phase locked loop) stereo radio and telescopic antenna for local AM and FM stereo reception. To operate the radio: 1. - Page 8 CD Function The CD player will accept both 12 cm and 8 cm discs and will read CD, CD-R and CD-RW formats. • Before opening the CD door (18) the LCD will show dashed lines. Open the CD door and the LCD display will show ‘Open’ . Insert a CD, close the door and the LCD will display the number of tracks and total play time of the disc.
-
Page 9: Memory Programming
CD. Compact Disc Player Operation The 2395IR Programmable Compact Disc Player plays both 12cm and 8cm CDs, CD-R, CD-RW without requiring an adapter. Up to 20 tracks can be programmed for play. Loading a Compact Disc 1. - Page 10 Dual Cassette Operation The 2395IR features a cassette for playback and recording from radio, CD, cassette and microphone. The dual cassette decks offer playback, continuous playback (Deck B to Deck A) and recording from tape, radio, microphone or CD on Deck A only.
- Page 11 Cassette Function continued To Fast Wind/Rewind Press the REWIND (42) (43) or FAST-FORWARD (44) (45) key. Press the STOP/EJECT key to stop winding at the desired position. During fast winding, regular play, or recording, the tape will stop automatically when its end is reached. Continuous Play from one cassette deck to the other cassette deck 1.
-
Page 12: Headphone Listening
Audio will project from either the speakers OR to the wireless headphones - not to both at the same time. Note: The internal speakers and headphone jacks are disconnected in IR mode. Only Califone 34B-IR infrared headphones must be used to receive the audio (purchased separately). -
Page 13: Other Features And Functions
Microphone Jack To record using a dynamic microphone, plug into the 3.5 mm jack (29) on the rear of the cabinet. Another jack, 2.5 mm (30) is provided for use with Califone model 4805AV microphone with remote Start/Stop. RC-2300 Remote Control •... -
Page 14: Specifications
Care and Maintenance continued Cassette Maintenance & Service Cleaning The heads, capstan and pinch roller should be cleaned from time to time to prevent buildup of tape oxide, which degrades performance. 1. Remove cassette tape before cleaning. 2. Clean the head of all visible, reddish-brown oxide with a cotton-tipped swab moistened with a methyl alcohol or any solution specifically manufactured for this purpose. -
Page 15: Troubleshooting
Troubleshooting PROBLEMS ITEMS TO CHECK General The unit does not operate. Is the AC power cord unplugged? Are the batteries fully charged? Cassette Cassette cannot be loaded. Is cassette being loaded properly? Is the PLAY key depressed? The tape does not move. Is the PAUSE key depressed? The tape gets caught in the tape Is the pinch roller or capstan dirty? -
Page 16: Important Safety Instructions
TAKEN SO THAT THE GROUNDING OR POLARIZATION MEANS OF THE APPLIANCE ARE NOT DEFEATED. Califone® International Inc. • 1145 Arroyo Avenue, # A • San Fernando, CA 91340 USA Toll Free 800.722.0500 | Toll Free Fax 877.402.2248 International Customers call 818.407.2400 or Fax 818.407.2405 califone.com...
