- Page 1 Installation Guide and Users Manual SPAGNA VETRO 218 Series IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Wall Mount Range Hood...
-
Page 3: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. - Page 4 Euro-Kitchen, Inc. further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance. Euro-Kitchen, Inc. will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.
-
Page 5: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Tools needed............3 Range hood operations......12-13 Parts supplied...........4 Troubleshooting...........14 Venting requirements........5 Use and care information.......15 Mount heights & clearance......5-6 Specifications..........15 Calculating vent system length.......6 Wiring diagram..........16 Venting methods & ductless conversion..7 MAINTENANCE Charcoal filters & electrical requirements..8 Cleaning, replacing filter &... -
Page 6: Parts Supplied
Range Hood Parts supplied: (vary with model) Grease/Oil Cup Flappers Mounting Bracket Upper Standard Chimney Lower Standard Chimney (Not supplied with re-circulating kit) Qty: 4 PCS Qty: 4 PCS (For sheet rock only) Charcoal filter (Optional re-circulating kit, pre-installed when ordered together with range hood) Glass Canopy Screw Qty: 4 PCS... -
Page 7: Venting Requirements
* Higher ceiling requires chim- • Use caulking to seal exterior wall or roof opening around the cap. ney extension. Available at http://www.euro-kitchen.com. Product ID: SV218-ACS-CCE or SV218-ACS-EXCCE * Due to different ceiling height configurations, rec- Page 5 ommended height may not be applicable. -
Page 8: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Flexible 6” round duct provided for convenience, always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 9: Venting Methods & Ductless Conversion
When converted to be a “purifying” unit, a set of charcoal filters and an air-diverter are required in addition to its standard aluminum filter set. Available at http://www.euro-kitchen.com (Product ID: SV218-ACS-RE- CIR). The standard aluminum filters are intended to capture residue from cooking, the optional charcoal fil-... -
Page 10: Charcoal Filters & Electrical Requirements
Position the charcoal filters onto each side of the motor and turn until it locks. Re-install aluminum filters. Charcoal filters must be replaced after 120 hours of use (or approximately every 2 to 3 months based on the average of 1 to 2 hours of daily cooking time). Available at http://www.euro-kitchen.com (Product ID: SV218-ACS-CF-KIT). -
Page 11: Preparation
Preparation Advanced Preparations: WARNING Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 12. Place the range hood on a flat, stable surface. Connect the Excessive Weight range hood to a designated standard outlet (120-Volt, 60Hz, Require three or more person to move and AC only) and turn on the range hood. -
Page 12: Installation
Installation Installations (refer to Page 4 & 11 for parts): Measure the distance between stove top and the bottom of range hood. A distance of 28” to 31” is recommended*. *Due to different ceiling height configurations, recom- mended height may not be applicable. Make sure the range hood is level and not tilted. -
Page 13: Installation Overview
Installation (Continued) the height of the duct tube and extend approximately 6 inches longer than required, connect the lower Calculate end of the duct tube to the range hood and the upper end to the vent system (or air diverter). Make sure the main electrical supply remains disconnected then connect power plug to the electrical cord or wall plug. -
Page 14: Range Hood Operations
Range Hood Operations Control Panel Layout and Buttons Configurations: Power Light Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator The island canopy hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking incomplete to clear all smoke and odors from the kitchen. - Page 15 Range Hood Operations (Continued) Control Panel Layout and Buttons Configurations: Power Light Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator • Controls: • Adjusting the timer function: •...
-
Page 16: Troubleshooting
Troubleshooting If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 17: Use And Care Information
6 Speed Electronic Control Panels with LED Display Filtration Type Aluminum Filter with Reversible Handle Illumination 35W 120V Maximum, Dimmable Venting Size Top, 6 inches Round Interference Protection Radio Frequency Interference Protected * Subject to change without notice, please visit http://www.euro-kitchen.com for details. Page 15... -
Page 18: Wiring Diagram
Wiring Diagram Page 16... -
Page 19: Cleaning, Replacing Filter & Light Bulb
Replacing Filters: • Should filters wear out due to age and prolonged use, replace with following part number: Product ID: SV218-ACS-AF/SF (Available at http://www.euro-kitchen.com) • Note: Also replace damaged filter that has punctured or broken mesh, bent or broken frame. -
Page 20: Coverage & Exceptions
Damage of product caused by accident, fire, floods or act of God. Euro-Kitchen is not liable for, and does not cover under warranty, any loss of properties or any costs associated with removing, servicing, installing, or determining the source of problems with Euro-Kitchen products. -
Page 21: Disclaimer & Contact Information
Contact Us If you need any assistance, please call us at (510) 266-0099 or email us at sales@euro-kitchen.com. Please have your order number and model of the range hood ready. This information will help us better respond to your re- quest. - Page 22 Your Notes Page 20...
- Page 23 Your Notes Page 21...
- Page 24 Euro-Kitchen, Inc. 2341 Industrial Parkway West Hayward, CA 94545 Ph: 510.266.0099 Fax: 510.266.6630 http://www.euro-kitchen.com...
Need help?
Do you have a question about the SPAGNA VETRO 218 Series and is the answer not in the manual?
Questions and answers
where do i get parts for my spagna vetro 218 Mod#sv218z Mod# EKSV100023423 need a control panel
The Euro-Kitchen SPAGNA VETRO 218 Series model SV218Z includes a six-speed electronic, touch-sensitive control panel with an LED display as part of the unit. For a replacement or additional control panel, contact the manufacturer, Ningbo Euro Kitchen Appliances Co., Ltd., located in Wuxiang Industrial Zone, Yinzhou, Ningbo, Zhejiang, China.
This answer is automatically generated
where I can find filter for th hood model SV218D-IM Serial#EKSV100145702 - 218 series Island Mount Range Hood
You can find a filter for the Euro-Kitchen SPAGNA VETRO 218 Series Island Mount Range Hood model SV218D-IM using the part number SV218-ACS-AF/SF, available at http://www.euro-kitchen.com.
This answer is automatically generated
I wold like to replace my 3 aluminum filters as I can't get them clean anymore
The aluminum filters for the Euro-Kitchen SPAGNA VETRO 218 Series do not need regular replacement but must be kept clean. They should be cleaned after every 30 hours of use. To clean the filters, remove them and wash them by hand or in a dishwasher. If heavily soiled, spray with a degreasing detergent like “Formula 409®” or an equivalent, let them soak, then dry thoroughly before reinstalling.
This answer is automatically generated
The four lights no longer work (but the blower works). Is there a fuse somewhere in the range hood unit that I can replace?
The context mentions checking if the fuse is not blown when troubleshooting the range hood. However, it does not state that the fuse itself can be replaced specifically for non-working lights. Instead, it suggests swapping out the light assembly to determine if the bulbs are defective. Therefore, based on the provided information, it does not confirm that there is a user-replaceable fuse for the lights.
This answer is automatically generated
The four lights no longer work (but the **** does). Is there a fuse somewhere in the hood unit that I can replace?
The context does not mention a replaceable fuse inside the Euro-Kitchen SPAGNA VETRO 218 Series hood unit for non-working lights. It suggests checking if the unit is properly plugged in, the power is turned on, the fuse (external) is not blown, and the electrical wiring is properly connected. It also advises swapping out the light assembly to determine if the bulbs are defective. Therefore, there is no information about an internal fuse specifically for the lights.
This answer is automatically generated

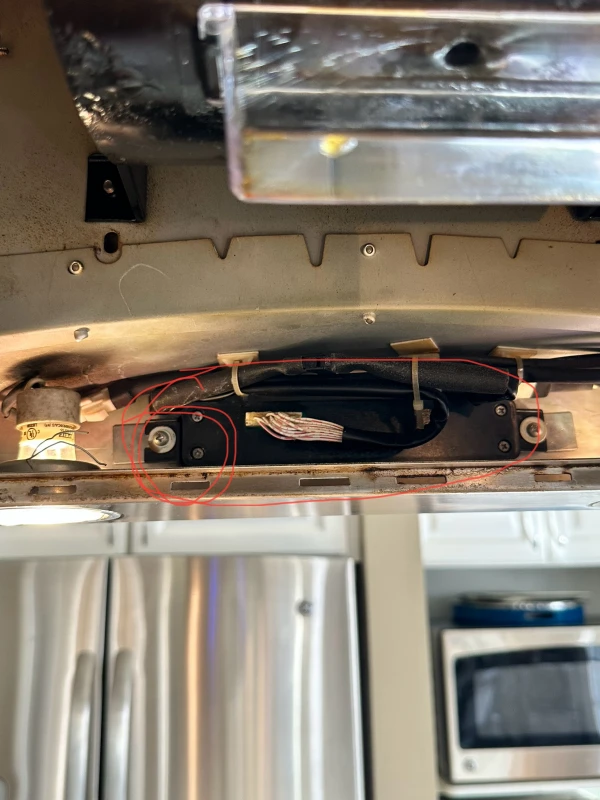

I need the control board part that holds the keys in the back as mine is broken. Its a black part - see picture

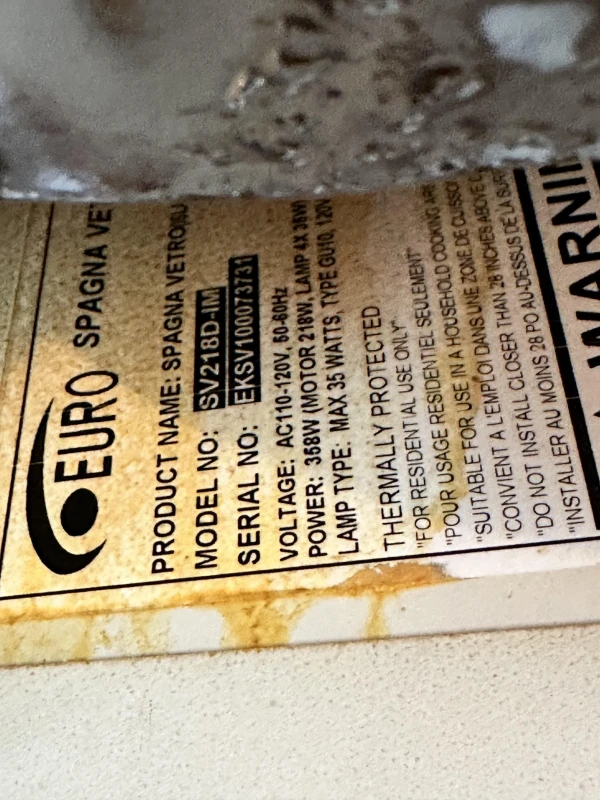

@Amir it's for the Spagna vetro 218 series hood and vent. I have attached a picture of the serial and model number
do you supply filters for the hood? We have to replace ours, size 20x 28.5 cm

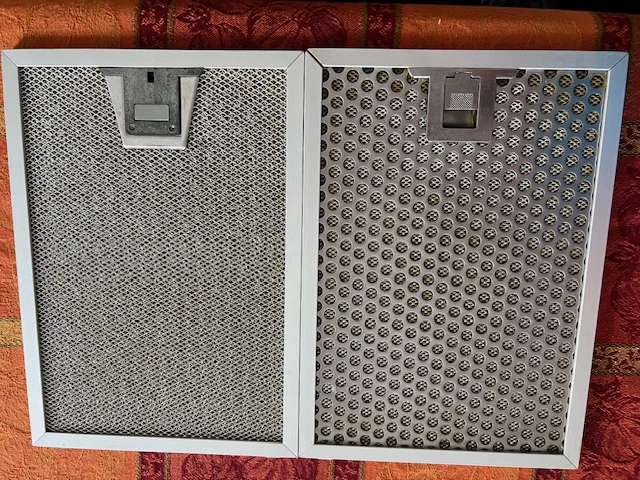

We are looking for 2 net mesh filter replacements - 20 cm x 28,5 cm - spagna vetro 218 series island mount range hood glass. Can you please help us to find it in Ontario, Toronto area. Both of the filters are broken. The picture shows the front and the back
