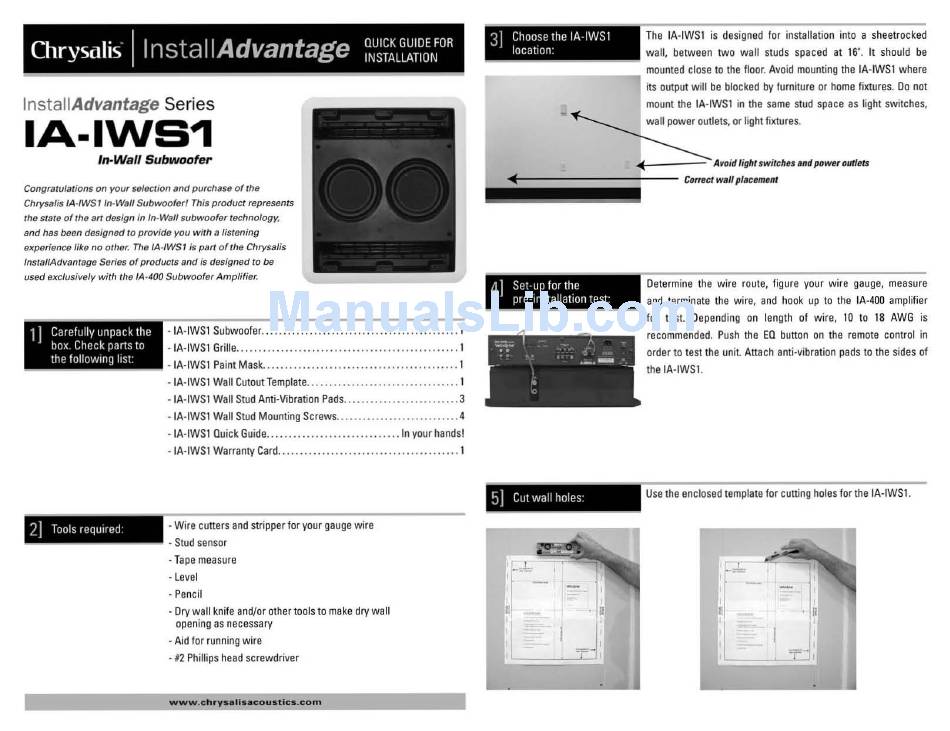

Chrysalis IA·IWS1 Quick Manual

Chrysalis
II
nstallAdvantage
QUICK GUIDE FOR
INSTALLATION
InstaliAdvantage Series
IA·IWS1
In·Wall Subwoofer
Congratulations on your Se/eClion 8nd purchase of the
Chrysalis IA·/WS1In·Wall Subwoofef/ This product represents
the state of ffle 8rt design in In-Wall subwoofer technology,
and has been designed
/0
provide you with '" listening
experjenr;e like no olher. The IA· /W$1 is part of the Chrysalis
Instal/Advantage Series of products and;s designed to be
used exclusively with the IA -400 Subwoofer Amplifier.
1]
Carefully unpack the
box Check parts to
the following list
- IA-IWSI Subwoofer. . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2]
Tools reqllired
- IA-IWSI Grille ...
. ................ . ............ 1
- IA-IWSI Paint Mask .................. . ........ _ ............... . 1
• IA·IWSI Wall Cutout Template ............ . . .. ......... 1
• IA· IWSI Wall Stud Anti·Vibration Pads .......................... 3
- IA-IWS I Wall Stud Mounting Screws ............................ 4
- IA-IWS I Ouick Guide .............................. In your hands!
- IA-IWS I Warranty Card ... .................................. , ... 1
- Wire cuners and stripper for your gauge wire
- Stud sensor
- Tape measure
- Level
• Pencil
• Dry wall knife and/or other tools to make dry wall
opening as necessary
• Aid for running wire
-/2 Phillips head screwdriver
www.c hry •• I I •• co u stlc s. com
3]
Choose the IA IWSI
location
•
The IA·IWSI is designed for installation into a sheetrocked
wall, between two wall studs spaced at IS", It should be
mounted close to the floor. Avoid mounting the lA-1WSI where
its output will be blocked by furniture or home lixtures. Do not
mount the IA-IWSI in the same stud space as light switches,
wall power outlets. or light fixtures.
~
_____ -
A ~oid lig"t switchlts
."d
pOWftf outJltl$
. - - - - - - - - -.;..- - CO",ct
w."
pl.c,mltnt
4]
Set·up for the
pre· Installat ion test
5]
Cut wall holes
Determine the wire route, figure your wire gauge, measure
and terminate the wire. and hook up to the IA·400 amplifier
for test. Depending on length of wire. 10 to 18 AWG is
recommended. Push the EO bunon on the remote control in
order to test the unit. Anach anti-vibration pads to the sides of
the IA-IWSI.
Use the enclosed template lor cuning holes lor the IA-IWSI,
