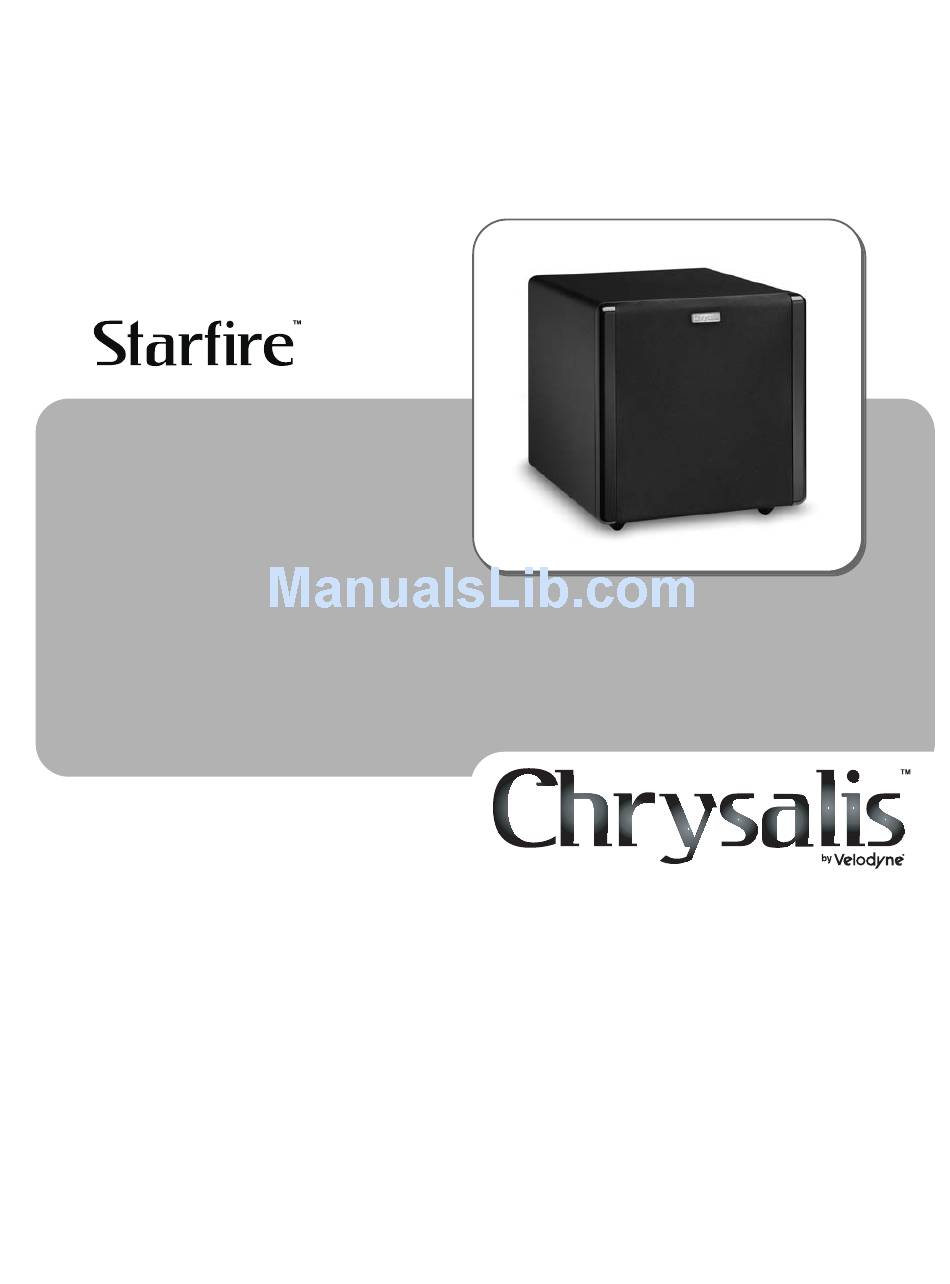

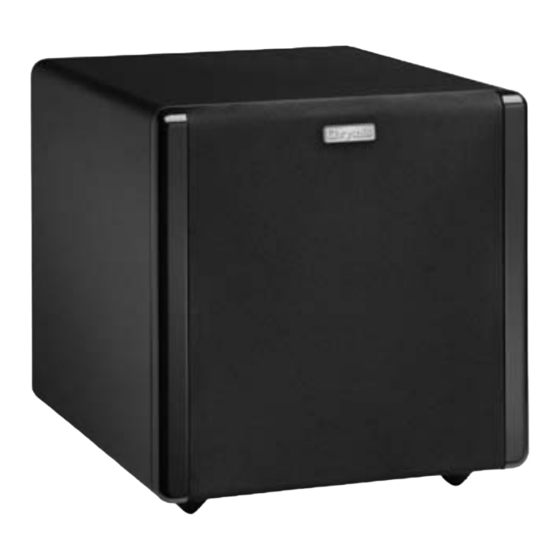

- Page 1 S E R I E S STARFIRE-10 10-Inch Powered Subwoofer STARFIRE-12 12-Inch Powered Subwoofer w w w . c h r y s a l i s a c o u s t i c s . c o m...
- Page 2 Starfire Series Manual...
-
Page 3: Table Of Contents
w w w . c h r y s a l i s a c o u s t i c s . c o m A B L E O F O N T E N T S Congratulations ....................1 Installation . -
Page 4: Congratulations
O N G R A T U L A T I O N S Congratulations on your purchase of a Chrysalis Starfire™ subwoofer system. This system represents the state-of-the-art in home audio reproduction and will provide you with years of listening pleasure when properly cared for. Read and follow this instruction manual to insure safe and proper system connection and operation. -
Page 5: Installation
w w w . c h r y s a l i s a c o u s t i c s . c o m P l a c e m e n t The first step in installing your new Starfire is to determine where it will be placed in the room. Unpack the system carefully and use the following guidelines in order to find the best room placement option. - Page 6 To alleviate this condition, we recommend the following steps: 1) If using line level jacks, BOTH THE LEFT AND RIGHT INPUT SHOULD ALWAYS BE USED – never use just the left or just the right input. If the subwoofer’ s input comes from the LFE channel of your receiver, use a “Y” splitter to supply the single input to both connectors for the Left and Right subwoofer inputs.
- Page 7 w w w . c h r y s a l i s a c o u s t i c s . c o m P h a s e A d j u s t m e n t - 0 ° / 1 8 0 ° This control allows you to “reverse”...
-
Page 8: Rear Panel Connections
E A R A N E L O N N E C T I O N S Figure 1.Starfire Rear Panel Connections Figure 1 shows the connections on the rear panel of the Starfire. Following are brief descriptions of the connections described in Figure 1. More detail of these connections can be found below: SPEAKER LEVEL INPUT terminals - Connect these input terminals to the speaker output terminals of your amplifier or receiver. -
Page 9: Crossovers
Power indicator - Red: Unit is in standby mode. Green: Unit is in operation mode. (automatically turns to STANDBY mode if no signal for eight minutes) PHASE switch - Select the switch position at which you hear a louder mid-bass sound. VOLUME LEVEL knob - Use this knob to adjust the output level of the subwoofer. - Page 10 w w w . c h r y s a l i s a c o u s t i c s . c o m Figure 2a. Line-Level Subwoofer Connection Diagram Starfire Series Manual...
- Page 11 w w w . c h r y s a l i s a c o u s t i c s . c o m Figure 2b. Speaker-Level Subwoofer Connection Diagram Starfire Series Manual...
-
Page 12: Interconnect Cables
N T E R C O N N E C T A B L E S When installing your new Chrysalis subwoofer using the line level connections, you should always use shielded phono cables. There are many high quality cables available today. It is recommended that you keep the length of cable as short as possible to avoid any potential noise problems. -
Page 13: Troubleshooting And Service
R O U B L E S H O O T I N G A N D Before seeking service for your amplifier or subwoofer, please re-check all systems. Following is a simple troubleshooting guide to assist you. 1. Verify that the unit is plugged in and power outlet used is active. 2. -
Page 14: Specifications
P E C I F I C A T I O N S SPECIFICATIONS Woofer Amplifier: Class D Cabinet Design Frequency Response Voice Coil Cone Magnet Structure Speaker-Level Pass-Through Low-Pass Crossover Outputs Inputs Phase Auto On/Off Removable Grill Video Shielding LED Power Indicator Input Impedance Sensitivity Speaker-Level... -
Page 15: Chrysalis Products
H R Y S A L I S R O D U C T S BassMatrix™ Series BassMatrix-10 BassMatrix-12 Photon™ Series Photon-8 Photon-10 Starfire™ Series Starfire-10 Starfire-12 Starfire Series Manual w w w . c h r y s a l i s a c o u s t i c s . c o m... -
Page 16: To Obtain Service
F O R Y O U R R E C O R D S . . . Date Purchased____________________________________________________________________________ Dealer__________________________________________________________________________________ Serial #_________________________________________________________________________________ *NOTE: Please complete and return your warranty card within ten (10) days or Register. . . ON LINE . . . It’s faster . . . and easier www.chrysalisacoustics.com CHRYSALIS ACOUSTICS (“CHRYSALIS”) warrants all electronics for a period of three years, drivers for a period of five years, and full range speakers for a period of five years. - Page 17 C h r y s a l i s A c o u s t i c s A Velodyne Company 345 Digital Drive Morgan Hill, CA 95037 408.465.2888 voice 408.779.9227 fax 408.779.9208 service fax w w w . c h r y s a l i s a c o u s t i c s . c o m Service E-mail: service@chrysalisacoustics.com Product E-mail: help@chrysalisacoustics.com...
