USING THE FOAM WINDSCREEN

The foam windscreen, supplied with the CM-2S, fits over the grill portion of the microphone and is designed primarily to decrease bass
rumble (from wind noise pickup) during outdoor live or recording use. It is also useful in keeping mouth spray out of the microphone
head. (Note: Be aware that the foam windscreen will slightly attenuate the high frequency response of the microphone.)
(WARNING: The capsule is the heart of the condenser microphone. If the elements becomes dirty or wet, the sound will be degraded.
Never spray any liquid on the microphone head. Always use a foam windscreen or pop filter if you talk or sing close to the microphone
grill screen.)

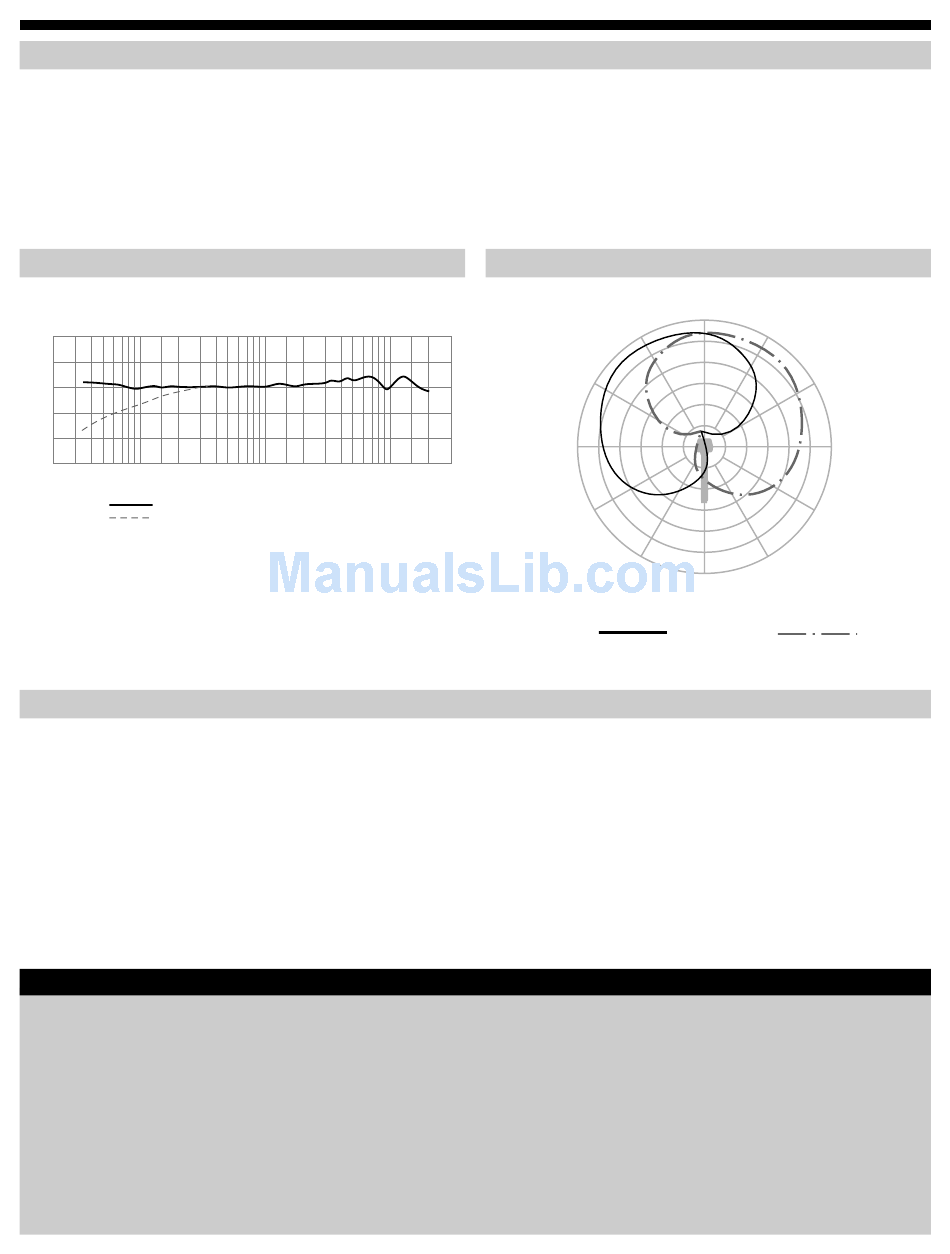

FREQUENCY RESPONSE

10 dB
50 100 200
12" or more on axis (flat)
LEGEND
Roll-off

SERVICE

(U.S.) Should your Nady microphone require service, please contact the Nady Service Department via telephone at (510) 652- 2411 or
e-mail at service@nady.com. (INTERNATIONAL) For service, please contact the Nady distributor in your country through the dealer
from whom you purchased this product.
Date of purchase _____________________________________________________________________________________________
Dealer's Name ______________________________________________________________________________________________
Street ______________________________________________________________________________________________________
City ____________________________________ State _____________________ Zip _____________________________________

SPECIFICATIONS

ELEMENT: Fixed-charge back plate permanently polarized
condenser
POLAR PATTERN: Cardioid (Unidirectional) stereo
FREQUENCY RANGE: 30 to 20,000Hz
LOW-FREQUENCY ROLL-OFF: 150Hz, 6dB/octave
SENSITIVITY: -45dB (5.6 mV) re 1V at 1 Pa
IMPEDANCE: < 250 Ohms unbalanced
CHANNEL BALANCE: < 2.5dB
MAX. SPL (1% THD @1000HZ): 128dB
S/N RATIO re 1Pa: 70dB
500
1k 2k 5k 10k
Frequency in Hertz
POLAR PATTERN
300°
270°
20k
240°
LEGEND
LEFT
1 kHz
Note: Do not attempt to service this unit yourself as it will void your warranty.
DYNAMIC RANGE (TYPICAL): 101dB, 1kHz at Max SPL
BATTERY TYPE: AA alkaline battery
BATTERY LIFE: More than 1000 hrs
SWITCH: Off, flat response, low-roll-off
SIZE: Diameter: 0.83" (21.0mm), Length: 7.76" (197.0mm),
Width: 2.44" (62.0mm),
NET WEIGHT: 5.8 oz (165 g)
Specifications and design subject to change for improvement purposes without prior notice.
0°
30°
330°
210° 150°
180°
SCALE IS 5 DECIBELS PER DIVISION
RIGHT
1 kHz
60°
90°
120°
