Ford Escape Hybrid 2007 Quick Reference Manual

MANUAL HEATING & AIR CONDITIONING SYSTEM
1 Fan Speed Control: Rotate the knob to
adjust the speed of air that is circulated
*F7M6J19G217AA* in the vehicle.
2 Max A/C: With the climate system set to
7M6J-19G217-AA
MAX A/C, the engine will run continuously,
reducing fuel economy.
February 2006
First Printing
3 Recirculated Air: Recirculated air flows
Quick Reference Guide
from the instrument panel vents to cool
the vehicle.
4 A/C: Outside air flows from the
instrument panel vents to cool the vehicle.
When A/C mode is selected, you may
notice the air temperature cycle from
cooler to warmer as the gas engine turns
Ford Motor Company
on and off. When in electric mode, the
Customer Relationship Center
P.O. Box 6248
fan will still blow air in the cabin, but no
Dearborn, MI 48121
1-800-392-3673 (FORD) heat will be removed by the air conditioner.
(TDD for the hearing impaired: 1-800-232-5952)
5 Panel: Distributes outside air through
the instrument panel vents only.
This Quick Reference Guide is not intended to replace your vehicle Owner's Guide which contains more detailed information concerning the features of
your vehicle, as well as important safety warnings designed to help reduce the risk of injury to you and your passengers. Please read your entire Owner's
Guide carefully as you begin learning about your new vehicle and refer to the appropriate sections when questions arise.
All information contained in this Quick Reference Guide was accurate at the time of duplication. We reserve the right to change features, operation
and/or functionality of any vehicle specification at any time. Your Ford dealer is the best source for the most current information.
For detailed operating and safety information, please consult your Owner's Guide.
HYBRID ENERGY FLOW WITH AUDIOPHILE AND NAVIGATION
3 5 810 2 4 6
1 2 4 6 7 9 11 1 3 5
6 Off: Outside air is shut out and the 1 AM/FM: Pressing AM/FM in navigation mode
climate control system is turned off. will return the system to the audio screen.
2 Fuel Economy Function: Press to view average
7 Panel and Floor: Distributes outside air
and instantaneous fuel economy screen.
through the instrument panel vents and
floor vents.
3 Seek: Use to find the next/previous listenable
radio station or to advance tracks, if in
8 Floor: Distributes outside air through the CD mode.
floor vents only.
4 HOME: Press and hold the HOME key to
store current vehicle location as home.
9 Floor and Defrost: Distributes outside air
Pressing HOME after the home location has
through the windshield defroster vents
been set will calculate a route to return to that
and the floor vents. This feature will cause
set home location when in navigation mode.
the gas engine to run continuously, reducing
fuel economy. 5 Energy Flow Function: Press for status of
engine and battery. To disengage, press the
control again. Your energy flow screen displays
10 Defrost: Distributes outside air through
how power is used and transferred between
the windshield defroster vents. With the
the electric motor, the high voltage battery,
climate system set to defrost mode, the
and the gasoline engine. It also indicates
engine will run continuously, reducing
which mode you are currently operating in.
fuel economy. Please see your Owner's Guide for
more information.
11 Temperature Control: Rotate the knob to
6 Current Location: Press for information on
adjust the temperature of the airflow
current location.
inside the vehicle.
Smudges, fingerprints or scratches on the navigation disks could effect performance of the navigation system.
Keep disks clean and stored in the protective jackets when not in use.
(if equipped) AUDIOPHILE SATELLITE COMPATIBLE AM/FM STEREO IN-DASH SIX CD/MP3 RADIO
9 1 1 2 4
7 8 10 1 3 5 6 7 8
7 Memory Presets: Stores favorite AM/FM 1 Band: Press to select AM, FM1 or FM2 through your Ford dealer. Detailed satellite
stations and allows CD access when in CD frequency bands. instructions are included with the dealer-
mode. To store, press and hold until
installed kit.
PRESET SAVED appears in display.
2 CD: Press to enter CD mode. If a CD is
already loaded into the system, the CD 7 Memory Presets: Select AM, FM1, or
8 Navigation: Press NAV to access the navigation
play will begin where it last ended. FM2 band, then tune to a station. Next,
system menu. Make sure the vehicle is in Park
press and hold a control until the
(P) before you enter a destination and the
navigation CD is loaded into the radio head. 3 Load: Press to open the CD door, then sound returns.
load the CD into the player. Press LOAD
and then a preset number to select a slot. 8 Aux: This function is not operational.
9 MAP: The control works in all modes. Press
MAP to show current location. Press and hold LOAD to activate autoload.
9 Setting the Clock: Press MENU until
10 Back: Works only in navigation mode. Press 4 Scan Function: In radio mode, press to SELECT HOUR or SELECT MINS is
to return to the previous screen.
hear a sampling of all listenable stations. displayed. Press SEL and the up/down
In CD mode, press to hear a brief sampling arrows to set the time. Press MENU again
11 ENTER: Use ENTER to view a menu in the
of all selections on the current CD. to disengage the clock mode.
navigation system. Press the control up, down,
left, or right to highlight an item in the
5 Volume/Power Control: Push the control Speed Sensitive Volume: This audio system
display. Press the center of the control to
to turn the audio system on or off. Turn the may have speed sensitive volume control.
make selection.
control to raise or lower volume. For more information on its features and
NOTE: With this system, the Six CD Changer is functions, please consult your Owner's
located under the passenger seat. To use the 6 Disc/Tune CAT: In radio mode, press to Guide.
navigation system and listen to an audio CD,
move to the next frequency up or down
the navigation CD must be loaded into the
the band. In CD mode, press to select a
radio head and the audio CD must be loaded
disc in the CD player. CAT is only available
into the changer.
when equipped with satellite radio. The kit
to enable satellite reception is available
Essential Information >
(if equipped)
Fuel Tank Capacity: Your vehicle is Unique Service Intervals: Please check
9
equipped with a 15-gallon (56.8L) your Owner's Guide for proper service
fuel tank. intervals. Your vehicle is equipped with a
rear air filter that must be inspected or
replaced at every service interval to avoid
Octane Recommendations: Your vehicle is
damage to the hybrid system. Special
designed to use "Regular" unleaded gasoline
caution is required when servicing brake
with a pump octane rating of 87 for
pads. Please refer to the Owner's Guide
optimum performance. Using gasoline with
and/or Service Manual for information on
lower octane ratings may
servicing brake pads.
decrease performance.
Fuel Pump / High Voltage
Tire Pressure: Your
Shut-off Switches: The fuel
tire pressure is
pump shut-off switch is
properly set at the
located in the front
dealership according
passenger's footwell behind the
to the recommended specifications found
flip-up cover. The high voltage shut-off
on the Certification Label located on the
switch is located in the rear passenger
driver's side front door latch pillar, the
side of the vehicle, in the jack
trailing edge of the driver's door or the
compartment behind the jack access
edge of the driver's door. Tire pressure
door. These switches provide added
information can also be found on the Tire
protection by discontinuing fuel to the
Information Label on the driver's side front
engine and by shutting off power to the
door latch pillar or edge of driver's door.
high voltage battery in case of
Please check your tire pressure during
an accident.
routine maintenance and seasonal
changes. WARNING: Improperly inflated
tires can affect vehicle handling and can
fail suddenly, resulting in a possible loss of
vehicle control.

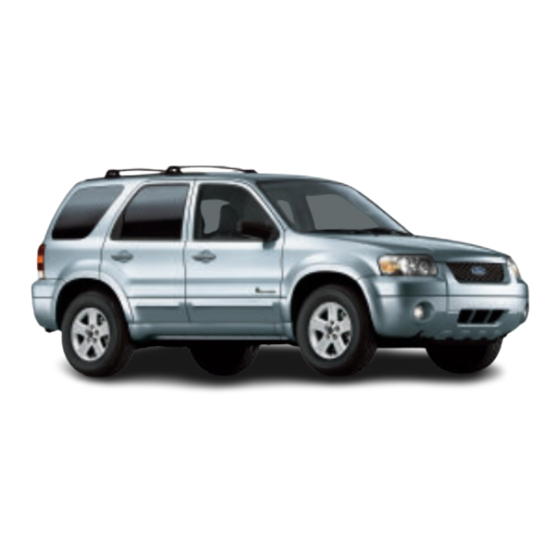

2007 FORD Escape Hybrid
