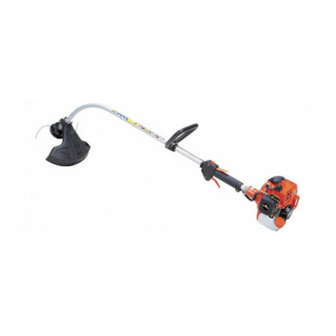

Echo GT-2150_SI(6digits)(35)(36) Parts Catalog

Grass-trimmer / brushcutter
Hide thumbs

Advertisement

Quick Links

PARTS CATALOG
GRASS-TRIMMER /
BRUSHCUTTER
GT-2150_SI(6digits)(35)(36)
GT-2150_SI(6digits)(35)(36)

Advertisement

loading
Need help?

Need help?

Do you have a question about the GT-2150_SI(6digits)(35)(36) and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Echo GT-2150_SI(6digits)(35)(36)

Summary of Contents for Echo GT-2150_SI(6digits)(35)(36)

  • Page 1 PARTS CATALOG GRASS-TRIMMER / BRUSHCUTTER GT-2150_SI(6digits)(35)(36) GT-2150_SI(6digits)(35)(36)
  • Page 2 GT-2150_SI(6digits)(35)(36) 1. Cylinder, Crankcase, Piston, Fan Cover PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 CYLINDER 101011-06562 BOLT, H.S. 5*22 900162-05022 5*22 W,SW GASKET, CYL. BASE 101010-44332 Sr/Nr 015370 and 100000-48732 PISTON KIT before/GT-2150 Sr/Nr 35005300 PISTON KIT 100000-48732 and before/GT- 2150SI Sus.
  • Page 3 GT-2150_SI(6digits)(35)(36) 1. Cylinder, Crankcase, Piston, Fan Cover PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 Sus. by A011- CRANKSHAFT ASSY 100100-44732 000101 Sus. by A011- CRANKSHAFT 100100-44733 000101 CRANKSHAFT,ASM A011-000101 Sus. by V553- BEARING, NEEDLE 100012-51230 8*12*10 000010 Sus. by V553- V553-000030 BEARING,NEEDLE 8 000010...
  • Page 4 GT-2150_SI(6digits)(35)(36) 1. Cylinder, Crankcase, Piston, Fan Cover PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 SCREW 4*16 4*16 900238-04016 COVER, CYLINDER 101514-42031 SCREW 4*12 900238-04012 4*12 X503-000030 LABEL,MODEL GT-2150 X543-000100 LABEL,MODEL GT-2150SI GT-2150SI SCREW 4*16 4*16 900238-04016 HOLDER KIT 610903-51030 BOLT 5*25 (W/W,SW) 900142-05025 5*25 FIXTURE, MAIN PIPE...
  • Page 5 GT-2150_SI(6digits)(35)(36) 2. Magneto, Clutch PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 Sus. by 175000- CLUTCH ASSY 175000-52130 56830 Sus. by 175000- CLUTCH ASSY 175000-56830 56831 Sus. by 156801- ROTOR, MAGNETO 156801-12360 44731 FLYWHEEL 156801-44731 BOLT, H.S. 4*22 900162-04022 4*22 W,SW Sus.
  • Page 6 GT-2150_SI(6digits)(35)(36) 2. Magneto, Clutch PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 Sr/Nr 36001001 and after/GT- PLUG, SPARK (BPMR-7A 159010-10230 BPMR-7A 2150(SI) 150112-42030 BUSHING Sr/Nr 004750 and LEAD, GROUND 162010-52830 before Sr/Nr 36001001 LEAD, GROUND 162010-52830 and after/GT- 2150(SI) - 5 -...
  • Page 7 STARTER ASSY 177200-54130 GT-2150 SCREW 177236-44330 GT-2150 177215-44430 DRUM, STARTER GT-2150 177226-10120 ROPE, STARTER 3.0*1000 GT-2150 GUIDE, ROPE GT-2150 177227-42030 GRIP, STARTER 177228-06530 GT-2150 SPRING, REWIND 177220-42030 GT-2150 SCREW 4*16 900238-04016 4*16 GT-2150 LABEL, ECHO 890118-49130 GT-2150 - 6 -...
  • Page 8 GT-2150_SI(6digits)(35)(36) 4. Starter(GT-2150SI) PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 SCREW 5*20 5*20 GT-2150SI 900253-05020 Sus. by X502- LABEL,ECHO X502-000031 000032/GT-2150SI X502-000032 LABEL,ECHO GT-2150SI Sus. by A051- A051-000290 STARTER,RECOIL 000292/GT-2150SI Sus. by A051- STARTER,RECOIL A051-000291 000292/GT-2150SI STARTER,RECOIL A051-000292 GT-2150SI CLIP, STARTER ROPE...
  • Page 9 GT-2150_SI(6digits)(35)(36) 4. Starter(GT-2150SI) PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 SCREW 4*16 4*16 GT-2150SI 900238-04016 Sus. by V376- V376-000360 SPACER 000361 SPACER V376-000361 GT-2150SI X505-000620 LABEL,CAUTION GT-2150SI A052-000130 PULLEY,ASM STARTER GT-2150SI P022-004740 PAWL,STARTER GT-2150SI SPRING, RETURN 177234-42030 GT-2150SI E-RING P022-002100 GT-2150SI - 8 -...
  • Page 10 GT-2150_SI(6digits)(35)(36) 5. Air Cleaner, Muffler PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 GASKET,INTAKE 130010-42032 NUT 5 900500-00005 SCREW 5*20 900238-05020 5*20 130017-42031 INSULATOR, INTAKE 130016-42031 GASKET, INTAKE Sus. by 125200- CARBURETOR 125200-52431 C1U-K53 52433 Sus. by 125200- CARBURETOR 125200-52432 C1U-K53A 52433 CARBURETOR 125200-52433...
  • Page 11 GT-2150_SI(6digits)(35)(36) 5. Air Cleaner, Muffler PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 GASKET, MUFFLER LID 145866-42031 LID, MUFFLER (B) 145876-42030 HOLDER, SCREEN 145863-42030 900242-04010 SCREW 4*10 4*10 Sus. by A320- COVER, MUFFLER 145631-42030 000251 Sus. by A320- COVER,MUFFLER A320-000250 000251 COVER,MUFFLER A320-000251 Sus.

  • Page 12: Fuel Tank

    GT-2150_SI(6digits)(35)(36) 6. Fuel Tank PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 Sus. by 131005- TANK, FUEL 131005-44331 44332 131005-44332 TANK, FUEL SCREW 5*16 900243-05016 5*16 CAP ASSY, FUEL TANK 131004-55530 GASKET, FUEL CAP 131016-55830 CLIP, FUEL CAP 131051-56030 100L 131300-56430 VALVE, CHECK 130111-00530 CLIP...
  • Page 13 GT-2150_SI(6digits)(35)(36) 7. Handle, Tools(Sr/Nr 36006724 and before) PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 Sus. by X505- LABEL,CAUTION 890617-63630 000140 X505-000140 LABEL,CAUTION HANDLE ASS'Y 351600-09630 NUT, WING 6 900525-00006 WASHER 6 900600-00006 BOLT 6*40 900100-06040 6*40 Sus. by A440- SWITCH, IGNITION 163400-49230 001020 900500-00005...
  • Page 14 GT-2150_SI(6digits)(35)(36) 7. Handle, Tools(Sr/Nr 36006724 and before) PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 COLLER 610281-52730 SCREW TAPPING 4*18 900253-04018 4*18 LABEL, SWITCH 890157-39130 895410-07630 WRENCH, W/S. DRIVER Sus. by X690- SAFETY GLASSES 899580-68730 000030 X690-000030 GOGGLE Sus. by 895015- SPANNER 10 895015-26630 09631...

  • Page 15: Table Of Contents

    GT-2150_SI(6digits)(35)(36) 8. Handle, Tools(Sr/Nr 36006725 and after) PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 LABEL,CAUTION X505-000140 HANDLE ASS'Y 351600-09630 NUT, WING 6 900525-00006 900600-00006 WASHER 6 900100-06040 BOLT 6*40 6*40 SWITCH, ON OFF A440-001020 NUT 5 900500-00005 NUT, LOCK 5 900560-00005 GRIP, HANDLE 351111-09631...

  • Page 16: Nut, Wing

    GT-2150_SI(6digits)(35)(36) 9. Main Pipe, Shield PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 Sus. by C506- SHAFT,FLEXIBLE C506-000010 000020 C506-000020 SHAFT,FLEXIBLE 5.15*L1365 Sus. by P021- MAIN PIPE ASY P021-000140 003520 MAIN PIPE ASY P021-003520 HOUSING ASSY, GEAR 610400-47930 SHAFT, P.T.O. 610310-47930 900802-00608 BEARING, BALL 608 608DDU(LLU)

  • Page 17: Nut

    GT-2150_SI(6digits)(35)(36) 9. Main Pipe, Shield PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 Sus. by P021- CUTTER 699016-23231 006080 699016-44330 CUTTER Can not be used PROTECTOR 699212-23230 on P021-006080 NUT 5 900500-00005 - 16 -...
  • Page 18 GT-2150_SI(6digits)(35)(36) 10. Nylon Line Cutting Head M93(Sr/Nr 006100and before) PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 Sr/Nr 006100 and LABEL, CAUTION 890093-52730 before Sr/Nr 006100 and ADAPTER P022-000070 M8*1.25 RIGHT before Sr/Nr 006100 and HOUSING P022-000080 before Sr/Nr 006100 and GROMMET P022-000090 before...
  • Page 19 GT-2150_SI(6digits)(35)(36) 11. Nylon Line Cutting Head(Sr/Nr 006101 and after) PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 Sus. by X047- CUTTER,ASM LINE X047-000060 DS-3/8 R 000242 Sus. by X047- CUTTER,ASM LINE X047-000170 F4/8R M8R 000242 Sus. by X047- CUTTER,ASM LINE X047-000171 F4/8R M8R 000242 Sus.
  • Page 20 GT-2150_SI(6digits)(35)(36) 11. Nylon Line Cutting Head(Sr/Nr 006101 and after) PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 Sr/Nr 006101 and ｻｲﾚﾝﾄSﾗｲﾝ NYLON CODE P022-006570 2.4*2M after Sr/Nr 006101 and BOBBIN P022-001300 DS-3/8R after Sus. by P022- COVER P022-001240 DS-3/10 003330 Sus. by P022- COVER P022-002860 003330...

  • Page 21: Screw 5*28

    GT-2150_SI(6digits)(35)(36) 12. Carburetor PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 Sus. by 125200- CARBURETOR 125200-52431 C1U-K53 52433 Sus. by 125200- CARBURETOR 125200-52432 C1U-K53A 52433 CARBURETOR C1U-K53B 125200-52433 SCREW 125344-52130 Sus. by 125342- 125342-13210 COVER, DIAPHRAGM 52130 COVER, DIAPHRAGM 125342-52130 125341-49030 DIAPHRAGM 125340-51030 GASKET, DIAPHRAGM...
  • Page 22 GT-2150_SI(6digits)(35)(36) 12. Carburetor PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 PUMP, PRIMING 125381-08660 RING 125363-11610 SCREW 125310-11610 125334-06960 SCREW,THROTTLEADJUST 125333-06960 SPRING,IDLE ADJUSTER SPRING, THRT. RETURN 125313-42030 Sr/Nr 005250 and SHAFT, THROTTLE 125317-49030 before Sr/Nr 005251 and P005-000390 SHAFT, THROTTLE after SWIVEL 125372-42030 CLIP...
  • Page 23 GT-2150_SI(6digits)(35)(36) 12. Carburetor PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 PLUG, WELCH 125345-15130 Sr/Nr 36001001 CAP,LIMITER A259-000030 and after/GT- 2150(SI) Sr/Nr 36001001 LIMITER, MIXTURE 125329-09860 and after/GT- 2150(SI) - 22 -...
  • Page 24 GT-2150_SI(6digits)(35)(36) 13. Repair Kit PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1 NOTE2 DIAPHRAGM/GASKET KIT 125303-13310 DIAPHRAGM 11-3 125341-49030 GASKET, DIAPHRAGM 11-4 125340-51030 11-13 125312-12820 DIAPHRAGM, FUEL PUMP 11-14 125325-13310 GASKET, PUMP Sus. by P005- REBUILD KIT 125300-13310 001810 REBUILD KIT P005-001810 DIAPHRAGM 11-3 125341-49030...
  • Page 25 Index Patrs Number Key No. Patrs Number Key No. Patrs Number Key No. 100000-48732 1 - 4 125326-42030 13 - 11-12 145866-42031 5 - 17 100000-48732 1 - 4 125327-13930 12 - 24 145876-42030 5 - 18 100011-05330 1 - 5 125327-15130 12 - 10 150112-42030...
  • Page 26 Index Patrs Number Key No. Patrs Number Key No. Patrs Number Key No. 305110-42030 6 - 18 900238-05020 5 - 3 P005-001050 12 - 11 351111-09630 7 - 11 900242-04010 5 - 20 P005-001710 12 - 25 351111-09631 7 - 11 900242-05014 9 - 25 P005-001720...
  • Page 27 Index Patrs Number Key No. Patrs Number Key No. Patrs Number Key No. V471-001200 6 - 9 V475-004020 8 - 15 V553-000010 1 - 10 V553-000030 1 - 10 X047-000060 11 - X047-000170 11 - X047-000171 11 - X047-000240 11 - X047-000241 11 - X047-000242...
  • Page 28 (36) ©2012...

This manual is also suitable for:

Gt-2150Gt-2150si
