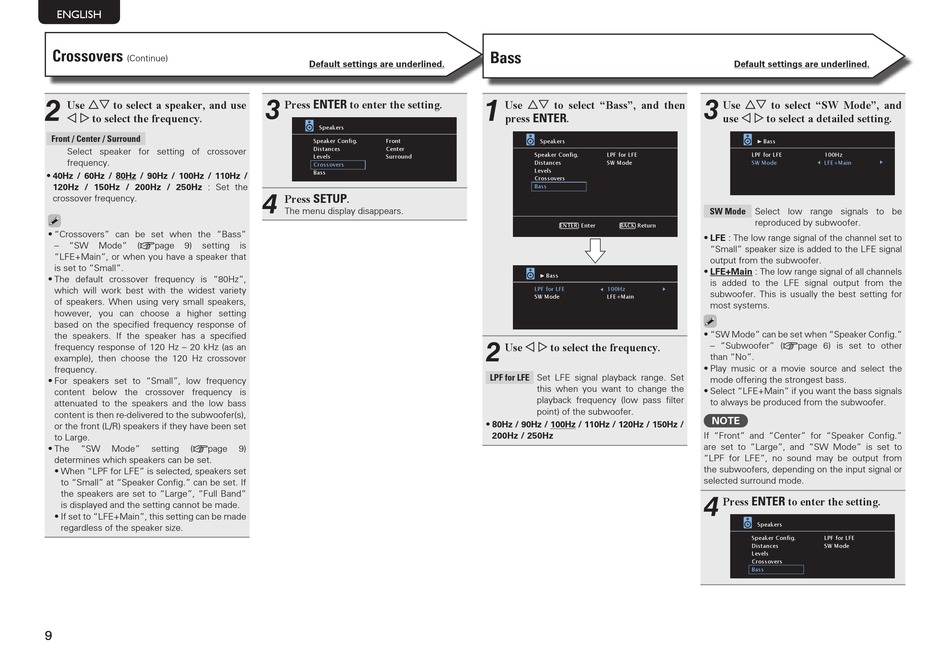

Denon AVR-E200 Getting Started page 10

ENGLISH ENGLISH DEUTSCH FRANÇAIS
Crossovers
(Continue)
2
ui
Use to select a speaker, and use
o p to select the frequency.
Front / Center / Surround
Select speaker for setting of crossover
frequency.
• 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz /
120Hz / 150Hz / 200Hz / 250Hz : Set the
crossover frequency.
• "Crossovers" can be set when the "Bass"
– "SW Mode" (vpage 9) setting
"LFE+Main", or when you have a speaker that
is set to "Small".
• The default crossover frequency is "80Hz",
which will work best with the widest variety
of speakers. When using very small speakers,
however, you can choose a higher setting
based on the specified frequency response of
the speakers. If the speaker has a specified
frequency response of 120 Hz – 20 kHz (as an
example), then choose the 120 Hz crossover
frequency.
• For speakers set to "Small", low frequency
content below the crossover frequency is
attenuated to the speakers and the low bass
content is then re-delivered to the subwoofer(s),
or the front (L/R) speakers if they have been set
to Large.
• The "SW Mode" setting (vpage 9)
determines which speakers can be set.
• When "LPF for LFE" is selected, speakers set
to "Small" at "Speaker Config." can be set. If
the speakers are set to "Large", "Full Band"
is displayed and the setting cannot be made.
• If set to "LFE+Main", this setting can be made
regardless of the speaker size.
9 9
FRANÇAIS ESPAÑOL PORTUGUÊS ITALIANO ESPAÑOL ESPAÑOL
Default settings are underlined.
3
ENTER
Press to enter the setting.
Speakers
Speaker Config. Front
Distances Center
Levels Surround
Crossovers
Bass
4
Press SETUP .
The menu display disappears.
ENTER Enter BACK
is
NEDERLANDS NEDERLANDS SVENSKA SVENSKA
Bass
1
ui
Use to select "Bass", and then
press ENTER .
Speakers
Speaker Config.
Distances
Levels
Crossovers
Bass
Return
ENTER Enter
Bass
1
LPF for LFE
SW Mode
2
Use o p to select the frequency.
ENTER Enter
LPF for LFE Set LFE signal playback range. Set
this when you want to change the
playback frequency (low pass filter
point) of the subwoofer.
• 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz /
200Hz / 250Hz
Default settings are underlined.
3
ui
Use to select "SW Mode", and
use o p to select a detailed setting.
Bass
1
LPF for LFE LPF for LFE
SW Mode SW Mode
SW Mode Select low range signals to be
reproduced by subwoofer.
BACK Return ENTER
• LFE : The low range signal of the channel set to
"Small" speaker size is added to the LFE signal
output from the subwoofer.
• LFE+Main : The low range signal of all channels
is added to the LFE signal output from the
100Hz
subwoofer. This is usually the best setting for
LFE+Main
most systems.
• "SW Mode" can be set when "Speaker Config."
– "Subwoofer" (vpage 6) is set to other
than "No".
BACK Return
• Play music or a movie source and select the
mode offering the strongest bass.
• Select "LFE+Main" if you want the bass signals
to always be produced from the subwoofer.
NOTE
If "Front" and "Center" for "Speaker Config."
are set to "Large", and "SW Mode" is set to
"LPF for LFE", no sound may be output from
the subwoofers, depending on the input signal or
selected surround mode.
4
Press ENTER
Speakers
Speaker Config.
Distances
Levels
Crossovers
Bass
ENTER
100Hz
LFE+Main
Enter BACK Return
to enter the setting.
LPF for LFE
SW Mode
Enter BACK Return
