JP655TK/BK
GE

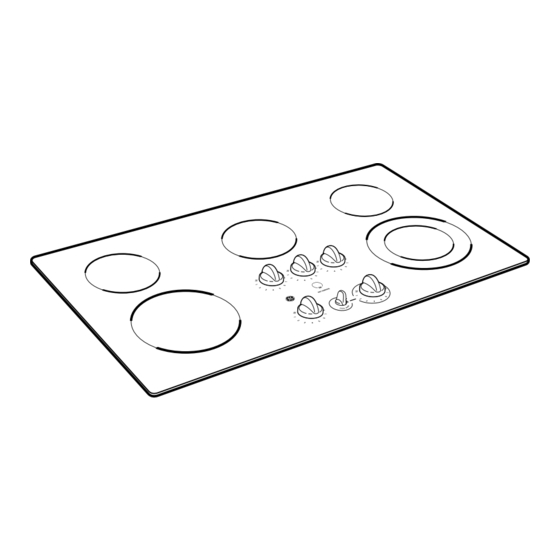

36" Built-In CleanDesign Electric Cooktop
®
Dimensions and Installation Information (in inches)
Note: Check local codes for required breaker size
KW Rating
Important: Requires a 5" free area between
240V
8.4
the bottom of the cooktop to any combustible
208V
6.3
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Breaker Size
Refer to installation instructions. Requires an
240V
40 Amps
18" minimum from cooktop to adjacent
overhead cabinets. Units are furnished with
208V
40 Amps
a 48" flexible armored cable.
Note: 36" Ribbon cooktops are approved for use over GE 30" Single Wall
Ovens and Warming Drawers only. Refer to cooktop and wall oven/
warming drawer installation instructions packed with product for current
dimensional data. If installed with a GE Profile
consult both the cooktop and downdraft installation instructions packed with
product before installing. Cooktop gas/electric supply may need to be
re-routed to install downdraft. The countertop must be at least 26" deep
with a flat surface area of 23-1/2" or more, front to back. In addition,
other clearances to the front edge of the countertop must be considered,
especially on raised bullnose countertops. Consult cabinet and countertop
manufacturer's specs for flush mount installation prior to install.
Flush Mount Installation Kit : Accommodates both 30" and 36" installations.
Not for use with stainless steel models. JXFLM2TW (True White glass)
JXFLM2CC (True Bisque glass) JXFLM2BB (Black – black glass cooktops)
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
Telescopic Downdraft System,
or
service,
20-7/8
36
Cooktop
19-1/8
33-7/8
2-1/2**
Required
* Depth of unit at conduit connection location (rear) is
6-1/2" on models PP980/975/950/945 and 4-5/8"
on models PHP960/PP972/962/942/932/912,
JP655/356/346.
**Raised bull nose countertops may require up to
3/8" additional clearance to prevent interference
with curved front.
36_color_cktp_install.eps
13" MAX.
depth
3-1/4*
30" MIN. to
unprotected
cabinet
15" MIN.
to cabinet
1-3/4" to
rear wall
2" MIN.
clearance to
side wall
from cut-out
Electrical junction box 16" MIN.
below countertop
Specification Revised 12/07
2" MIN.
clearance to
side wall
from cut-out
Cut should
not interfere
with cabinet
structure
at front
Listed by
Underwriters
Laboratories
321352
