Page 1: Washing Machine

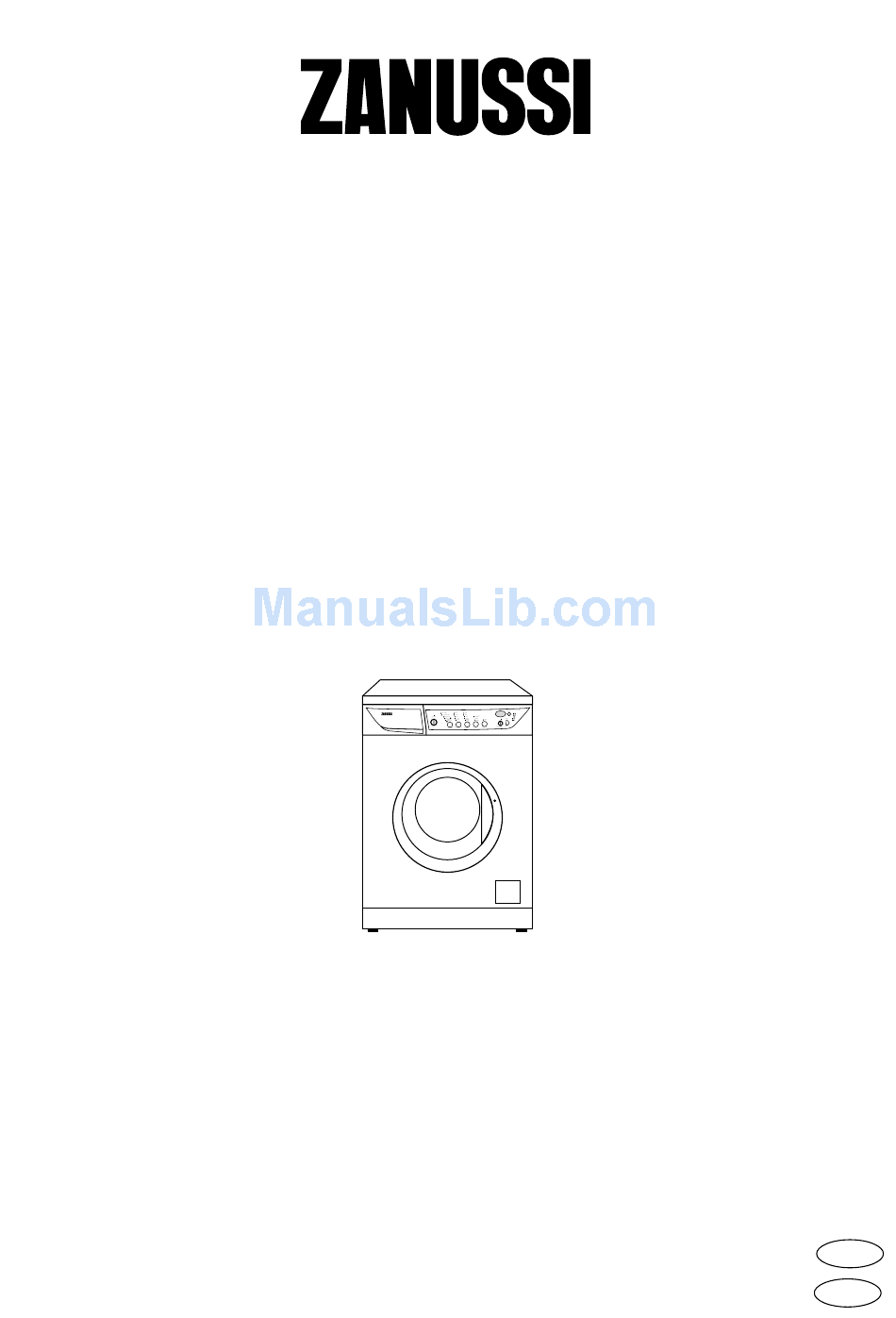

LAVADORA WASHING MACHINE FLN 1209 MANUAL DE USO USER MANUAL 124970880... - Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings 28-29 Maintenance Door seal Disposal Bodywork Detergent dispenser drawer Tips for environmental protection 29 Drain filter Water inlet filter Technical specifications Emergency emptying out The dangers of freezing Installation Unpacking Something not working? 47-48 Positioning Water inlet Water drainage Electrical connection Your new washing machine Description of the appliance... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door •... -
Page 5: Disposal
Child safety • Make sure that children or pets do not climb into the drum. • Children are often not aware of how dangerous • When the appliance is to be scrapped, cut off the electrical appliances can be. When the machine is electrical supply cable and destroy the plug with working, children should be carefully supervised the remaining cable. -
Page 6: Technical Specifications
Technical specifications DIMENSIONS Height 85 cm Width 60 cm Depth 60 cm MAXIMUM LOAD Cotton Synthetics Delicates Woollens SPIN SPEED 1200 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A WATER PRESSURE Minimum 50 kPa Maximum... -
Page 7: Installation
Installation Unpacking Positioning Install the machine on a flat hard floor. All transit bolts and packing must be removed Make sure that air circulation around the machine is before using the appliance. not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen You are advised to keep all transit devices so that units. -
Page 8: Water Drainage
Water drainage Electrical connection The end of the drain hose can be positioned in three This machine is designed to operate on a 220-230 V, ways: single-phase, 50 Hz supply. Hooked over the edge of a sink using the plastic Check that your domestic electrical installation can hose guide supplied with the machine. -
Page 9: Your New Washing Machine
Your new washing machine This new washing machine, which is fitted with the Jet system, patented Zanussi, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed. -
Page 10: Use
Control panel 1 ON/OFF button synthetic fabrics, 40°C for delicate fabrics, wool and fabrics to be hand-washed (HAND WASH programme). (MARCHA PARADA) By selecting position FRIO the machine will wash with Press this button to switch the washing machine on. cold water. - Page 11 - Select spin speed by means of button 5, and 8 Display press the START/PAUSE button. The following pieces of information are shown on the • Drain only display: - Press the RESET (ANUL.) button once, so as to cause the DRAIN light to light up, then press •...
- Page 12 Important! 9 START/PAUSE button The first time you use the washing machine, This button has three functions: when you switch it on, it may display a blinking zero and give an audible warning signal. This is due to the fact •...
- Page 13 Example: 11 DELAY (RETARDO) button In this case, both the This button makes it possible to delay the starting of drain and the spin (at the programme by up to 24 hours. The delay you the speed provided for have selected is shown on the display for about 3 the selected type of seconds;...
-
Page 14: Washing Hints
Laundry weights Washing hints The following weights are indicative: bathrobe 1200 g Sorting the laundry napkin 100 g Follow the wash code symbols on each garment quilt cover 700 g label and the manufacturer’s washing instructions. Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens. -
Page 15: Detergents And Additives
Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on residual marks on white fabrics with bleach and then the type of fabric, load size, degree of soiling and rinse thoroughly. -
Page 16: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 17: Operating Sequence
4. Switch the machine on Operating sequence To switch the machine on, press the ON/OFF button : the mains-on light comes on. Before washing your first load of laundry, we The display will show three blinking dashes or a recommend that you run a cotton cycle at 60°C, with blinking zero. -
Page 18: Select The Temperature
6. Select the temperature 9. Select the QUICK WASH option Press the TEMPERATURE button if you wish to Depress LAVADO RAPIDO button to select the select a temperature value different from the one QUICK WASH option, if your laundry is only slightly proposed by the washing machine. -
Page 19: End Of Programme
12. How to change a programme Pay attention to the level and temperature of the water in the washing machine! during its cycle When you close the door and press the ON/OFF Before you make any change, you must pause the button again, the washing machine will resume the washing machine by pressing the START/PAUSE programme from the point where it had been... -
Page 20: Washing Programmes
Programme chart Washing programmes Type of Consumption* laundry and Programme/ Description of Load Available options symbols on temperature programme Energy Water Time labels litres h/min. 6 kg Cottons Wash at CENTRIFUGADO 2.28 White cotton: Algodón 60°-90°C AGUA EN LA CUBA e.g. -
Page 21: Maintenance
Maintenance 1. Door seal Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the Check from time to time the door seal and eliminate drawer after cleaning. eventual possible objects that could be trapped in the fold. -
Page 22: Water Inlet Filter
5. Water inlet filter The dangers of freezing If you notice that the machine is taking longer to fill, If the machine is exposed to temperatures below check that the filter in the water inlet hose is not 0°C, certain precautions should be taken. blocked. -
Page 23: Something Not Working
Something not working? Problems which you can resolve yourself. During machine operation it is possible that one of the following alarm codes appears on the display: - E10: problem with the water supply If at the end of the programme the alarm code EF0 is - E20: problem with water draining displayed this means that the drain filter is clogged. -
Page 24: Laundry Is Not Spun Enough
Problem Possible cause • Spinning starts late or the • The electronic unbalance detection device has cut in because the laundry is not evenly distributed in laundry is not spun enough: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
