TH-15A

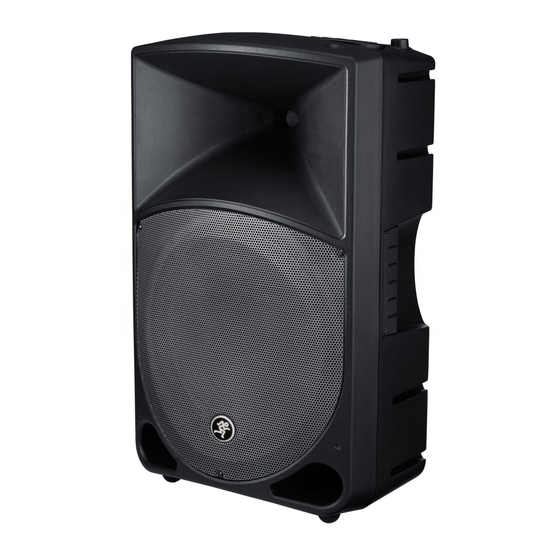

The Mackie TH-15A is a full-range, portable, powered
loudspeaker system providing high-output, ultra-wide
dispersion and low-distortion performance in a compact,
lightweight design. Two Fast Recovery™ amplifiers
independently power a 15-inch neodymium woofer and a
precision 1-inch compression driver. Mackie's
sophisticated Active electronics provide phase correction,
crossover, time correction, equalization and protection
circuitry.
Mackie-designed Active electronics provide a host of
processing designed to enhance the performance of the
TH-15A. Equalization, crossover, and time alignment are
working at all times to improve sonic performance. Protective
circuitry includes over-excursion protection, thermal
protection shutdown, auto reset, and driver protection,
including independent HF and LF compressors.
The TH-15A features a number of dedicated controls including
an EQ on/off switch, a 3-band EQ/contour section, and a single
microphone and line input level control.
The center of gravity, handle locations, handle design, and
ease of use have been ergonomically designed. There is also an
integrated pole mount cup and a weather-resistant steel grille.
The trapezoidal cabinet has been designed to provide an ideal
floor monitoring position.
The cabinet is constructed of high-pressure injected
polypropylene. The enclosure features reinforcement ribbing
and structural strengthening resulting in a strong, super-rigid
design providing ideal acoustical characteristics.
APPLICATIONS
Small club/band PA systems, houses of worship,
DJs, vocal/band monitor wedges, gymnasiums, banquet
halls, conference rooms and many, many more.
TH-15A
FEATURES:
2-way bi-amplified, optimized powered loudspeaker
system
400W peak of ultra-efficient Fast Recovery
amplification
• LF 300W peak power (Class-D)
• HF 100W peak power (Class-A/B)
High-output transducers
• 15" high-precision woofer
• 1" compression driver
Mackie Active electronics provide total system
optimization
• Precision 2-way crossover
• Transducer time-alignment
User-adjustable 3-band contour EQ with sweepable
mid-frequency
Mic/Line input for direct connection of a
microphone or mixer output
Tough, impact-resistant polypropylene enclosure
Pole-mountable and floor wedge-able
Extremely lightweight and portable (36 lb / 16.3 kg)
POWERED
LOUDSPEAKER
1/6 PAGES
